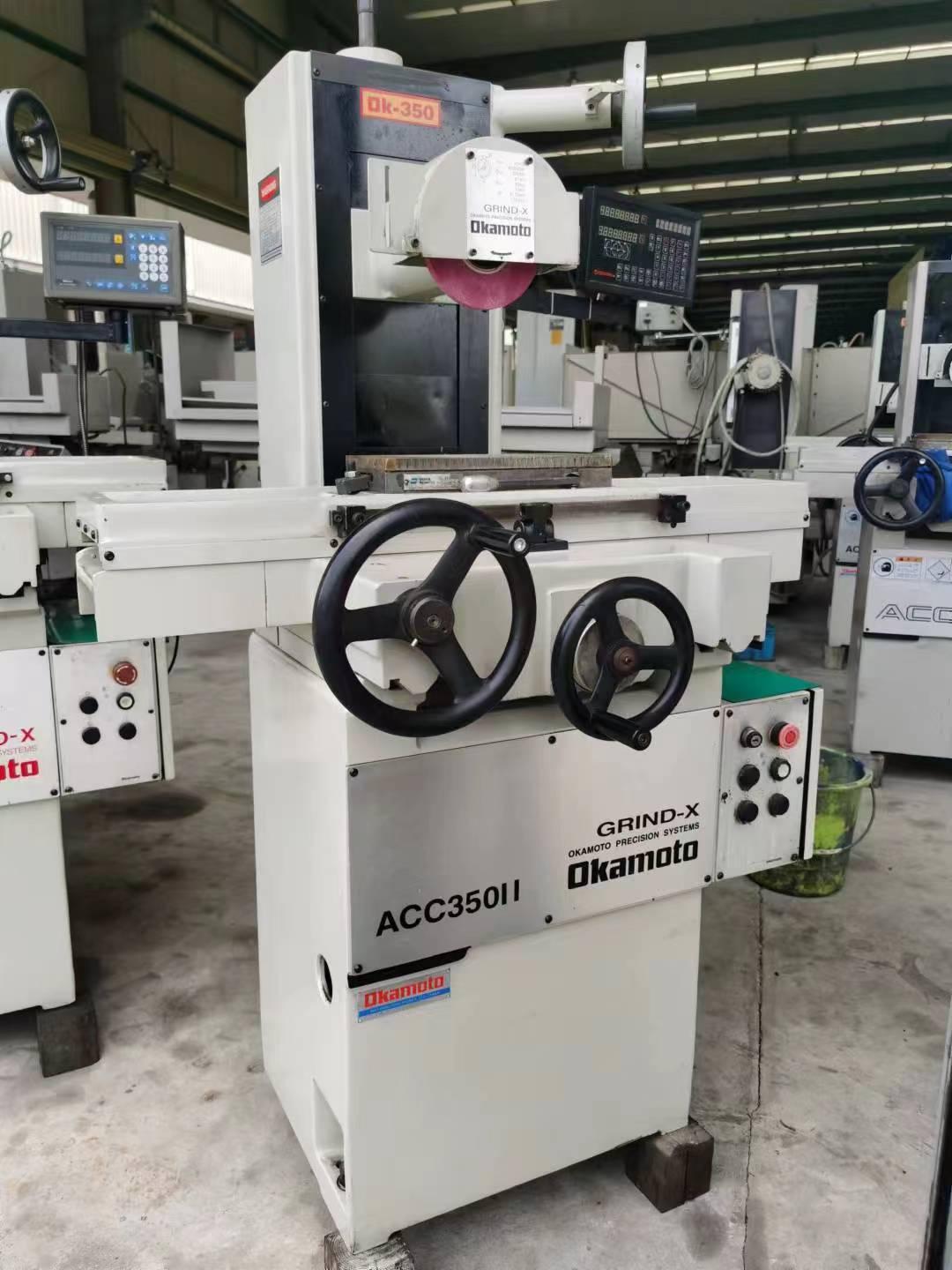

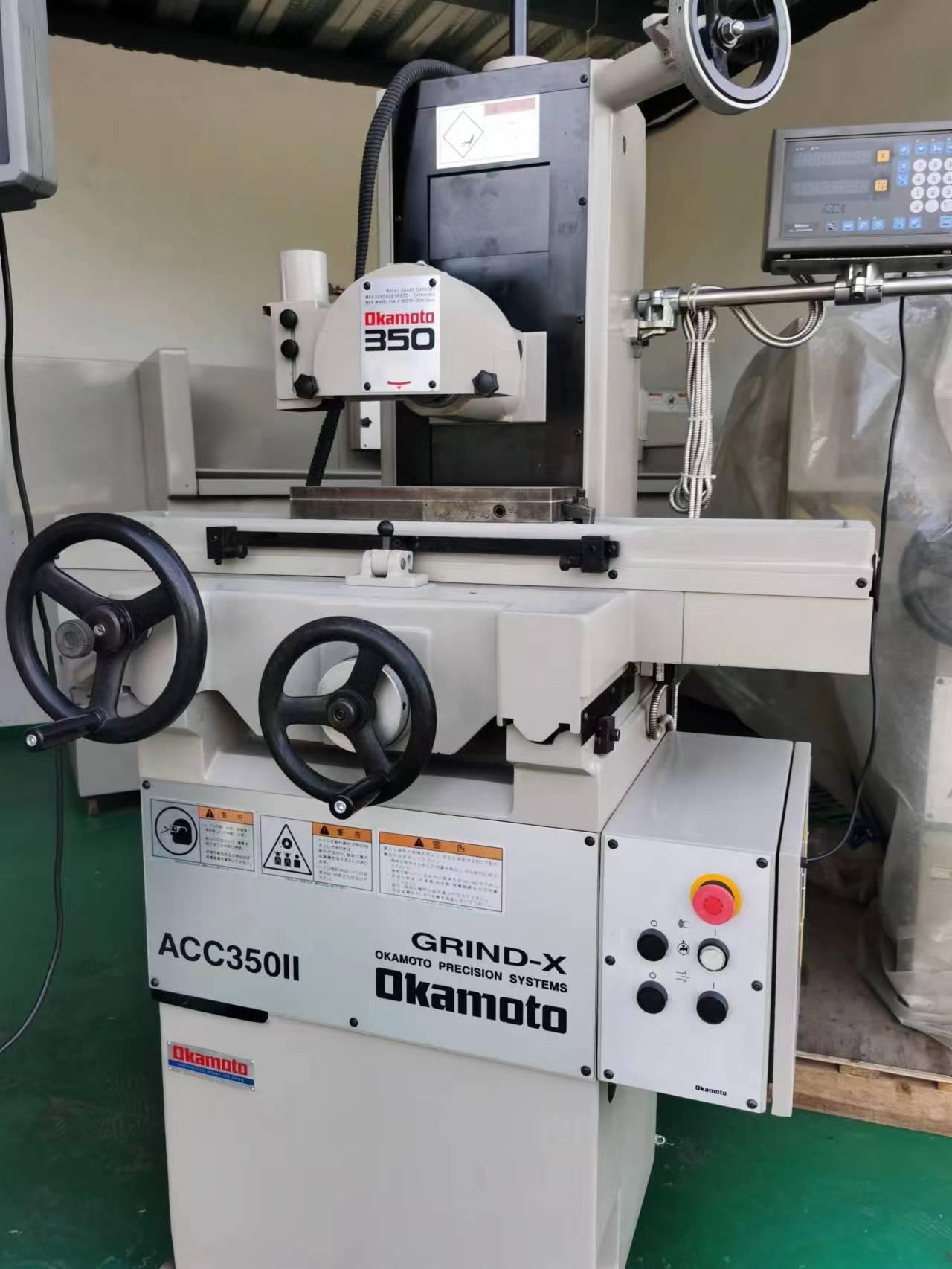

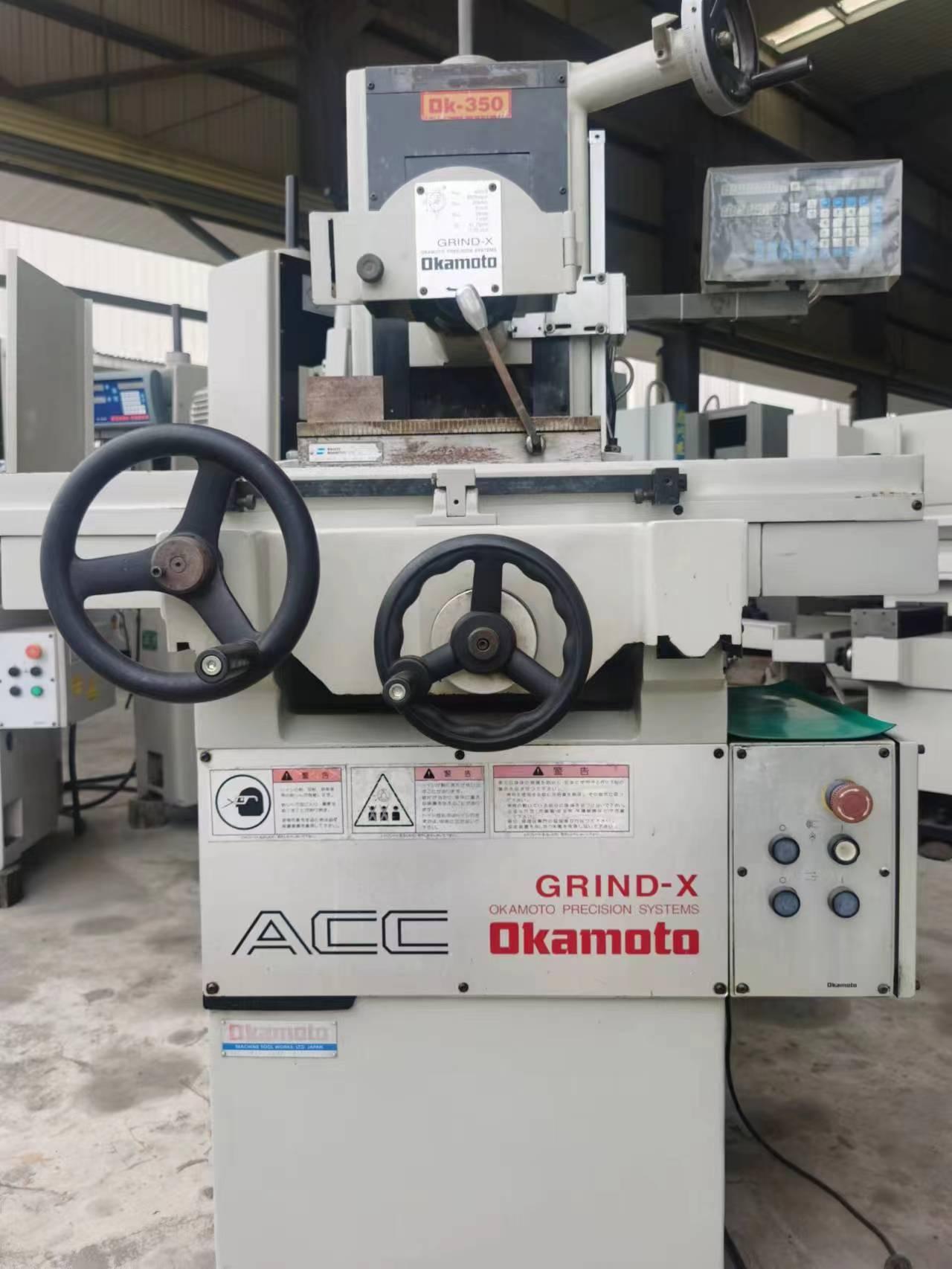

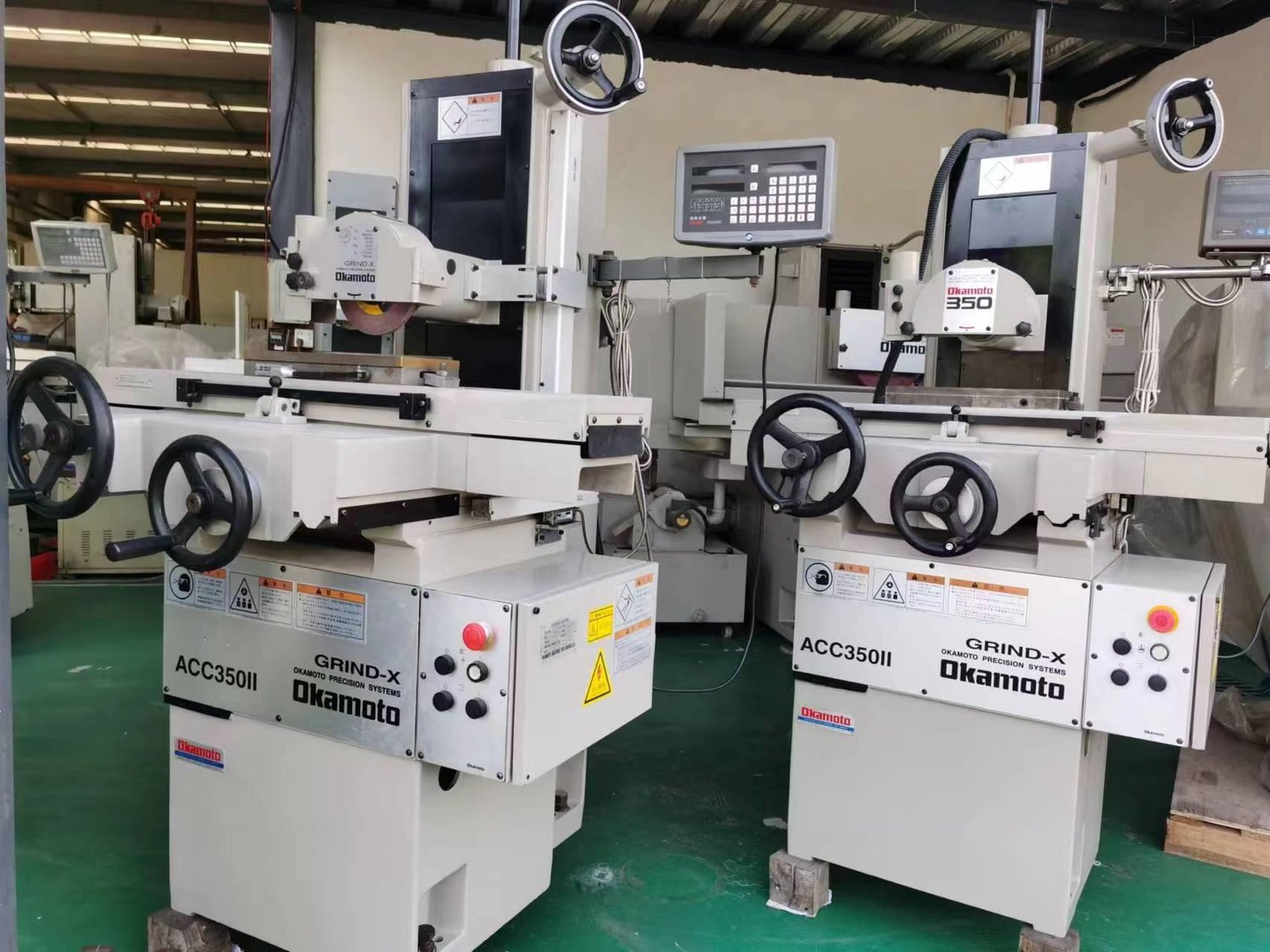

Okamoto ACC350II Grinding machines

Worktable :360X150mm

Distance from worktable to bottom of grinding wheel :298mm

Chuck size:350X150mm

Worktable load(including chuck):120KG

T-slot (width X number of slots):17X1mm

Longitudinal feed:

Maximum travel :390mm

Manual feed rate per revolution:100mm

Transverse feed:

Maximum travel:210mm

Manual feed rate per revolution:5.0mm

Remote control box increment:0.02mm

Vertical feed:

Manual feed rate per revolution:1.0mm

Remote control box increment:0.005mm

Wheel diameter - width * internal diameter :205*6-25*38mm

Speed :2900rpm

Spindle motor power:1.5/2kw/p

Motor for dust collection device: 0.4/2kw/p

Machine footage:1555X1381X1918mm

Weight:740KG
