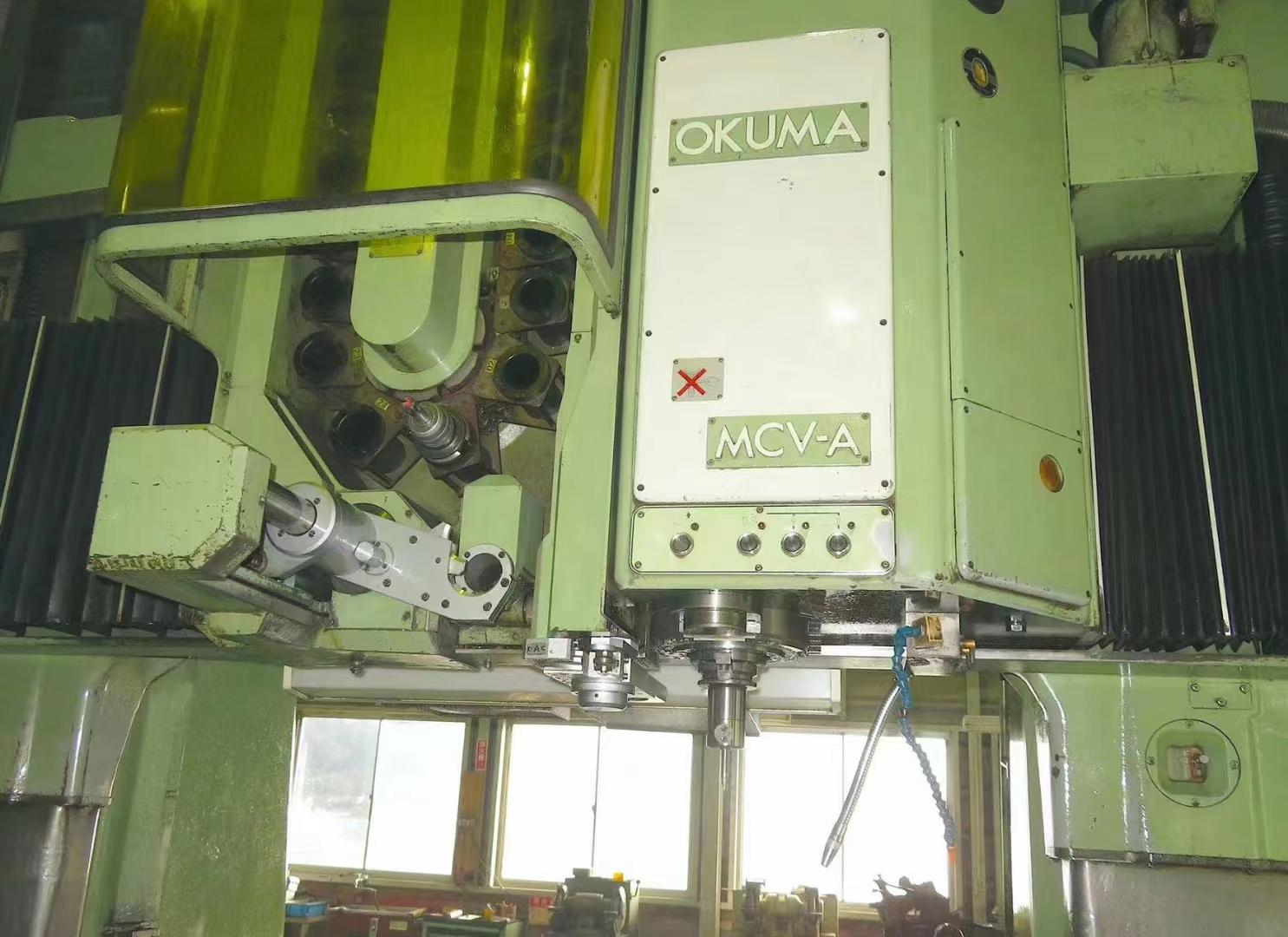

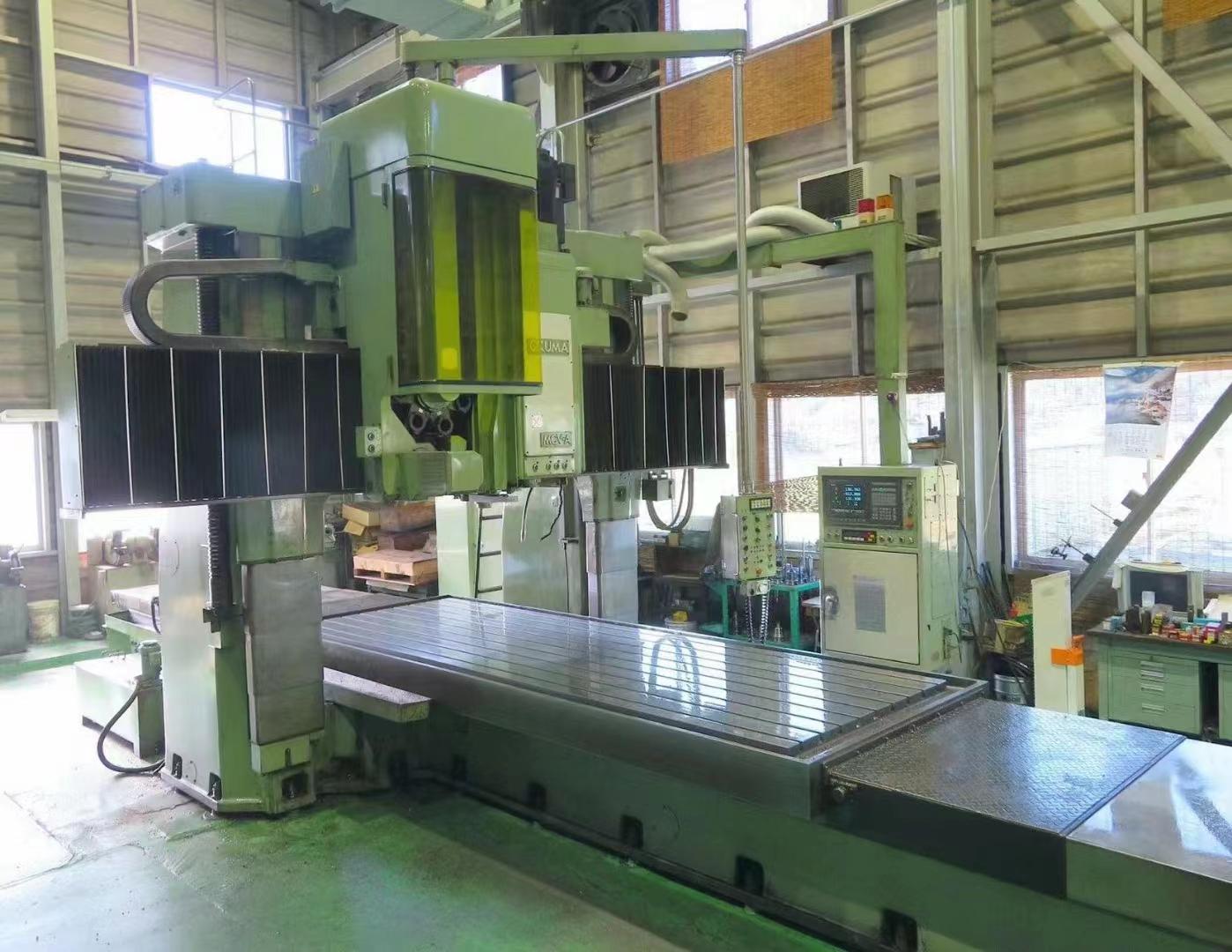

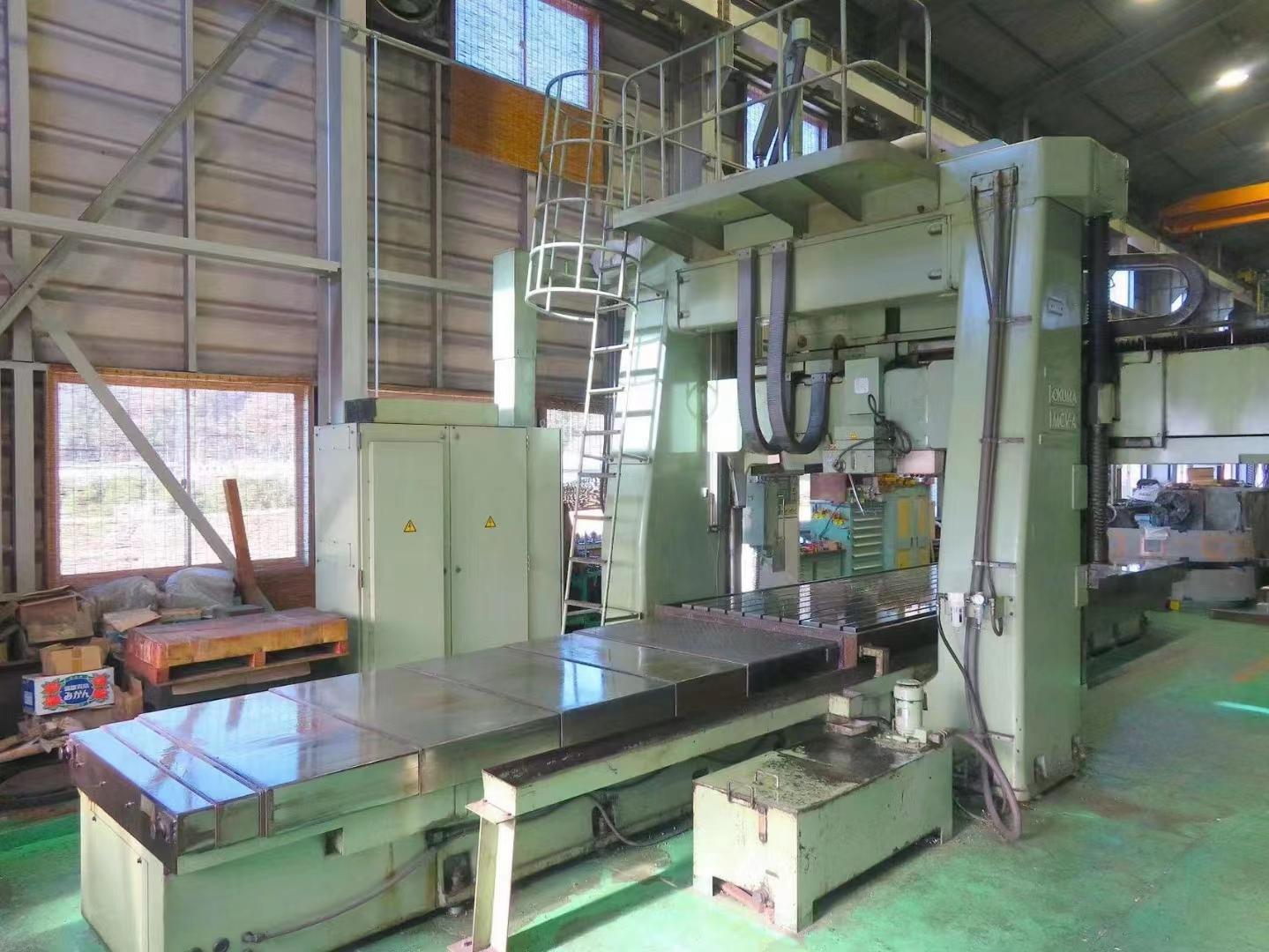

Okuma MCV-A Gantry machining centre

[Product Information]:

Gantry width: 2050mm

Distance worktable surface to spindle nose: 0-1500mm

Worktable load: 12000kg

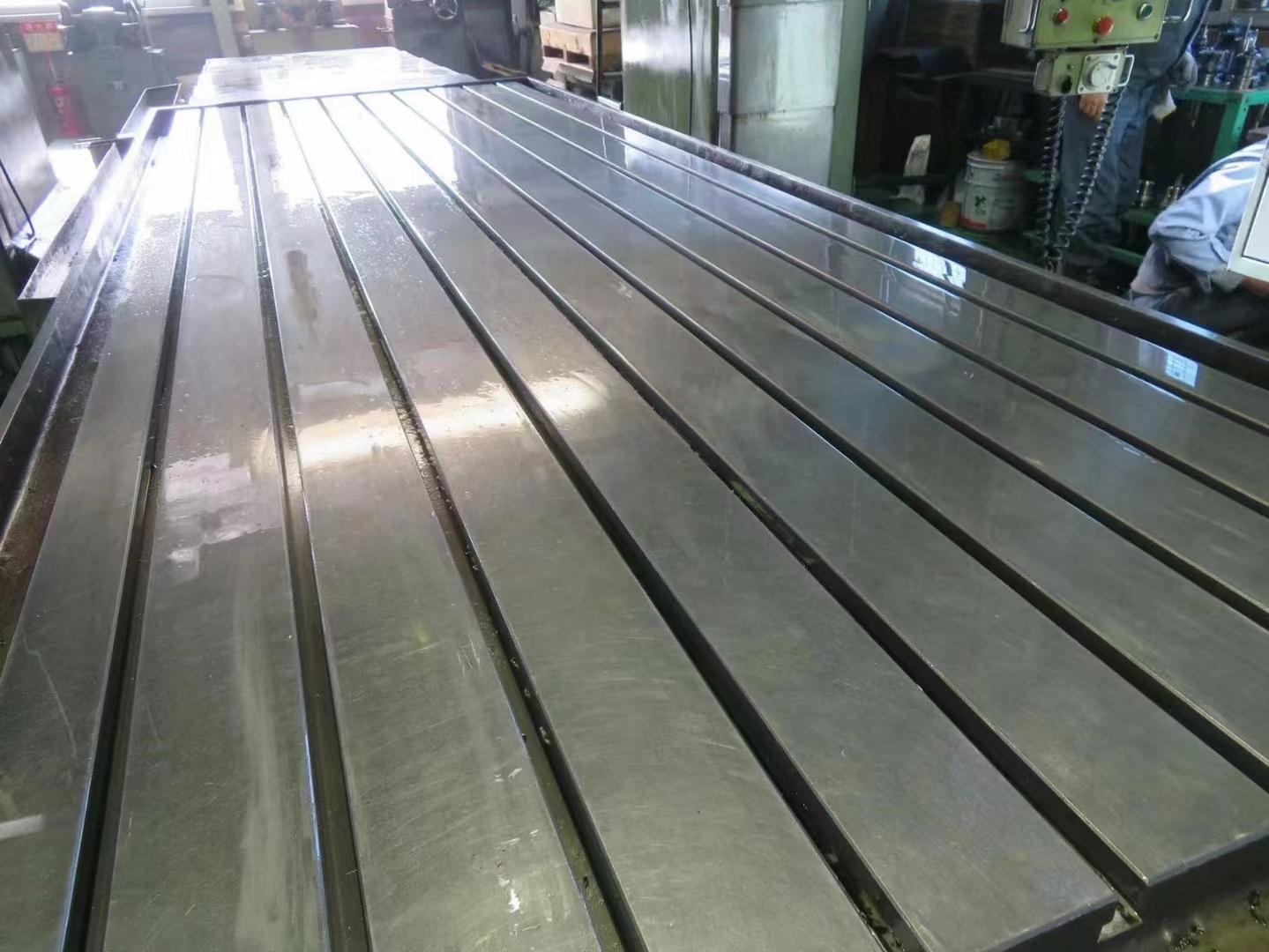

Worktable size: 1500*4100mm

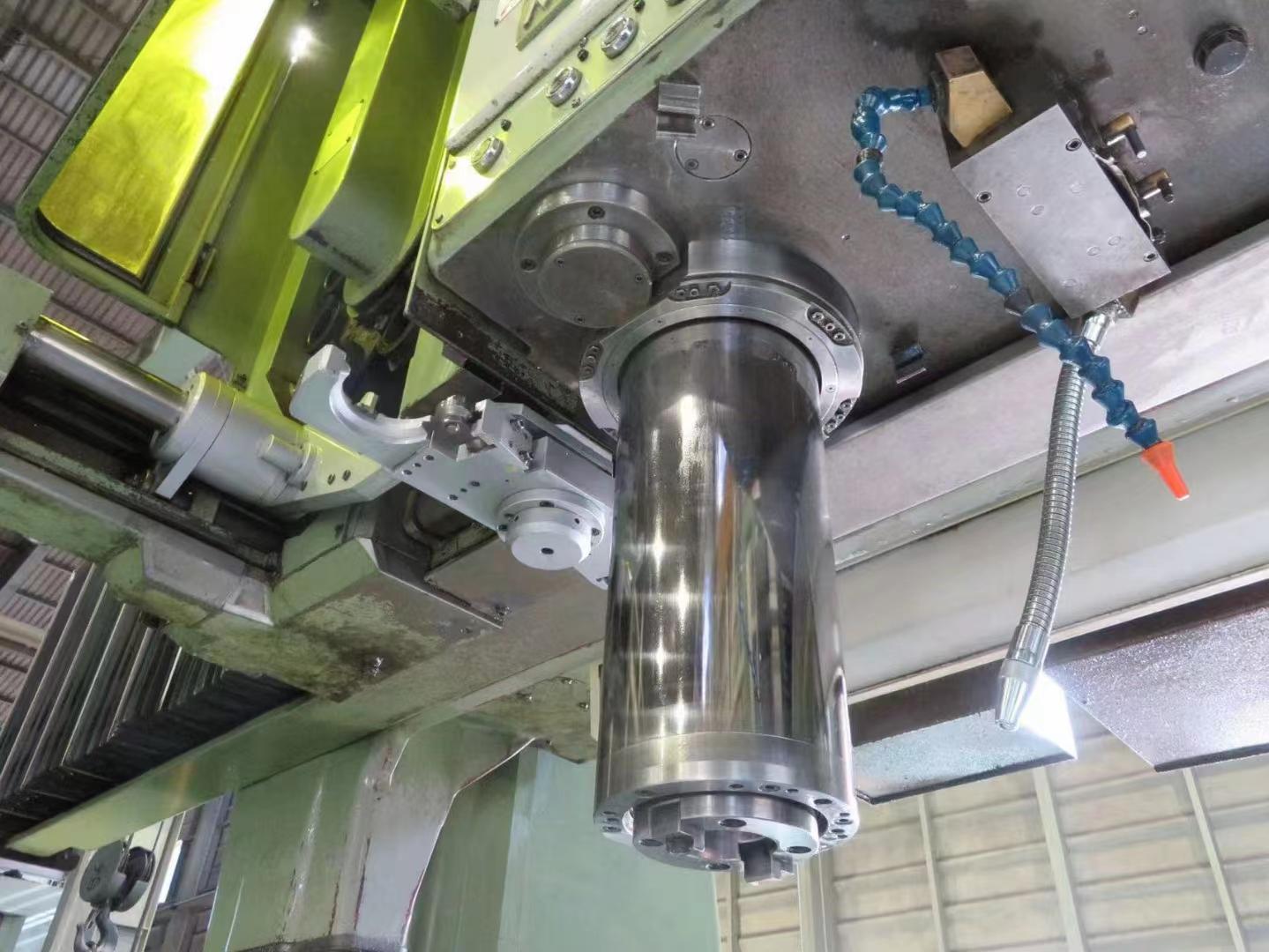

Spindle diameter: 100mm

Spindle speed: 30-2000rpm

X*Y*Z travel: 4000*2000*400mm

Circular ram diameter: 185mm

Beam travel: 1150mm

Tool holder type: BT50

Tool magazine: 100

Machine footage(length * width * height):10100*5250*4550mm

Weight: 36500kg

Spindle speed: 20-4000rpm
