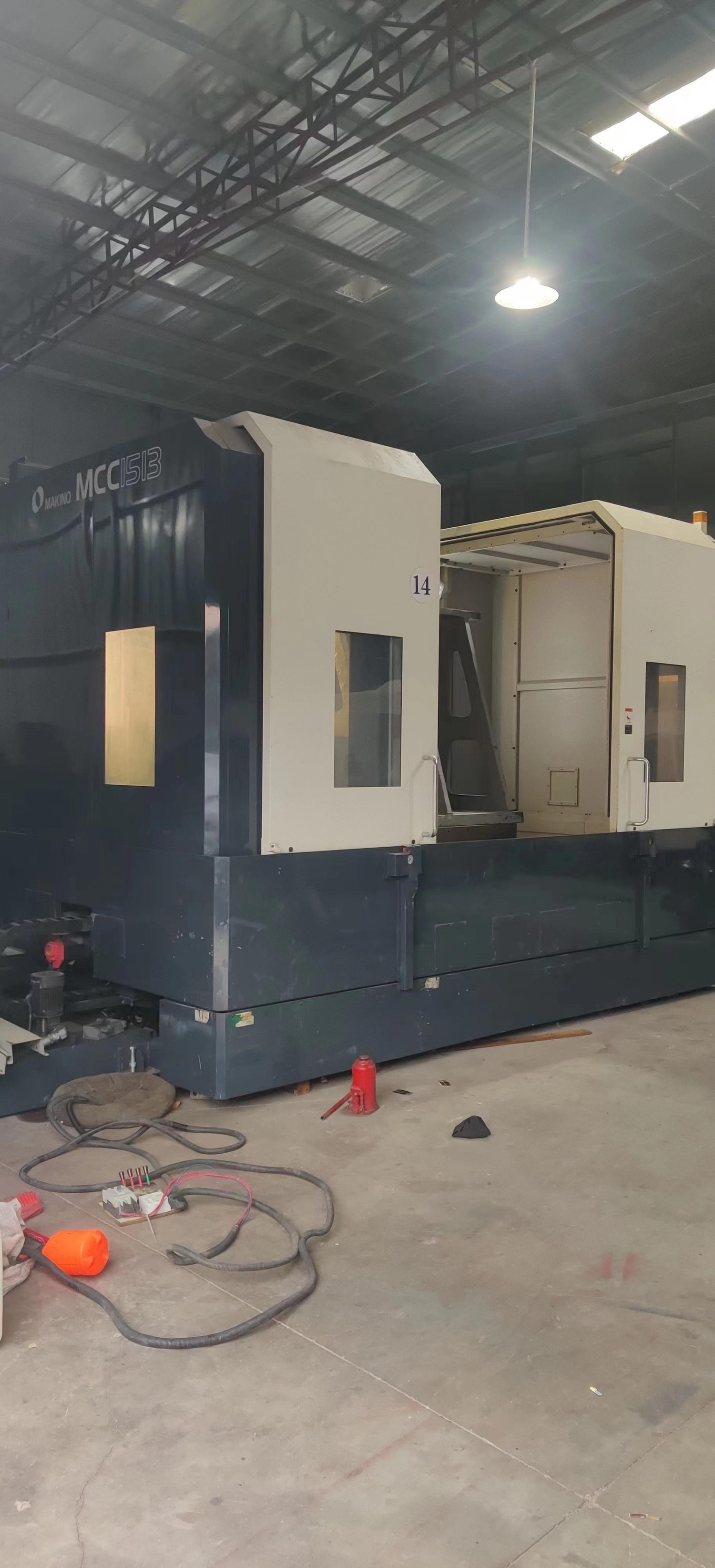

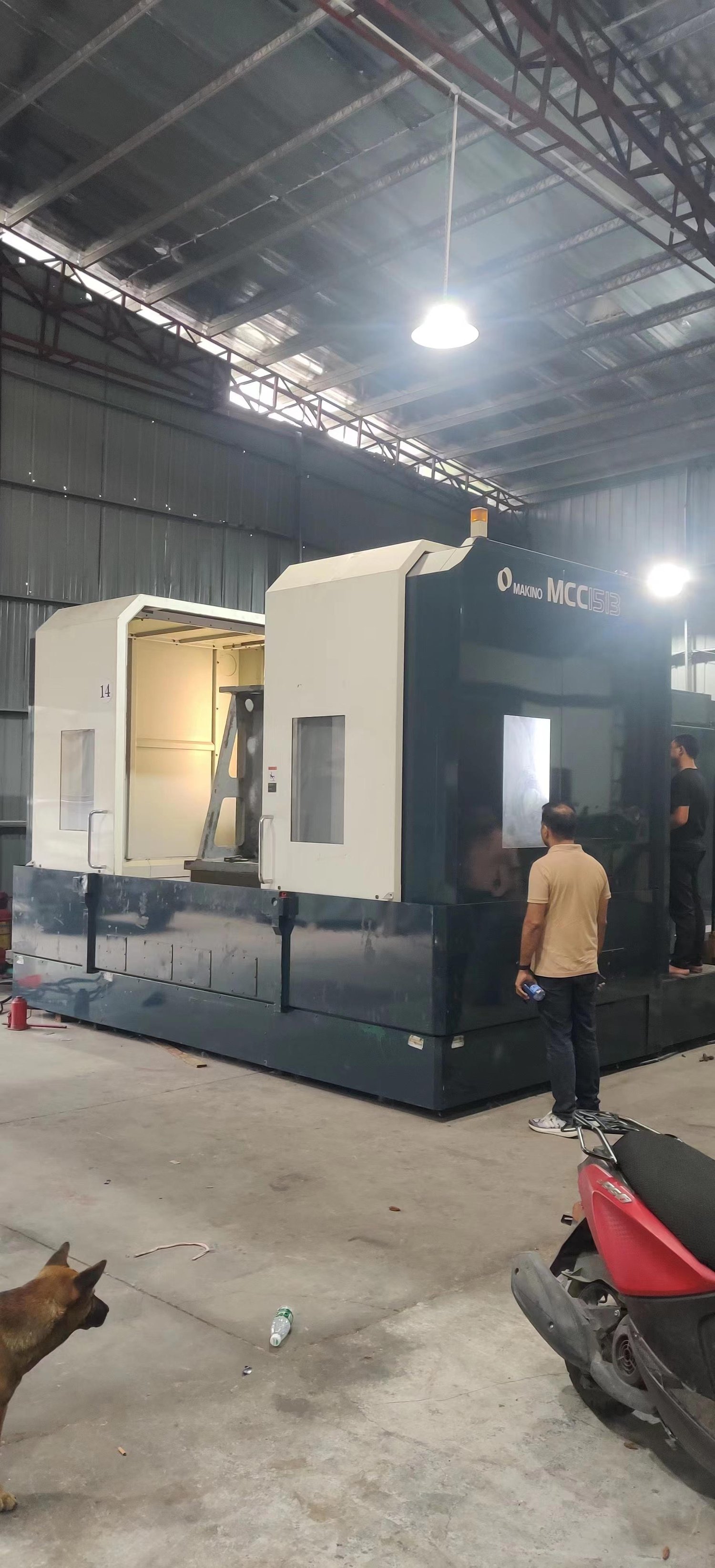

Makino MCC1513 Horizontal Machining centre
[Product Information]:
- Inventory number：90367

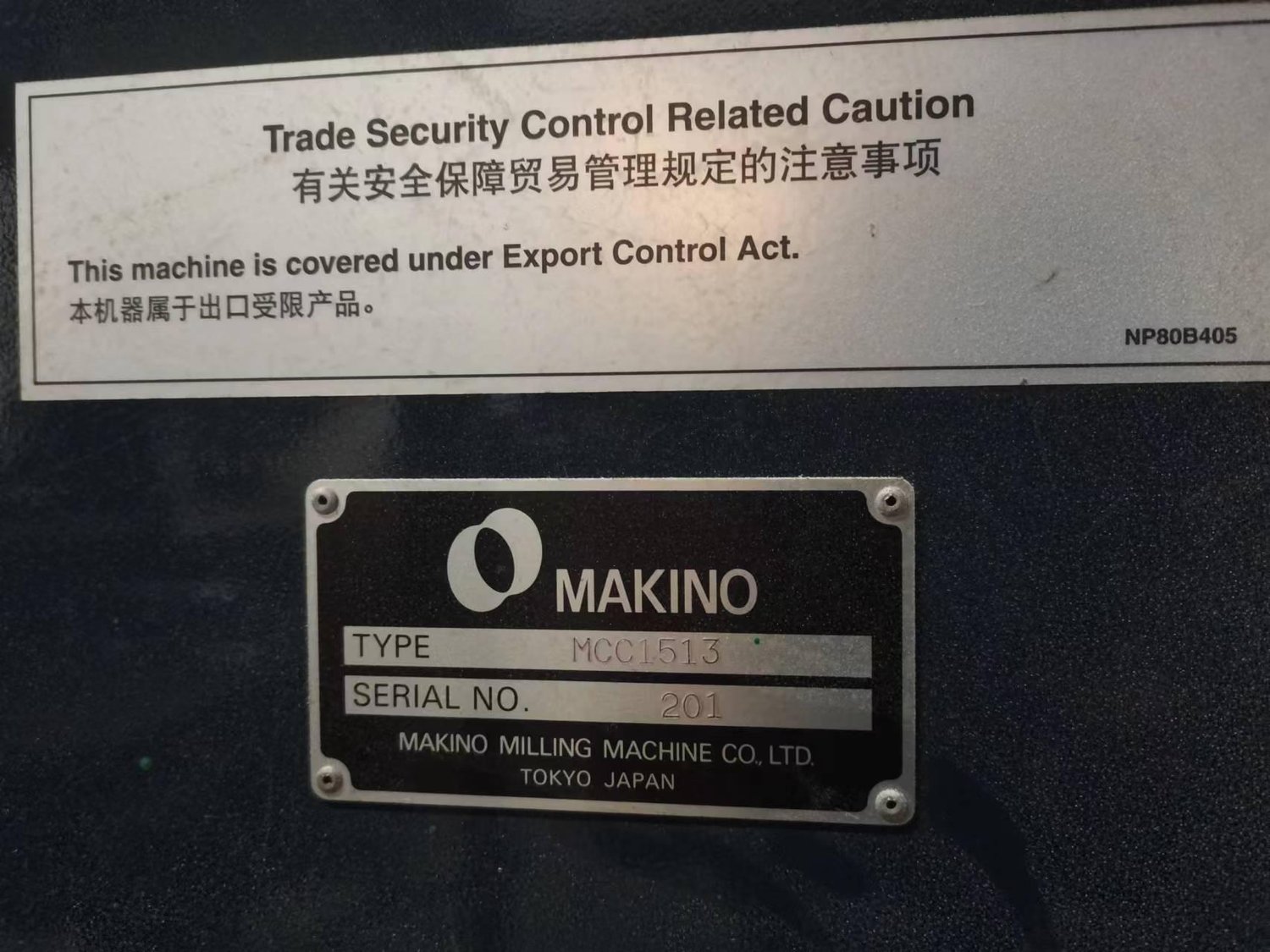

- Brand：Makino
- Model：MCC1513
- Origin：Japan
- Location：China
- Year：2016
- Create Time：2023-08-24
Specifications:
Axis travel
X*Y*Z axis travel: 1500*1350*1300mm
B axis indexing angle: 360o
Four axes simultaneous movement

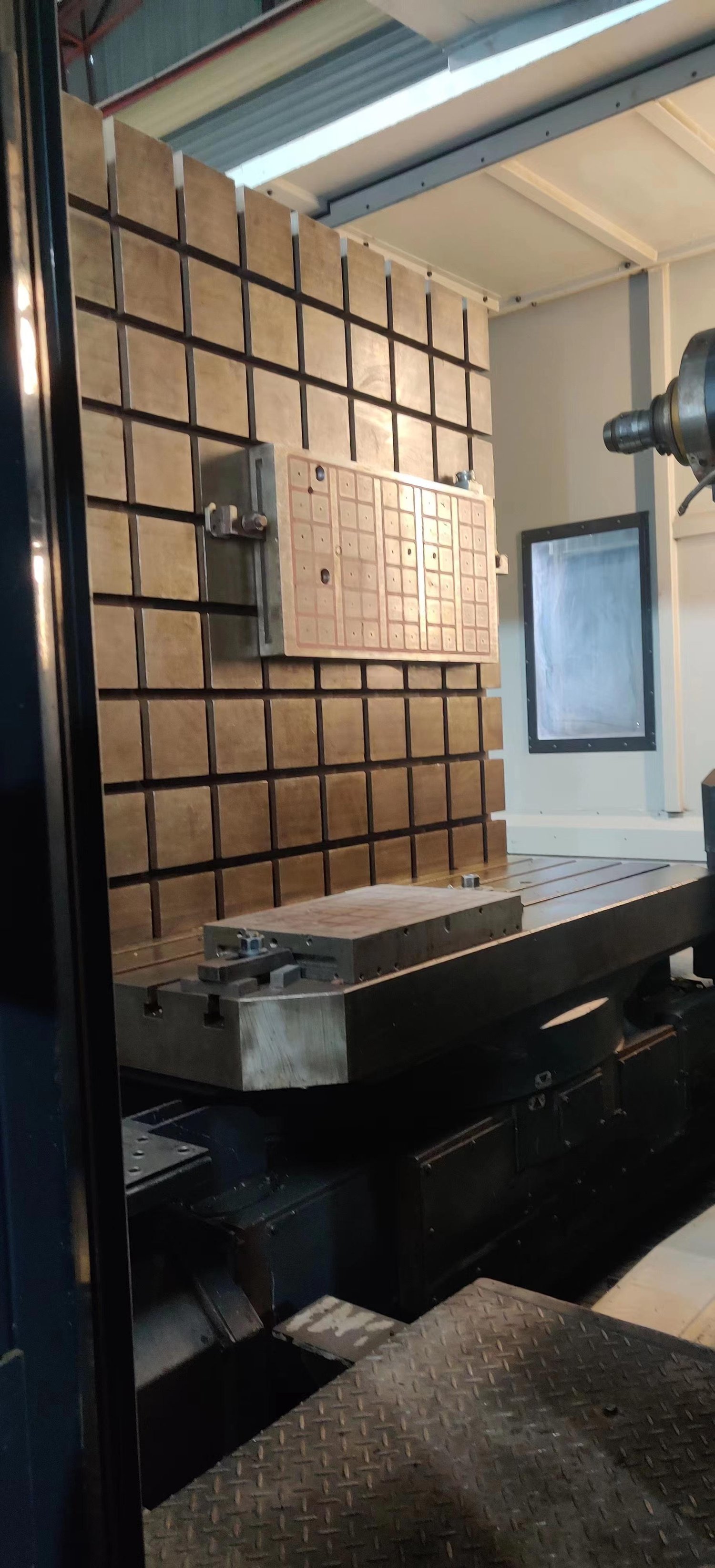

Worktable
Working surface size: 1500X1300mm
Maximum workpiece size (diameter X height) :1900X1100mm
Maximum load: 10t
Spindle
Spindle speed: 20~1500rpm
Continuous variable speed gear: 3
Taper: 7/24 cone No.50
Bearing internal diameter: 100mm
Drive motor (30 minutes/continuous): 30/25kW
Torque (10 minutes/continuous):353/235NM
Cooling/lubrication: mandrel/bearing internal pressure
Extension from column stretching dam board: 550mm
Feed rate
Fast feed rate: 25000 mm/min
Cutting feed rate：20000 mm/min
ATC
Tool holder type: JIS B6339 50T
Pop rivet type: MAS403-P50 T1
Tool magazine: 30
Maximum tool diameter:125mm/200mm(conditional)
Maximum tool length:550mm
Maximum tool weight:20kg
Tool maximum torque:20Nm
Accuracy
Positioning accuracy (JIS): 0.002mm
Repositioning accuracy (JIS):0.001mm
Machine footage
Width*Depth: 5050x5650mm
Height: 3690mm
Weight:25t
