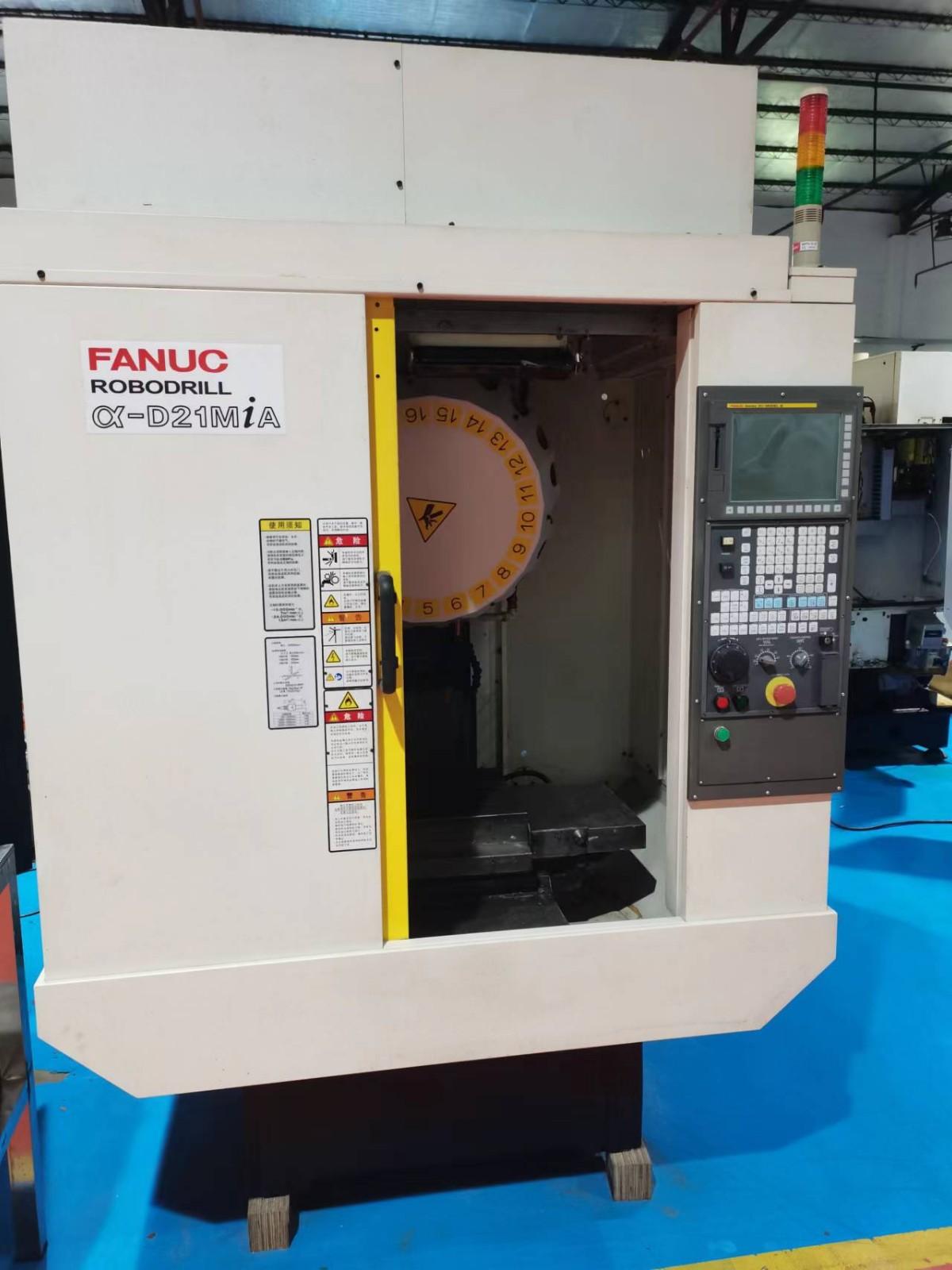

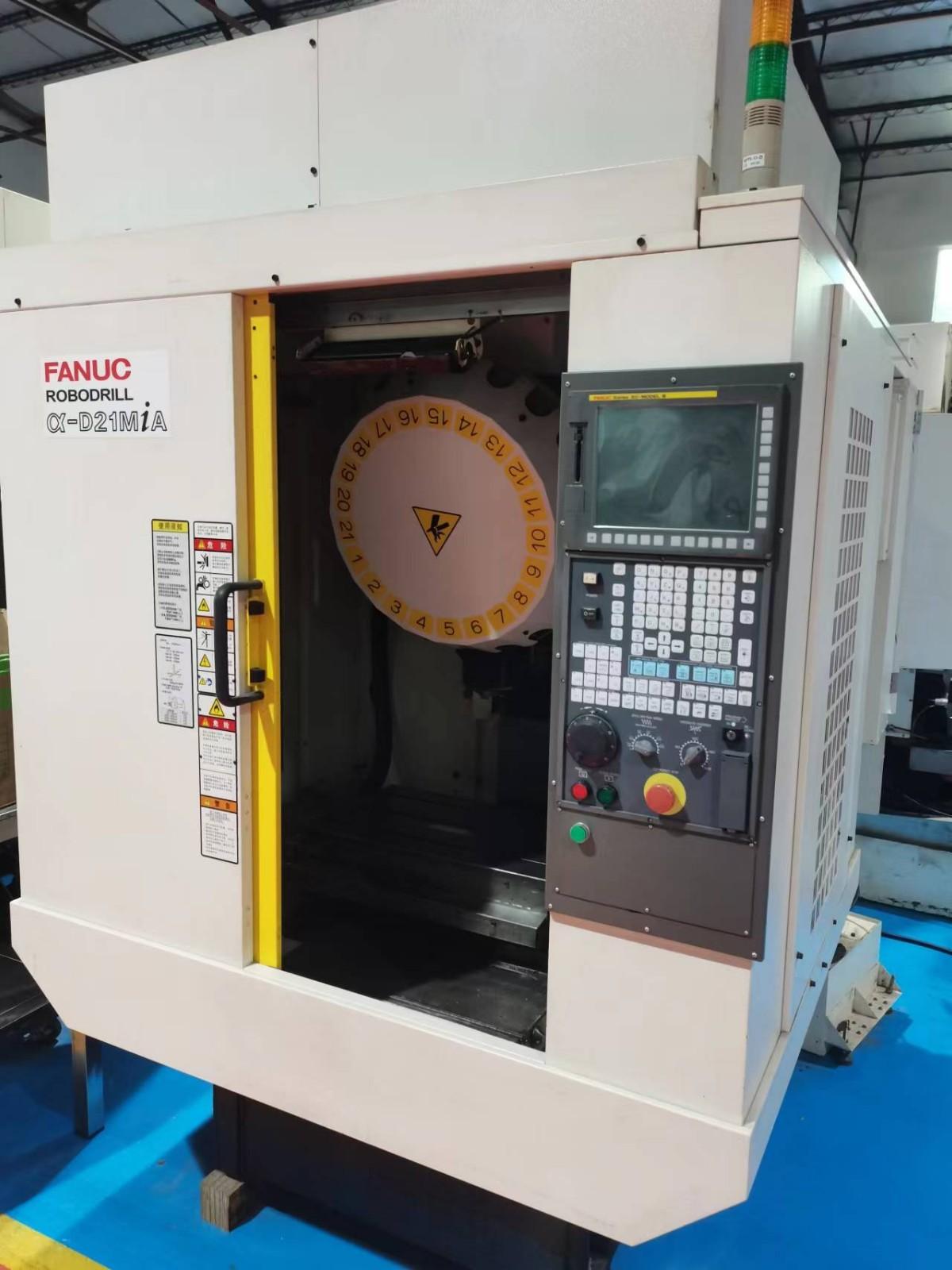

FANUC D12MiA Tapping machine

[Product Information]:

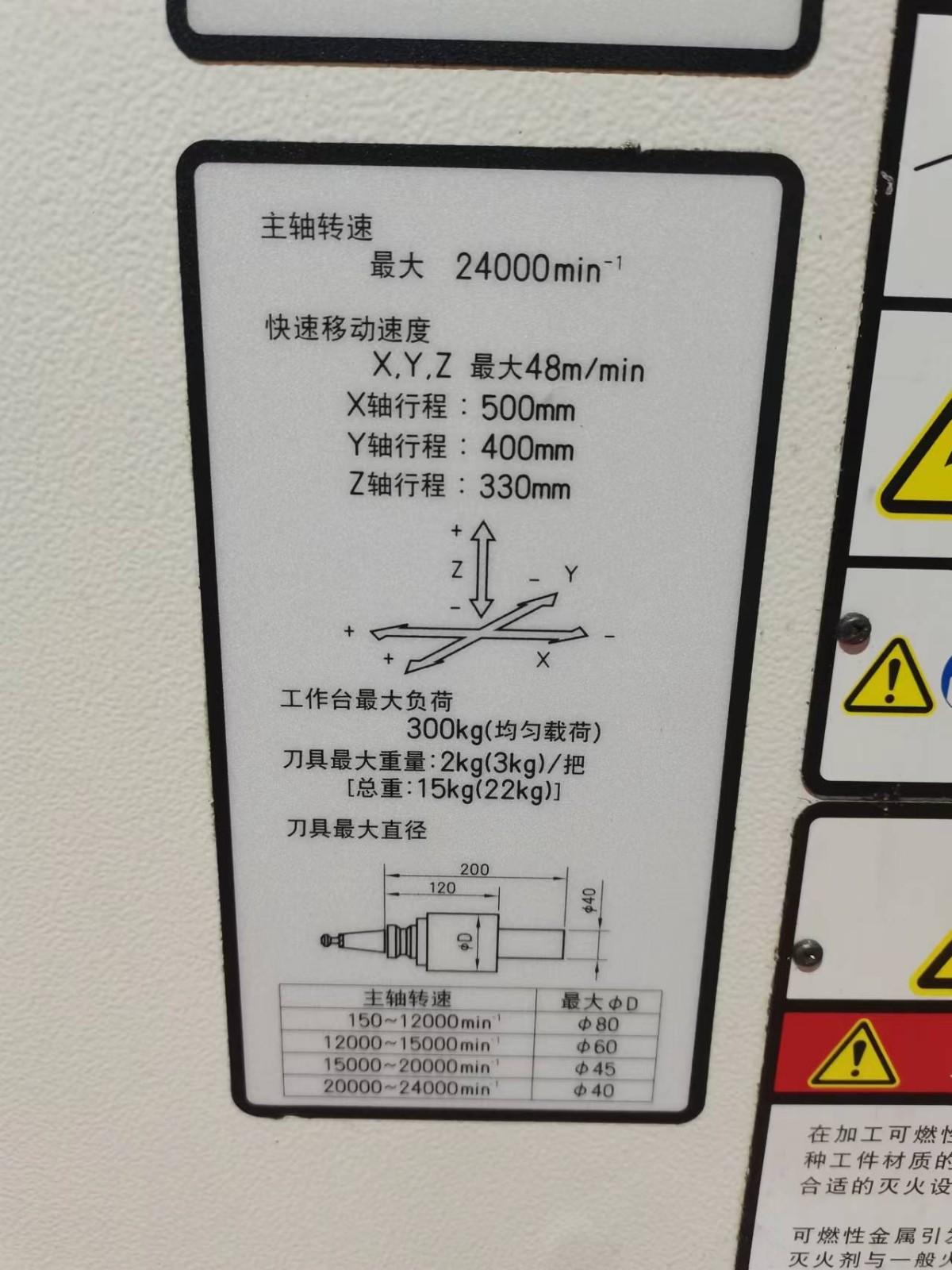

Three axes travel :500*400*330mm

Distance from worktable upper surface to spindle nose :150-480mm

Worktable size :650*400mm

Worktable load :300kg

T-slot :14*125*3mm

Spindle speed :24000rpm

Fast feed rate :48m/min

Cutting feed rate :30000mm/min

Main motor power :11/3.7kw

Footage :2236*1565*2040mm

Weight :2000kg
