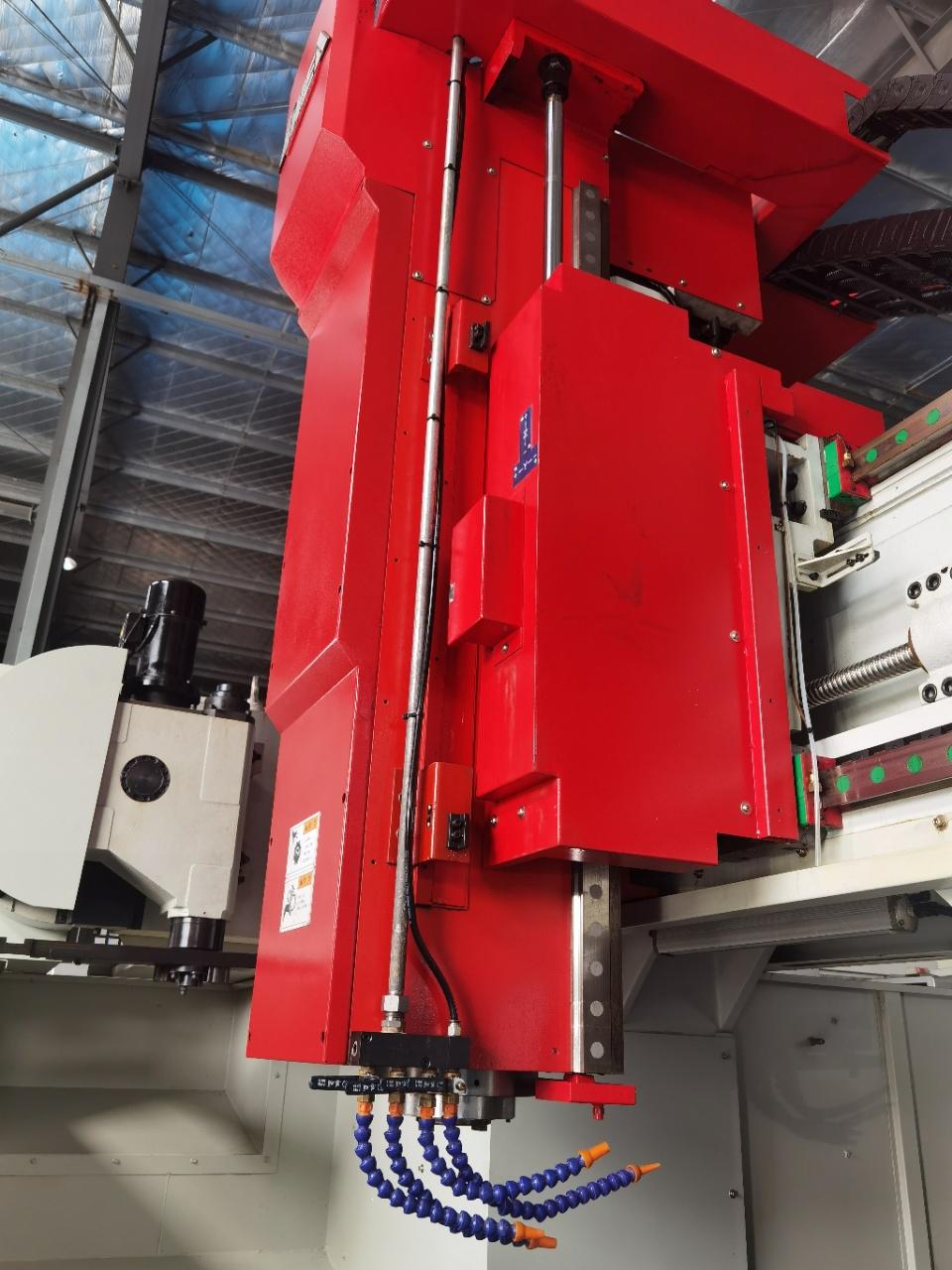

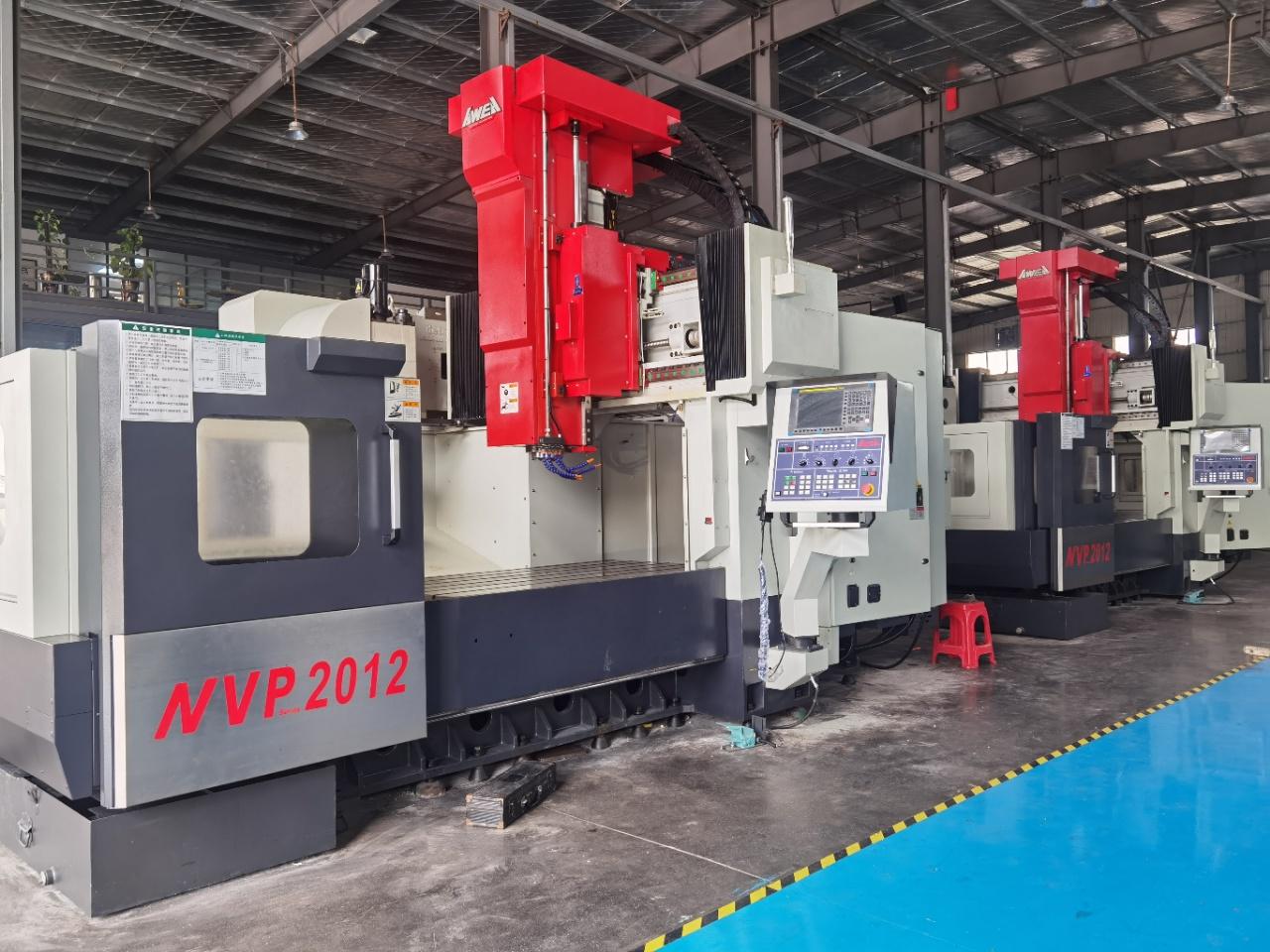

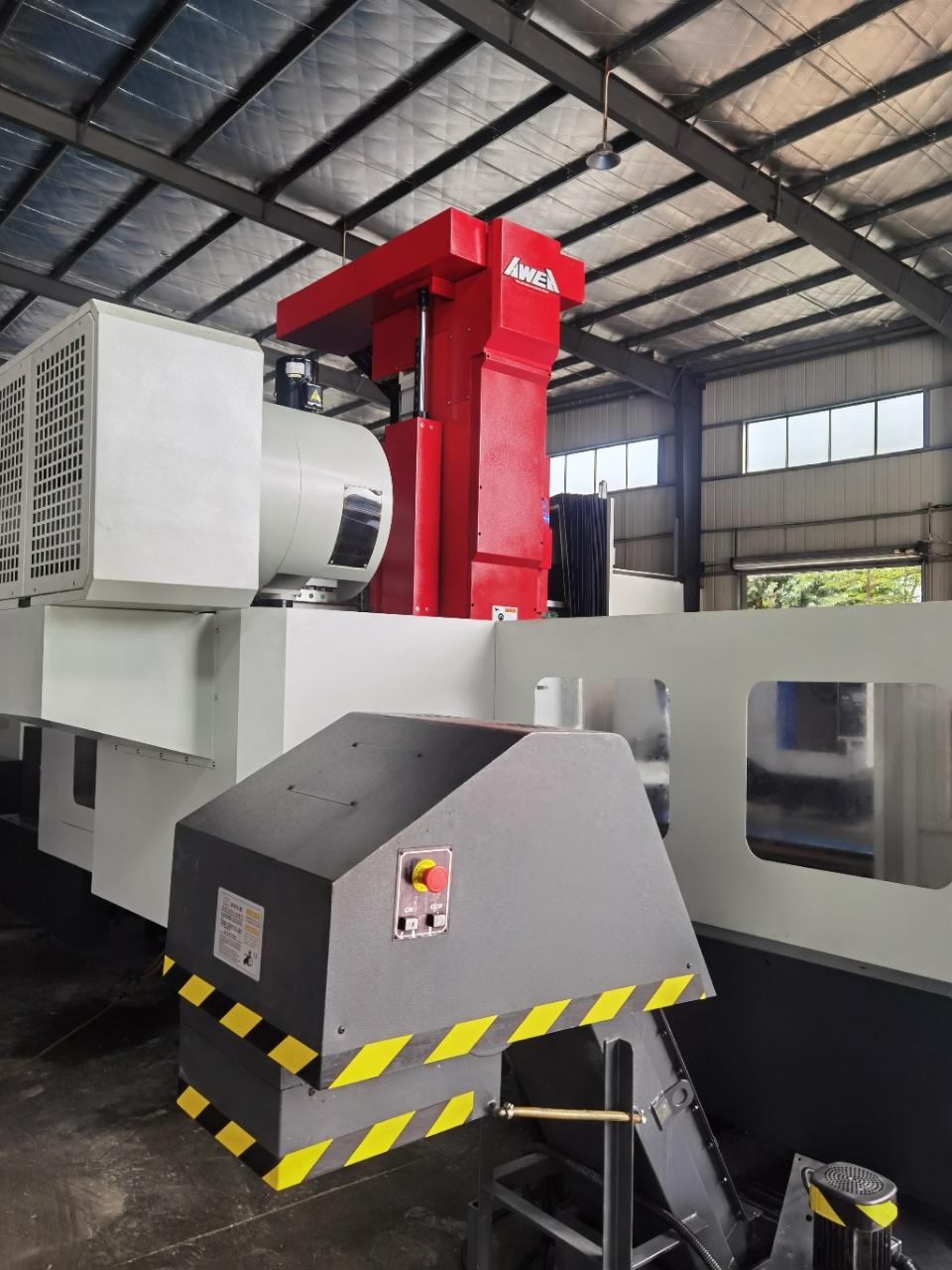

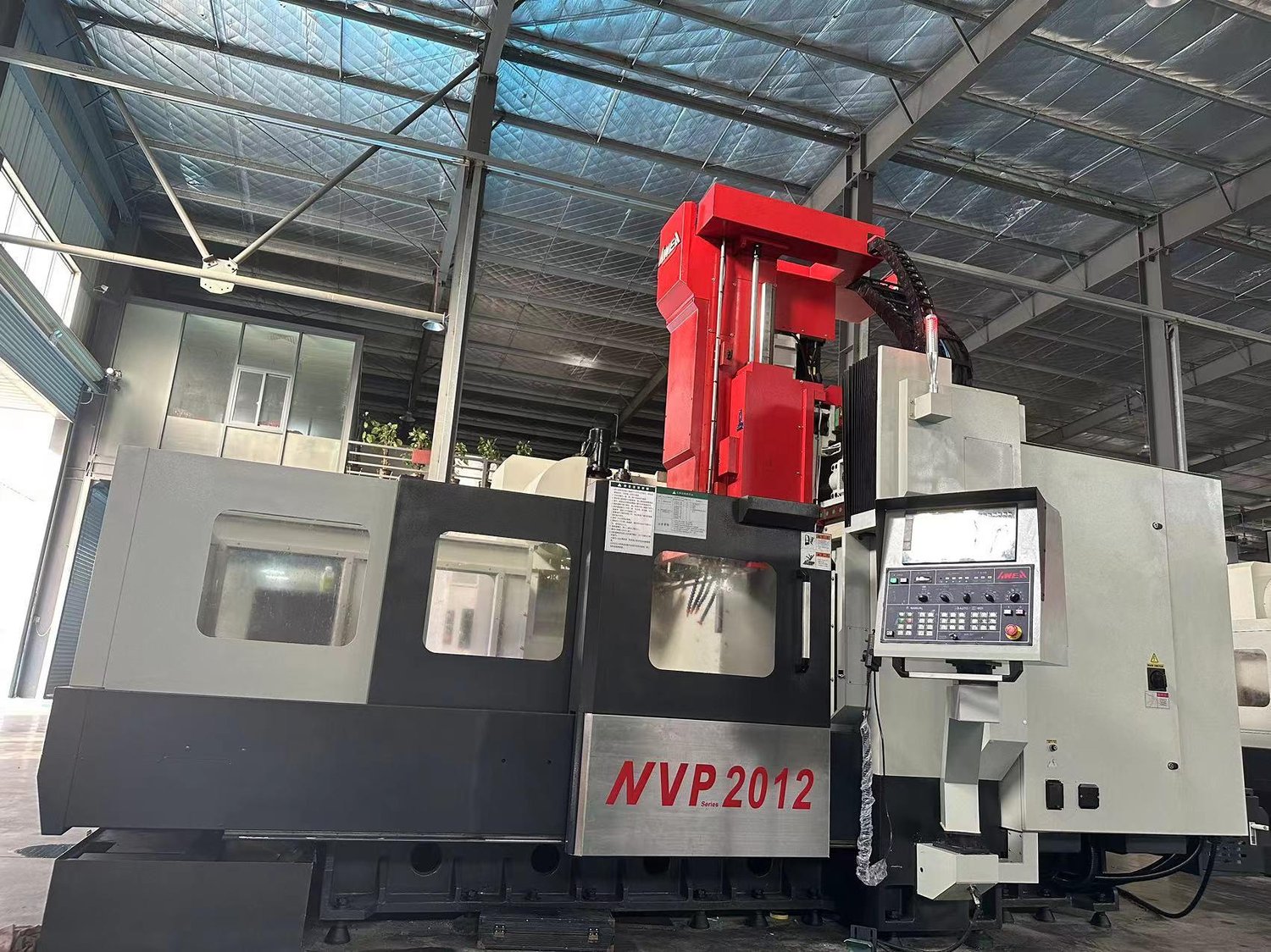

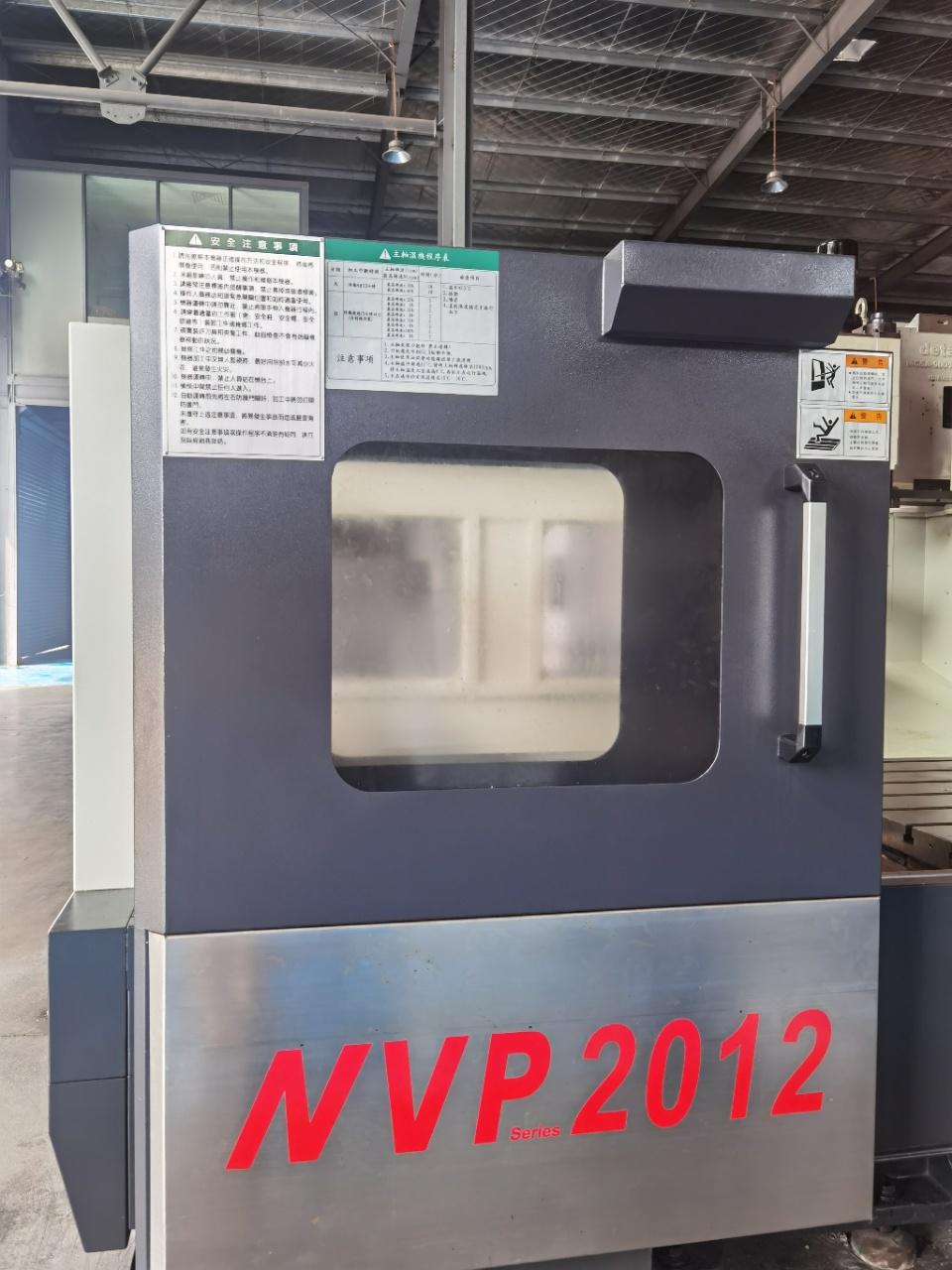

AWEA NVP2012 Gantry machining centre

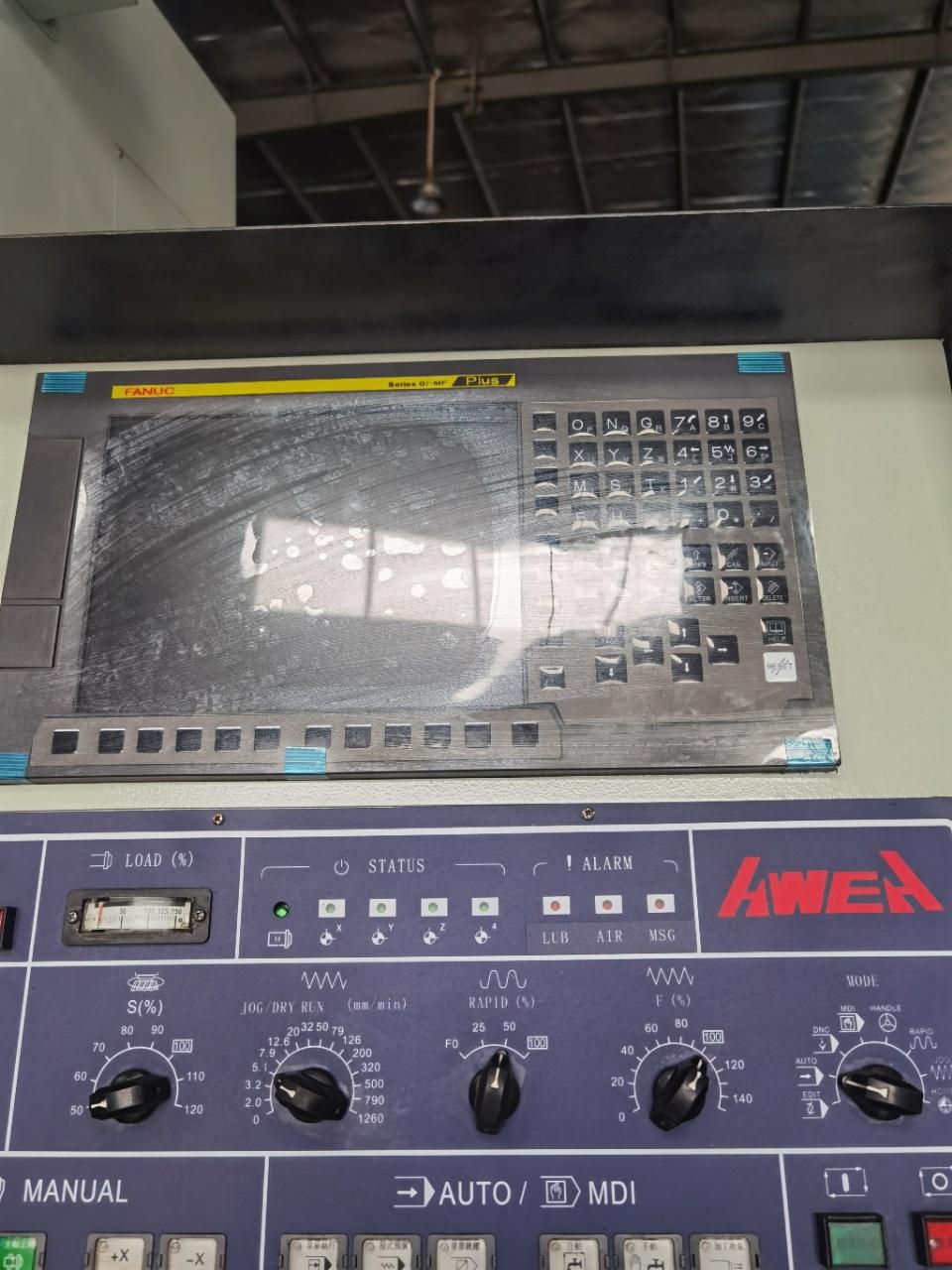

CNC System :FANUC Oi WF PLUS

X/Y/Z axes travel :2000*1200*760 mm

Gantry width: 1300mm

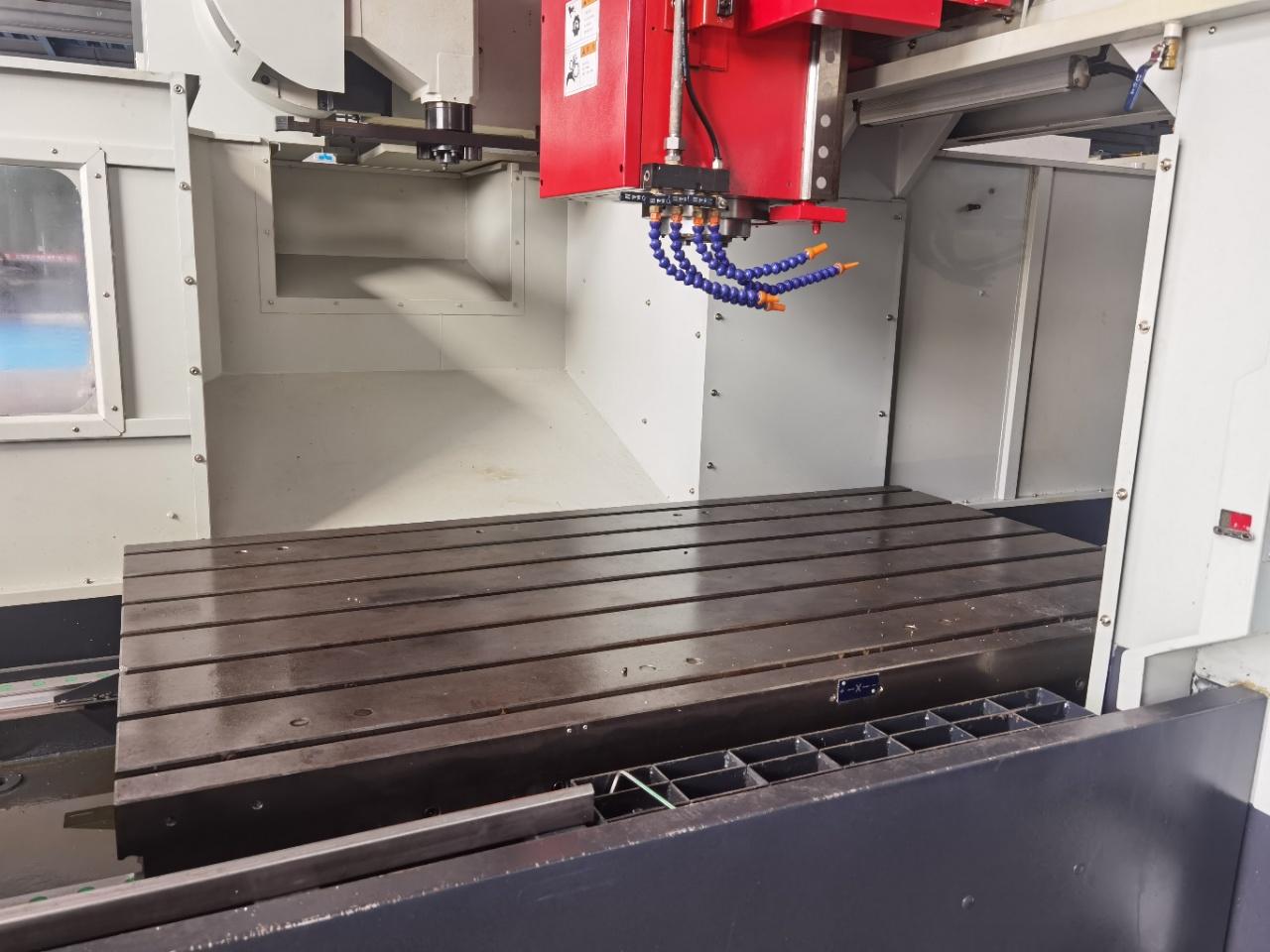

Worktable size :2000*1100mm

Spindle driving motor: 18.5/20.3Kw

Spindle speed range: 50-10000rpm

Spindle taper: BT50

Maximum load: 3500kg

Machining feed rate: 1-20000 mm/min

Fast feed rate: 20000 mm/min

Tool magazine: 32

Machine weight :16000kg

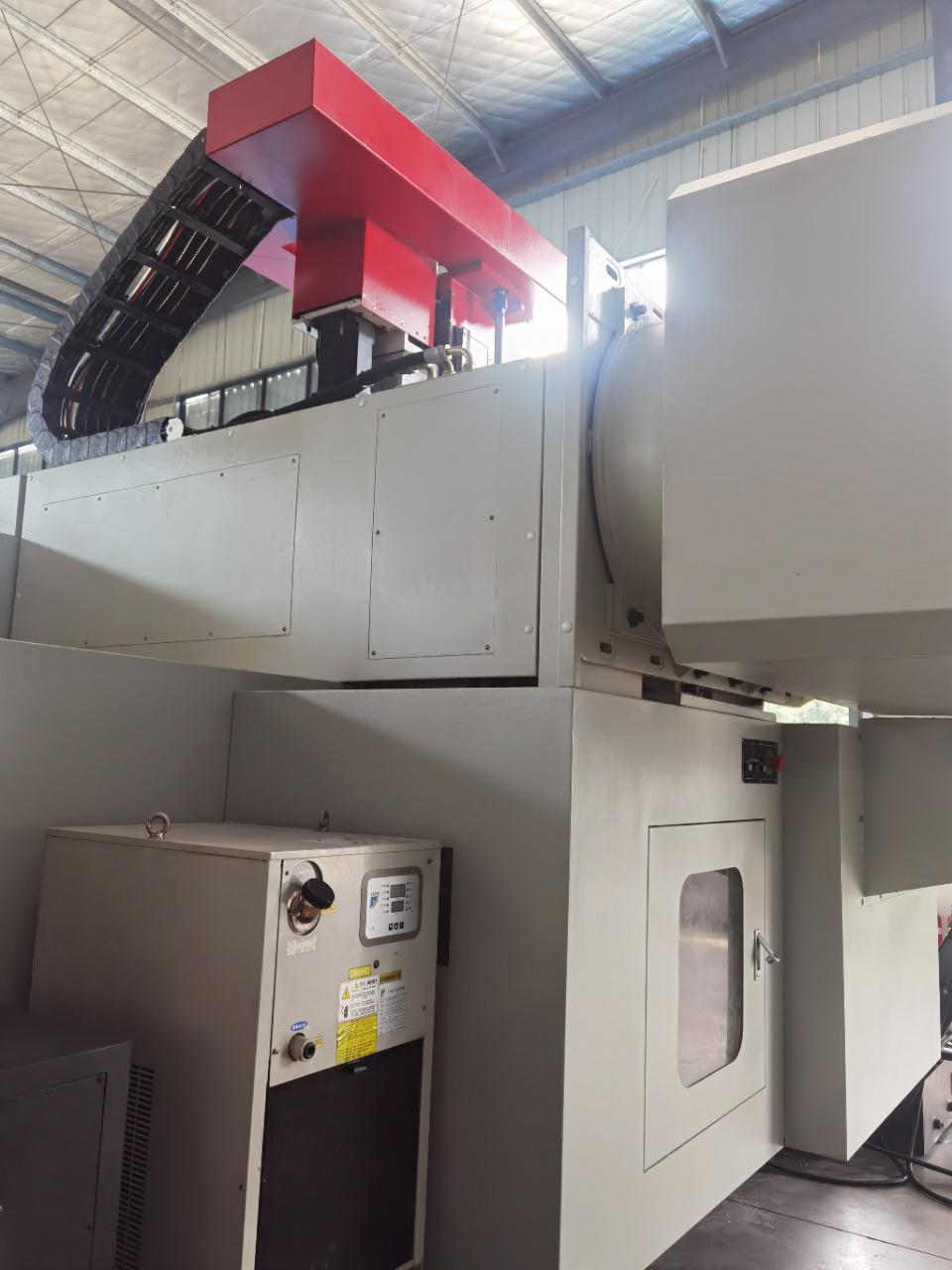

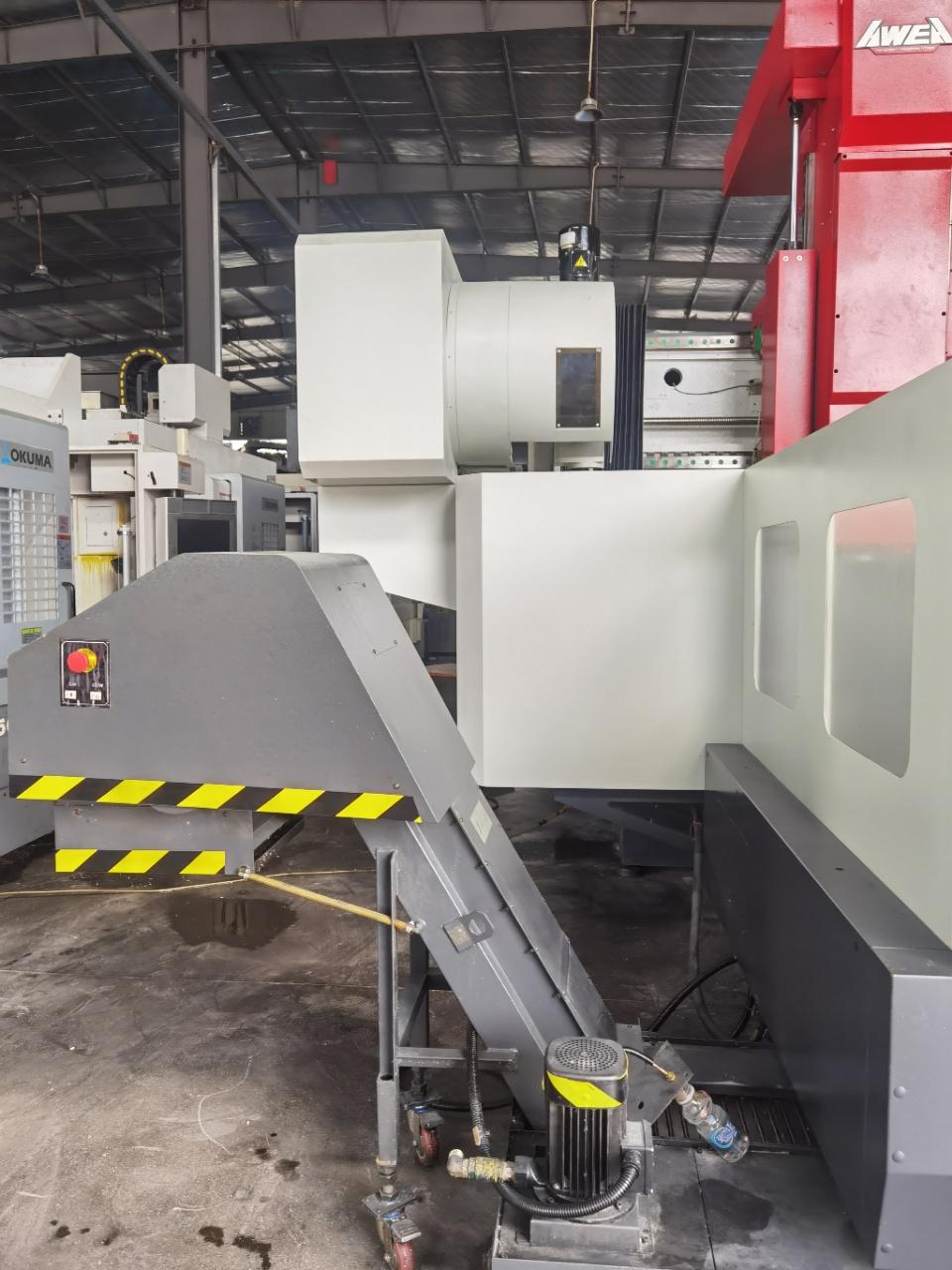

Accessories: Chip conveyor, transformer, water tank, oil chiller
