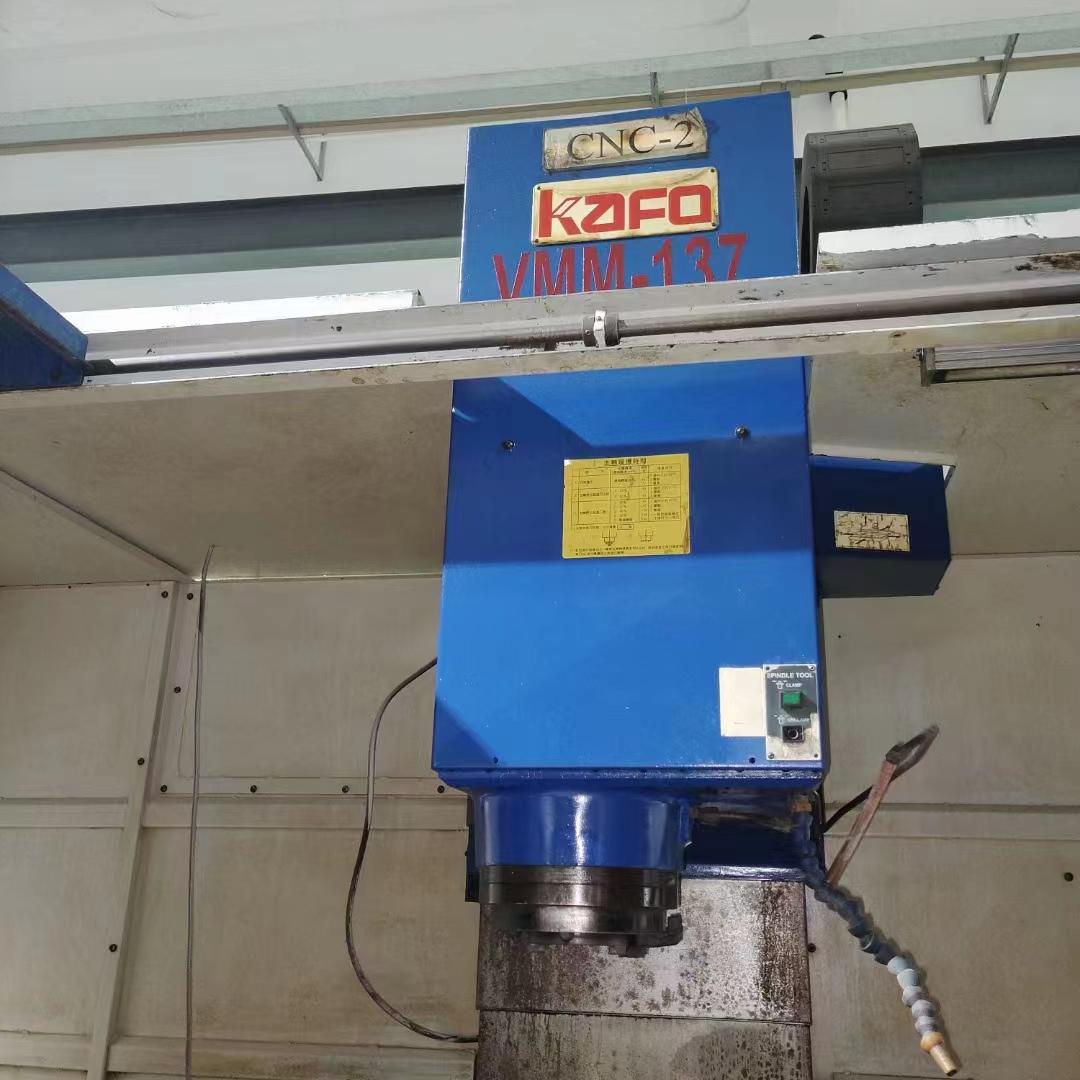

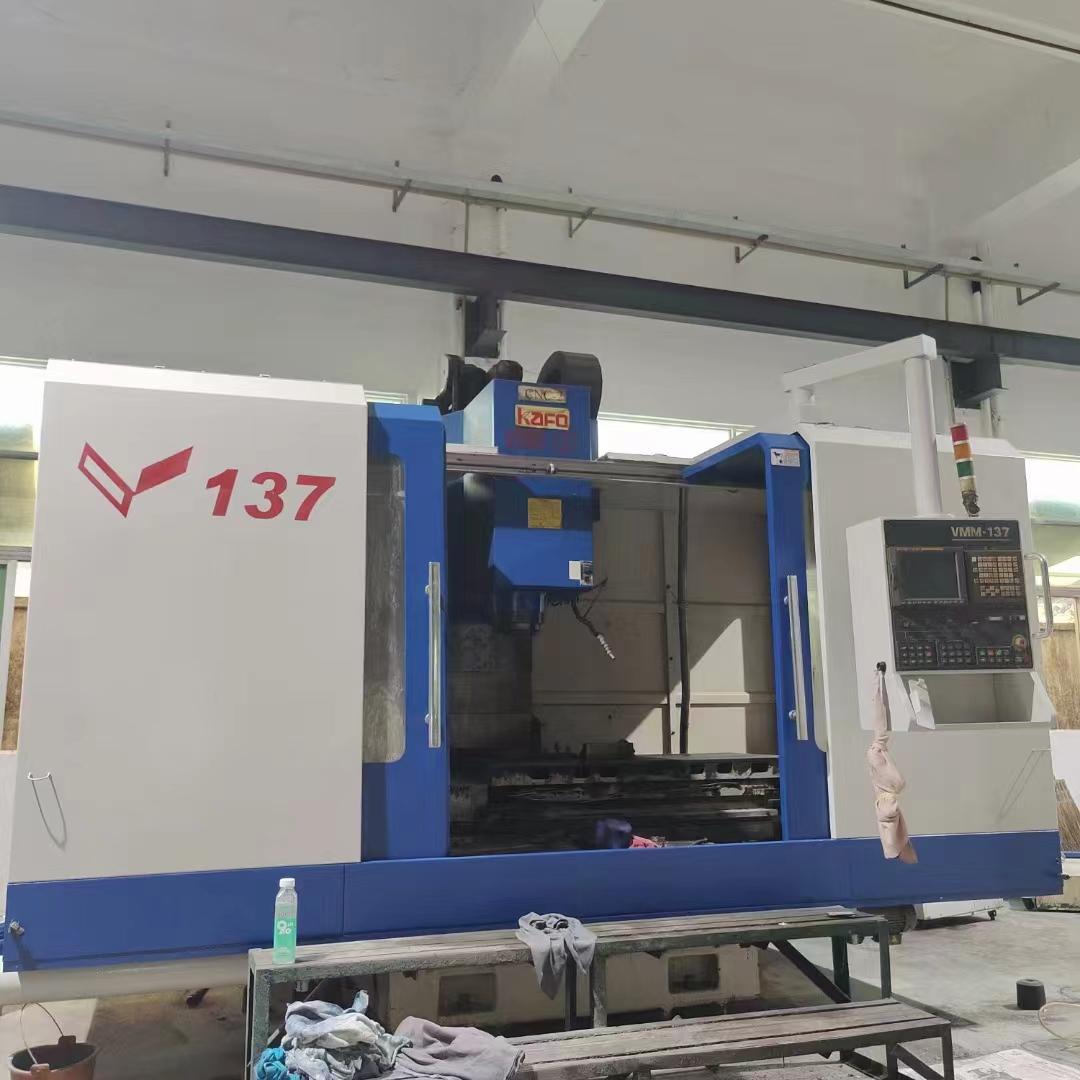

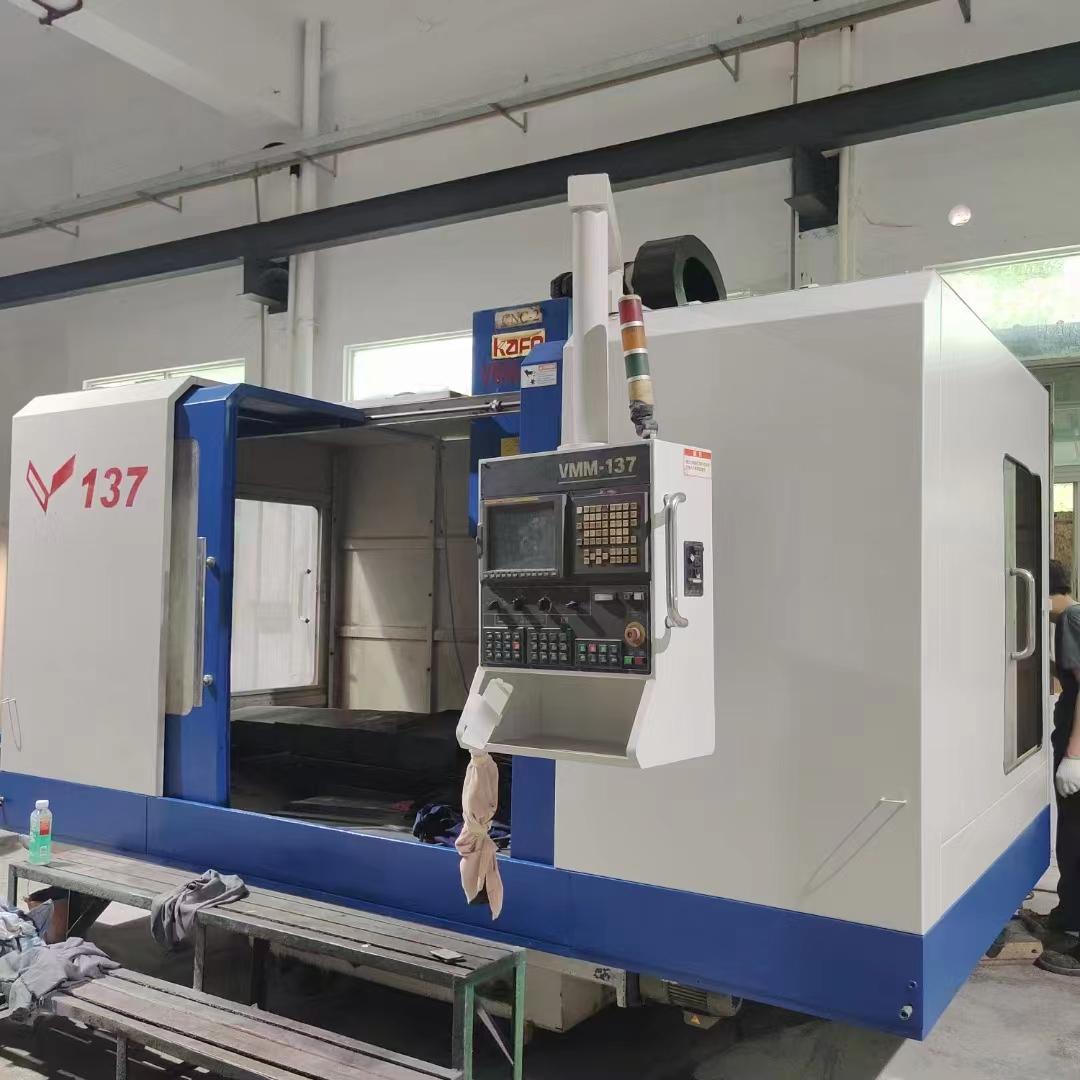

KAFO VMC-137 Vertical Machining centre

Three axes travel :1300*700*700mm

Distance from spindle nose to worktable :200-900mm

Worktable size :1500*700mm

Worktable load :1200kg

T-slot :18*5*125mm

Spindle speed :6000rpm

Spindle taper :BT-50

Fast feed rate:20/20/20m/min

Cutting feed rate:10000mm/min

Spindle motor :15/18.5kw

Weight :12000kg

Positioning accuracy:0.004/0.003/300mm

Three-axis rigid guideway

Tool magazine: 24

BT50 spindle

Gear spindle

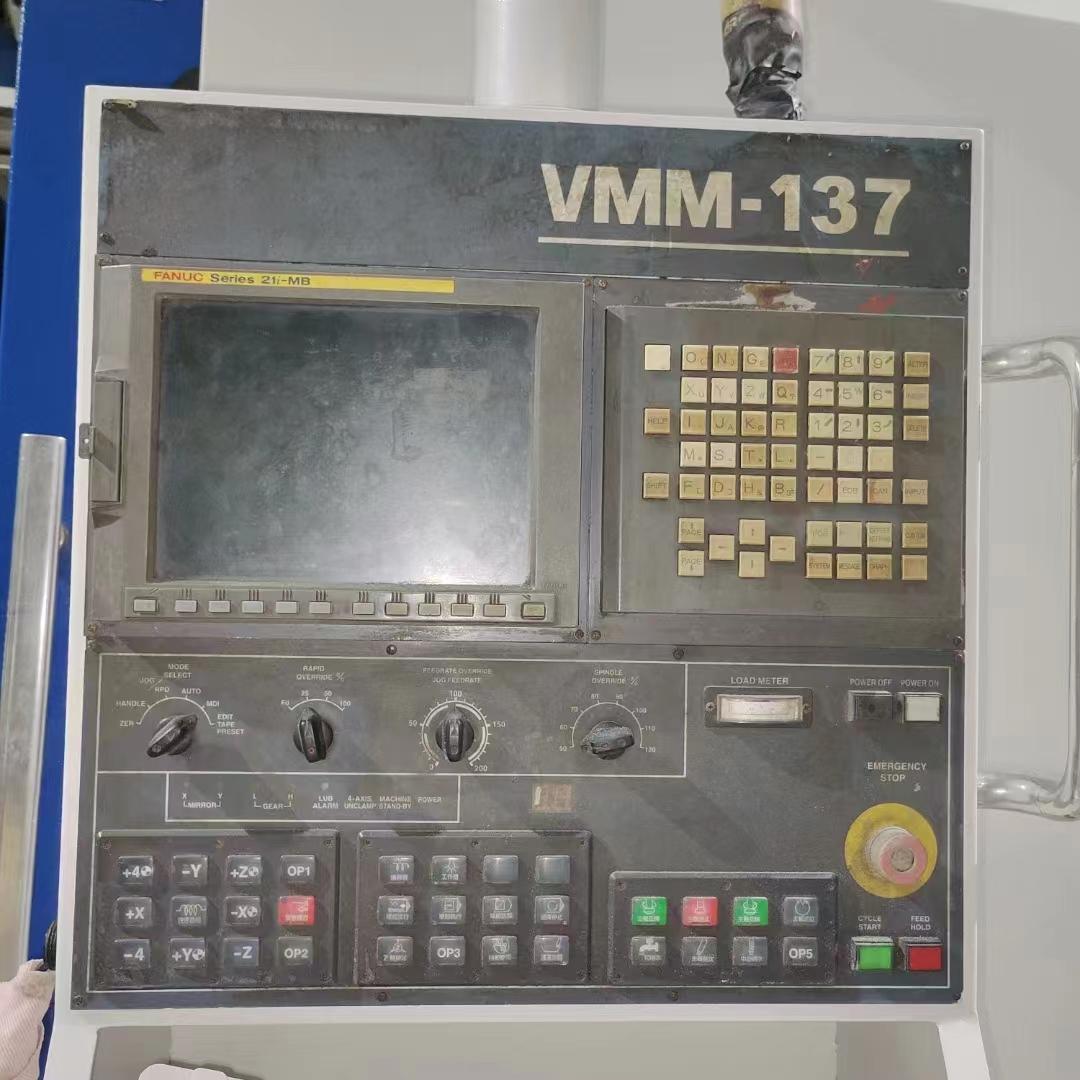

Fanuc Oi-MD CNC System
