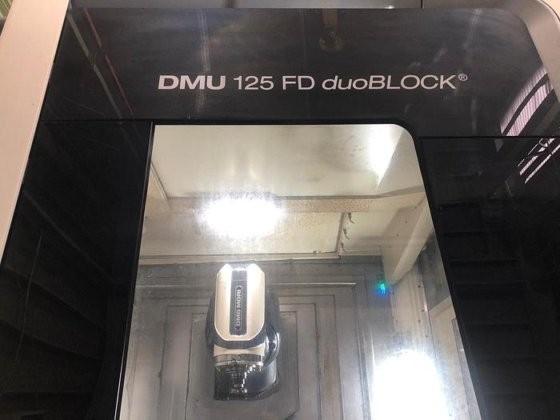

DMG DMU 125 FD duoBLOCK Vertical Machining centre

Worktable size: 1250mm x 1100 mm

Clamping surface diameter of worktable: 1250 mm

Maximum worktable speed: 500rpm

Maximum worktable load: 2600kg

Center height: 225 mm

CNC System: Siemens 840D FD CELOS

Number of axes: 5.

Maximum machining diameter: 1250 mm

Maximum workpiece height: 1600 mm

X/Y/Z axis travel: 1250/1250/1000 mm

X/Y/Z fast feed rate: 60/60/60 m/min

Maximum spindle speed: 12000 rpm

Maximum power: 44 kW

Maximum torque: 288 Nm

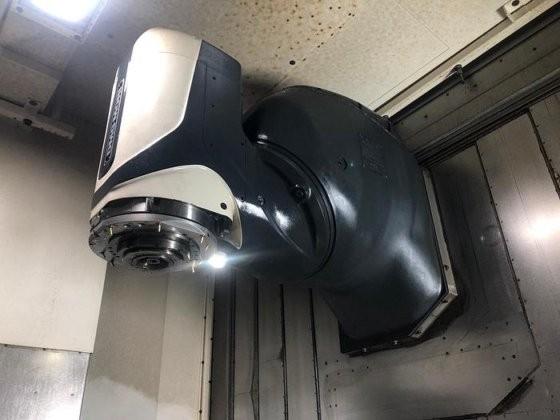

Spindle type: HSK-A100/ gear shaft

ATC: 63

Machine footage (L x W x H): 7002mmx 4348mm x 3855mm

Machine weight: 28500 kg

Accessories:

980L coolant tank/Coolant gun/Air blow/Renishaw OMP60 probe/Blum Novotest measuring / 3D quick setting/MPC/ Signal light/Pulse remote handle/FD Worktable/chuck

Others:

4 working modes

2717 hours of machining time
