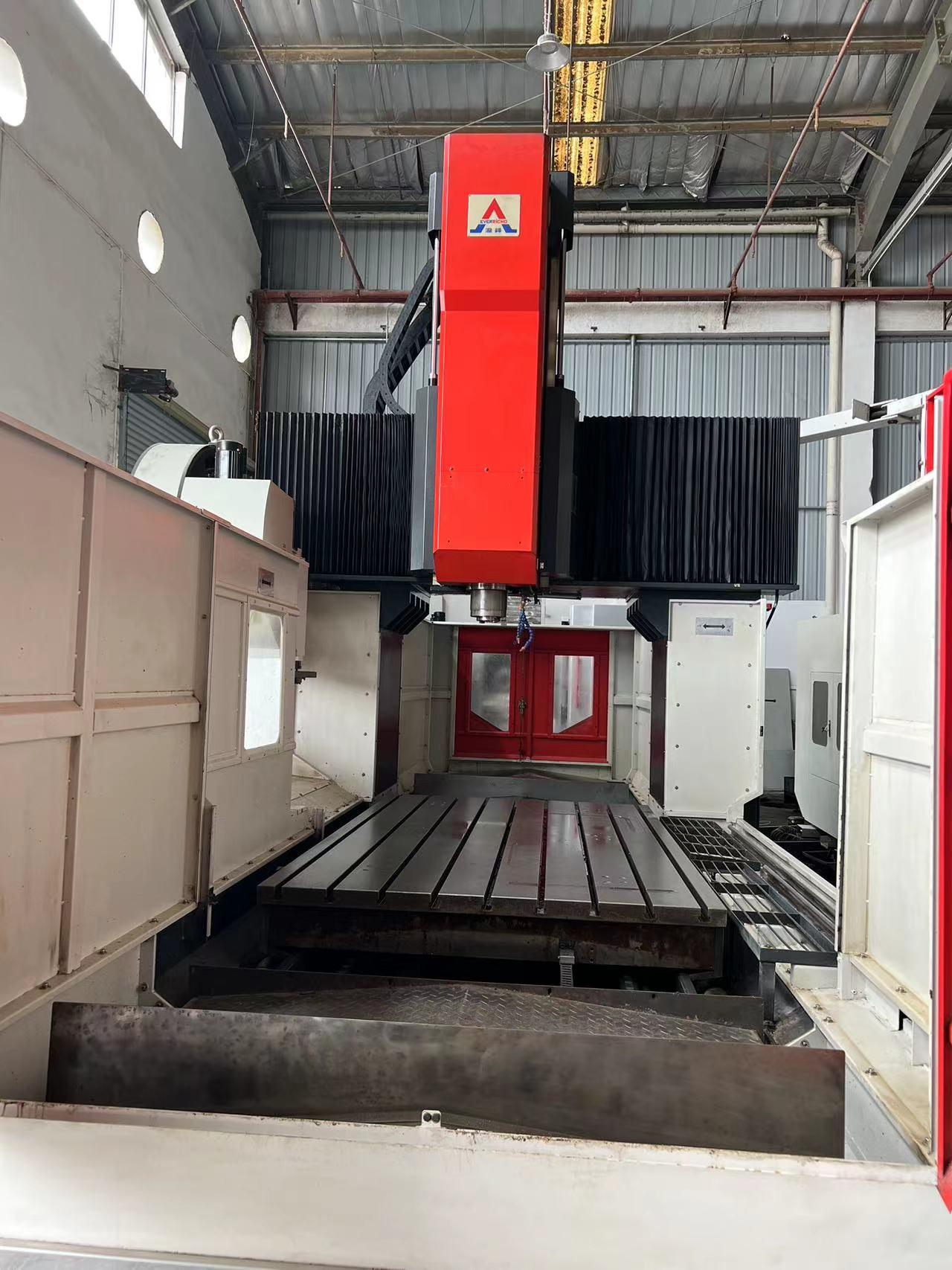

RICHO BMM-102 Gantry machining centre
[Product Information]:
- Inventory number：20182
- Brand：RICHO
- Model：BMM-102
- Origin：Taiwan
- Location：China
- Year：2016
- Create Time：2023-08-21
Specifications:
Three-axis travel: 2600*1600*850mm
Maximum distance from spindle nose to worktable :1200mm
Worktable size: 2600×1600mm
Gantry width: 1800mm

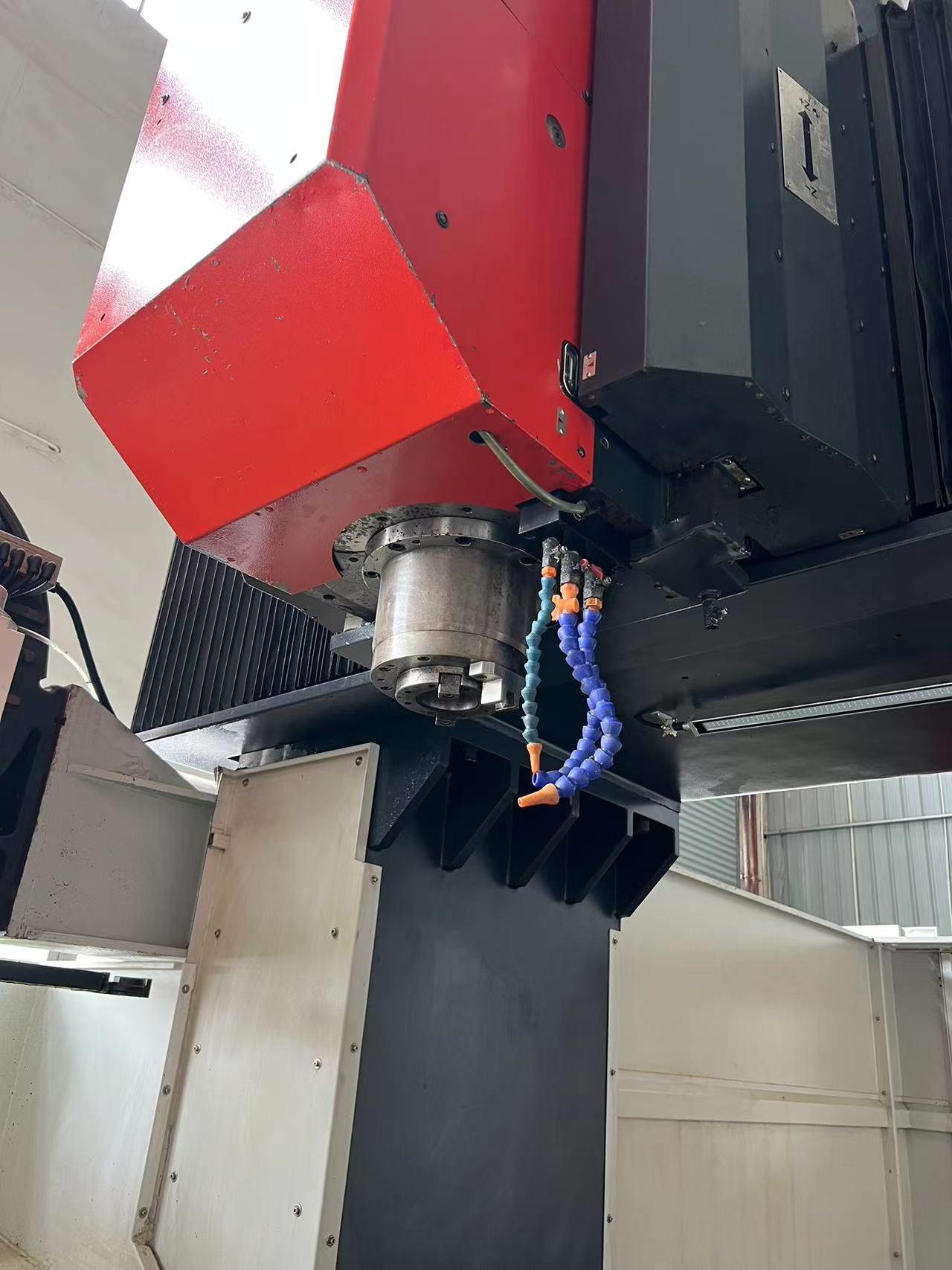

Spindle: BT50 gear spindle
Spindle speed: 6000rpm

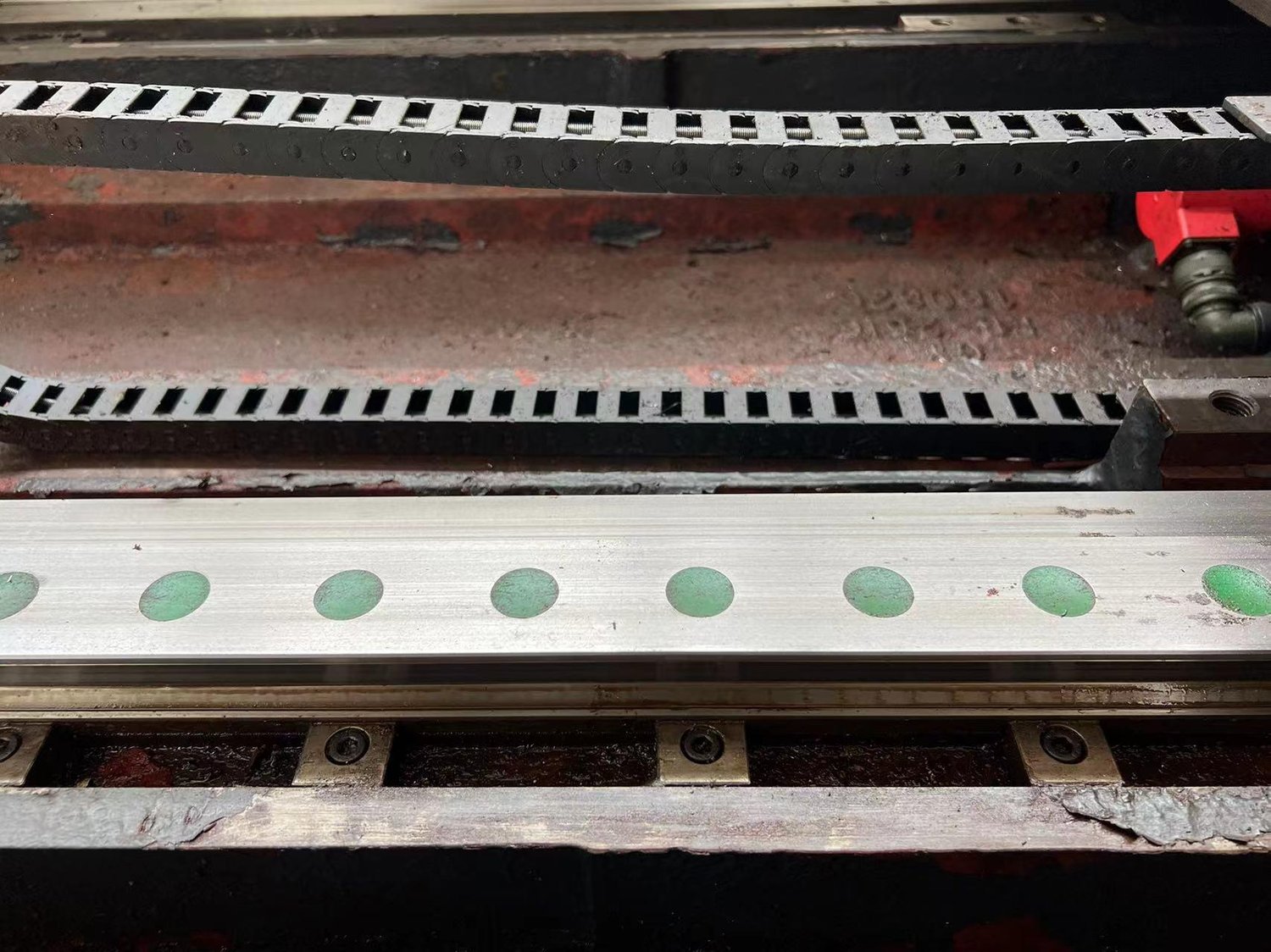

Two linear guideways and one rigid guideway

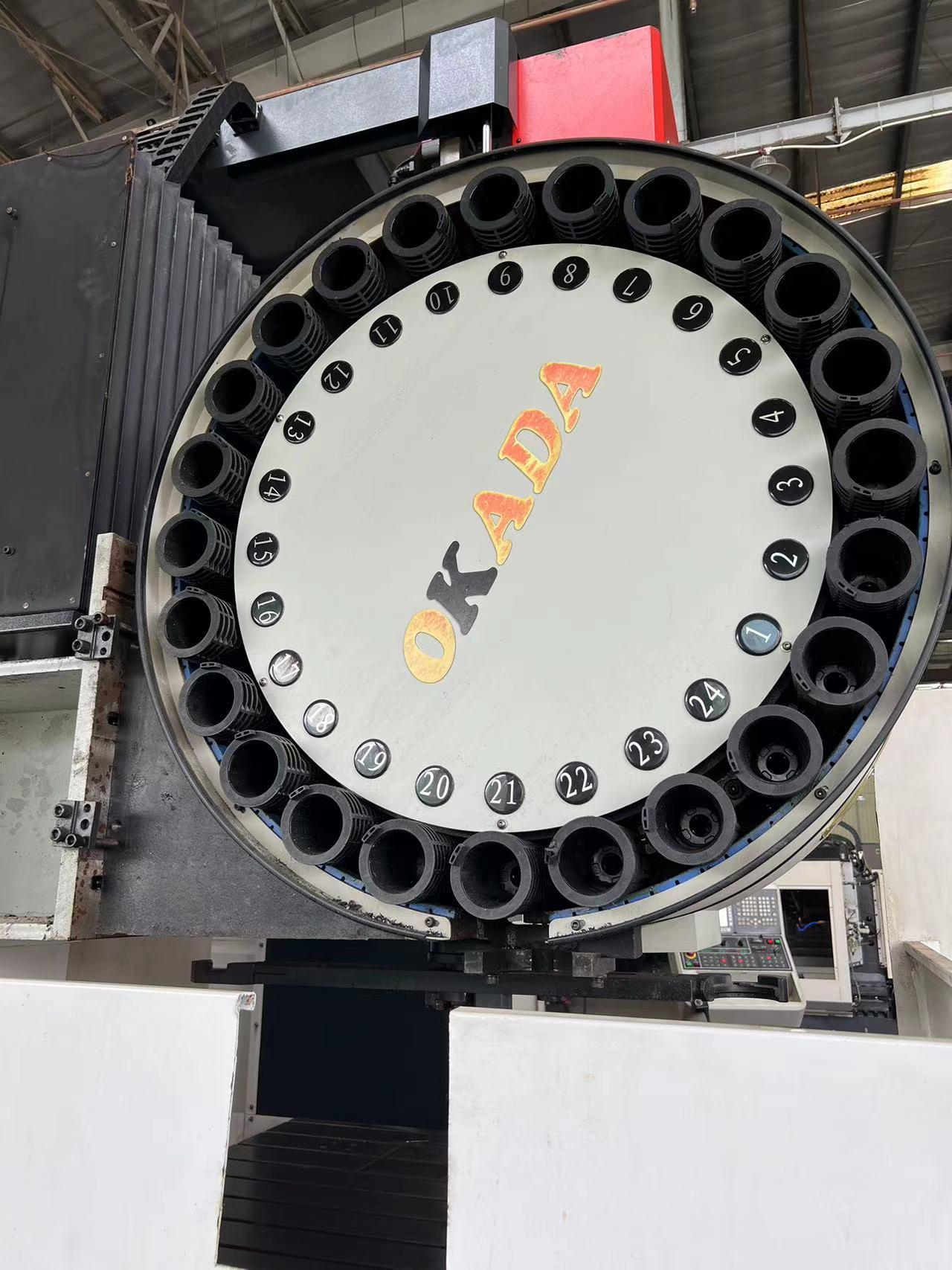

Tool magazine: 24

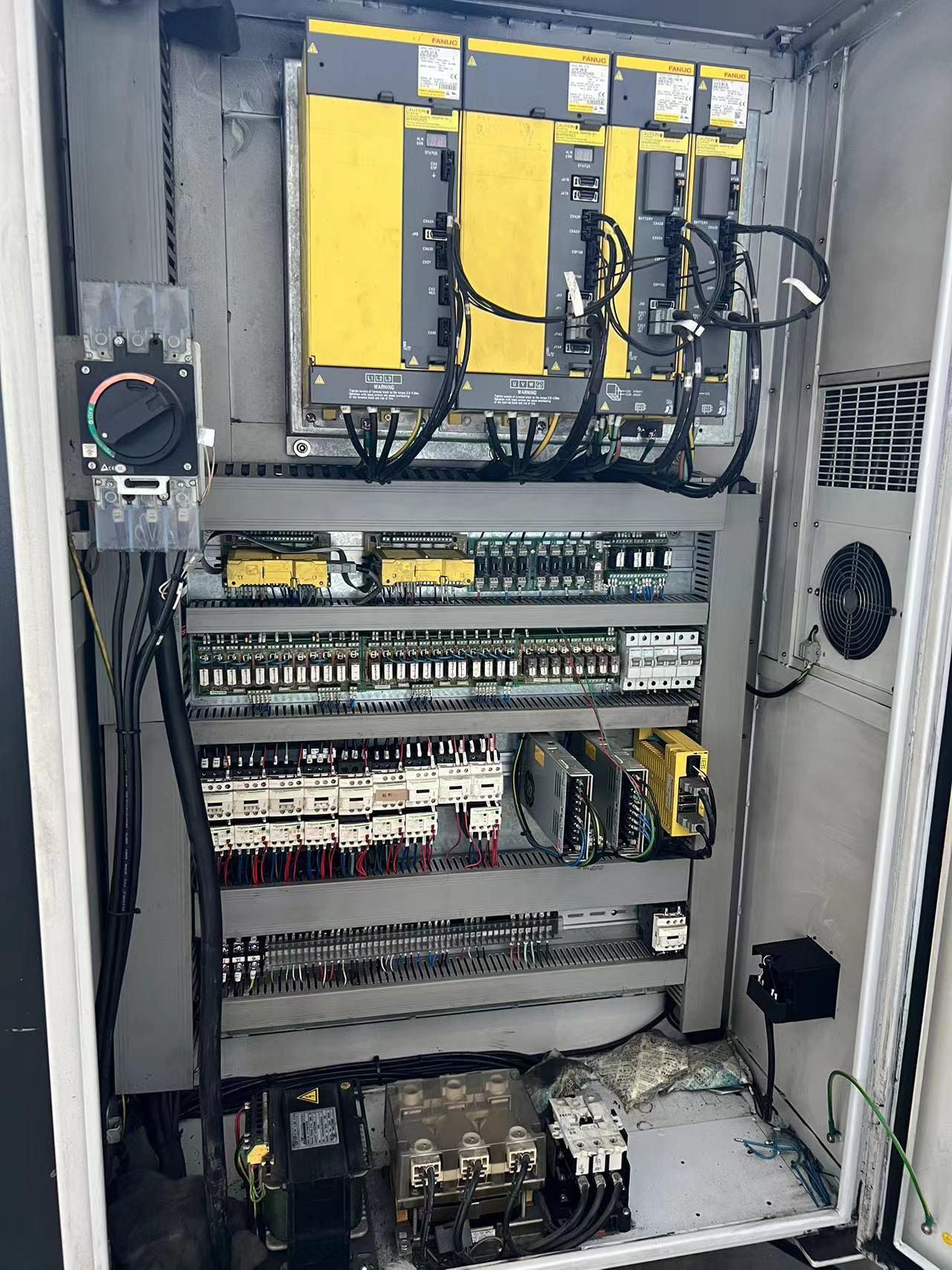

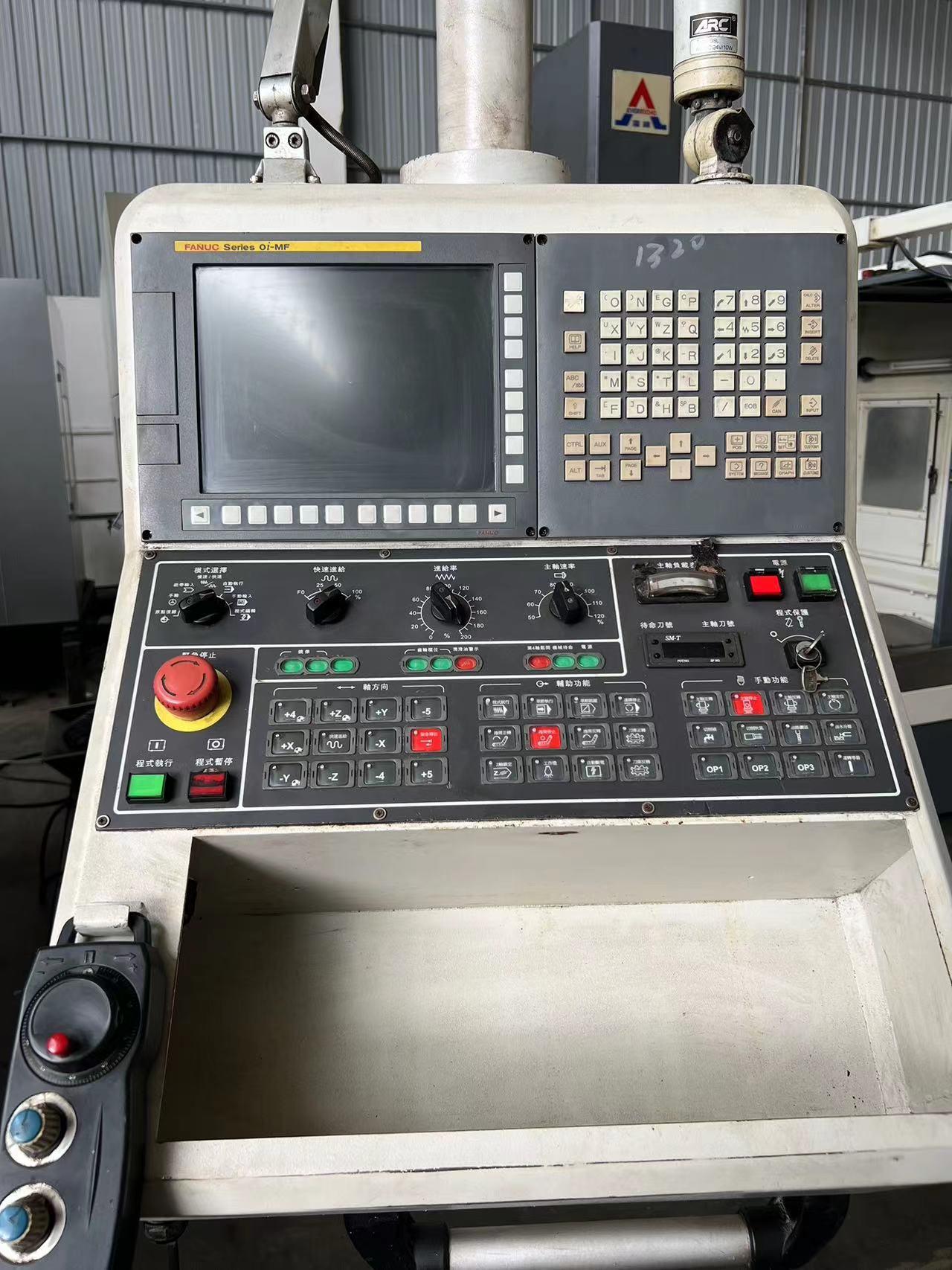

Fanuc MFA CNC System (Alpha Motor Drive)
Spindle power: 36KW

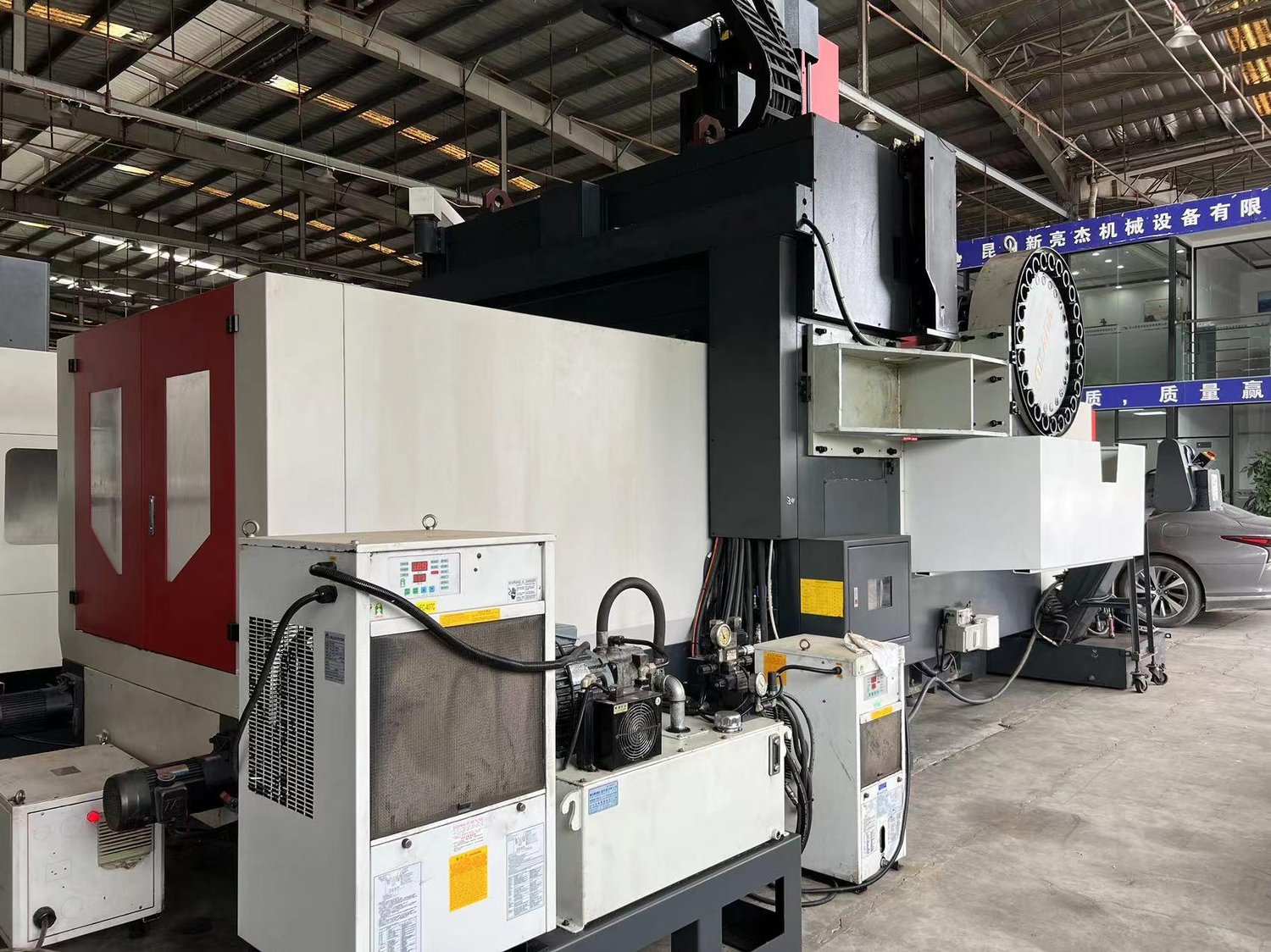

Lead screw hollow oil chiller
With automatic chip conveyor
