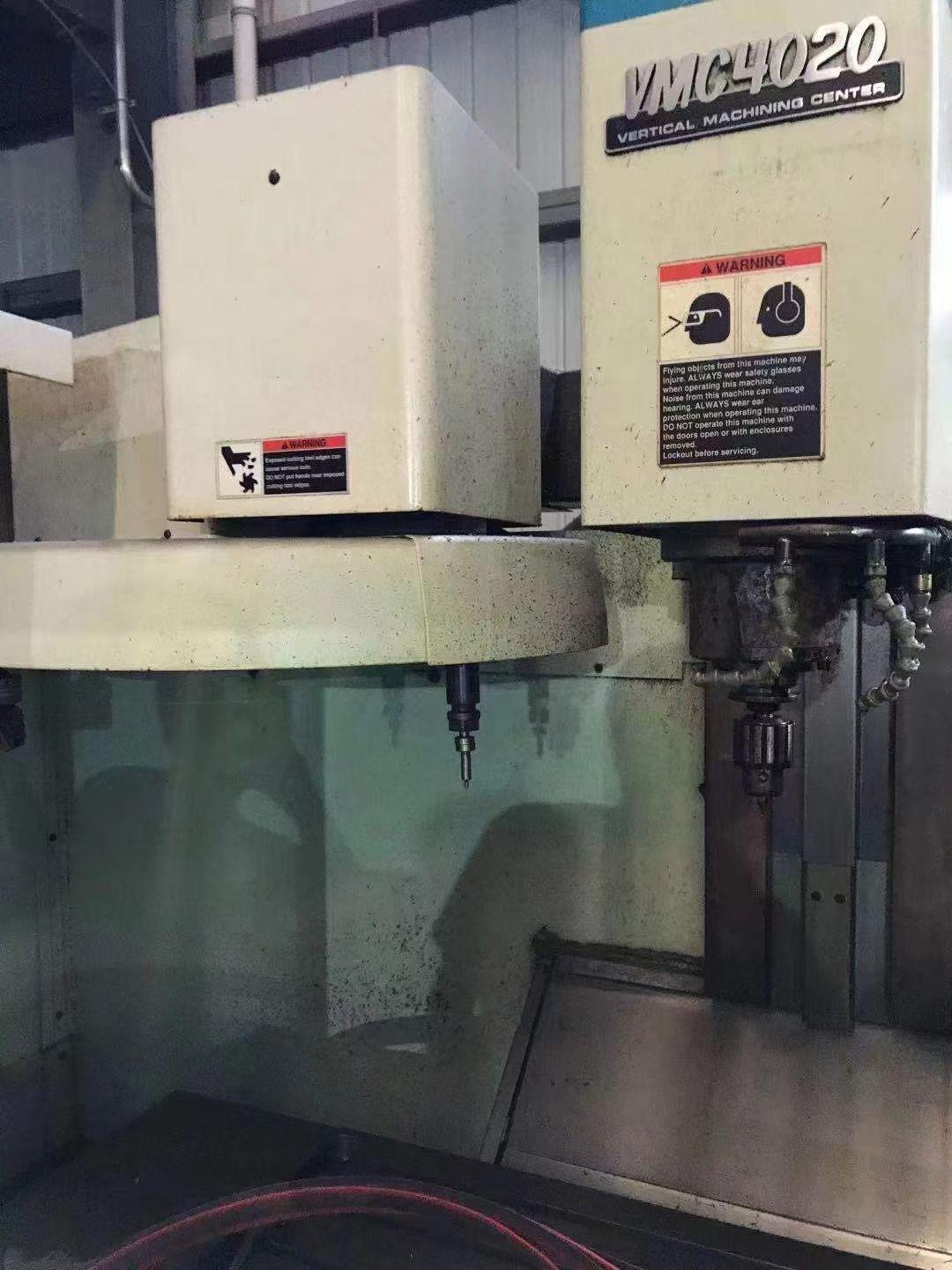

Fadal VMC4020HT Vertical Machining centre

X*Z axis travel: 1016*711mm

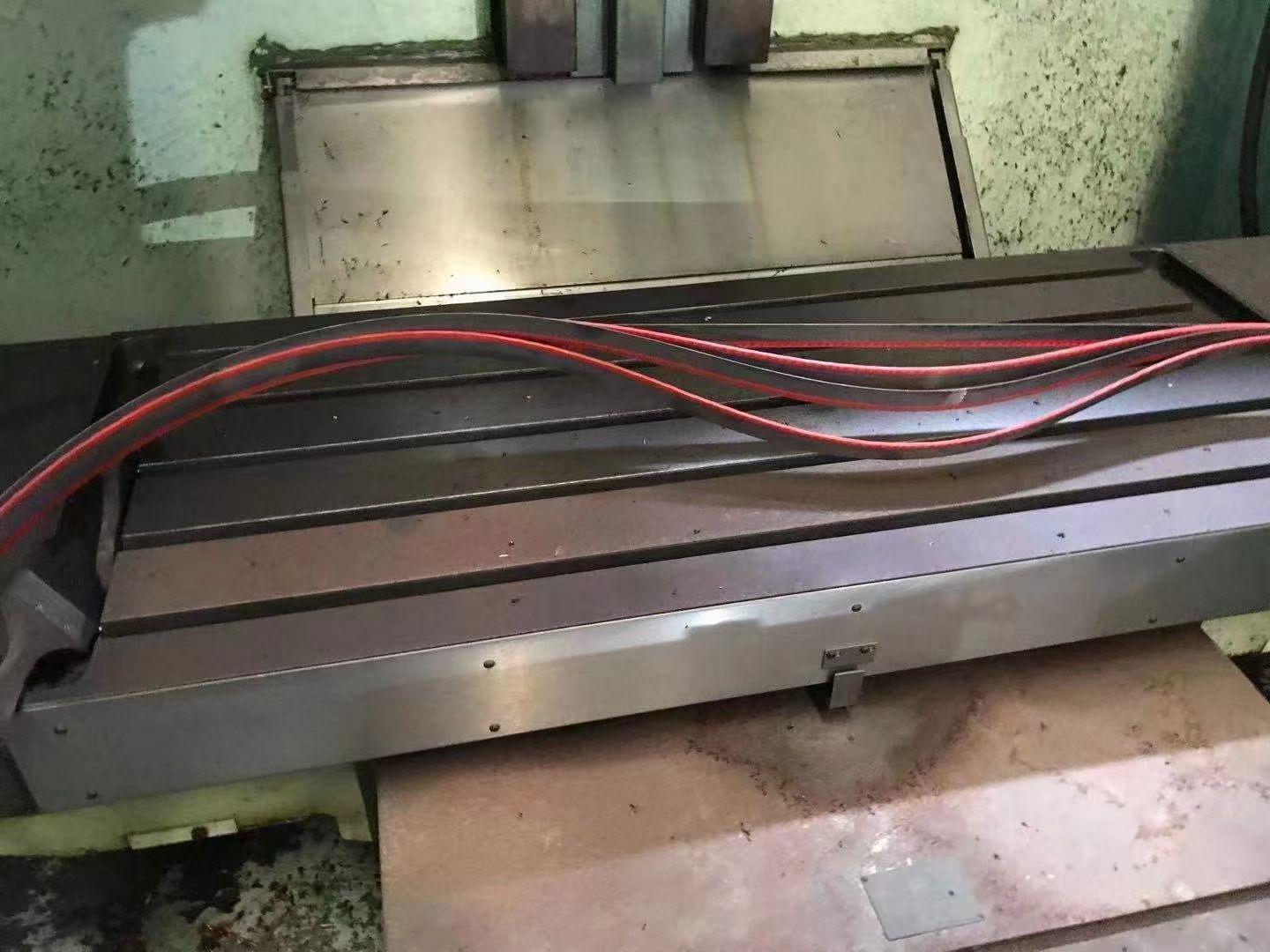

Worktable size: 1220x508mm

Worktable load: 1650 Kg

Spindle speed : 12000rpm

Spindle rated power: 15Kw

Spindle continuous power: 11Kw

Tool magazine: 21

Tool changing time: 6.8s

Tool diameter/No adjacent tools: 76/114mm

Tool holder type:BT40

Fast feed moving rate X/Y/Z axes: 25m/min

Feed rate X/Y/Z axes: 20m/min

Positioning accuracy :X/Y/Z: 0.005mm

Repositioning accuracy: 0.0025mm
