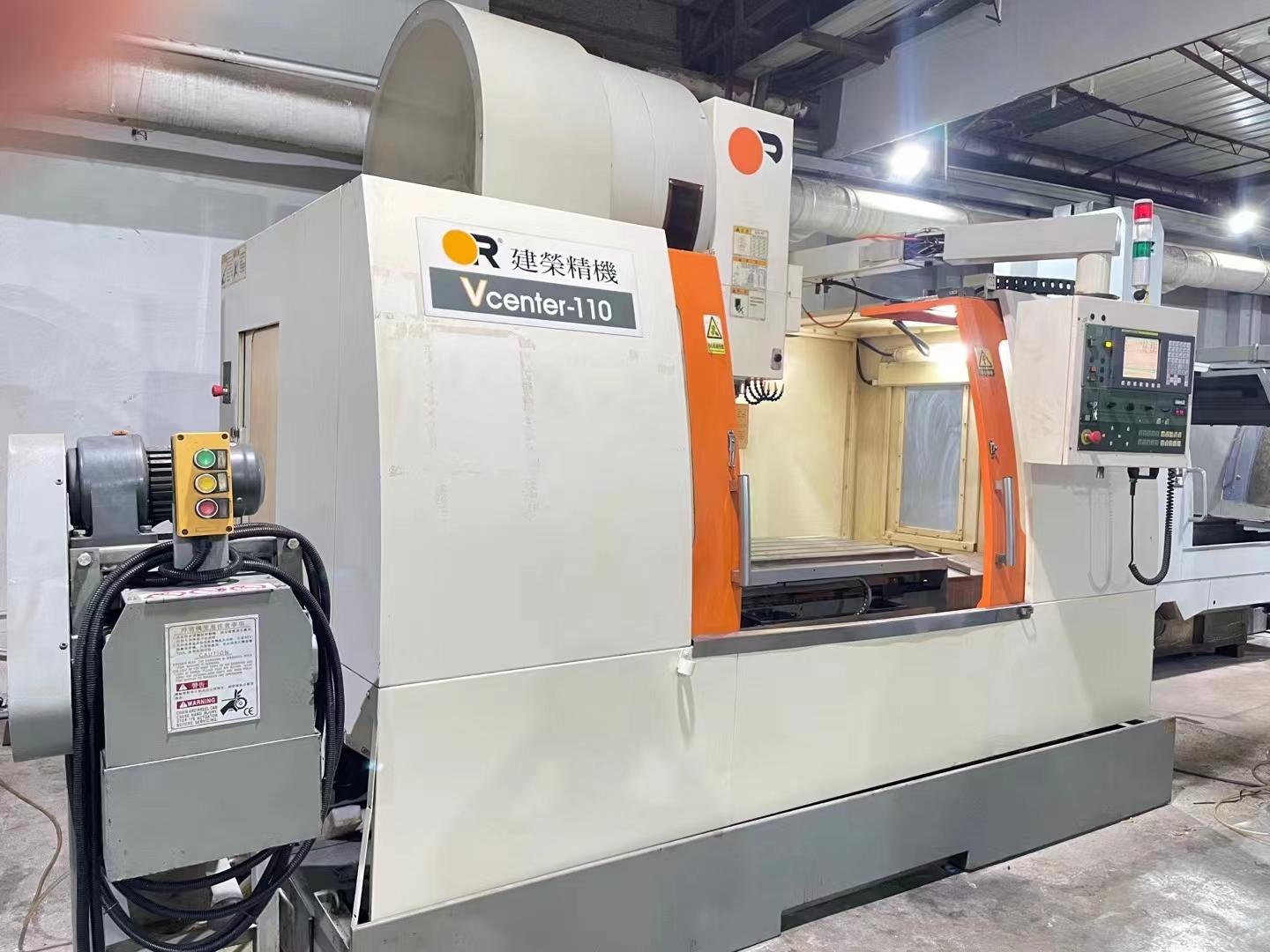

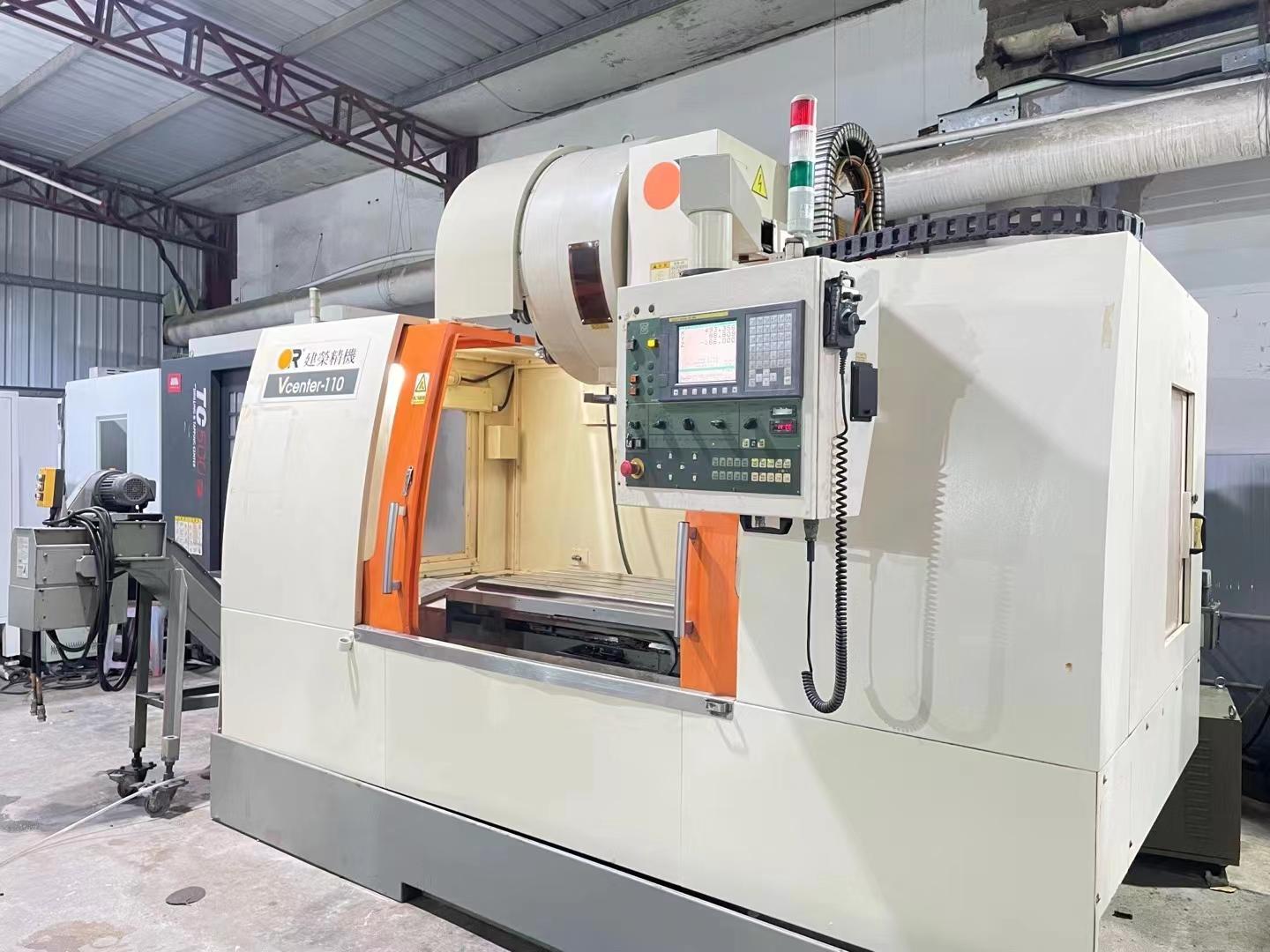

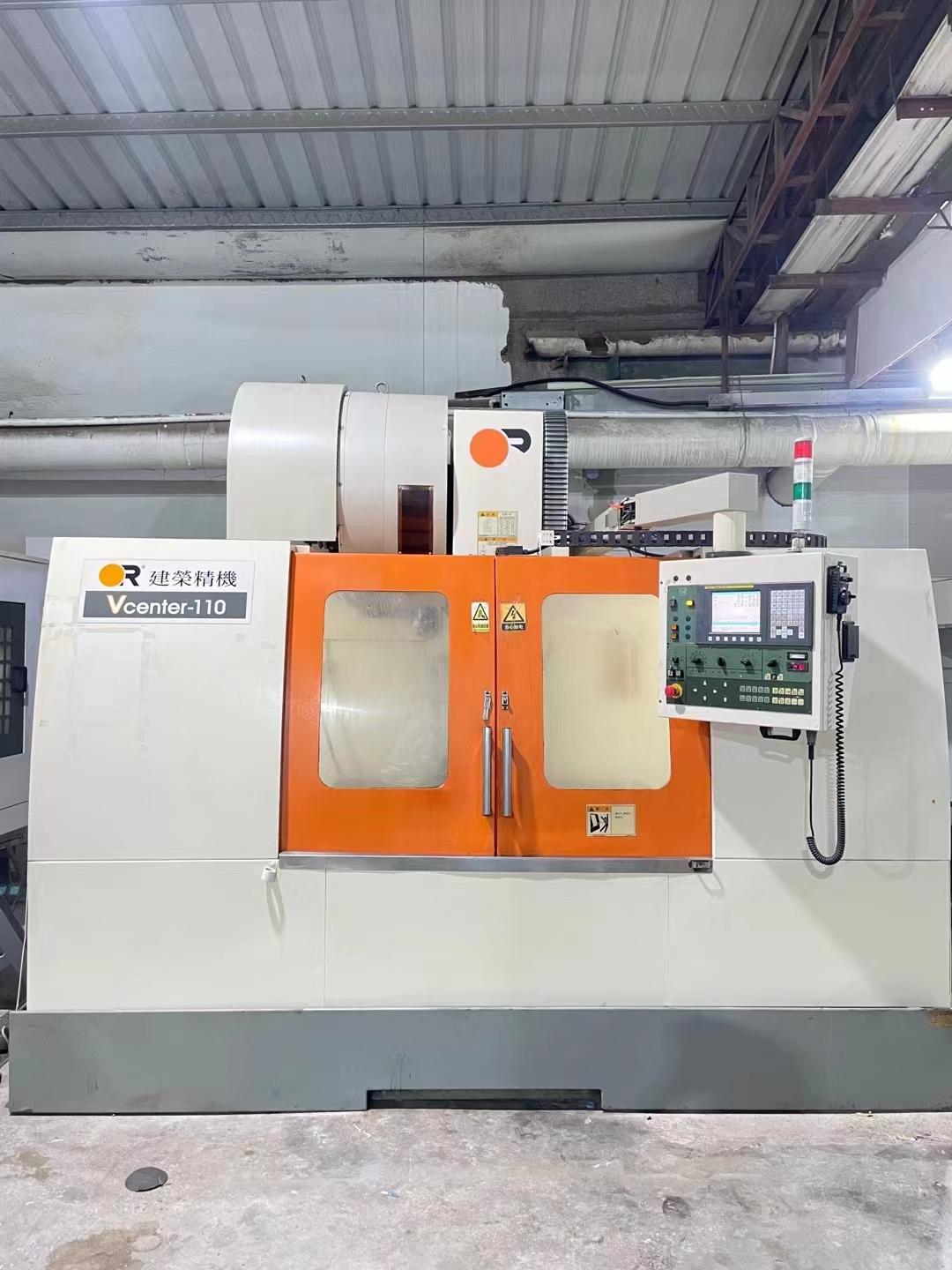

VICTOR Jingji Vcenter-110 Vertical Machining centre

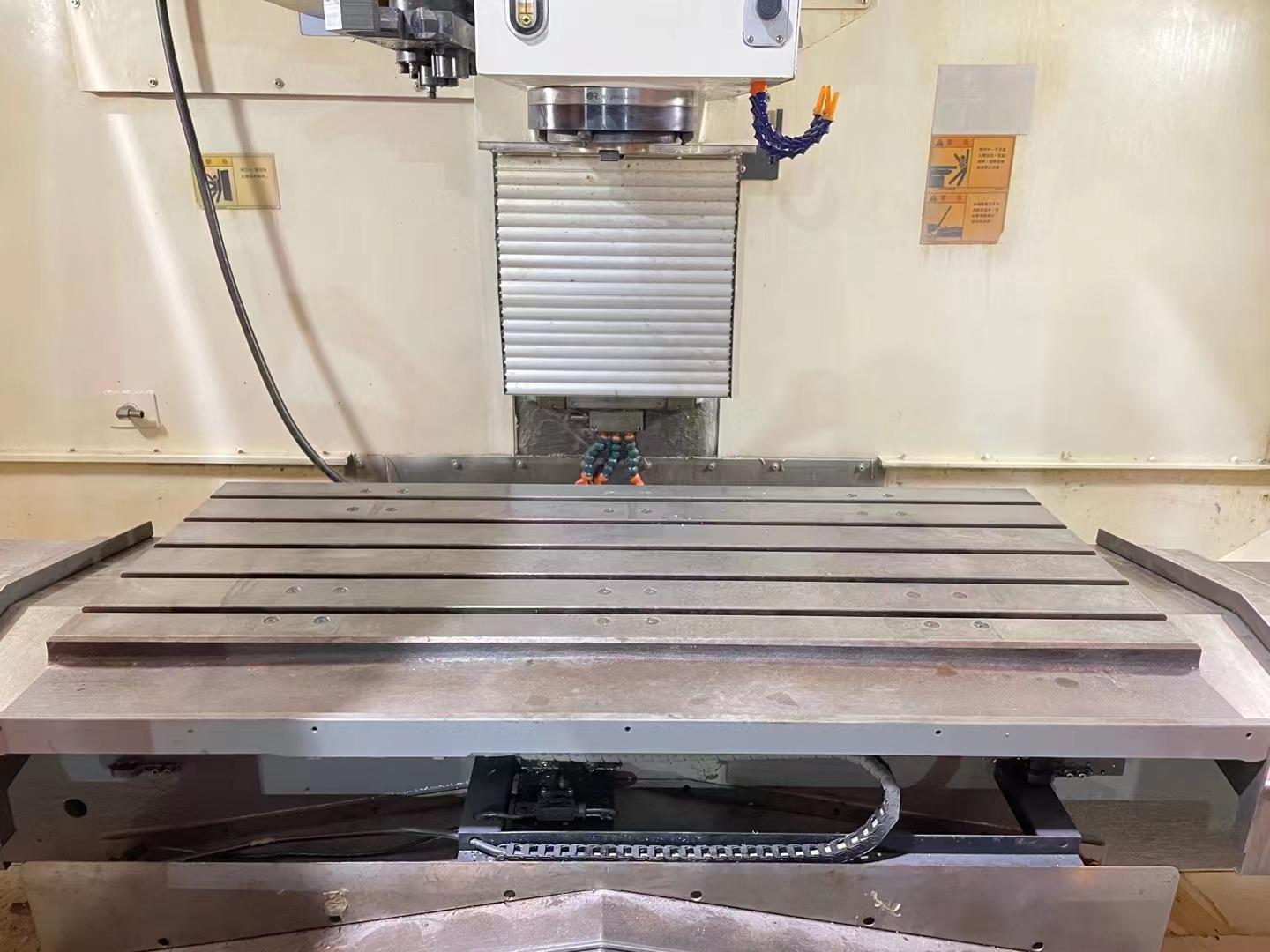

Worktable size :1400x500mm

Three axes travel :1100x600x560mm

Distance from spindle nose to worktable :180-740mm

Distance from spindle center to column guideway :600mm

T-slot :5x18x100mm

Load :800kg

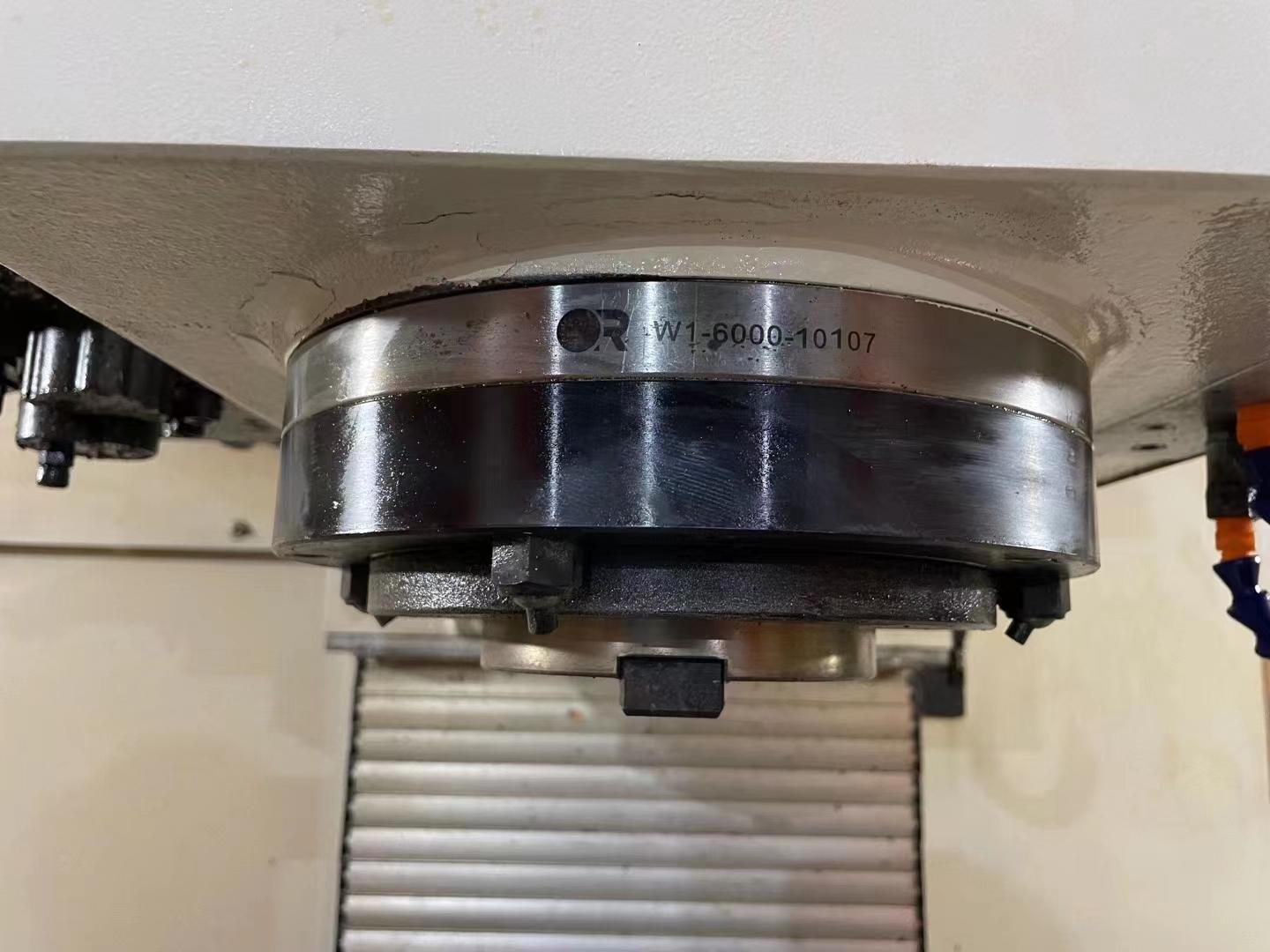

Spindle taper :BT50

Spindle speed :8000rpm

Spindle power :7.5/11kw

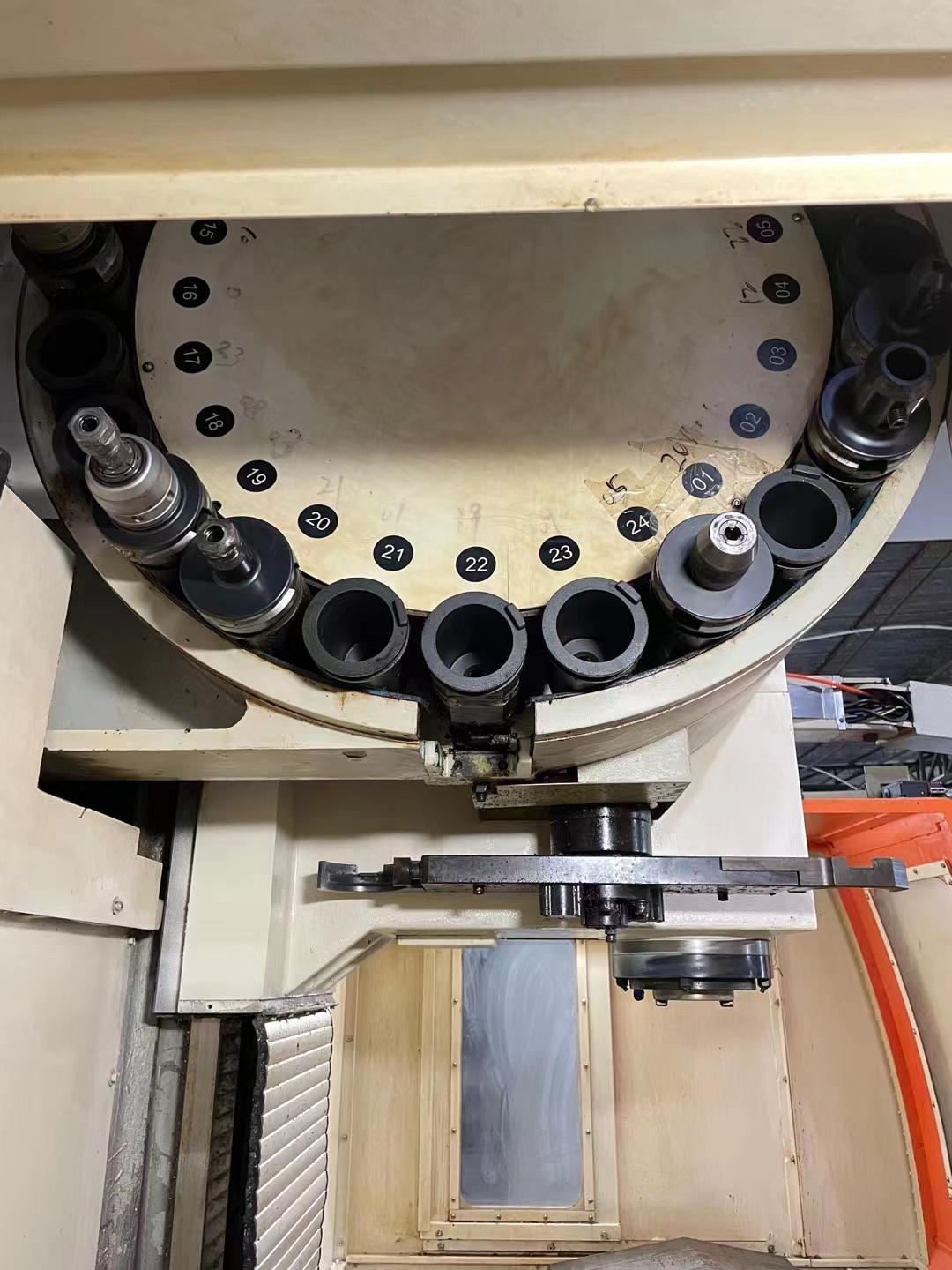

Tool magazine :24

Machine weight :7.5T

Footage :3200x2625x2895mm

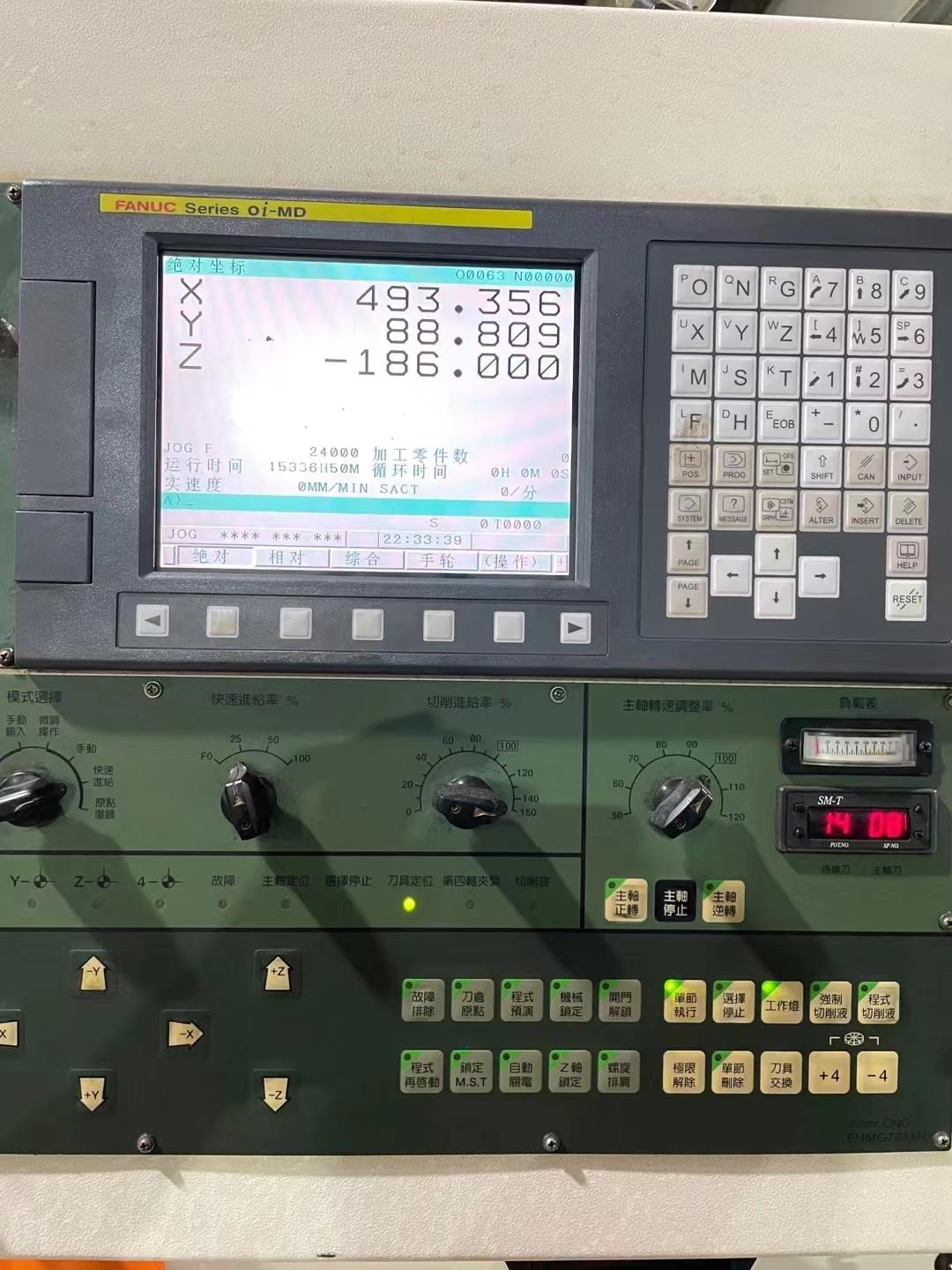

CNC System: Fanuc Oi-MD

Two linear guideways and one rigid guideway

With oil chiller, hydraulic station, chip conveyor
