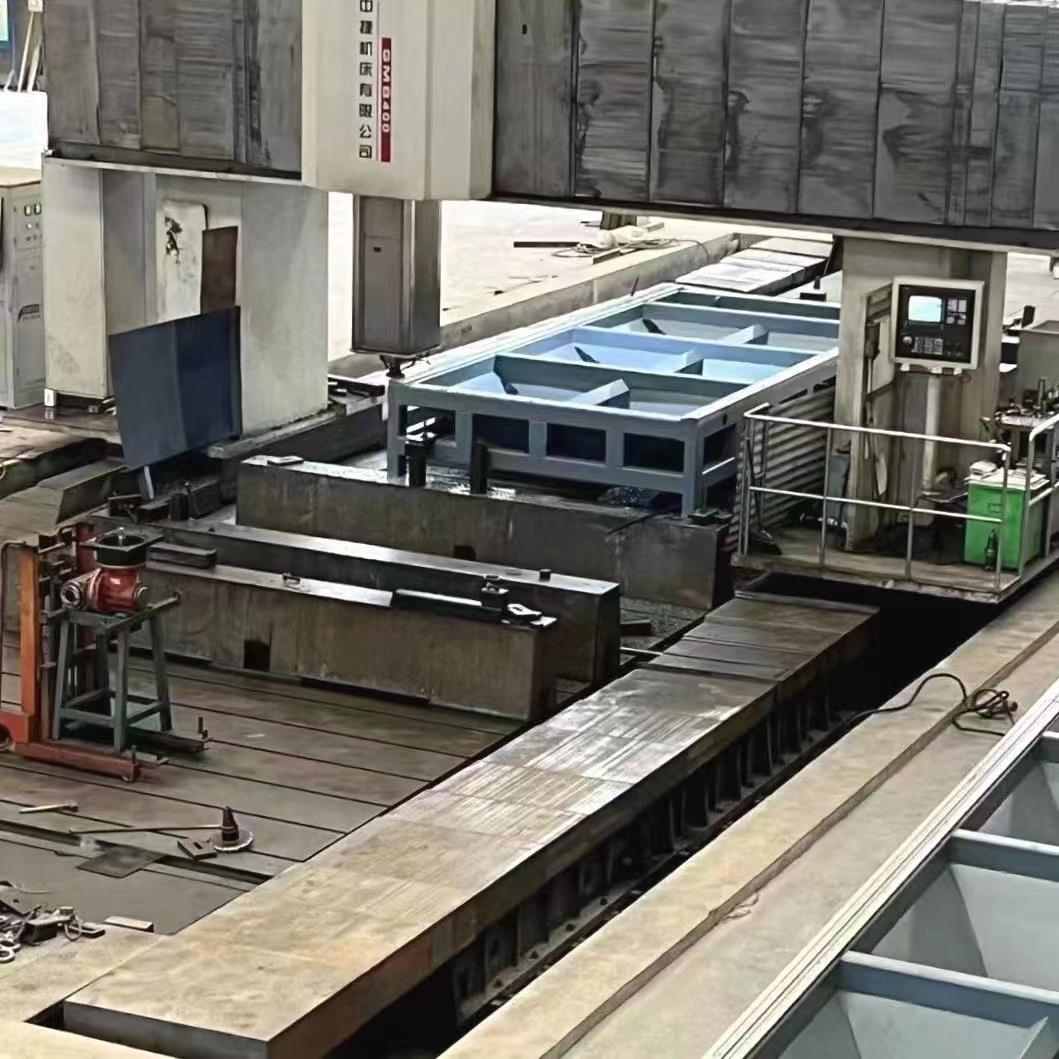

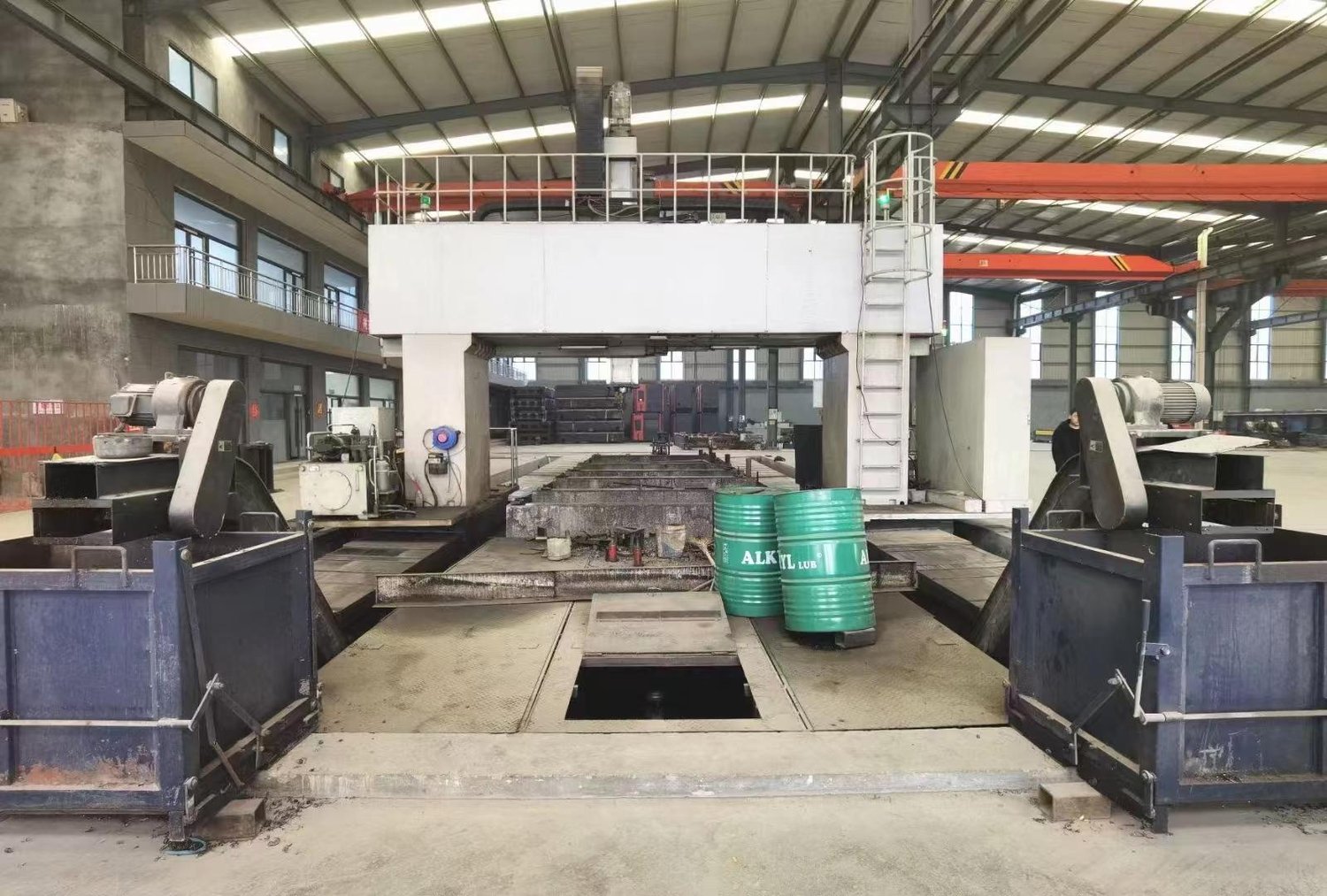

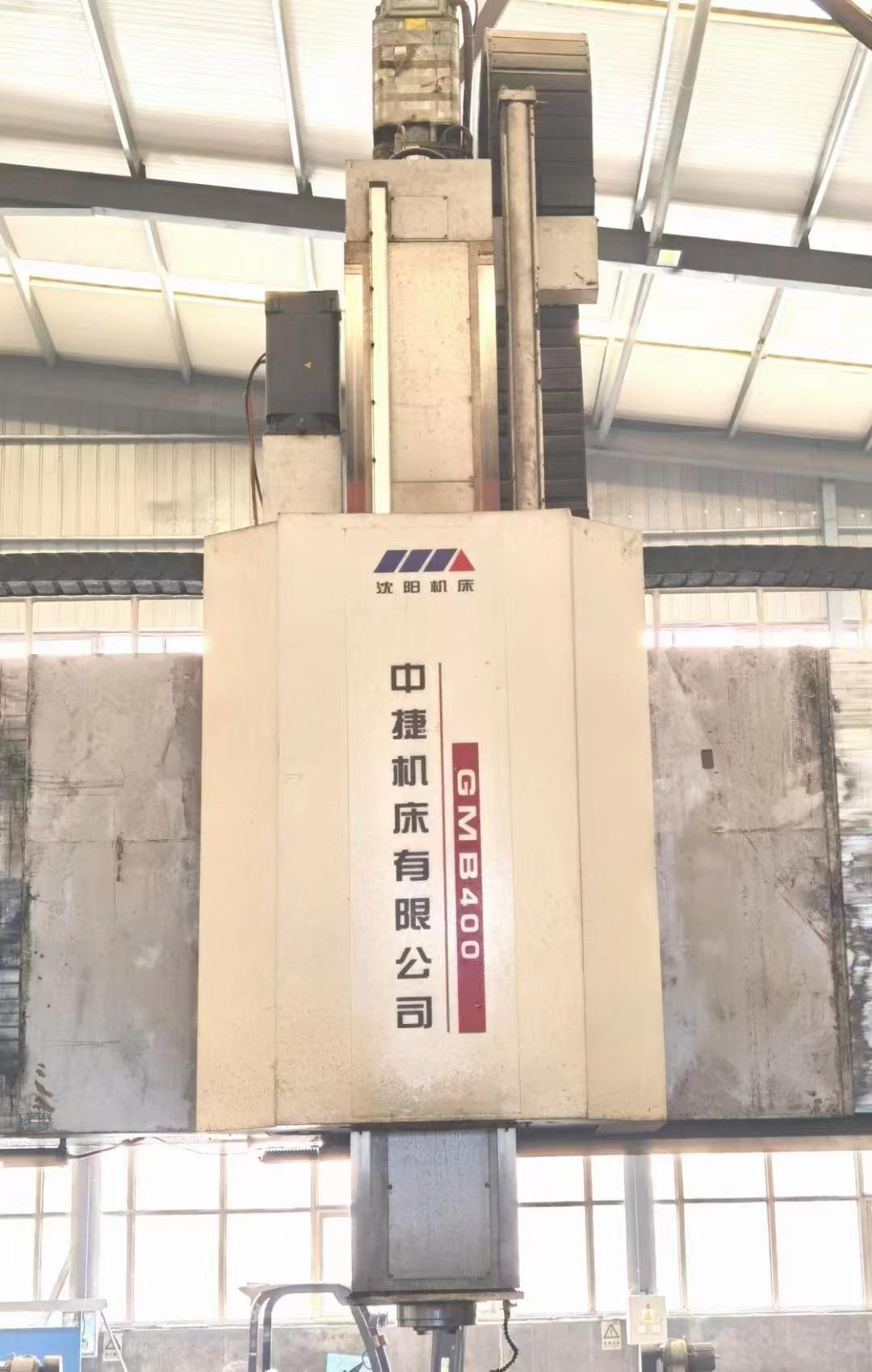

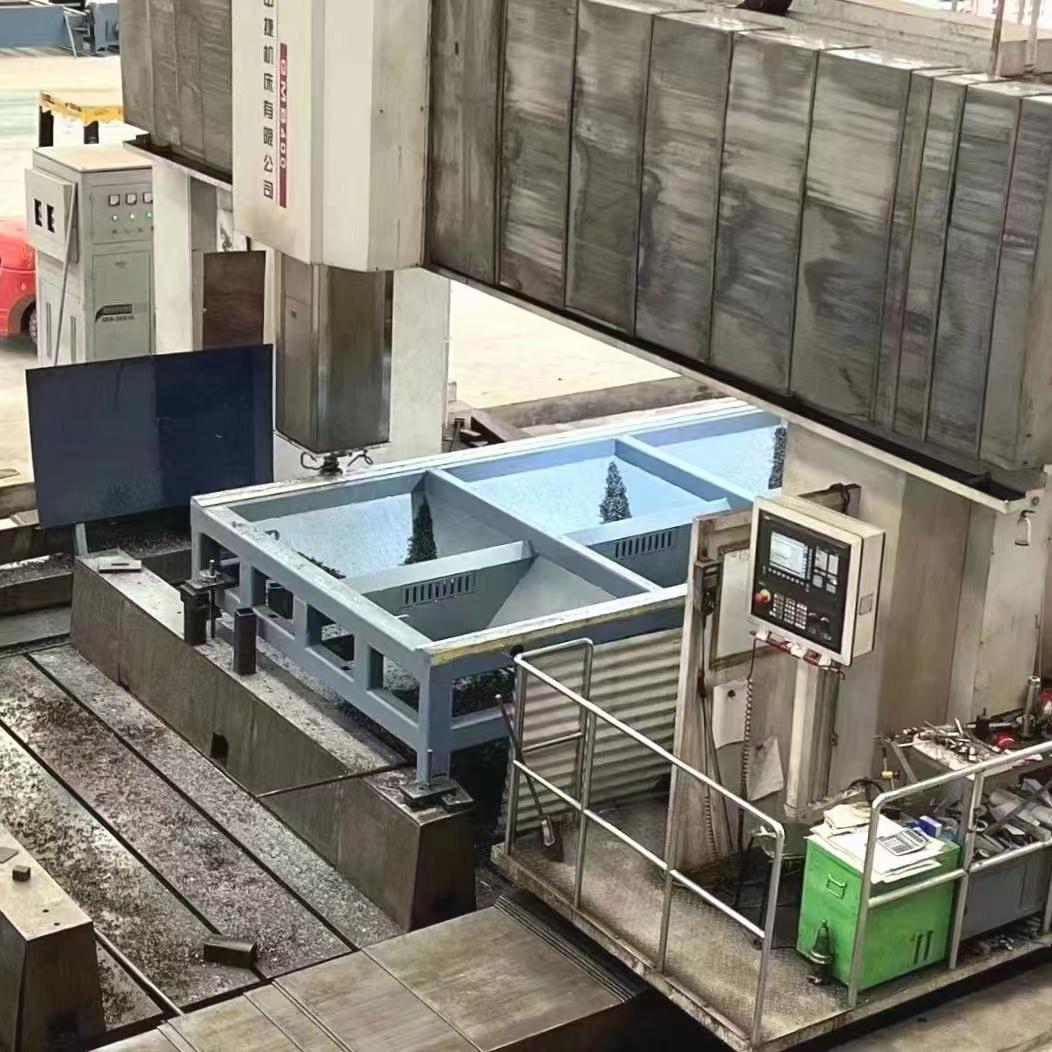

ZOJE GMB40160mr Machining centre

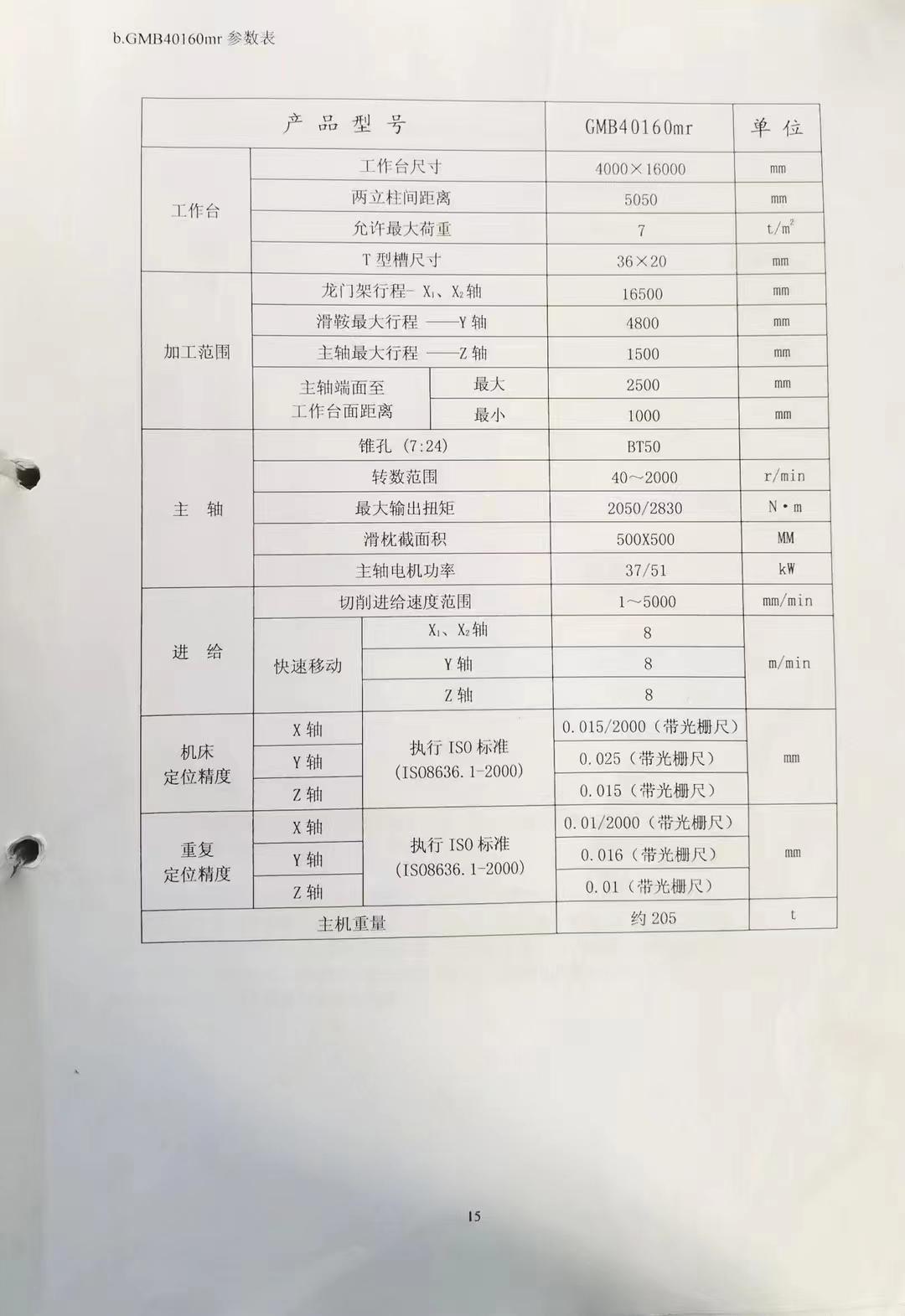

[Product Information]:

Worktable size: 4000*16000mm

Distance between two columns: 5050mm

Gantry X1, X2 travel:16500mm

Maximum saddle travel , Y-axis: 4800mm

Maximum spindle travel, Z axis: 1500mm

Spindle taper: BT50

Spindle speed: 40~2000rpm

Positioning accuracy:

X-axis: 0.015/2000mm

Y-axis: 0.025mm

Z-axis: 0.01mm

Weight: 205t
