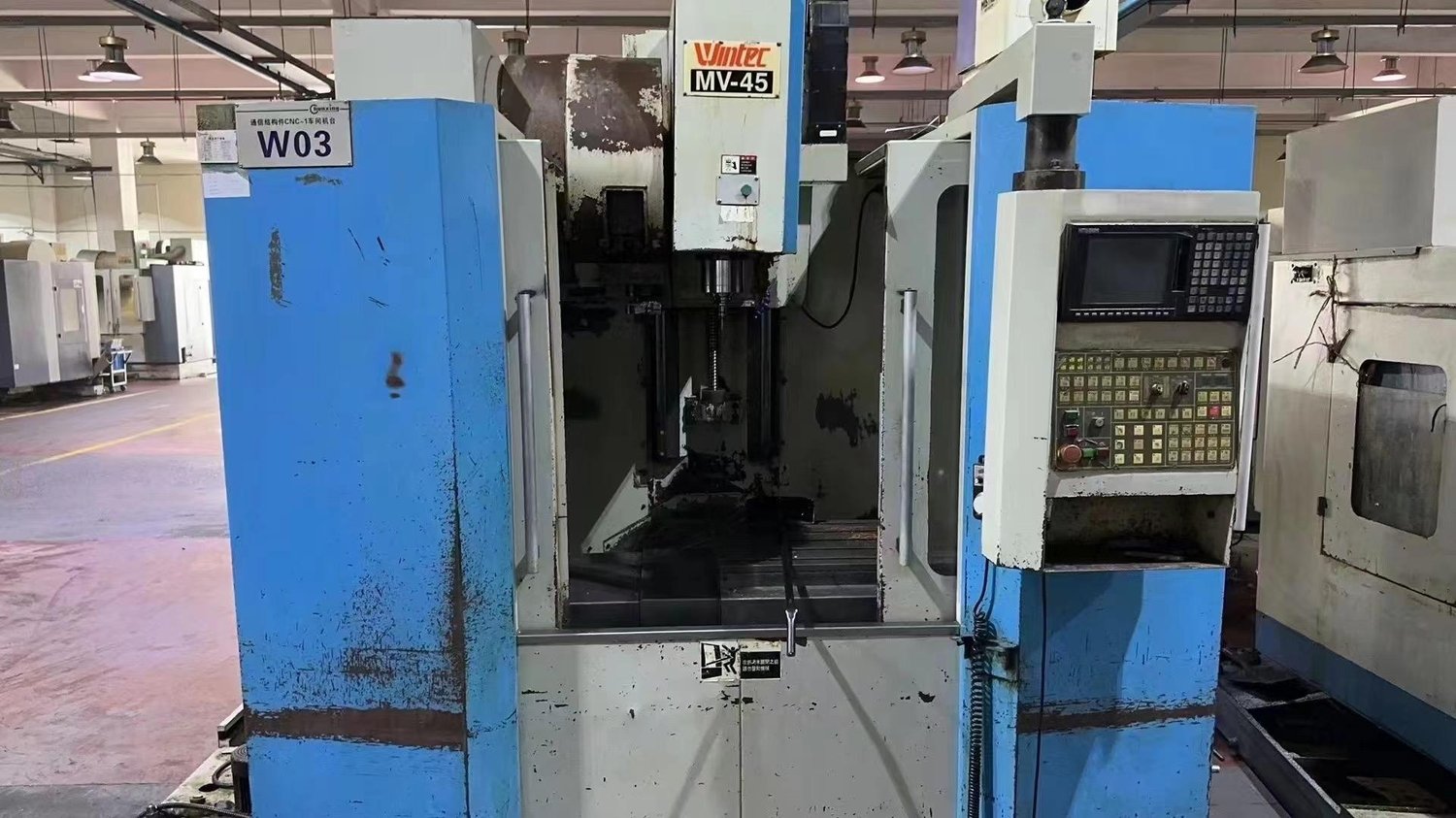

WINTEC MV-45 Vertical Machining centre

Worktable size :1000X500mm

X/Y/Z axes travel :850X550X580mm

Worktable load:750kg

Distance from spindle nose to worktable surface:120-700mm

Spindle nose taper:BT40

Distance from spindle center to column slide guideway surface:600mm

Spindle motor:7.5kw/11kw

Spindle speed:10000rpm

Machine weight :5300kg

Machine footage:3800X3100X2650mm

Three axes linear guideway

With oil chiller
