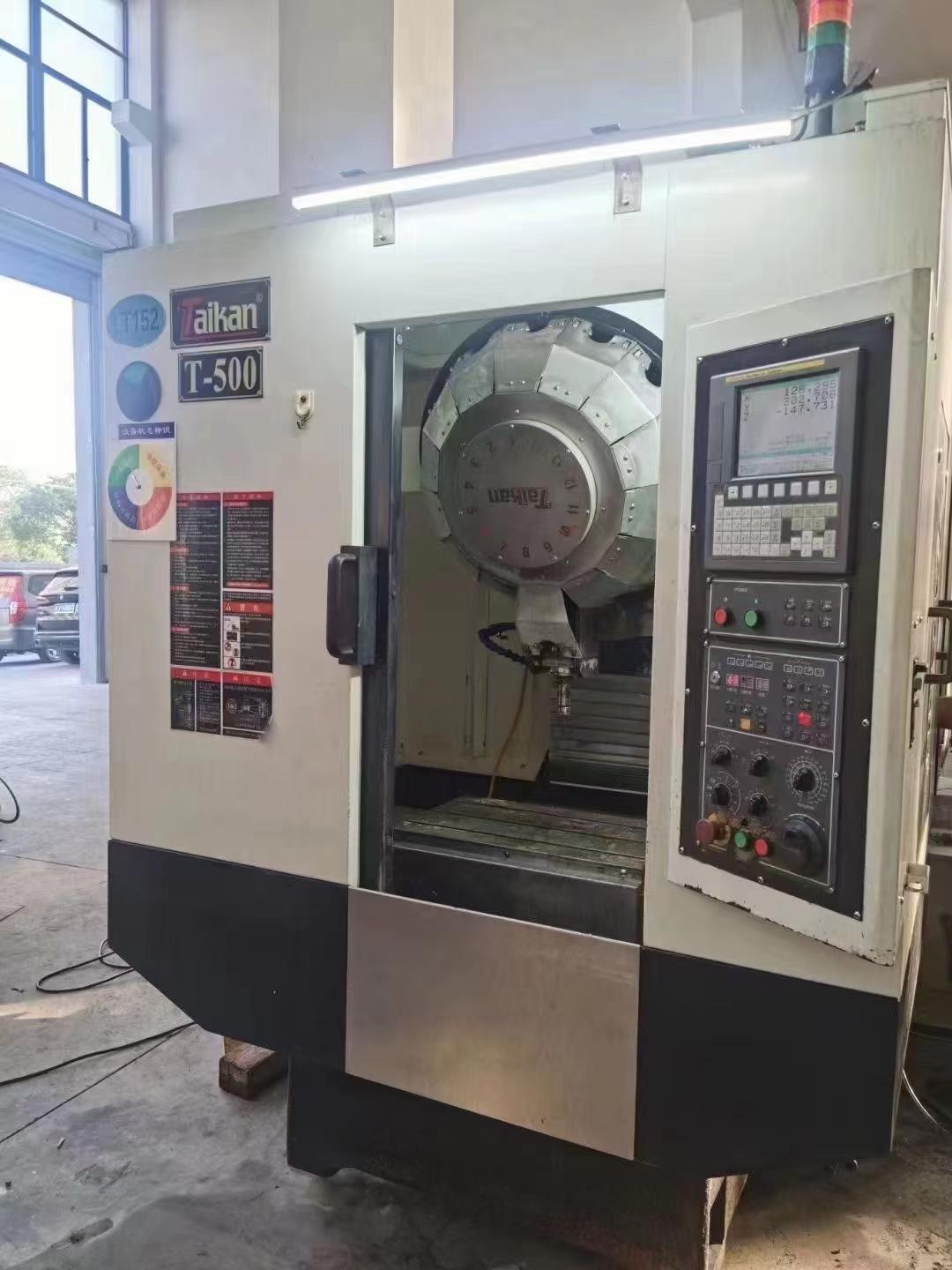

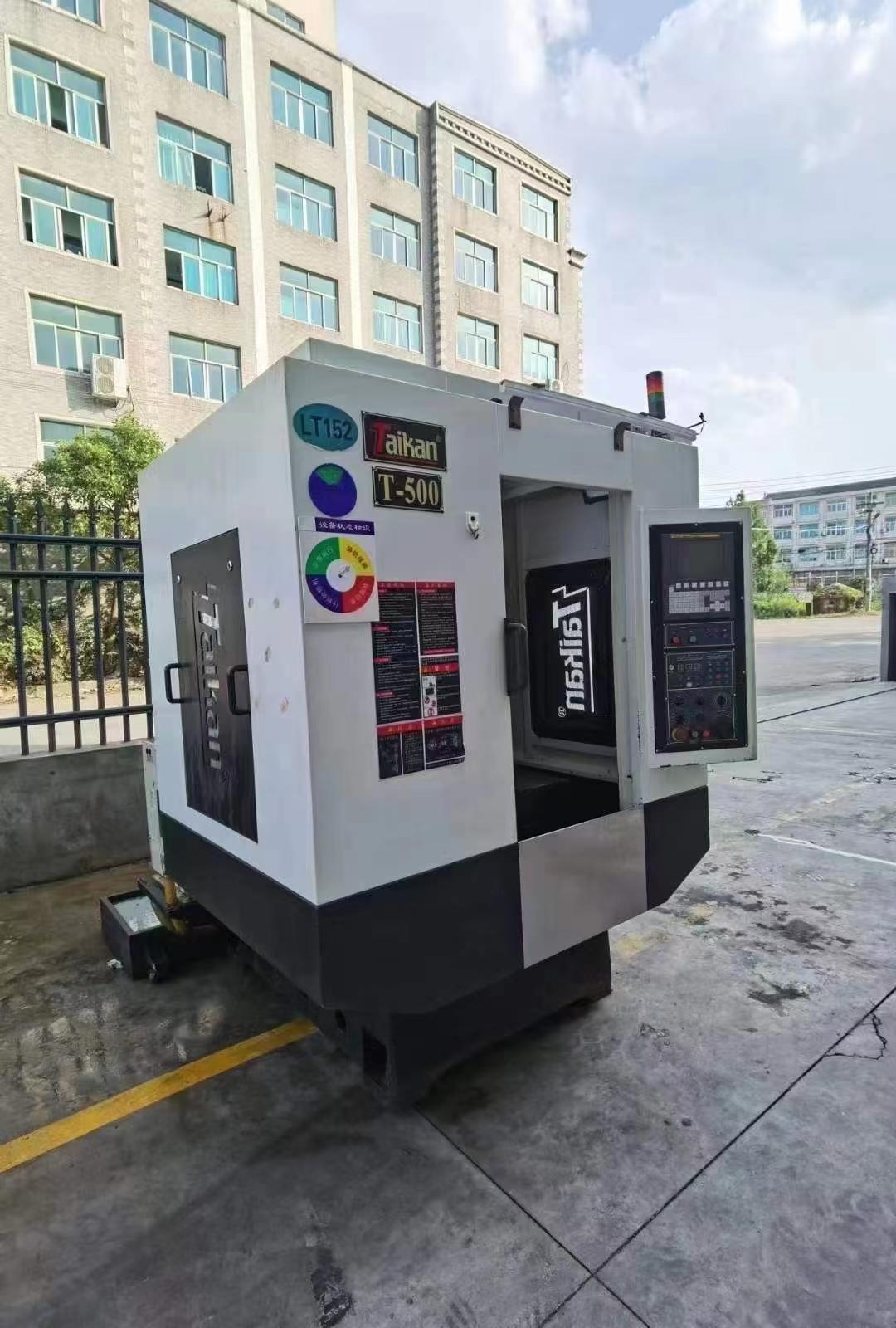

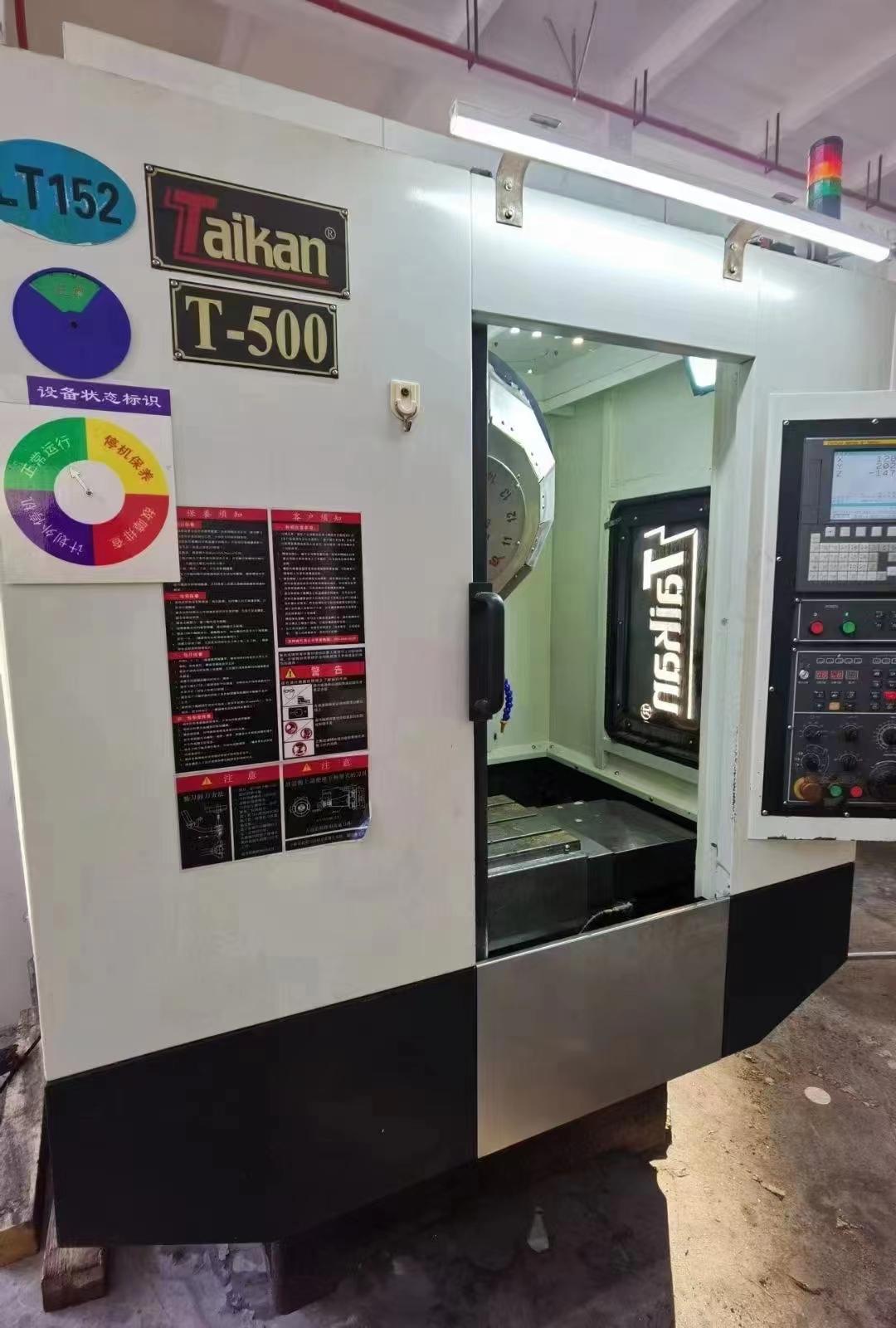

Taikan T-500 Tapping machine

Worktable size: 620*400mm

Three axes travel: 500*400*320mm

T-slot: 3-14*120mm

Distance from spindle nose to worktable: 180*500mm

Distance from spindle center to fuselage end :445mm

Spindle speed: 24000rpm

Spindle taper: BT30 tool holder

Spindle power: 3.7kw

Tool magazine: 16

Positioning/repeated positioning accuracy: 0.005/0.003mm

Footage: 1690*2600*2600mm

Three axes fast moving rate: 48 m/min

Weight: 3100kg
