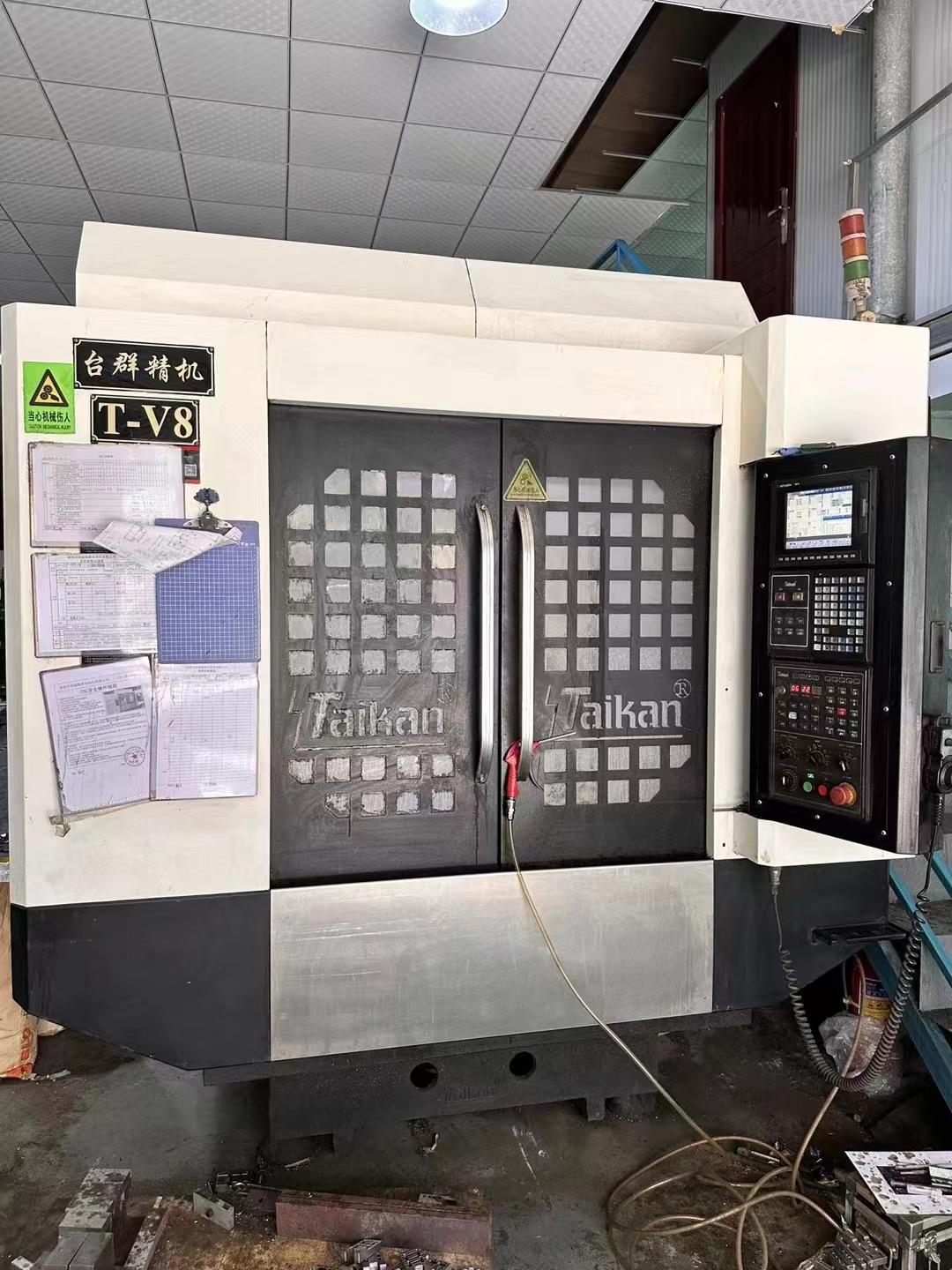

Taikan T-V8 Vertical Machining centre

Worktable size :900*450mm

Three axes travel:800*500*530mm

T-slot :3*18-130mm

Distance from spindle nose to worktable :100-650mm

Distance from spindle center to body end face :579mm

Spindle speed: 8000rpm

Spindle taper:BT40

Spindle power:7.5kw

Fast moving rate:36/36/36m/min

Cutting rate :8000mm/min

Positioning accuracy:0.003/300mm

Weight:6200kg

Footage :2600*2500*2050mm
