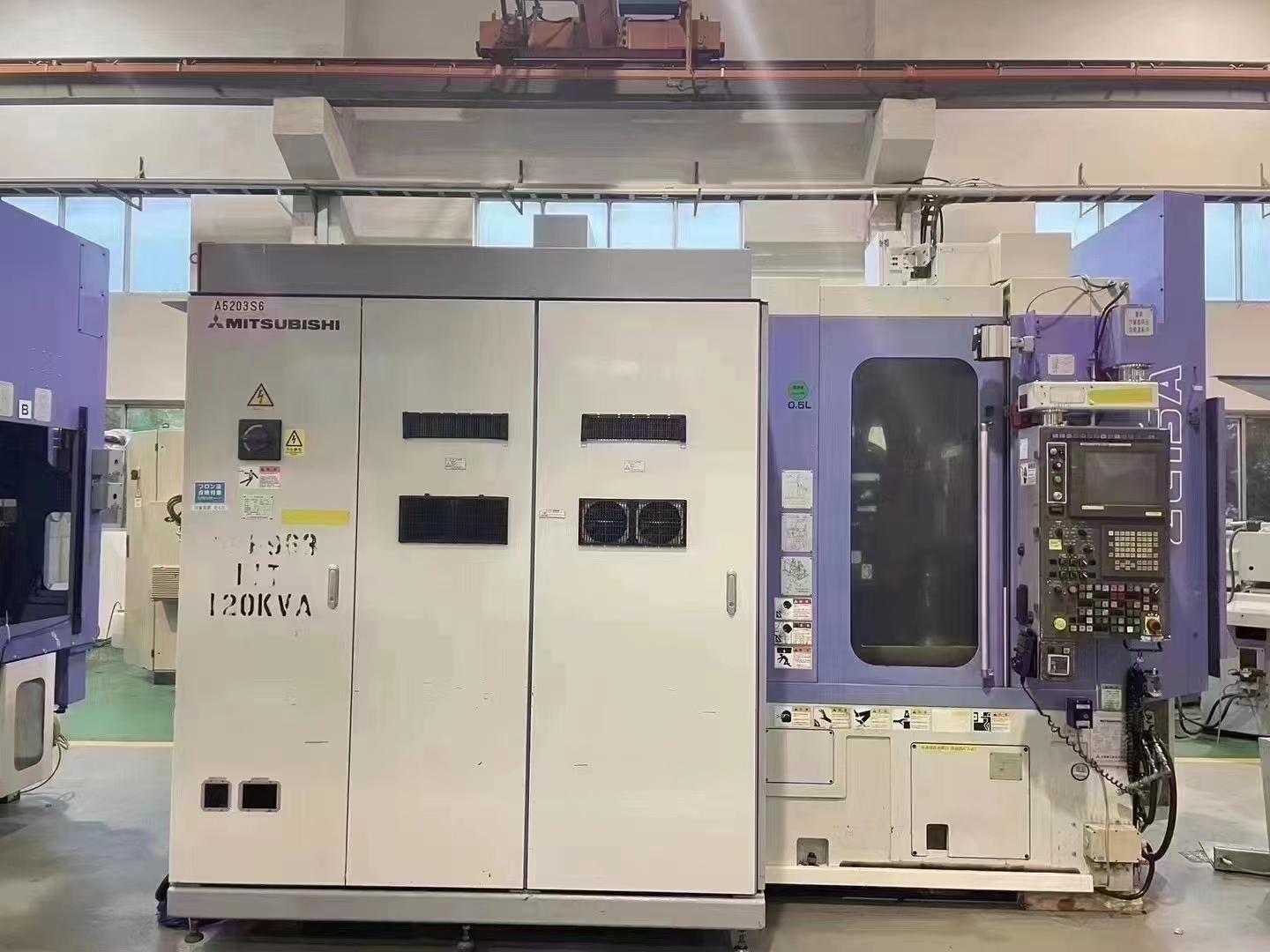

Mitsubishi ZE15A Gear grinding machine

Maximum working diameter: 150mm

Machining modulus: 1 ~ 4mm

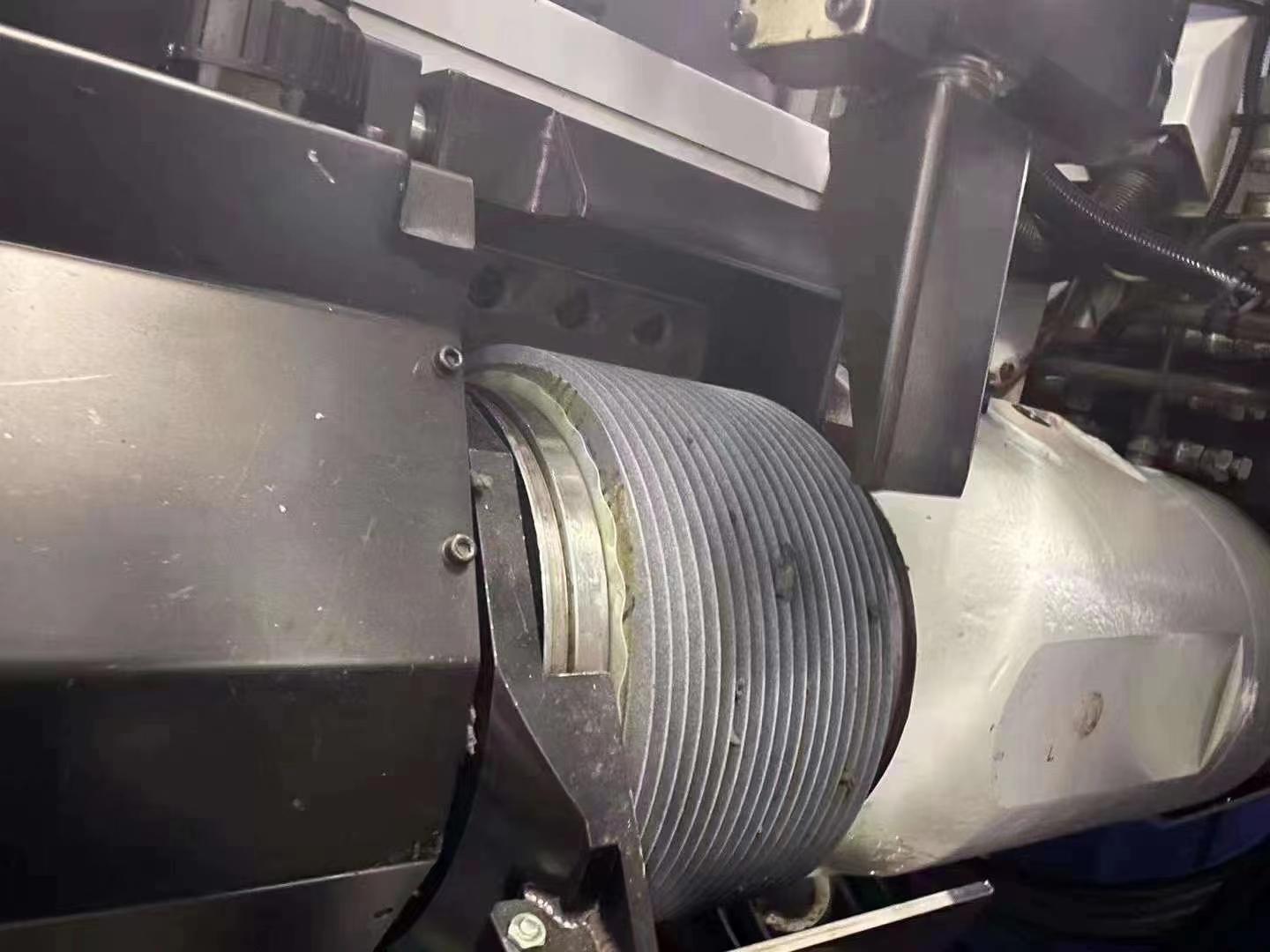

Grinding wheel size: 300*125*150mm

Rotation angle of grinding wheel head: 45°

Wheel travel: 200mm

Grinding wheel speed: 4500rpm

Axial feed: 250mm

Distance between grinding wheel center and worktable surface: 190 ~ 440mm

Worktable diameter: 150mm

Maximum rotating speed: 1500rpm

Worktable driving type: linear drive

Radial fast feed rate: 10000mm/min

Number of workpiece teeth: 5 ~ 1000

Main motor (continuous rating) : 17KW

Machine size: 3860*4500*2720mm

Total electricity consumption: 120KVA

Machine weight: 11T
