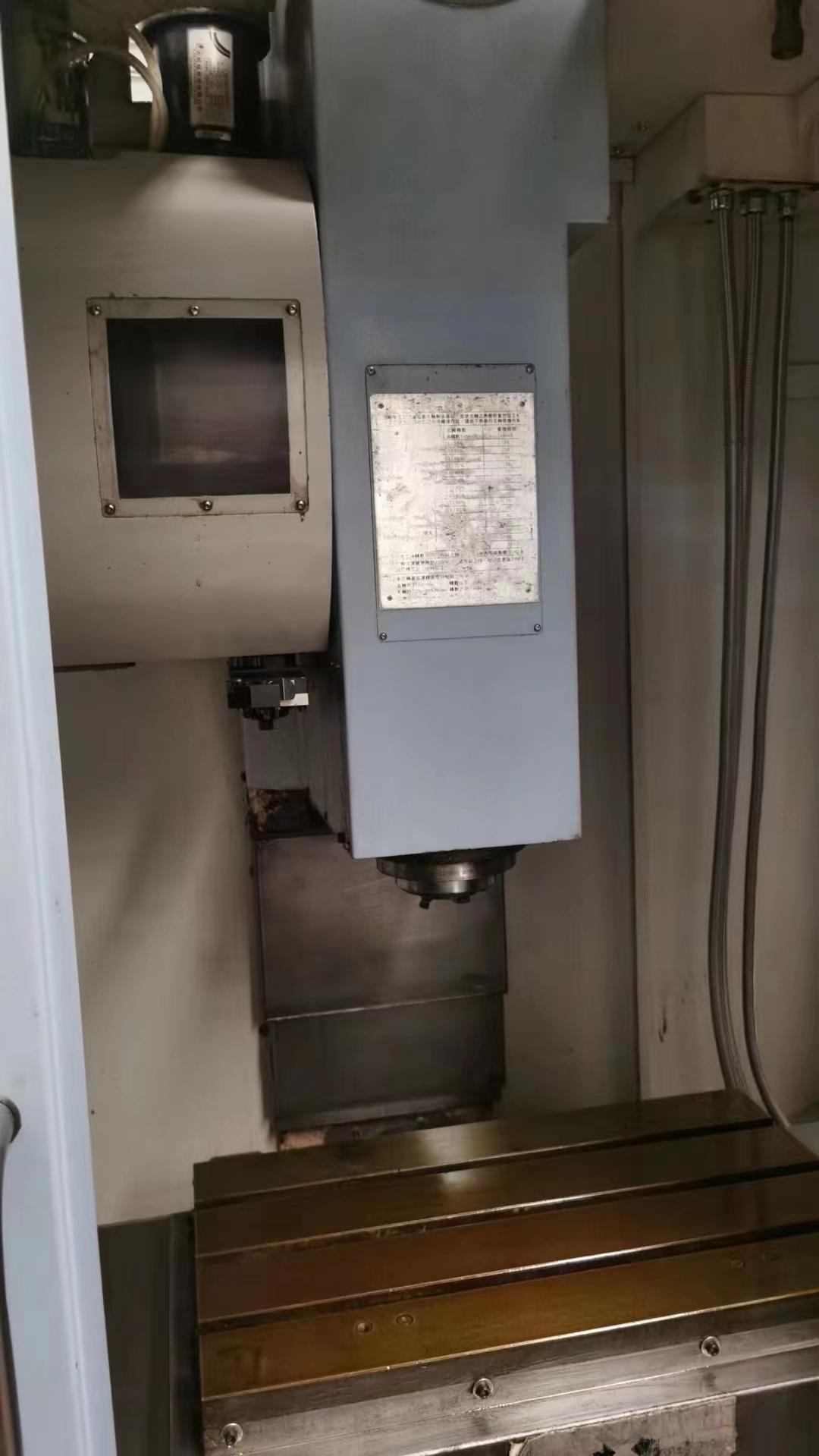

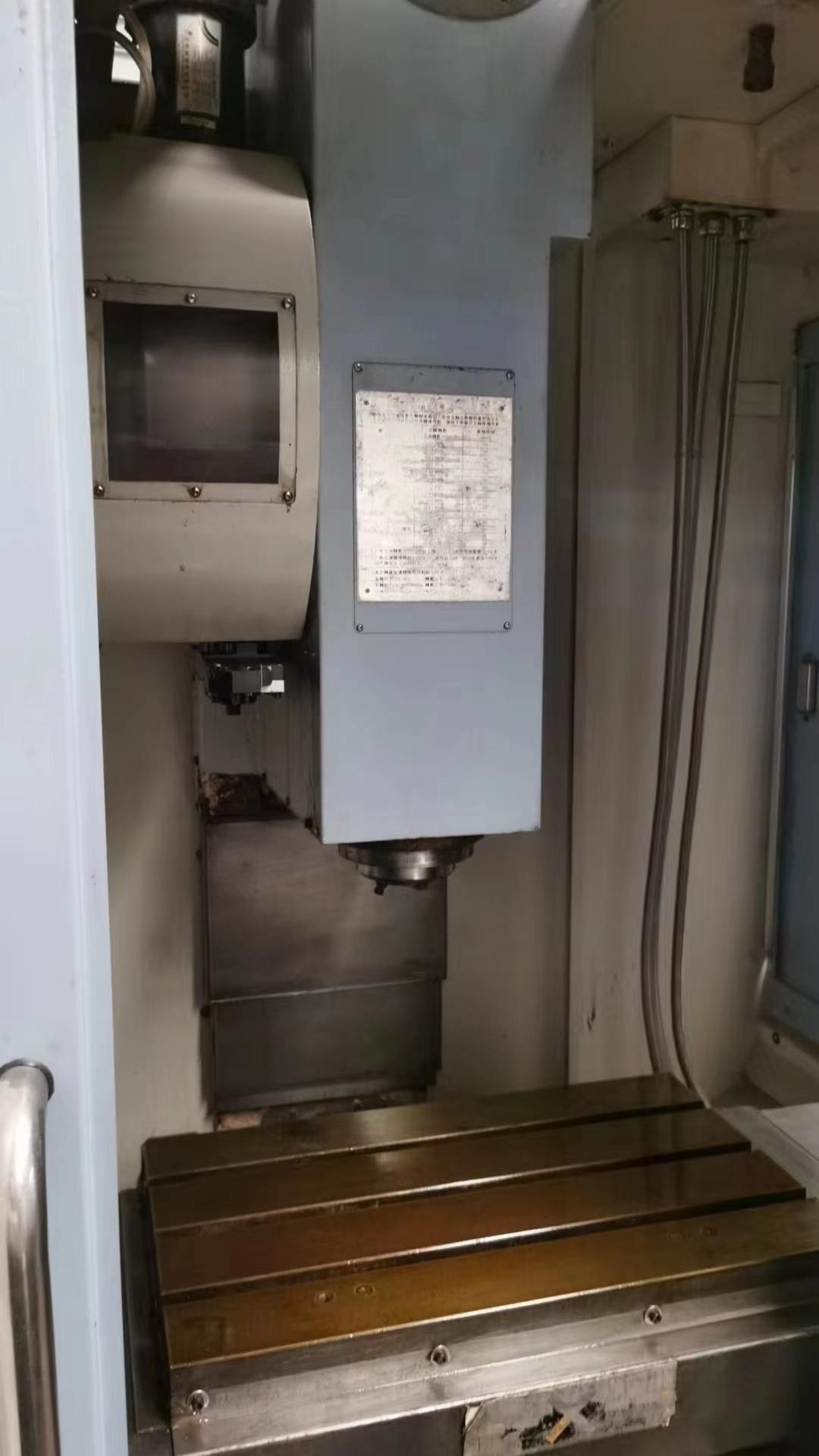

Twinhorn VF-500 Machining centre

X-axis travel: 500mm

Y-axis travel: 380mm

Z-axis travel: 400mm

Distance from spindle nose to worktable surface: 150-550mm

Spindle center to Z axis guideway surface: 435mm

Distance from Z-axis guideway surface to worktable center: 245-625mm

Rapid feed rate: 48000mm/min

Cutting feed rate: 10000mm/min

Ball screw diameter*pitch: D32*16mm

Worktable size: 650*380mm

Spindle taper: BT-30

Spindle speed: 12000rpm
