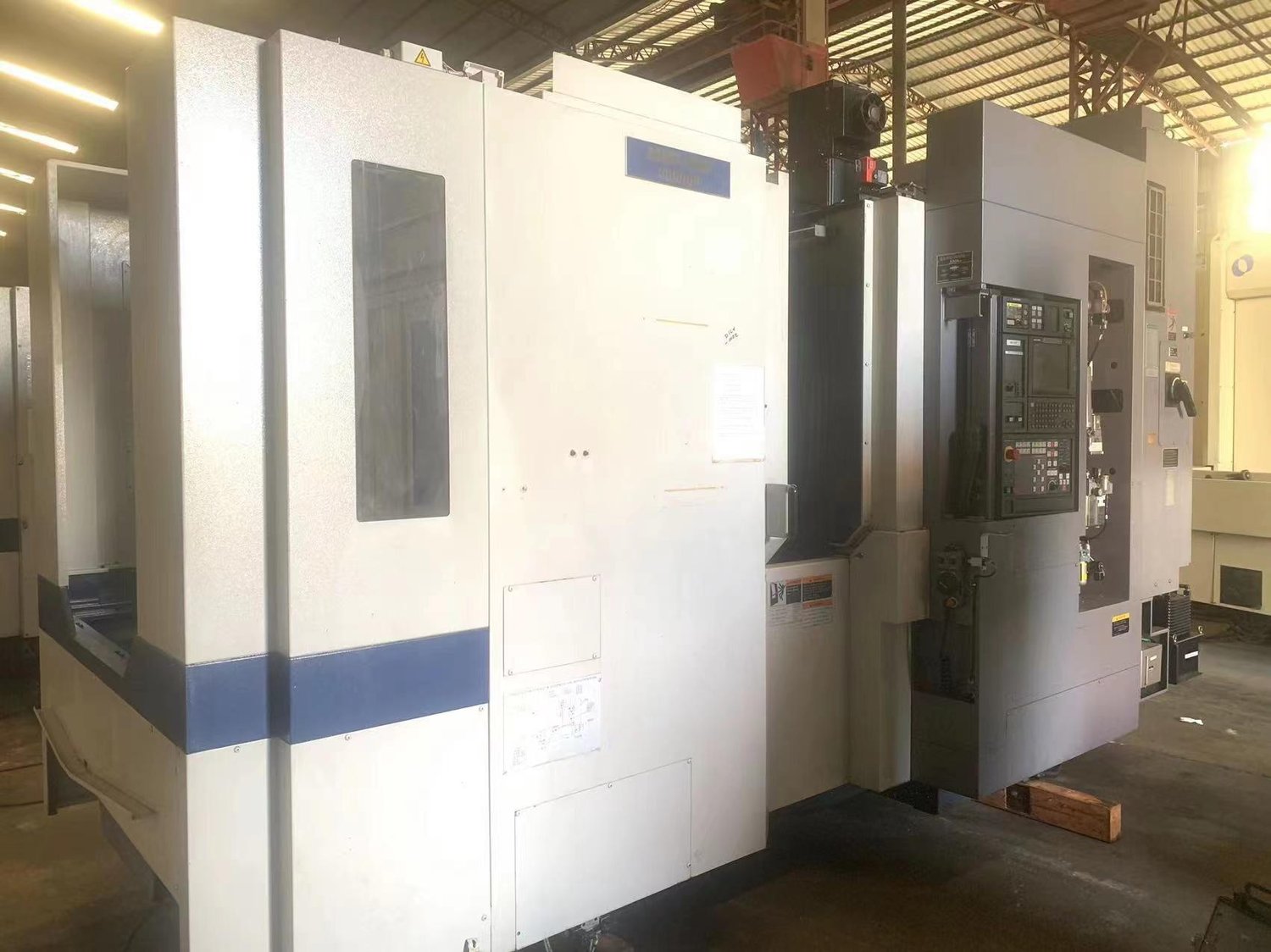

Mori Seiki SH-503 Horizontal Machining centre

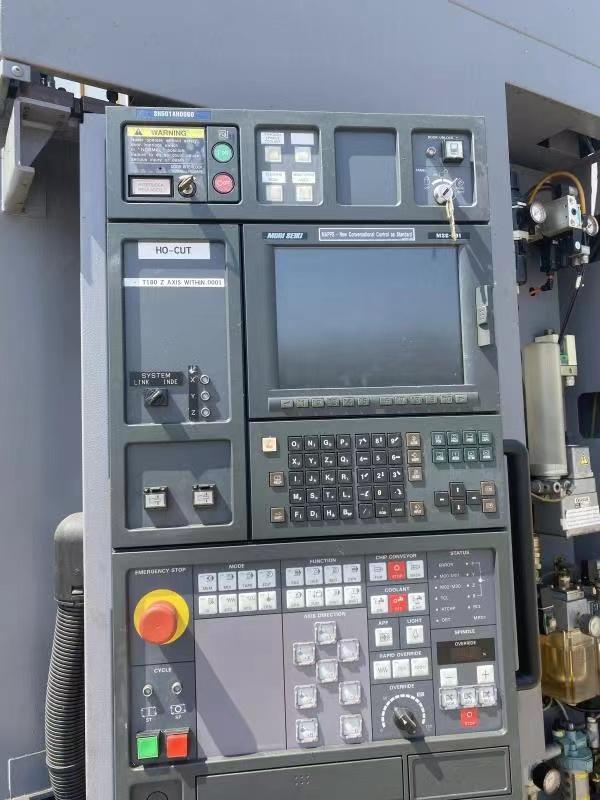

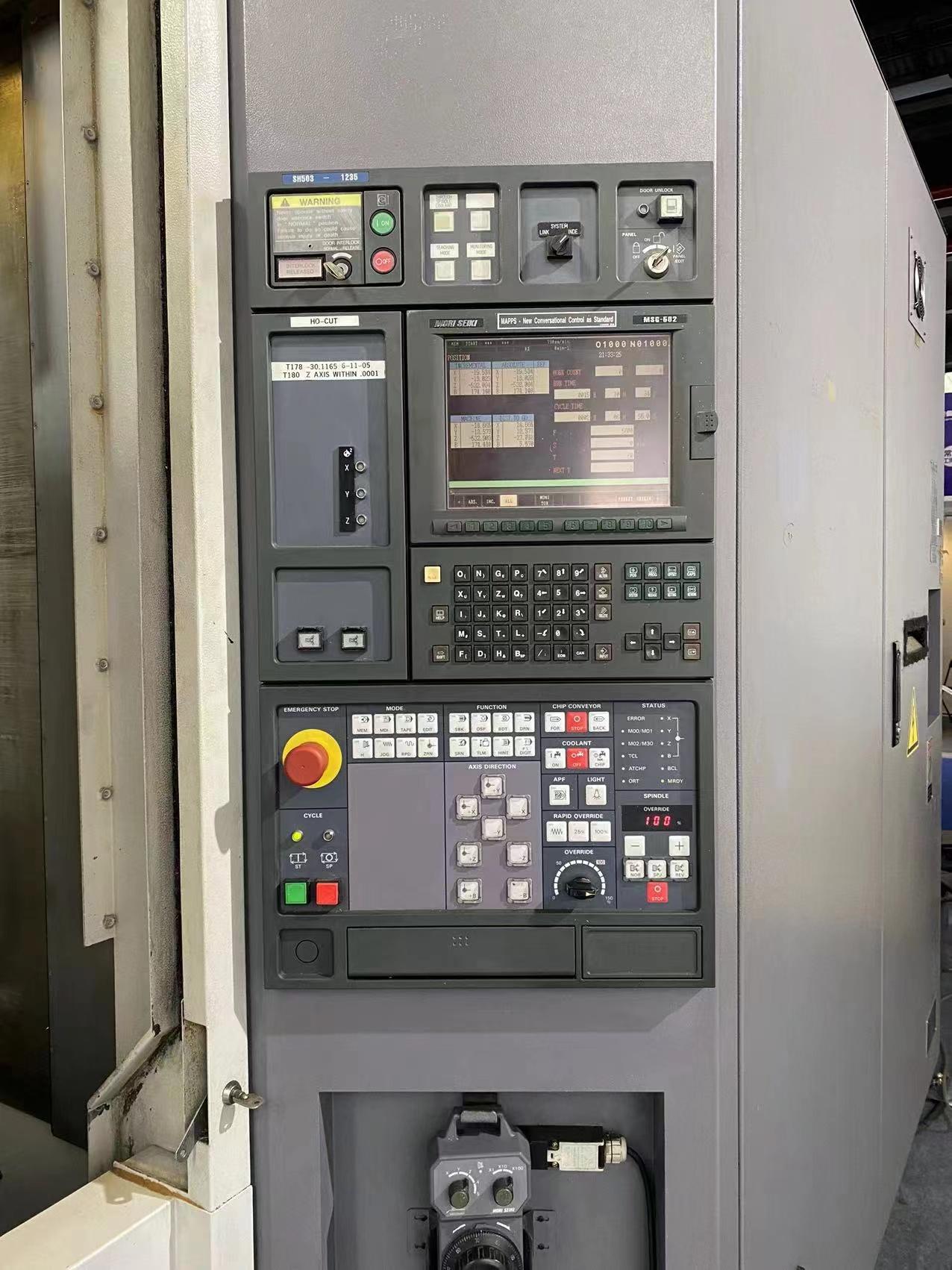

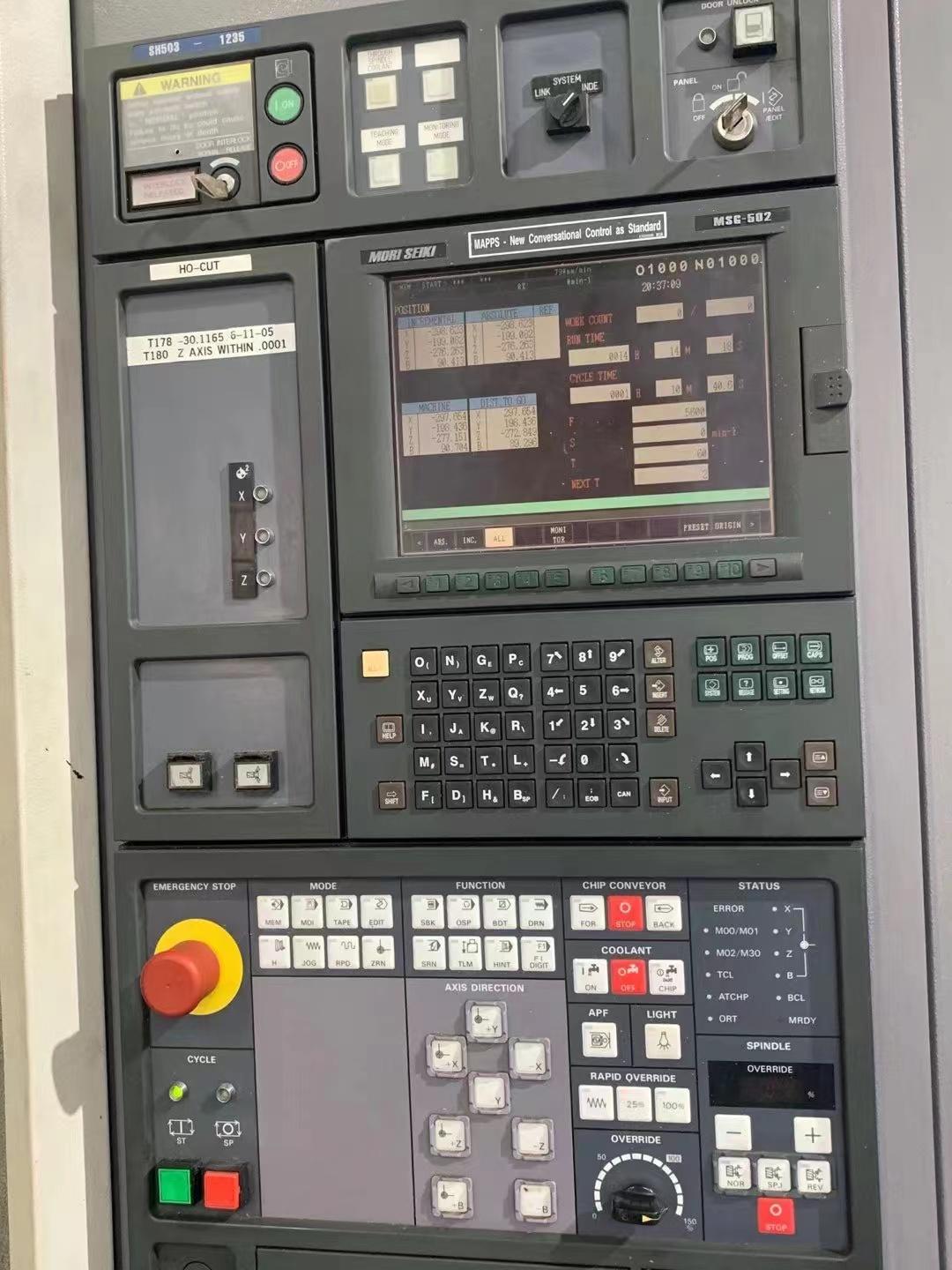

Control CNC System :MSG 502 (FANUC 16iMA)

X-axis travel :629.92mm

Y-axis travel :599.44mm

Z-axis travel :650.24mm

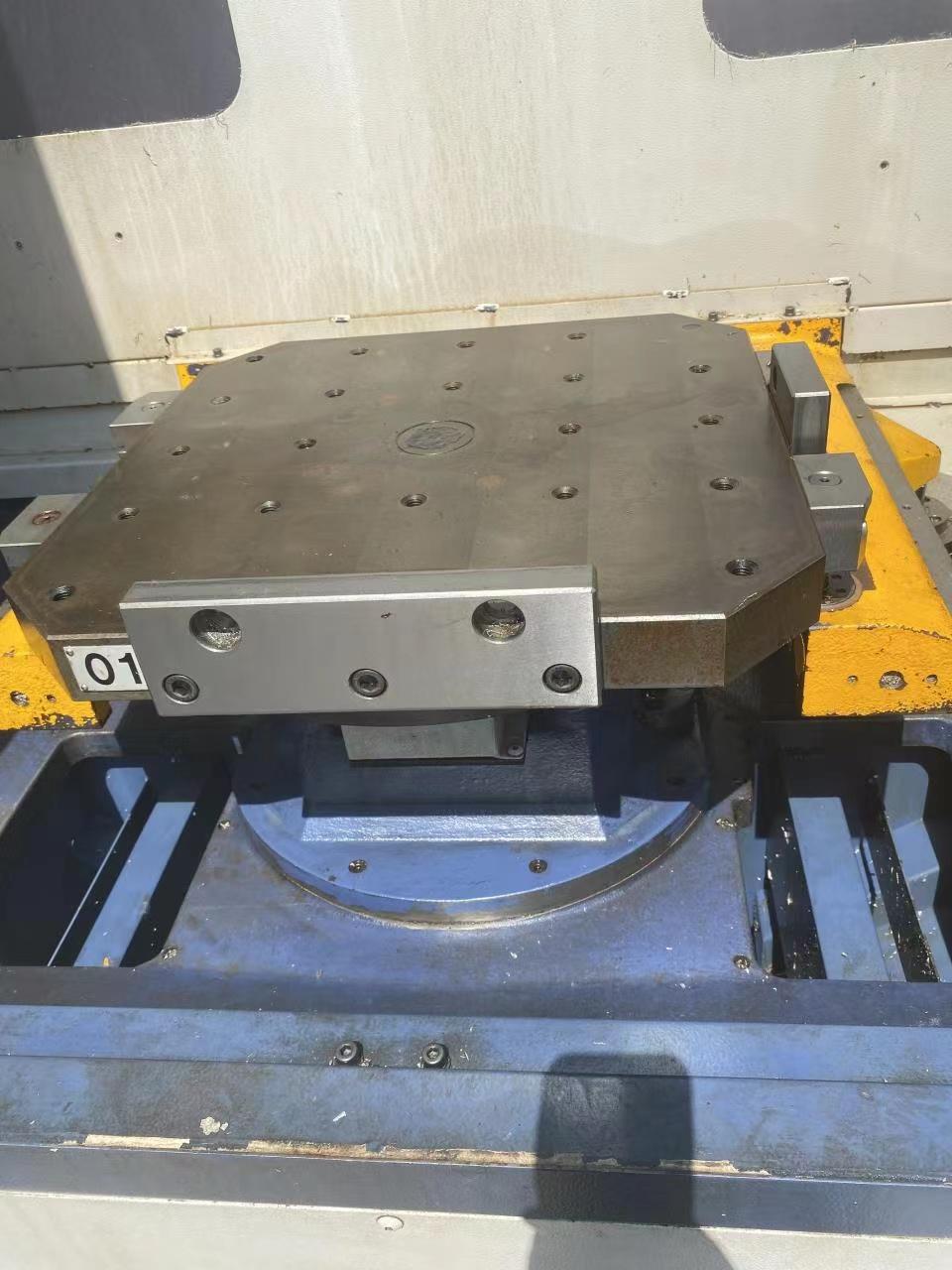

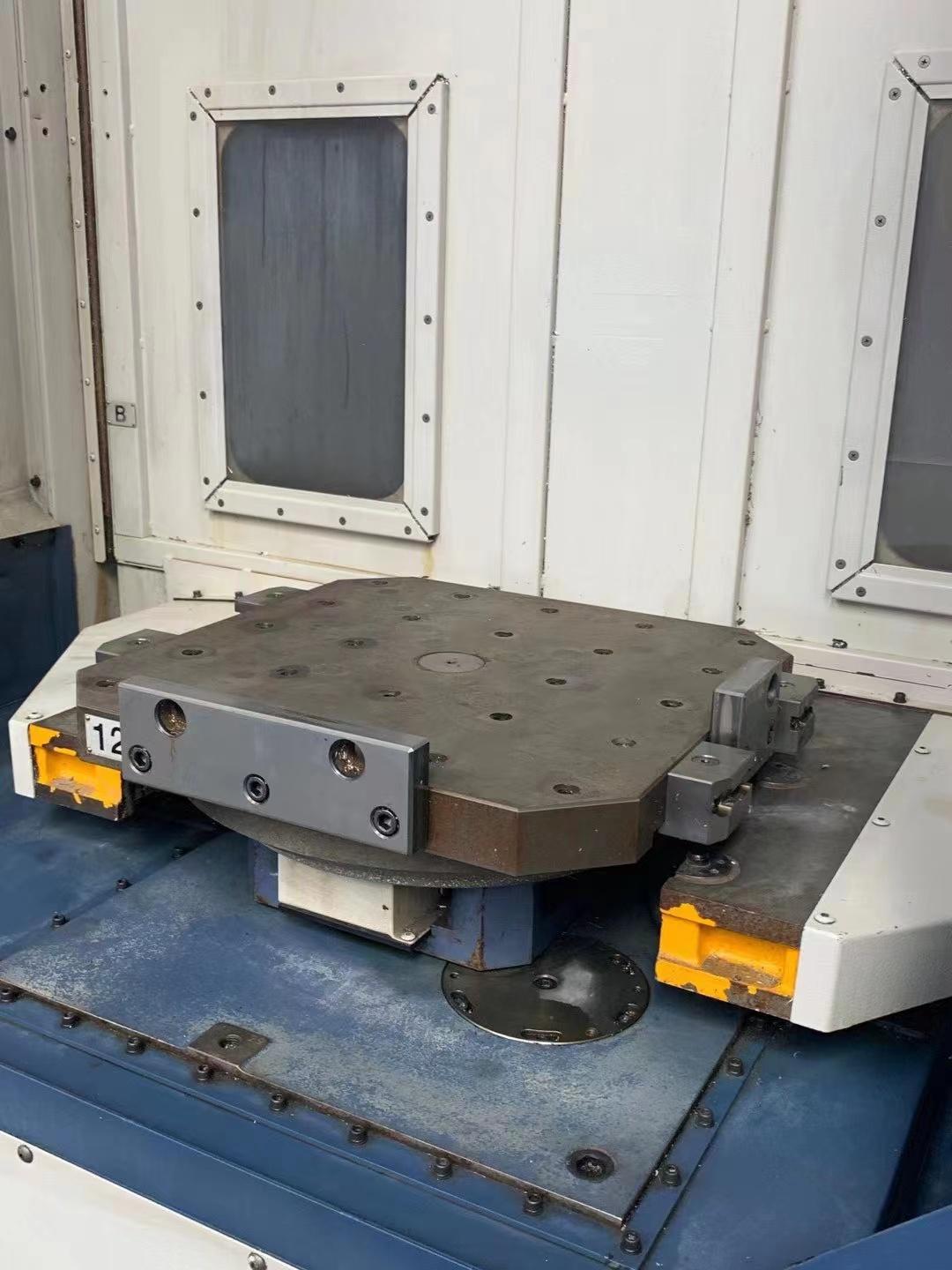

Worktable size :500*500mm

Power :14.9kw

Spindle speed :12000rpm

Tool magazine :180

Taper: CAT-40

Distance from worktable surface to spindle center:50-650mm

Distance from worktable center to spindle measure gauge surface: 150-800mm

Workpiece height: 699mm

Transverse fast feed rate: 42m/min

B axis with glass scale

Index resolution of 0.0001deg
