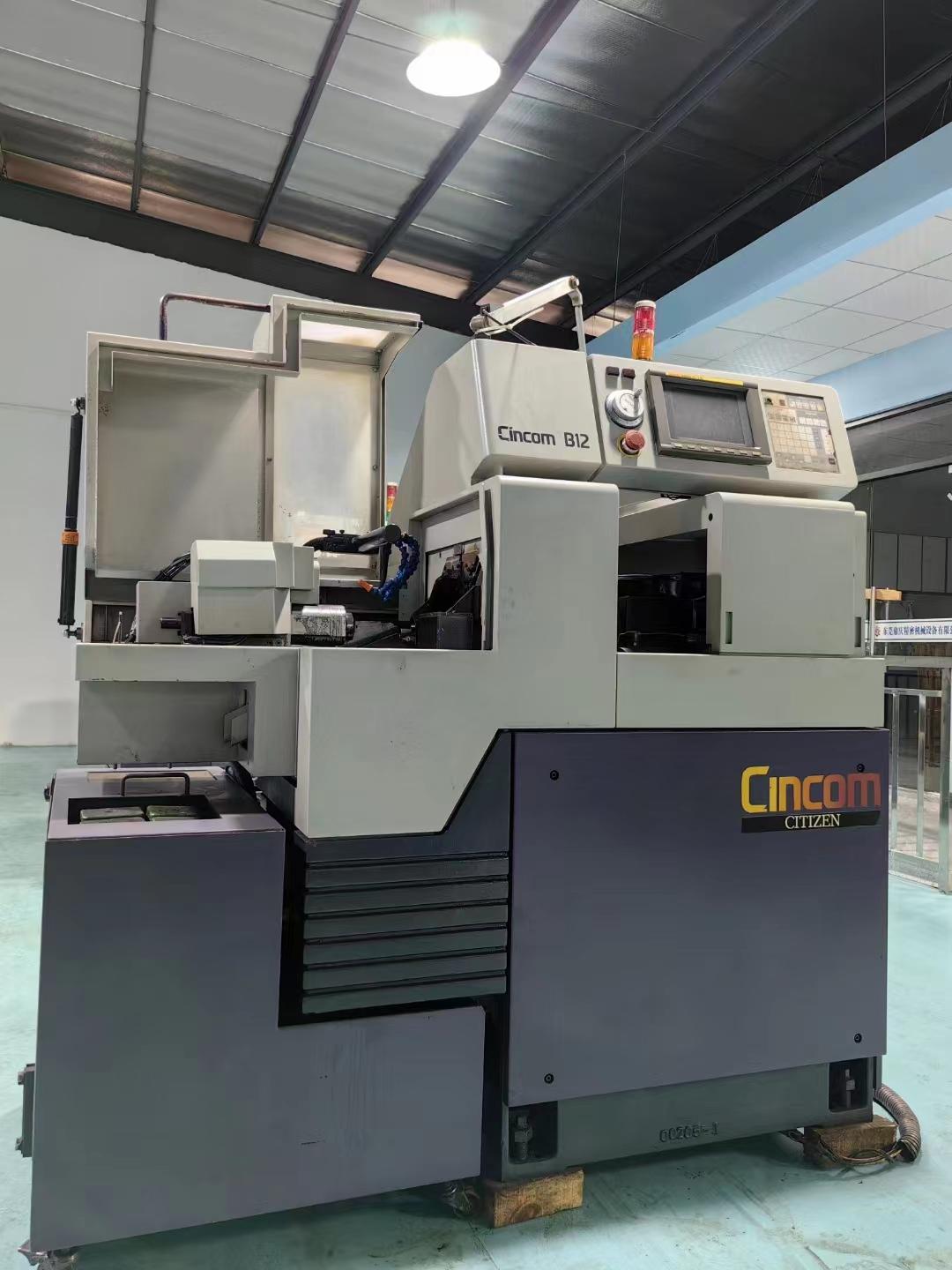

Citizen B12 Automatic lathe

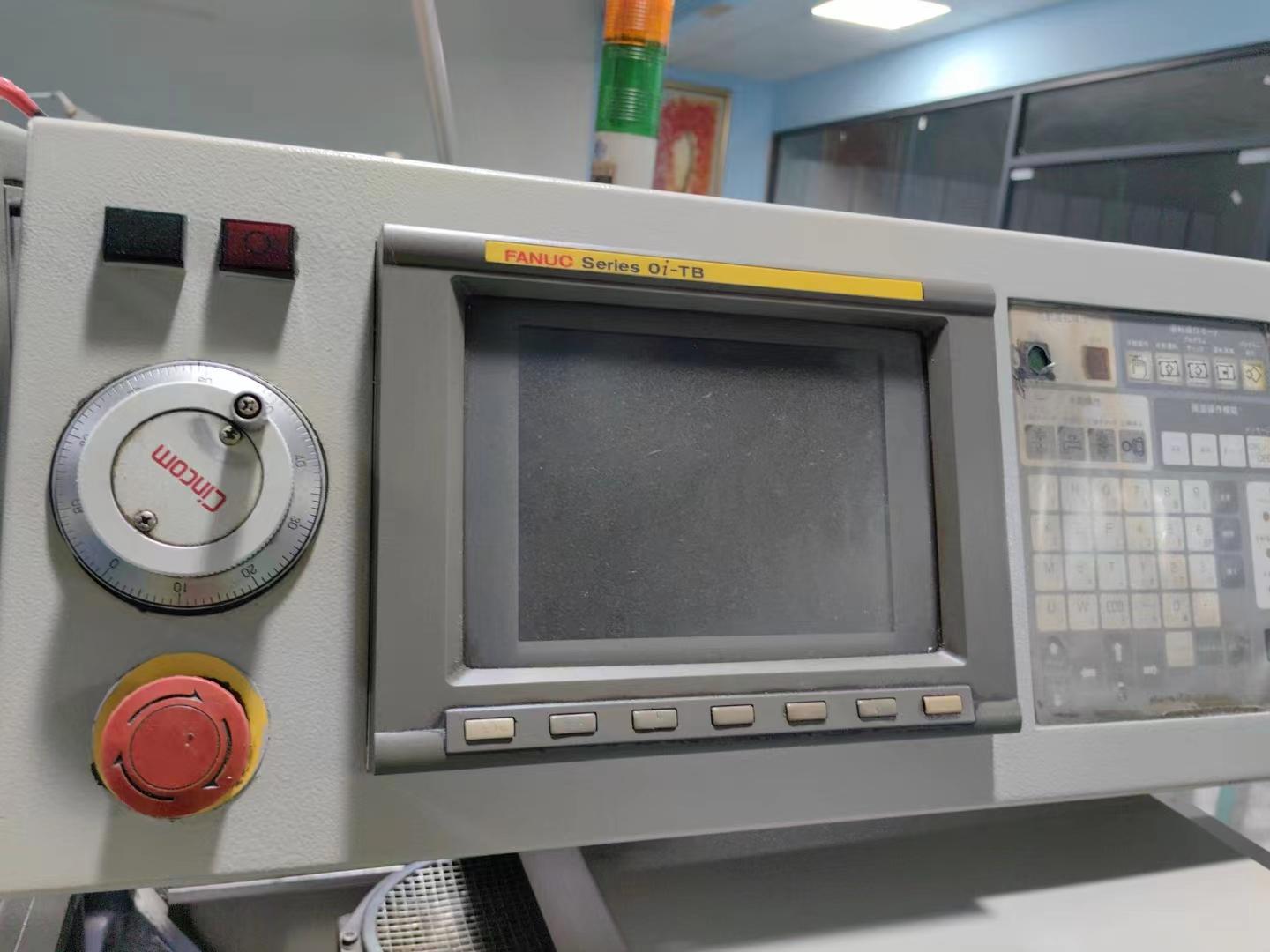

CNC System: FANUC

Maximum machining diameter: 12mm

Maximum machining length: 135mm

Maximum front boring diameter: 6mm

Maximum rotary tool of tool rest drilling diameter: 5mm

Back-spindle maximum clamping diameter: 12mm

Maximum back machining boring diameter: 5mm

Maximum back-spindle extension : 30mm

Loaded average power: 2.5kVA

Rated power consumption: 3.3kVA

Center height: 1000mm

Spindle speed: 12000rpm

X*Y*Z axis fast feed rate: 21*21*15m/min

Weight: 1100kg
