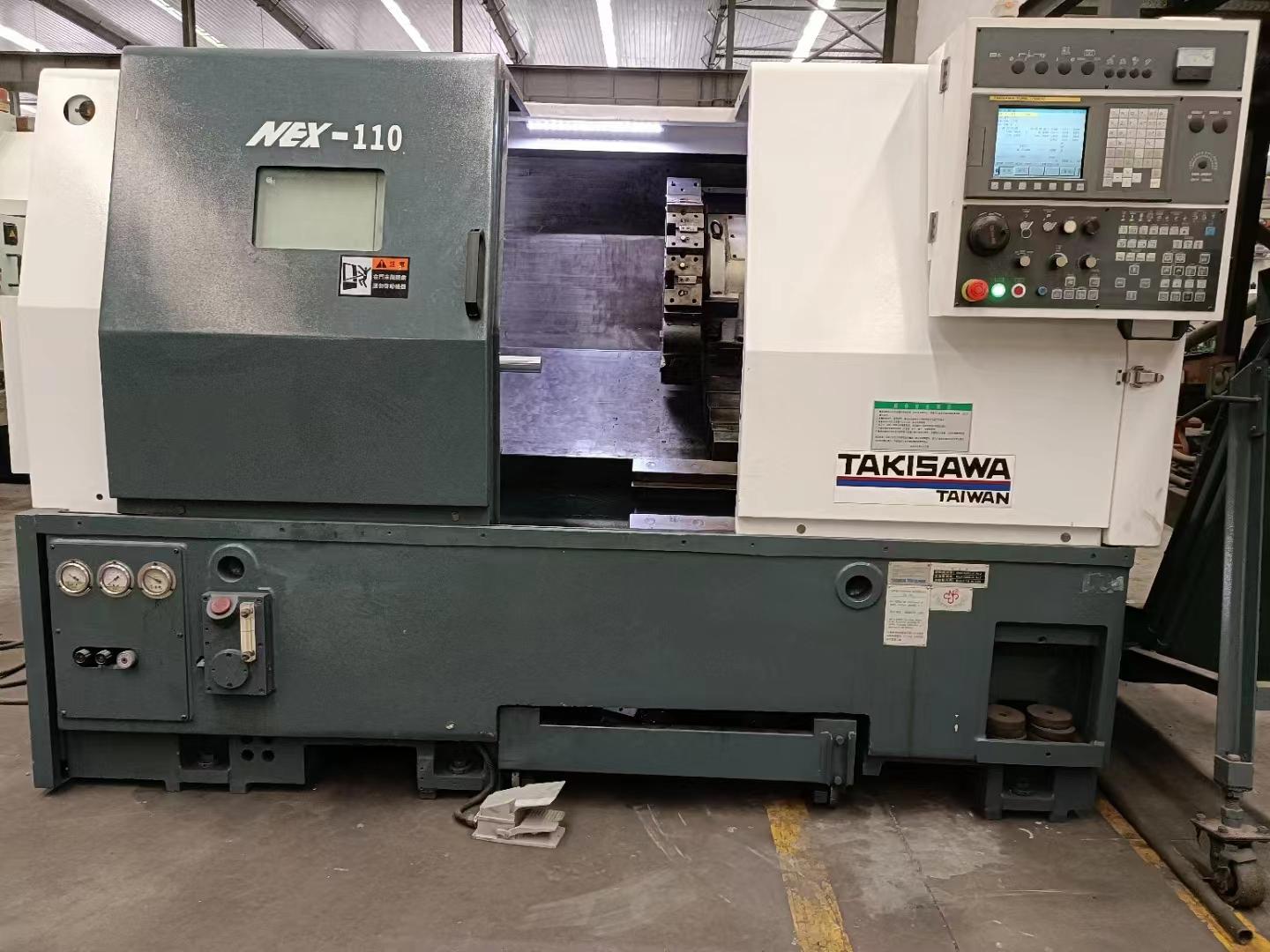

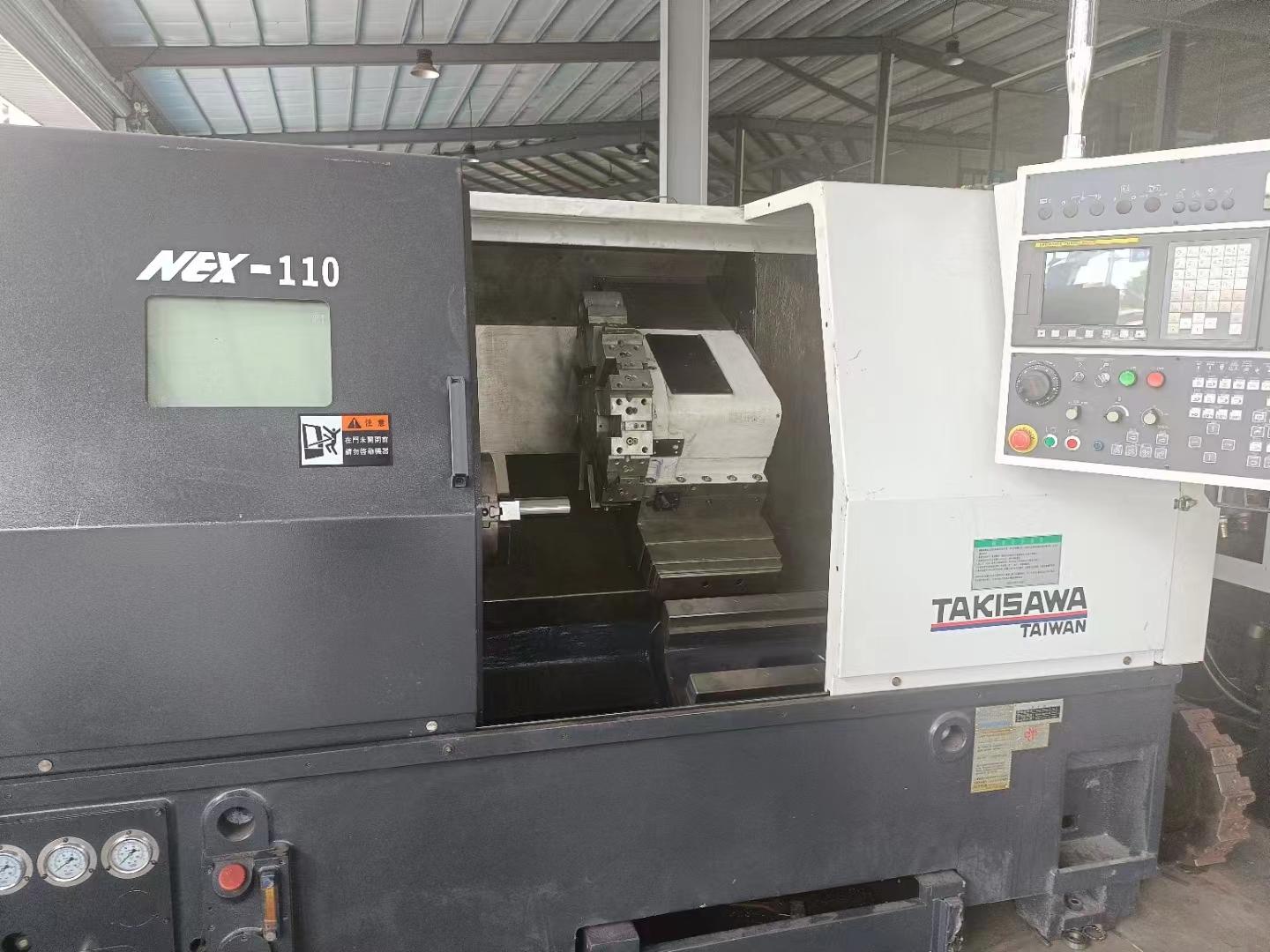

Takisawa NEX-110 CNC inclined lathe
[Product Information]:
- Inventory number：90125
- Brand：Takisawa
- Model：NEX-110
- Origin：Formosa
- Location：China
- Year：2016
- Create Time：2023-07-27
Specifications:

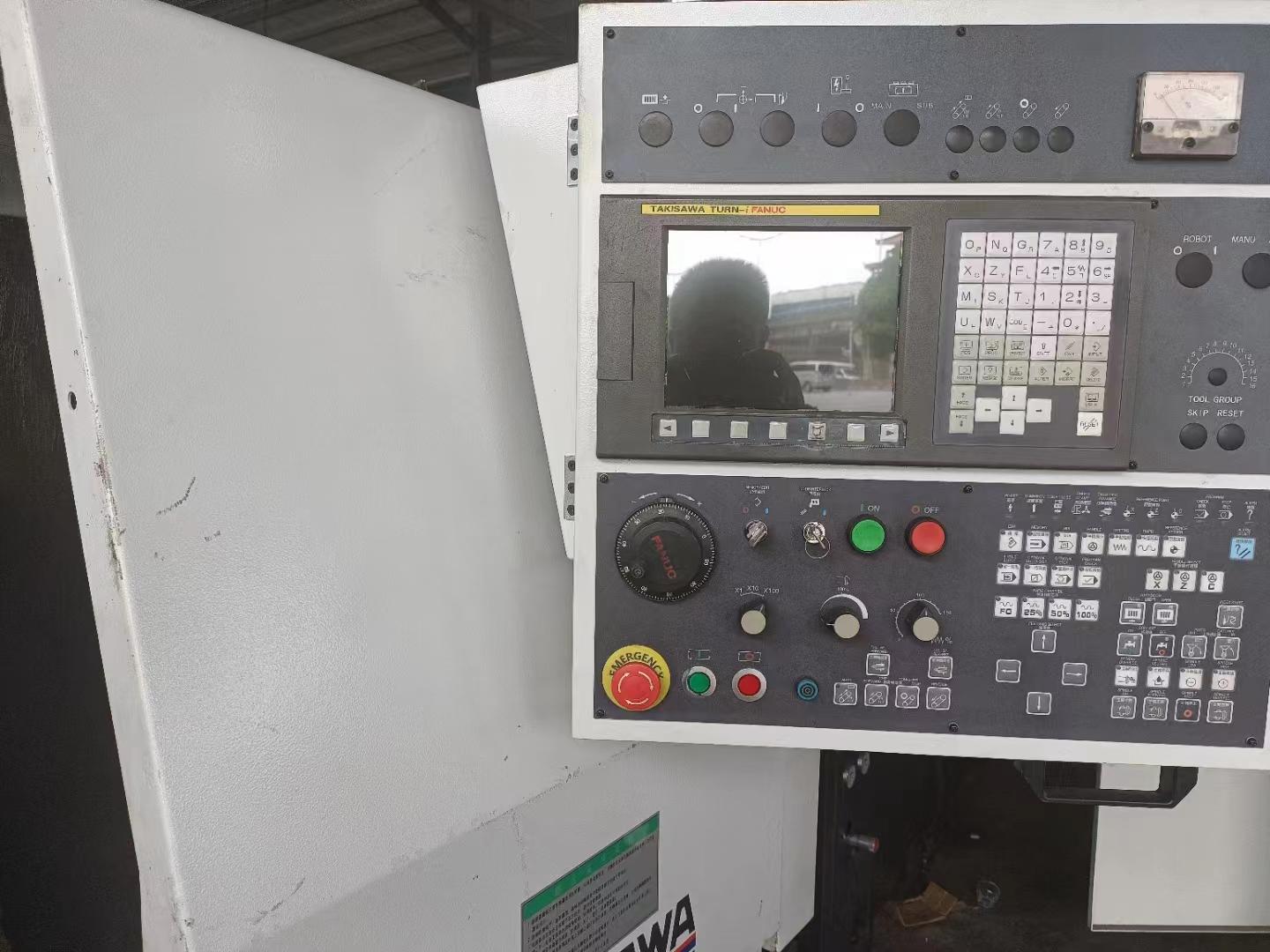

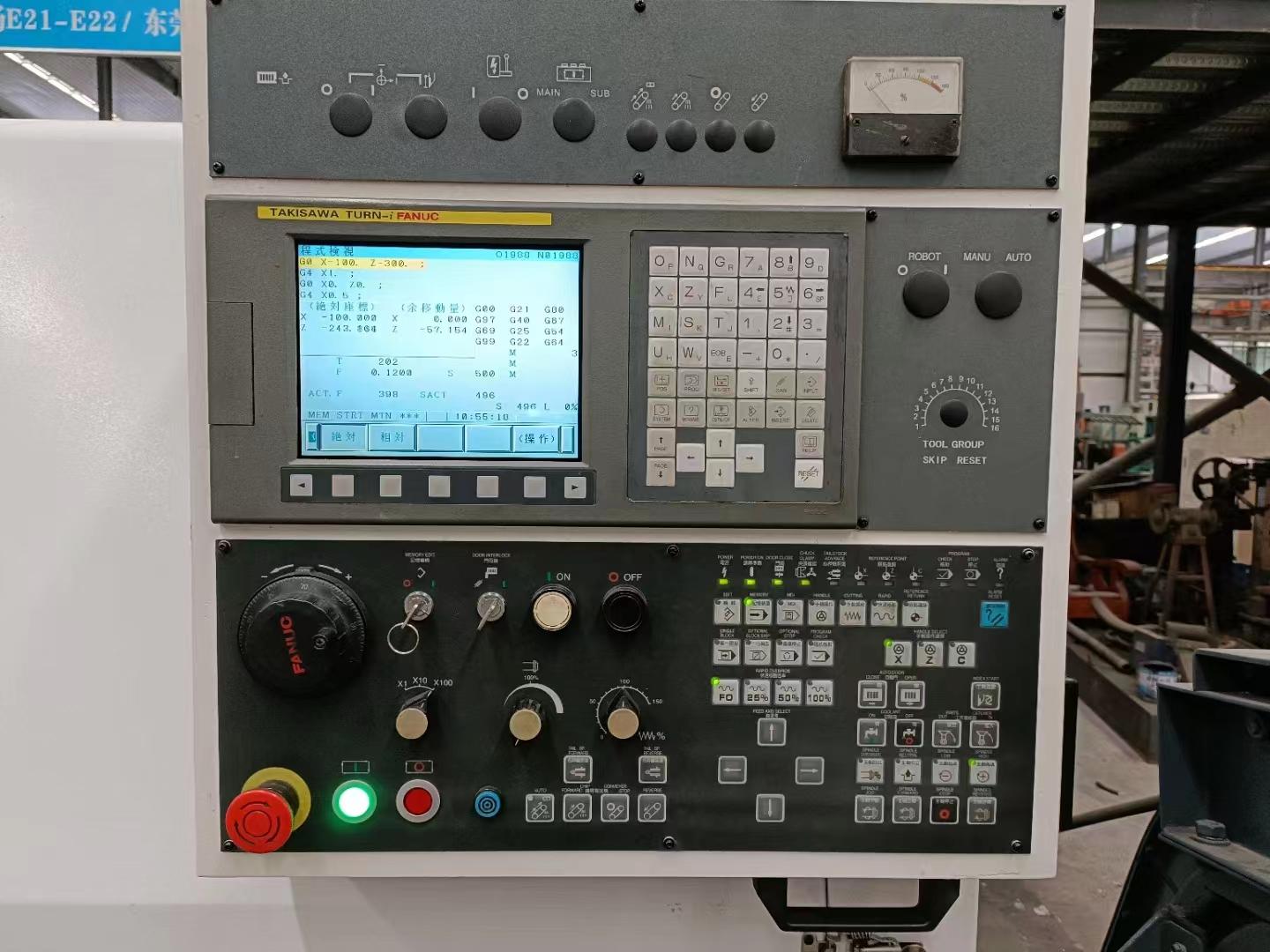

System: FANUC system
X * Z axis travel: 220 * 710mm
Swing diameter: 495mm
Machining diameter: 400mm
Machining length: 657mm
Bar machining diameter: 75mm
Spindle speed: 3500rpm
Main motor power: 11kW
Turret type: T10
Weight: 3800kg
Worktable size: 400x657mm
External footage: 2670x2210x1590mm
10 inches chuck

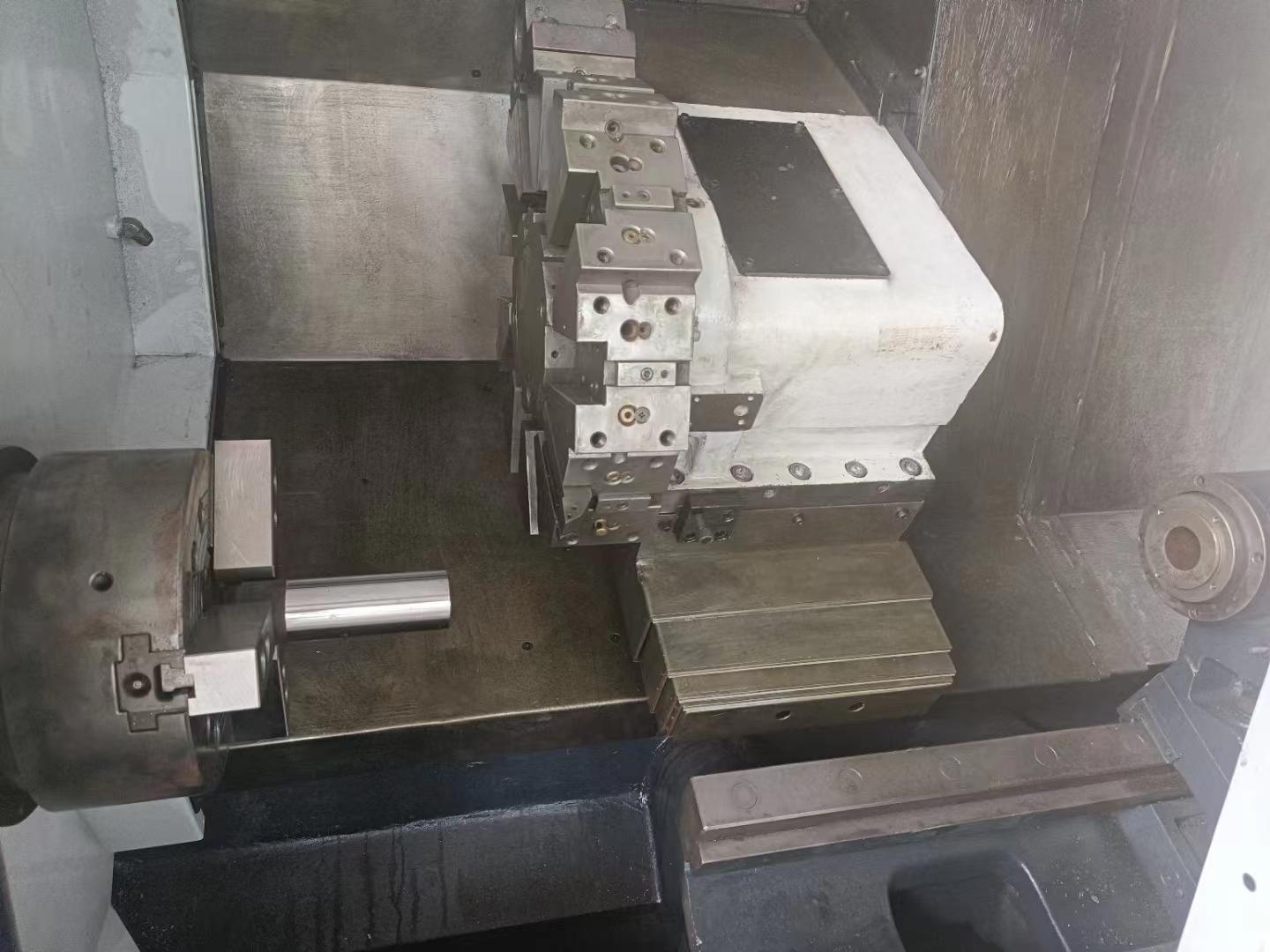

10 positions servo turret
Chain chip conveyor
