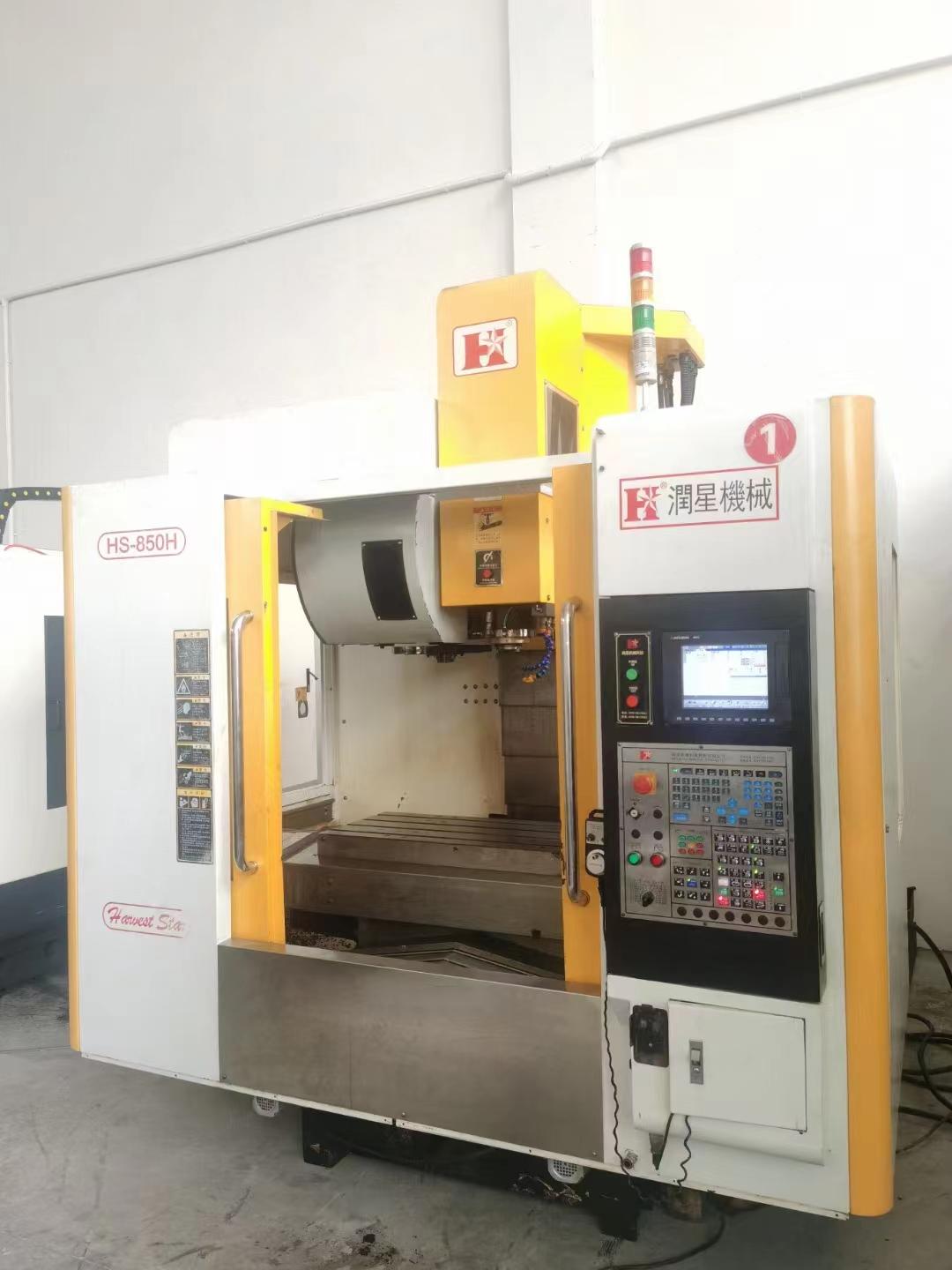

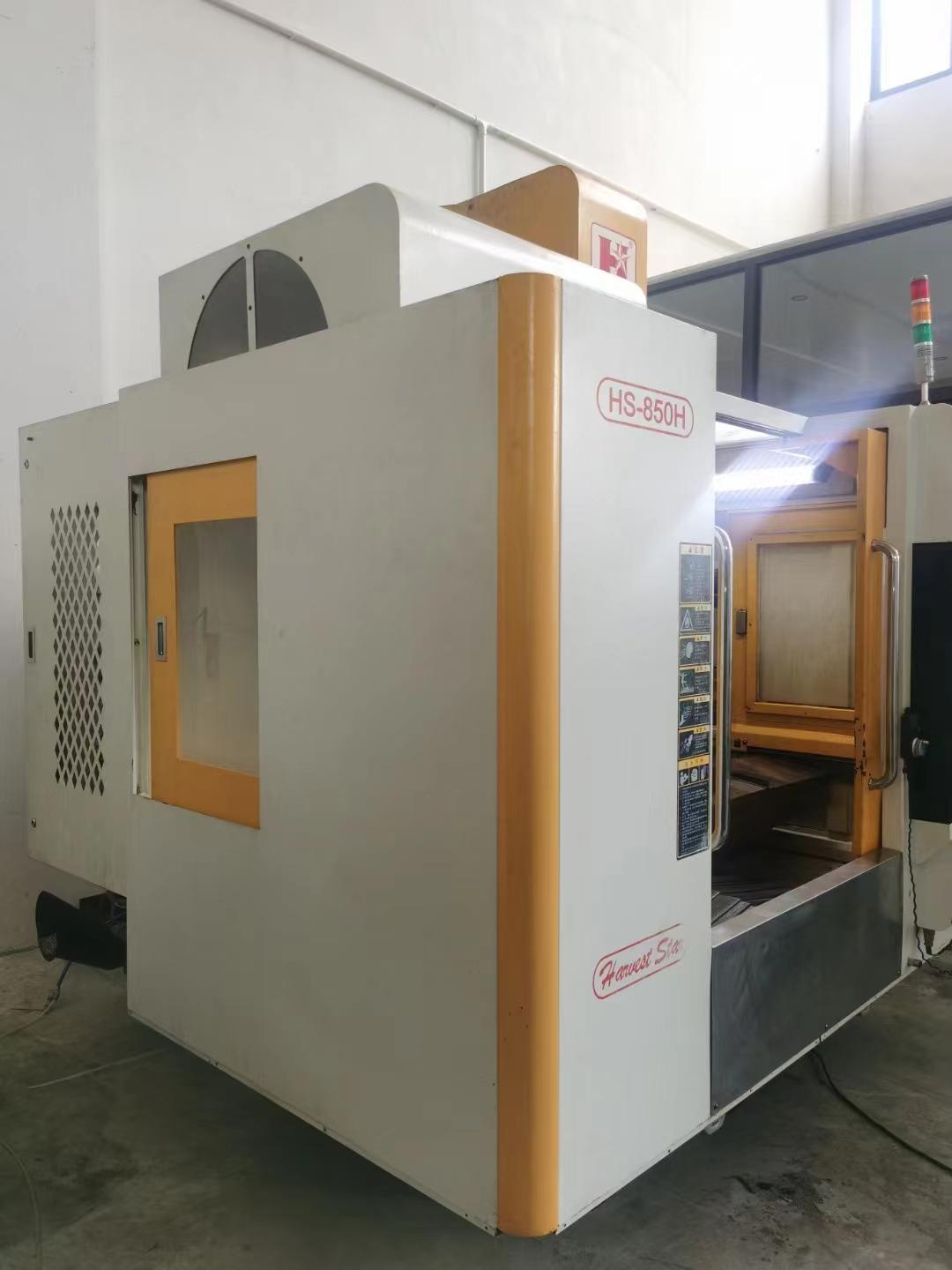

HARVEST STAR HS-850H Vertical Machining centre

CNC System: Mitsubishi M70

Three axis travel: 800 * 500 * 500mm

Worktable size: 1000 * 500mm

Worktable losd: 450kg

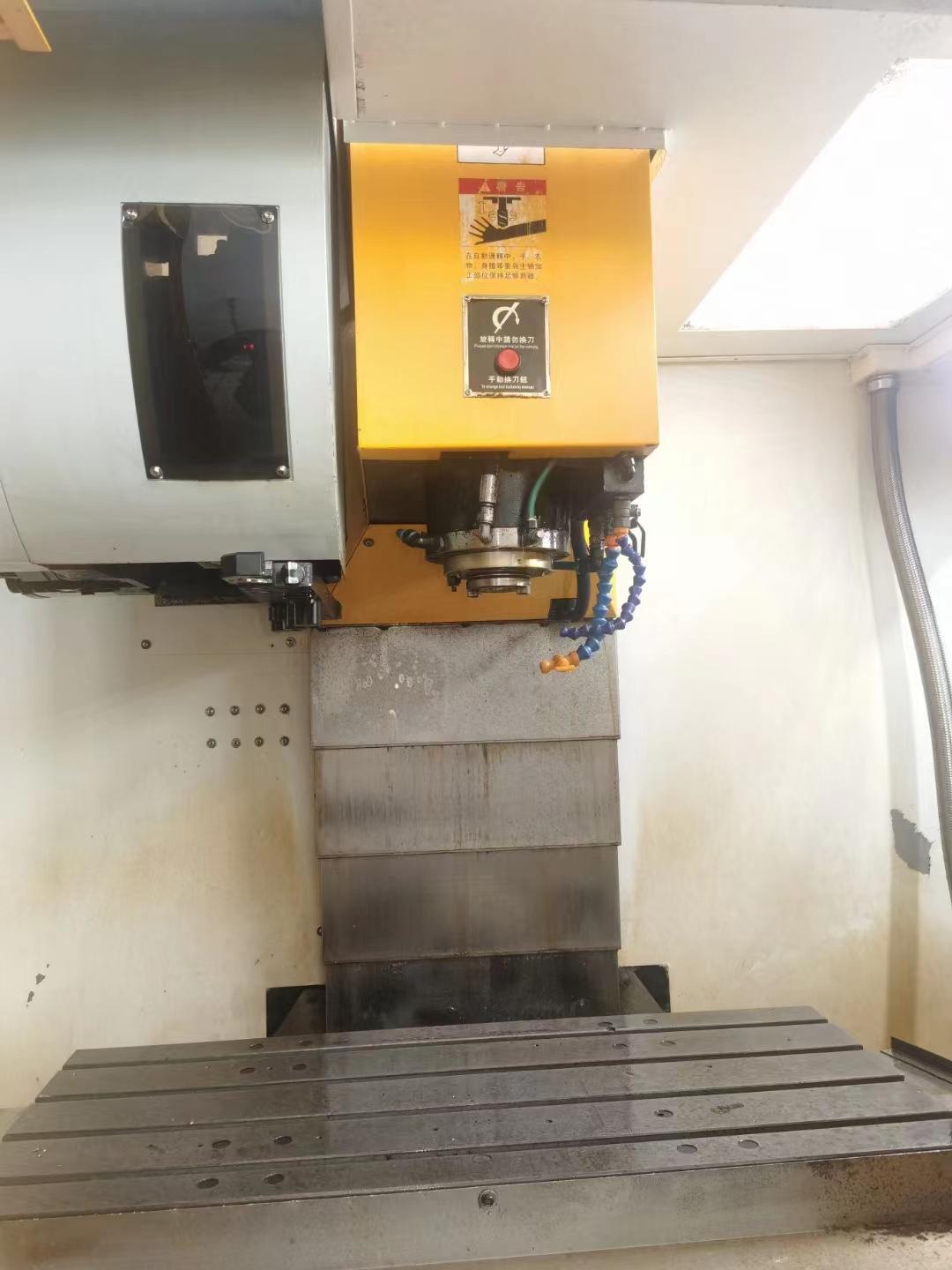

Spindle: BT40

Spindle speed: 10000rpm

Distance from spindle nose to worktable: 110-610mm

Distance from spindle center to column: 550mm

Spindle power: 7.5/11kw

Rapid feed rate: 48m/min

Weight: 5800kg

Footage: 2500 * 2160 * 2600mm

Three linear guideways

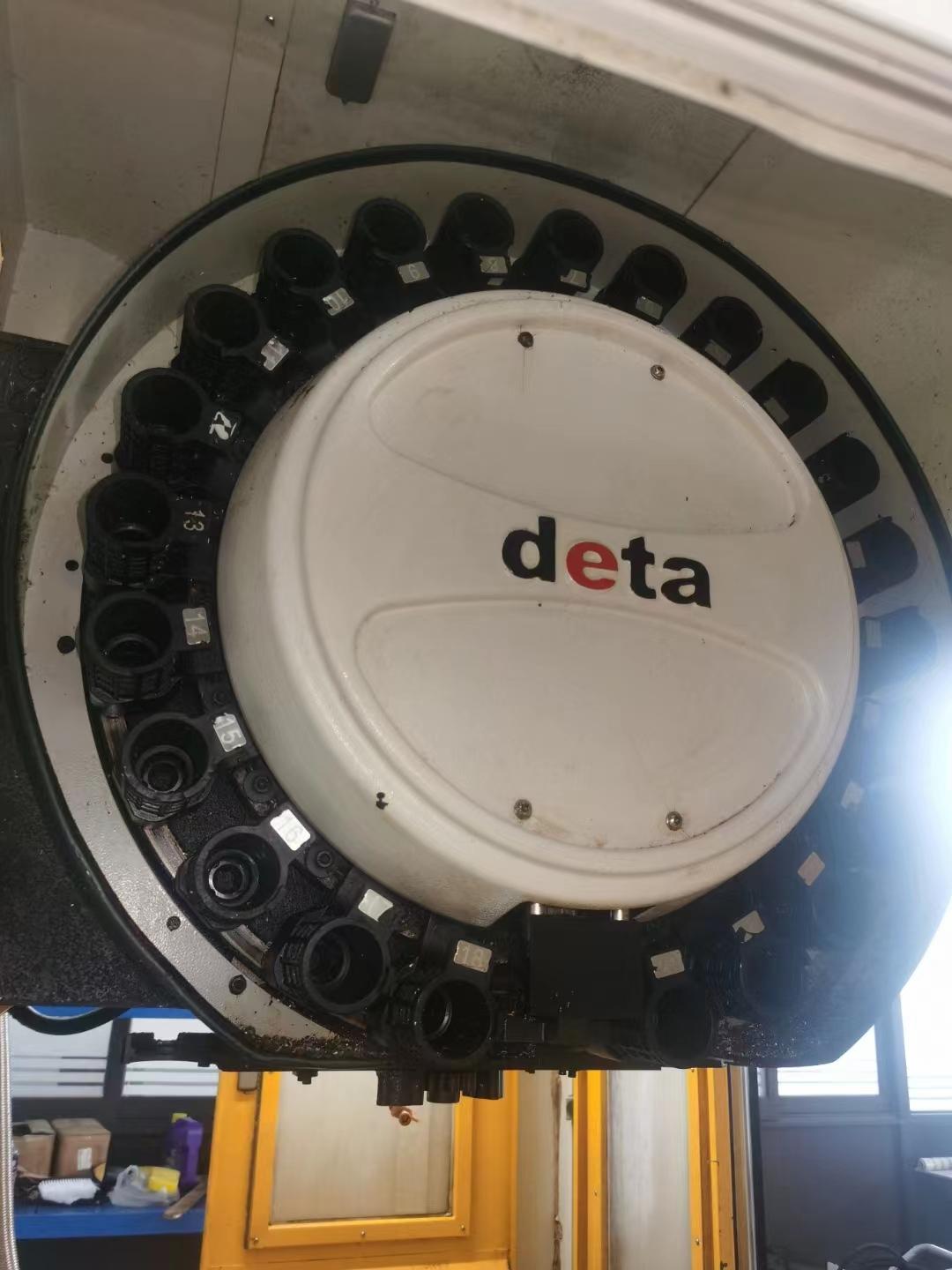

Mechanical arm type tool

Oil chiller
