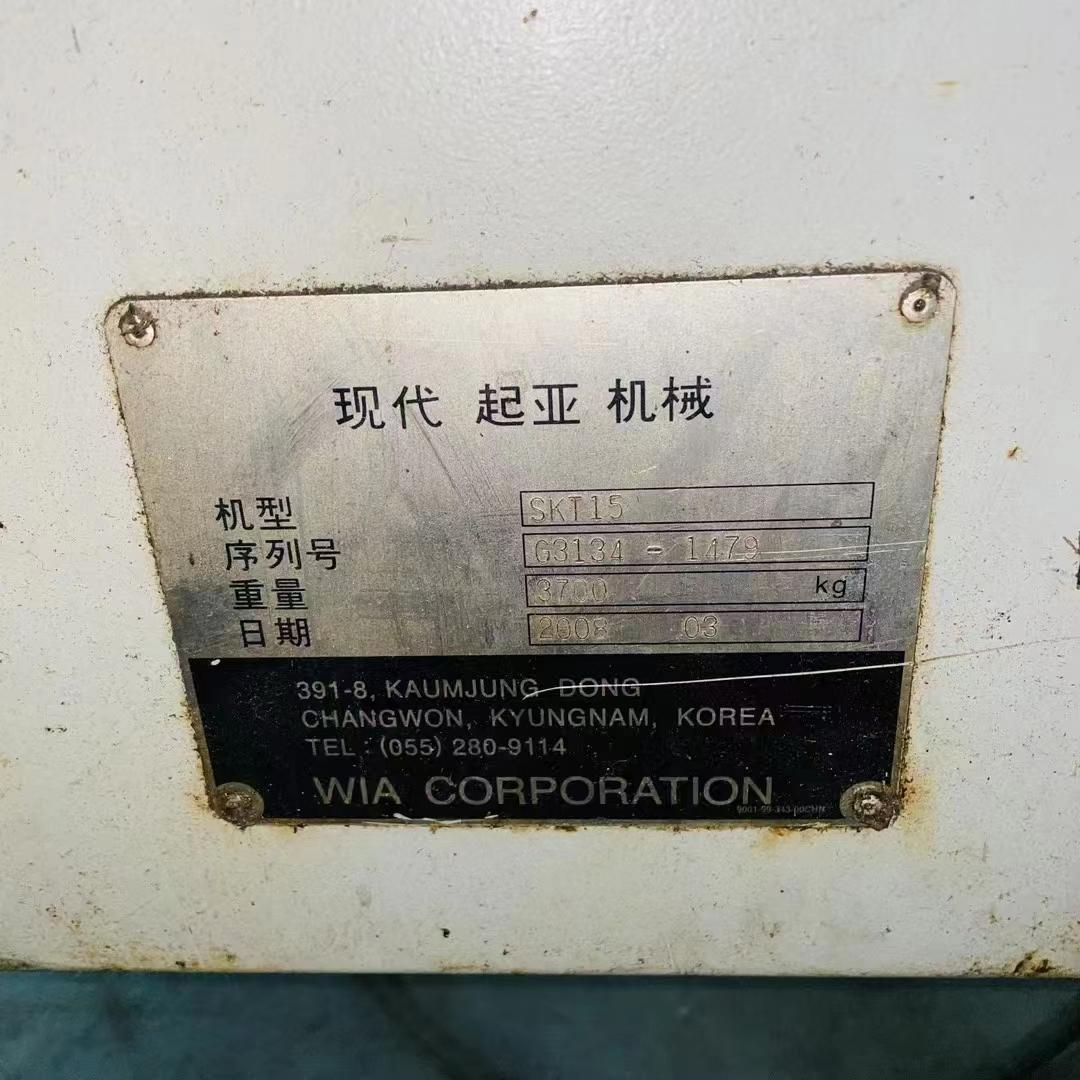

Kia SKT15 CNC turning lathe

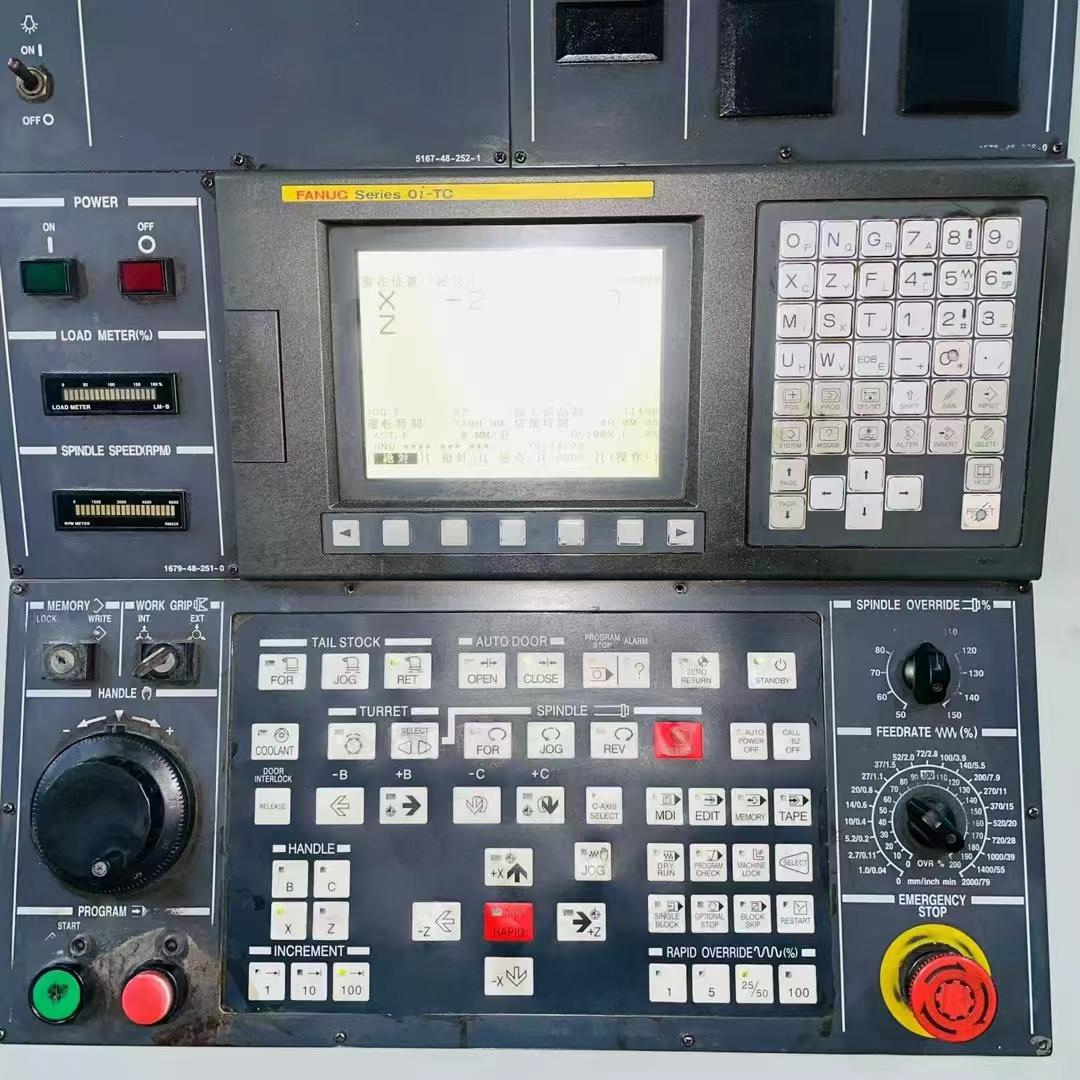

CNC System: Fanuc TD CNC System

X*Z axis travel :210*430mm

Rotation diameter over bed :550mm

Machining diameter :350mm

Rotary diameter over slide plate:350mm

Workpiece length :410mm

Bar diameter :45mm

Spindle speed :6000rpm

Spindle through hole diameter :53mm

Spindle bearing:80mm

Fast moving rate :36m/min

Spindle power: 11/7.5kw

Machine footage: 2400*1660*1870mm

Weight: 4000kg

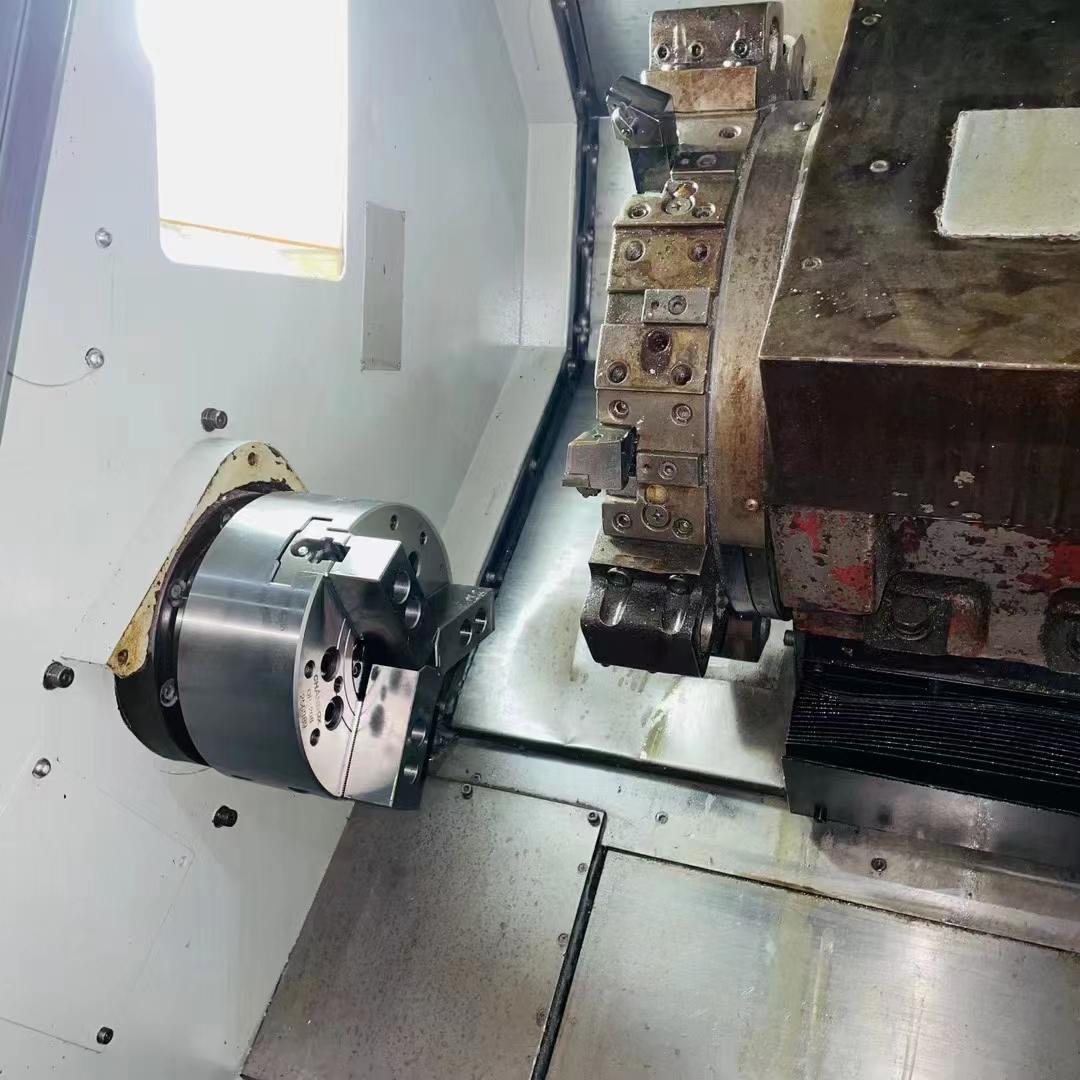

6 inches hydraulic chuck

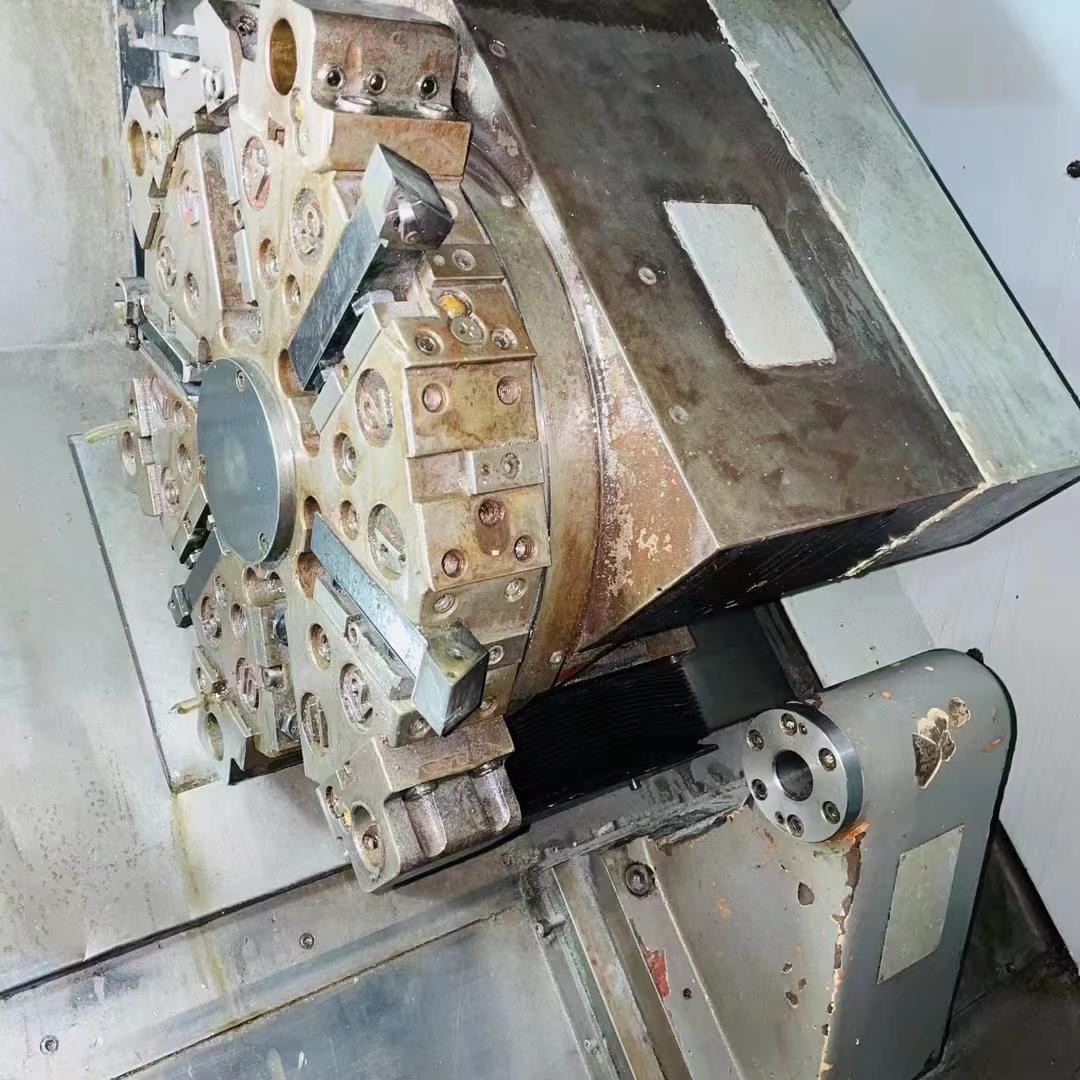

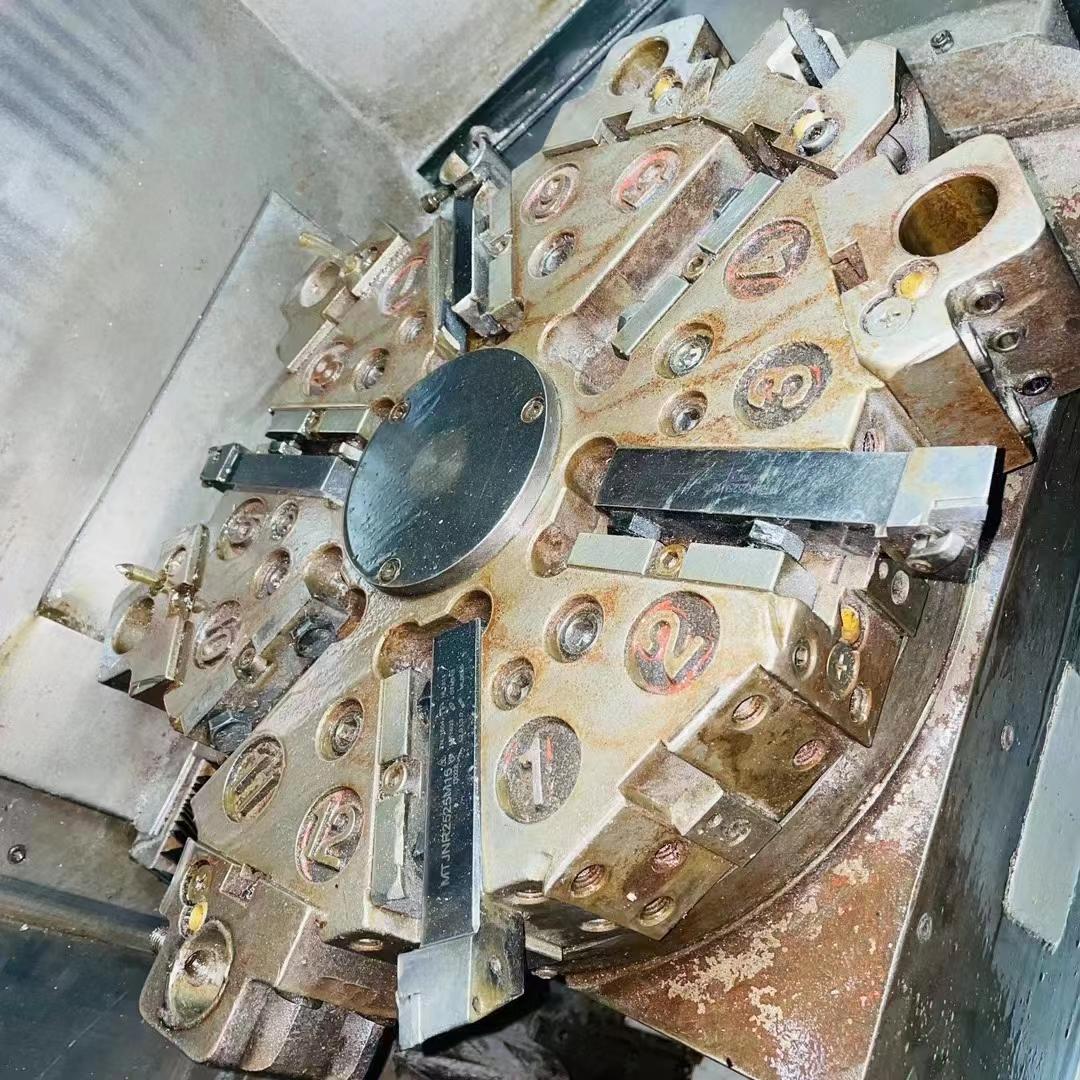

12 position turret
