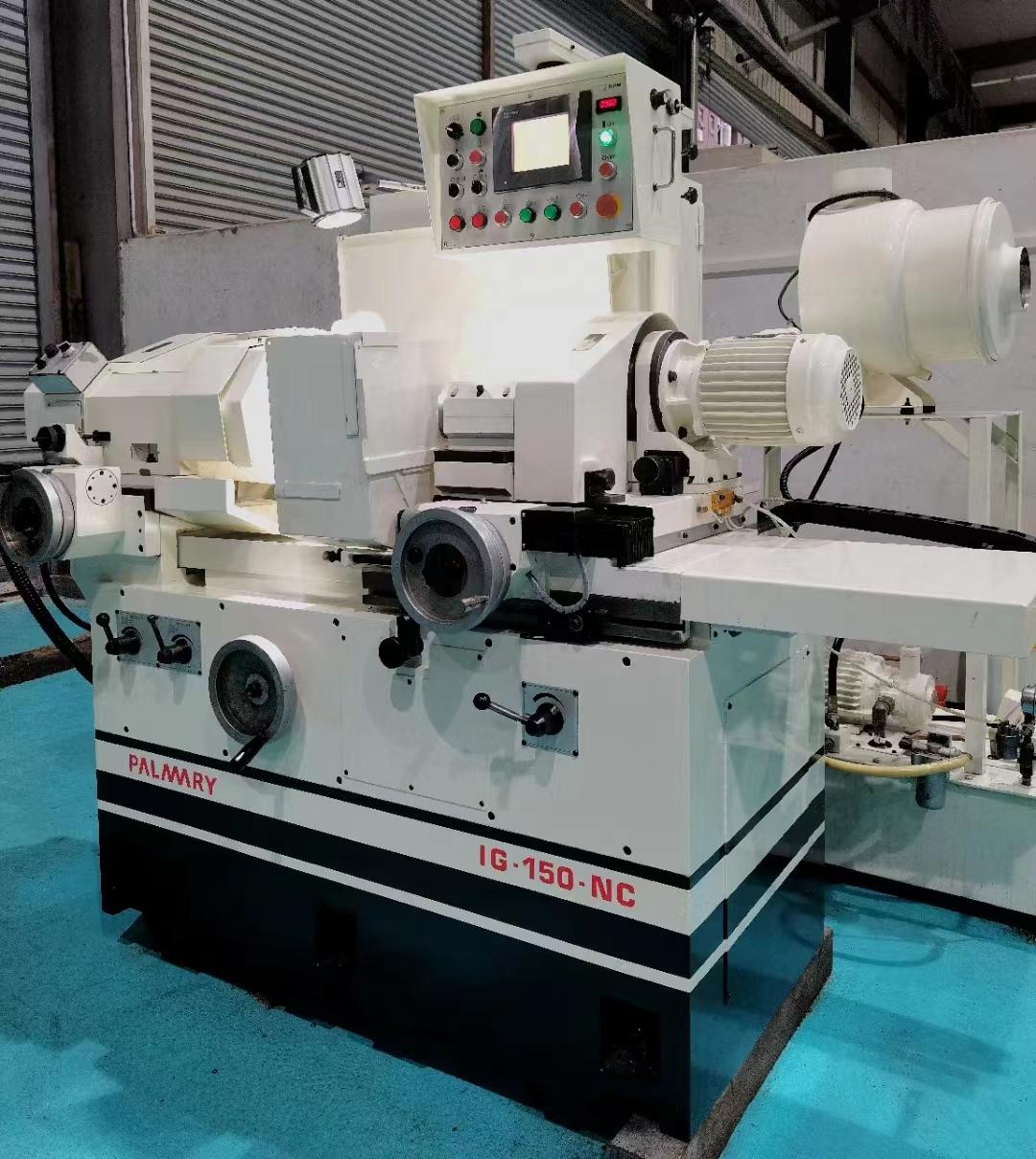

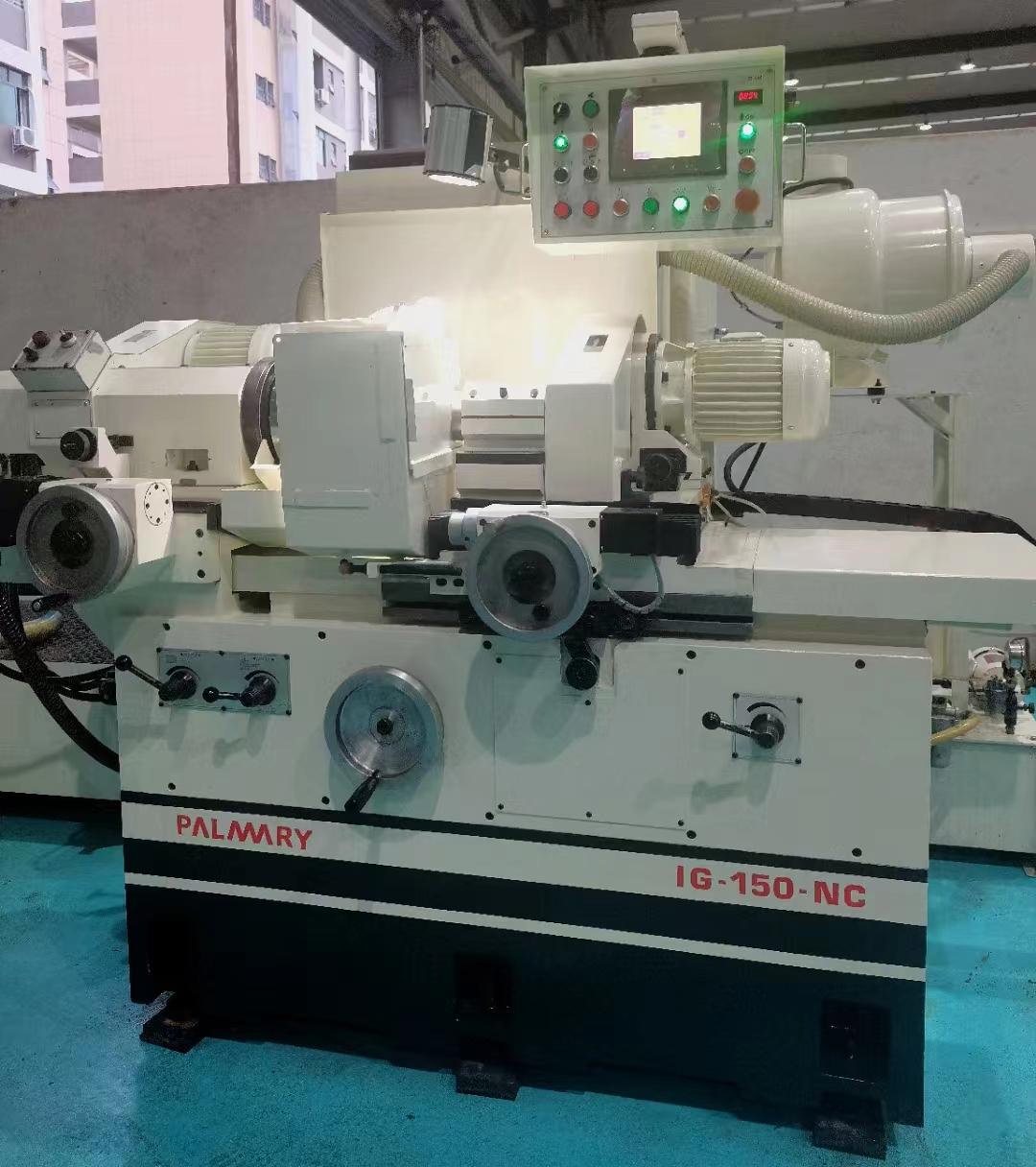

PALMARY IG-150NC CNC Internal grinder

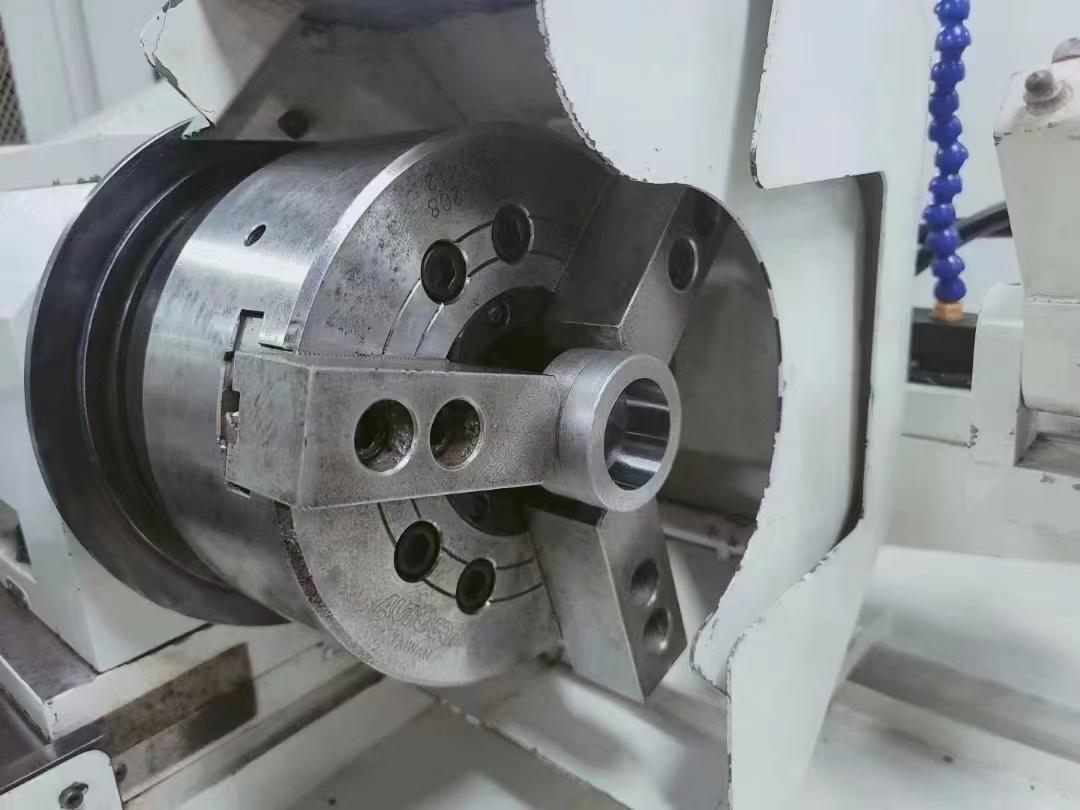

Grinding internal diameter range: 6~150 mm

Grinding workpiece length: 150 mm

Swing diameter in waterproof cover: 280 mm

Worktable travel: 540 mm

Z-axis worktable speed: 7.2M /min (oil pressure one axis)

Spindle speed: 0~550rpm

X-axis feed rate: 50 mm/min

X axis minimum moving unit: 0.001 mm
