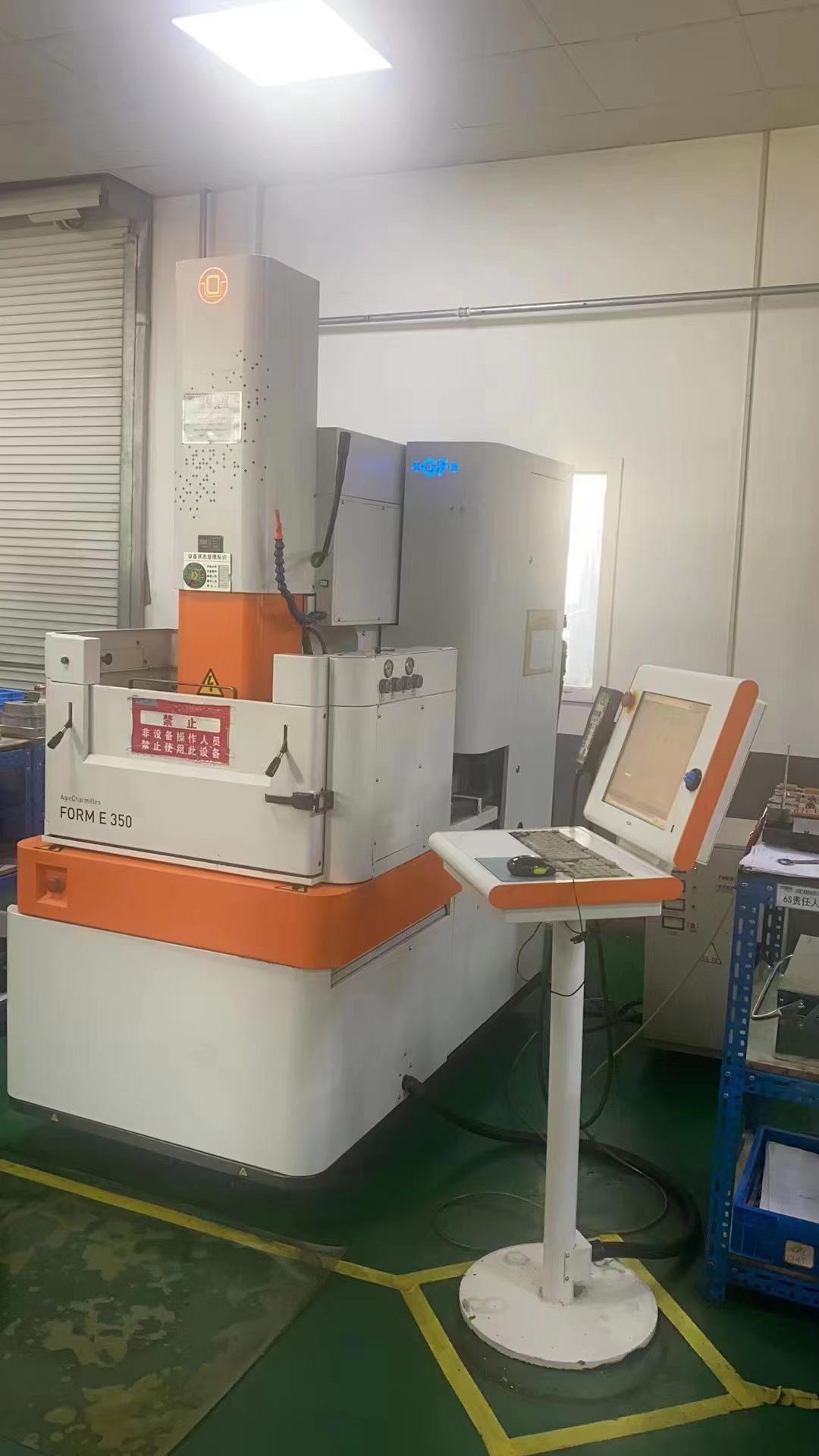

AgieCharmilles FORME350 Spark eroder

Travel X/Y/Z: 350/250/250mm

Footage: 1000*1731*2372mm

Floor area: 1420*1731mm

Weight: 1730kg

X/Y axis moving rate: 4m/min

Z-axis moving speed: 6m/min

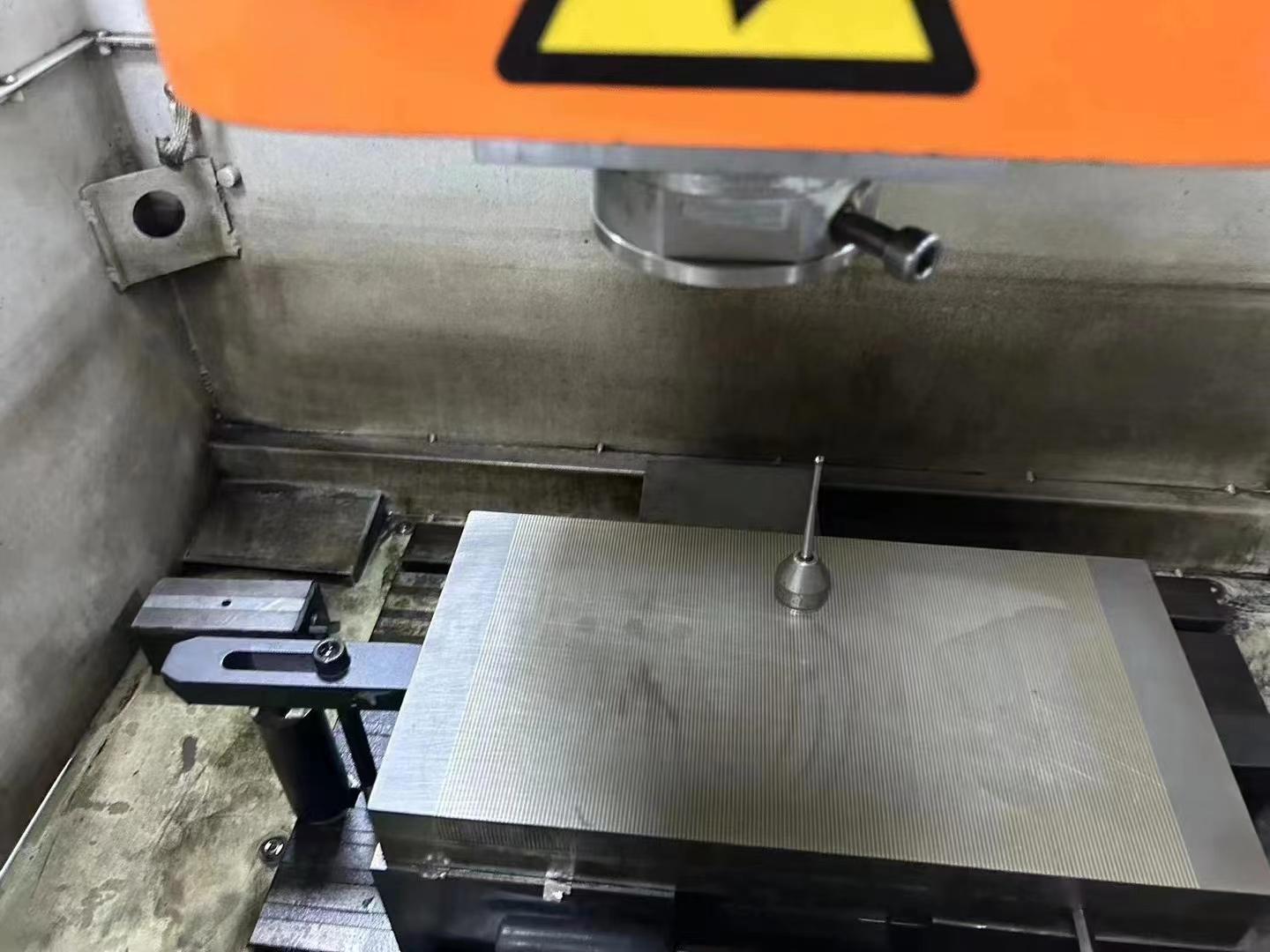

Worktable size: 630*400mm

Distance from ground to clamping surface: 900mm

Distance between worktable and chuck: 170~420mm

Maximum electrode weight: 50kg

Maximum workpiece weight :200kg

Maximum workpiece size: 800*500*265mm

Coolant tank capacity: 270L

Maximum machining current：80A
