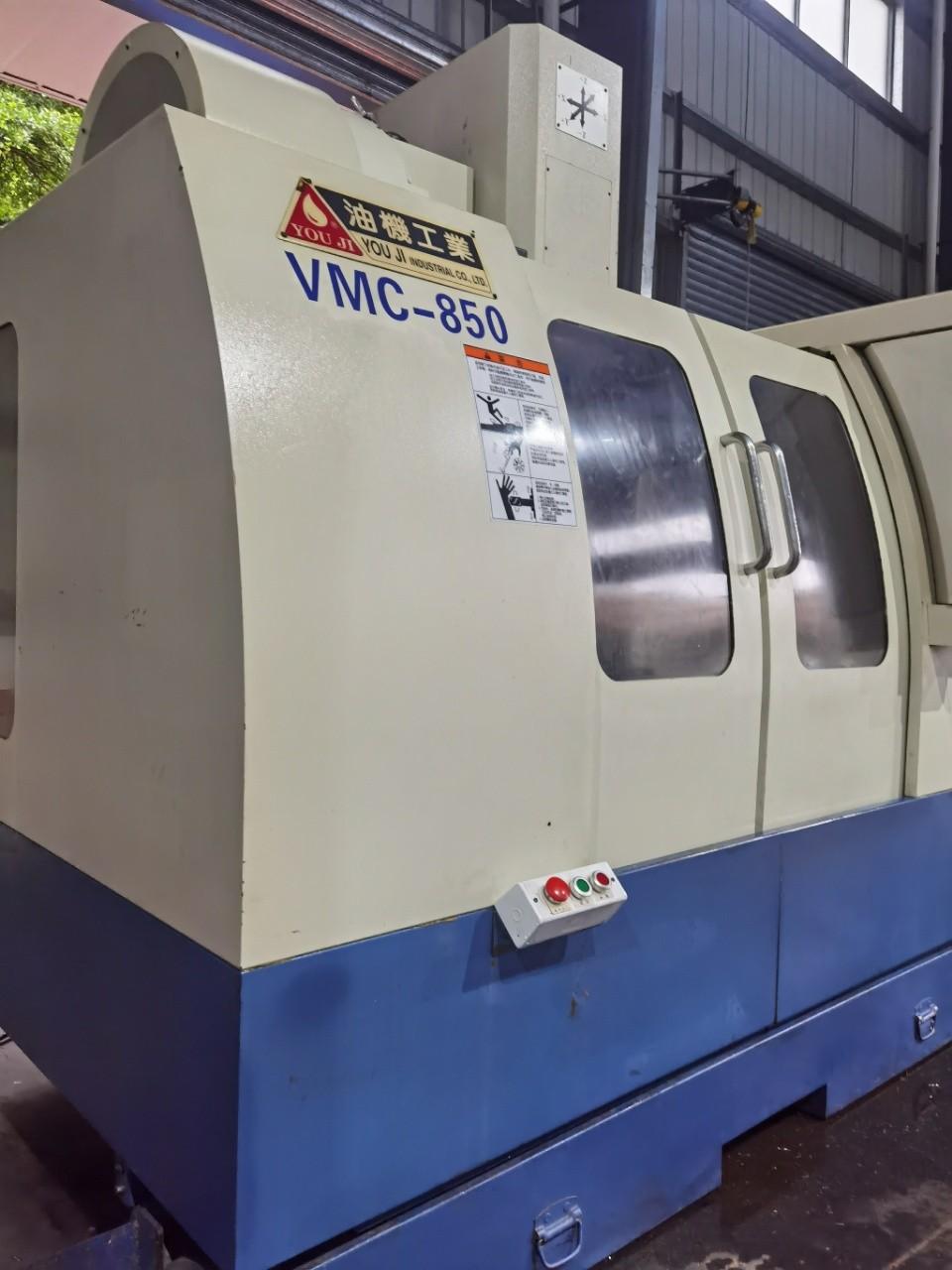

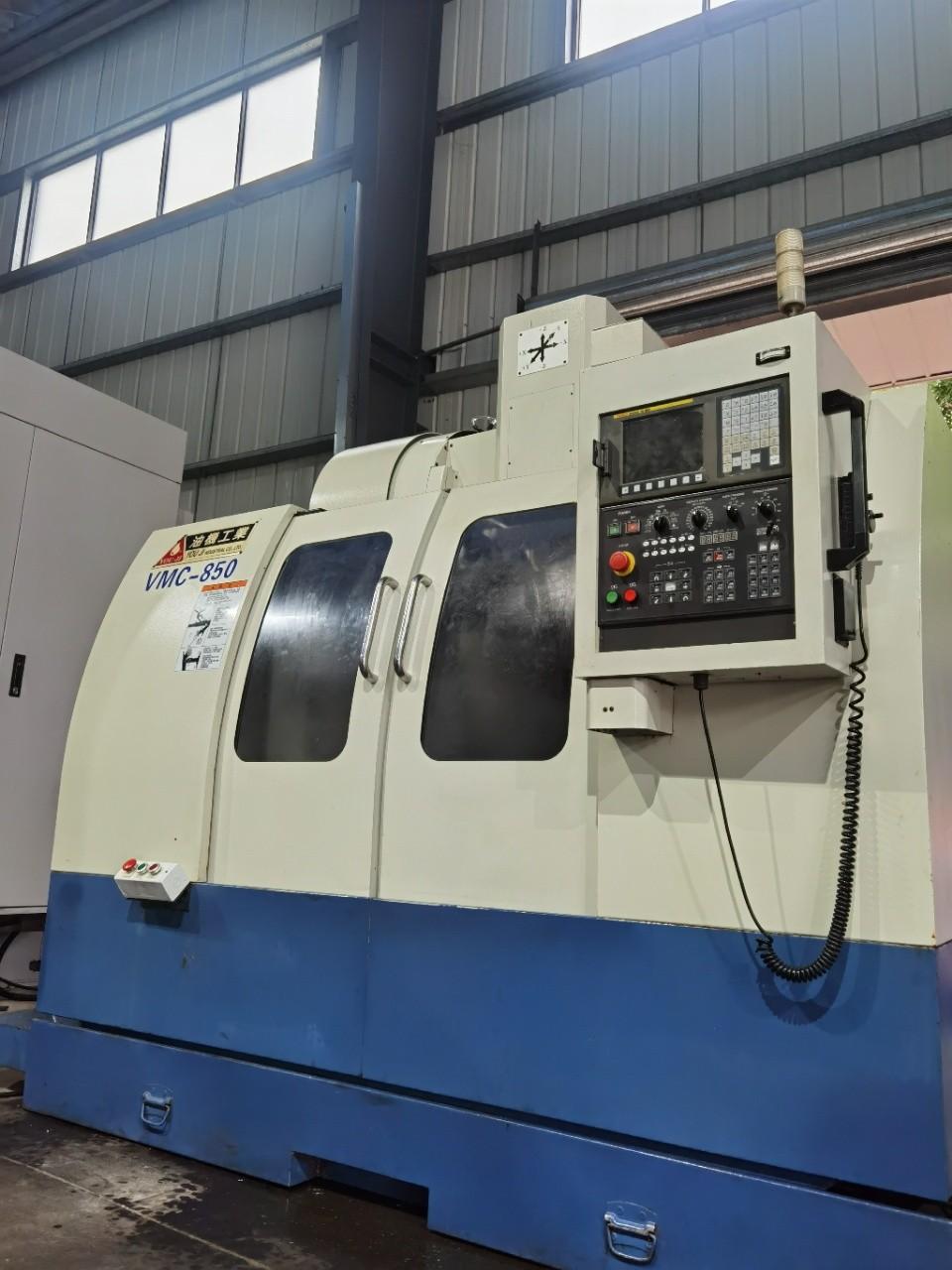

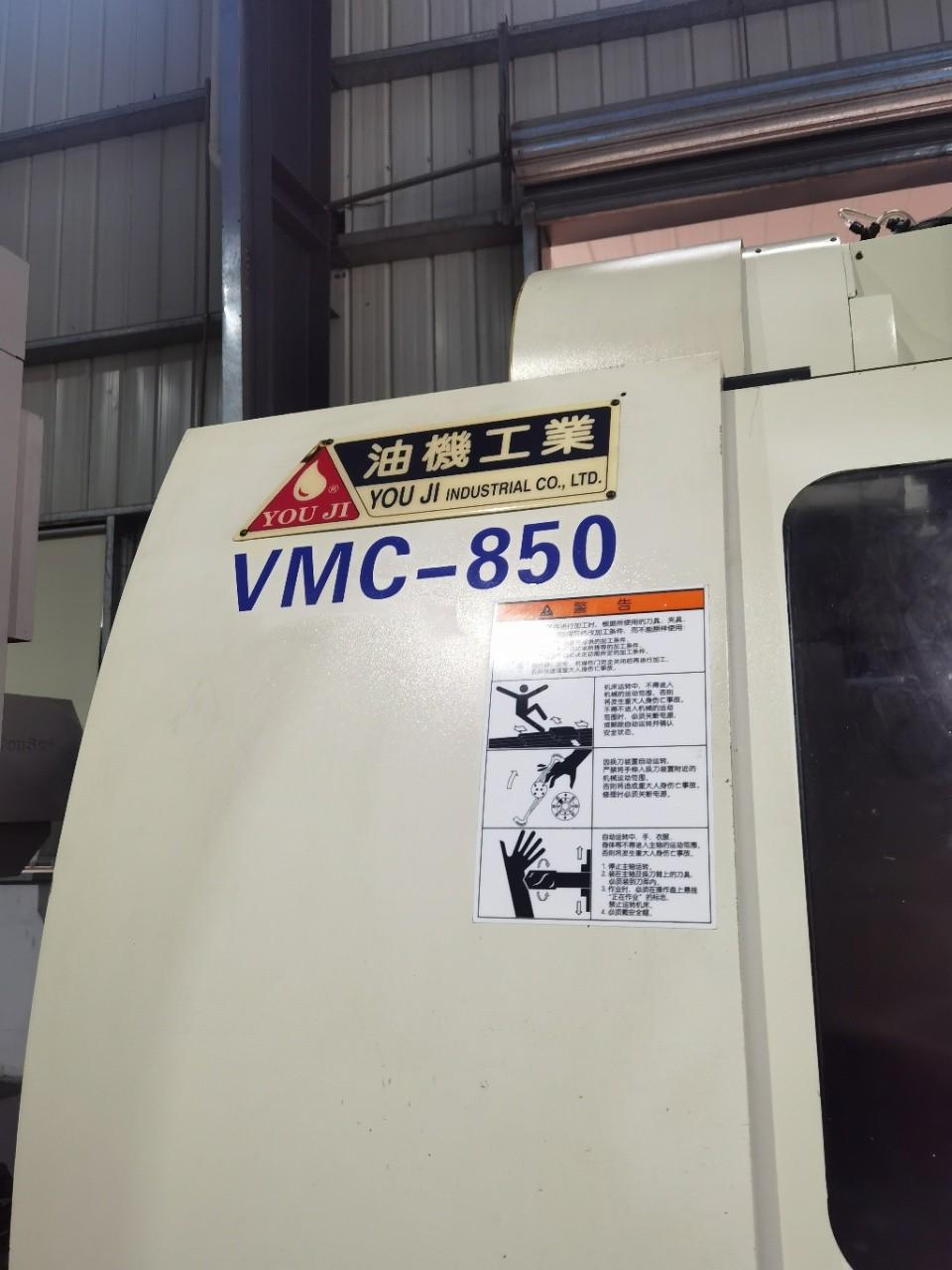

YOUJI industry VMC850 Machining centre

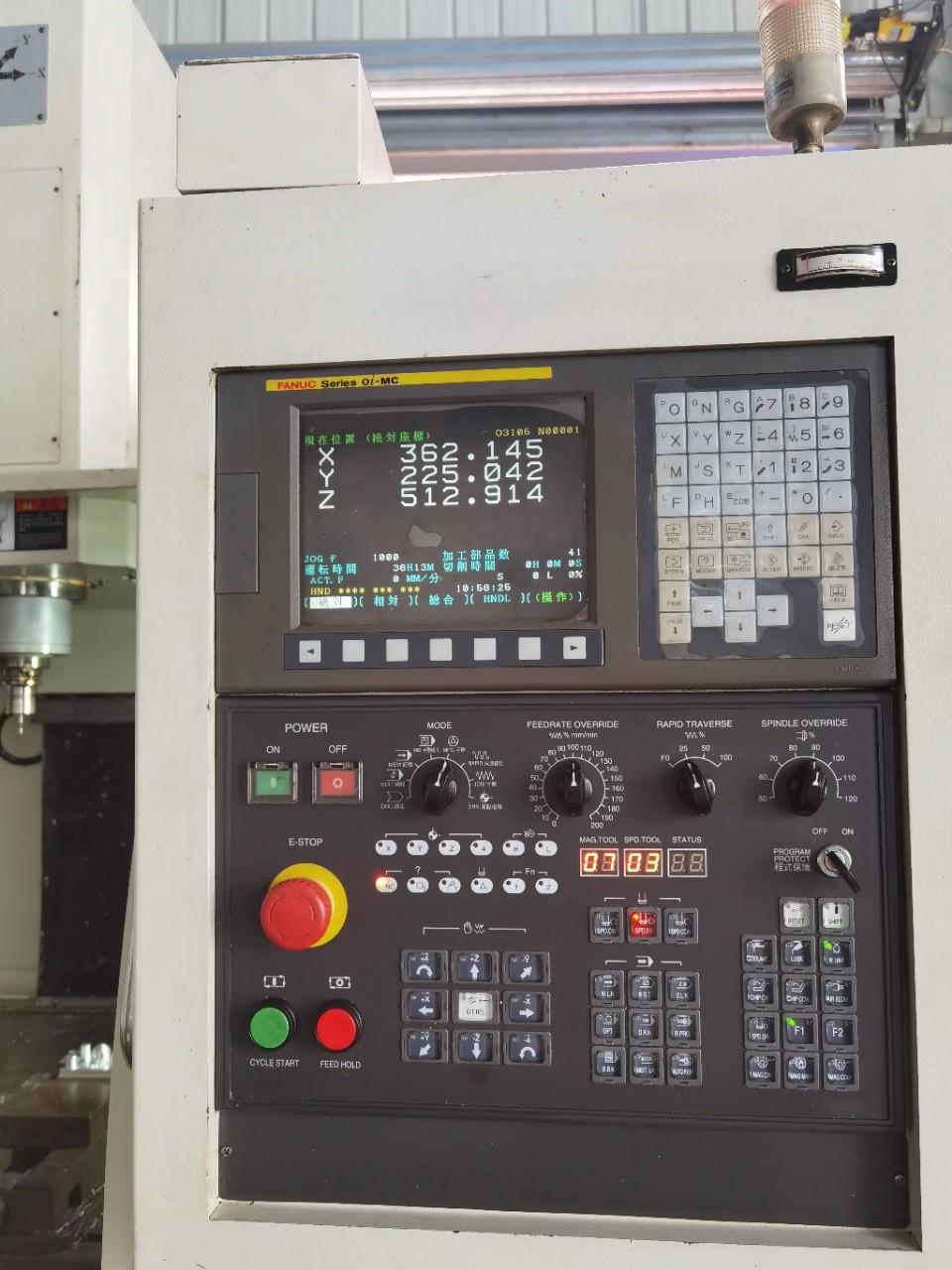

CNC System:FANUC Oi

X/Y/Z axes travel :800/500/550 mm

Worktable size: 1000 x 500 mm

Maximum load of Worktable: 800 kg

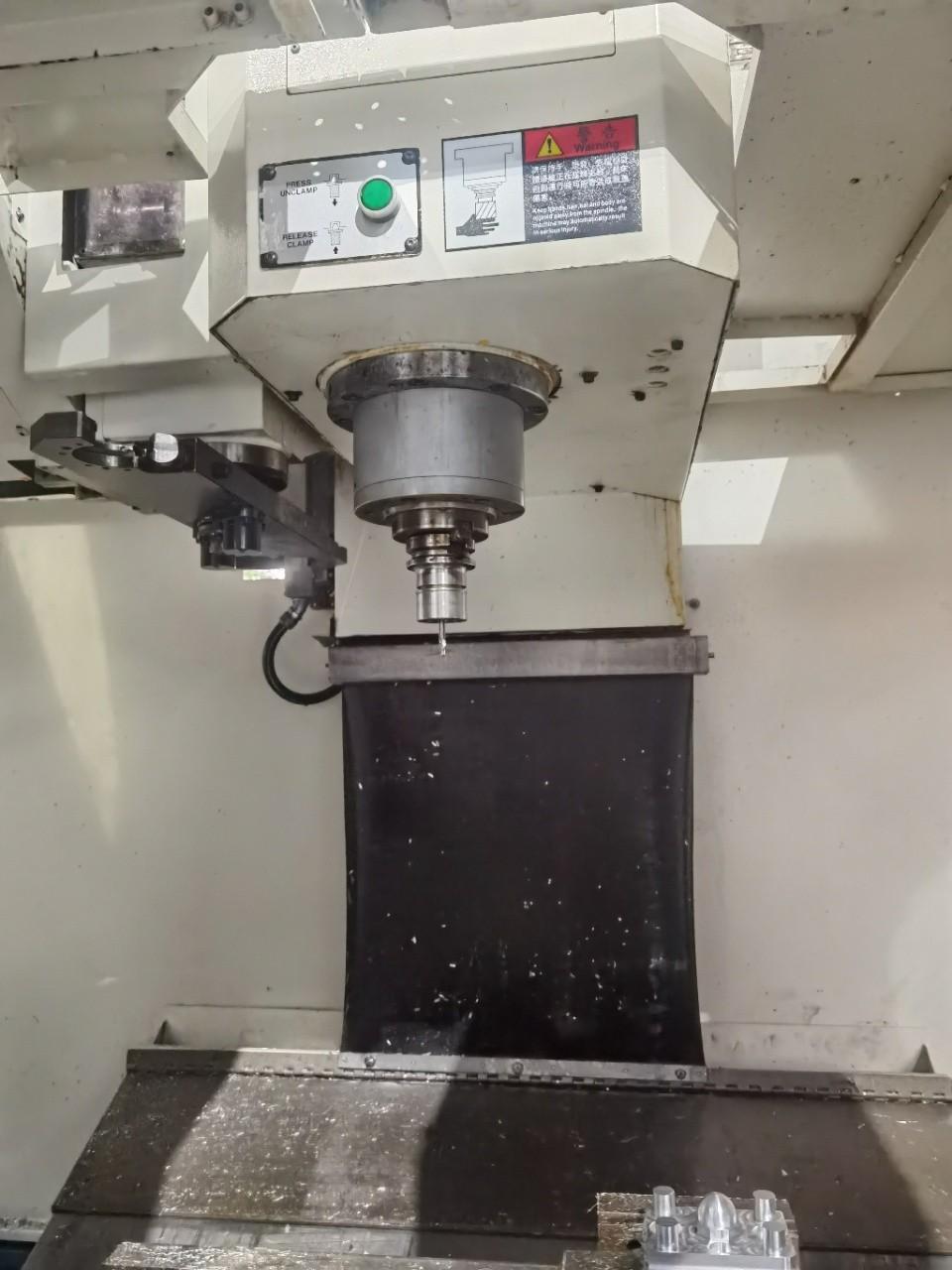

Spindle speed: 10 ~ 8000 rpm

Spindle type: BT 40

Distance from spindle nose to worktable surface: 100 ~650 mm

X, Y axis fast feed rate:20,000 mm/min

Z-axis: 20000 mm/min

Cutting feed rate: 1 ~ 10000mm/min

Tool magazine: 24

Maximum tool diameter: 90mm

Max. tool length: 260 mm

Maximum tool weight: 6 kg

Weight: 5800 kg
