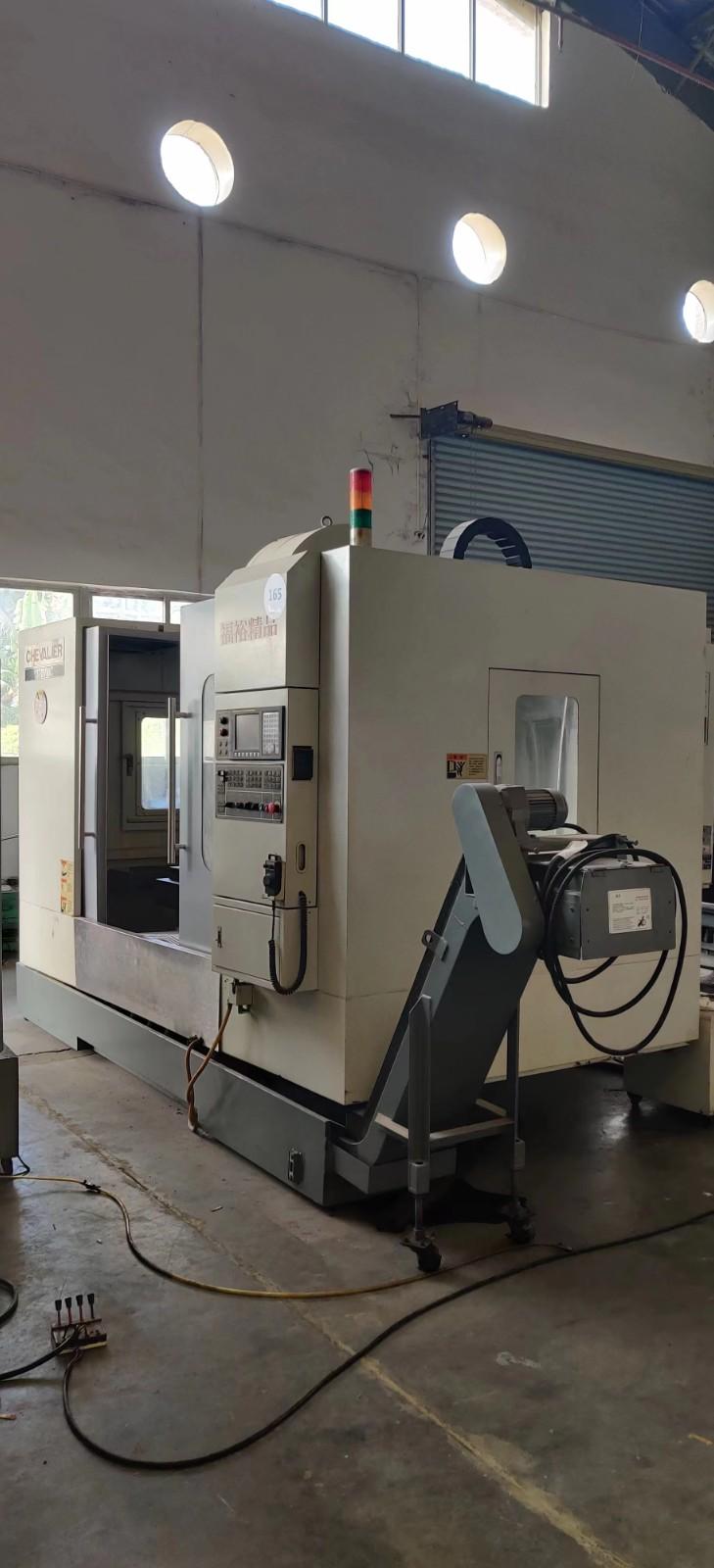

CHEVALIER 1370VMC Vertical Machining centre

[Product Information]:

  • Inventory number:70891

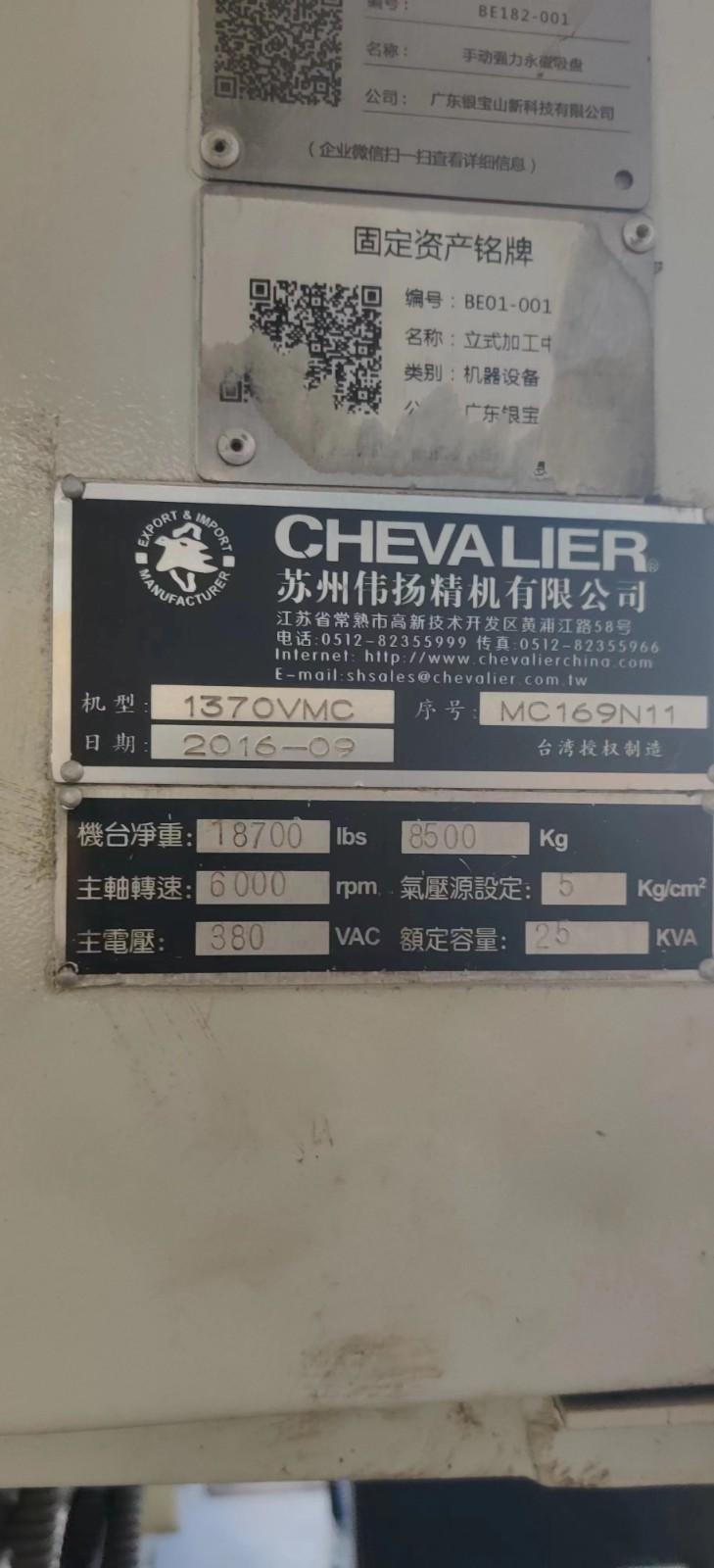

  • Brand:CHEVALIER
  • Model:1370VMC
  • Origin:Taiwan of China
  • Location:China
  • Year:2016
  • Create Time:2023-07-13

Specifications:

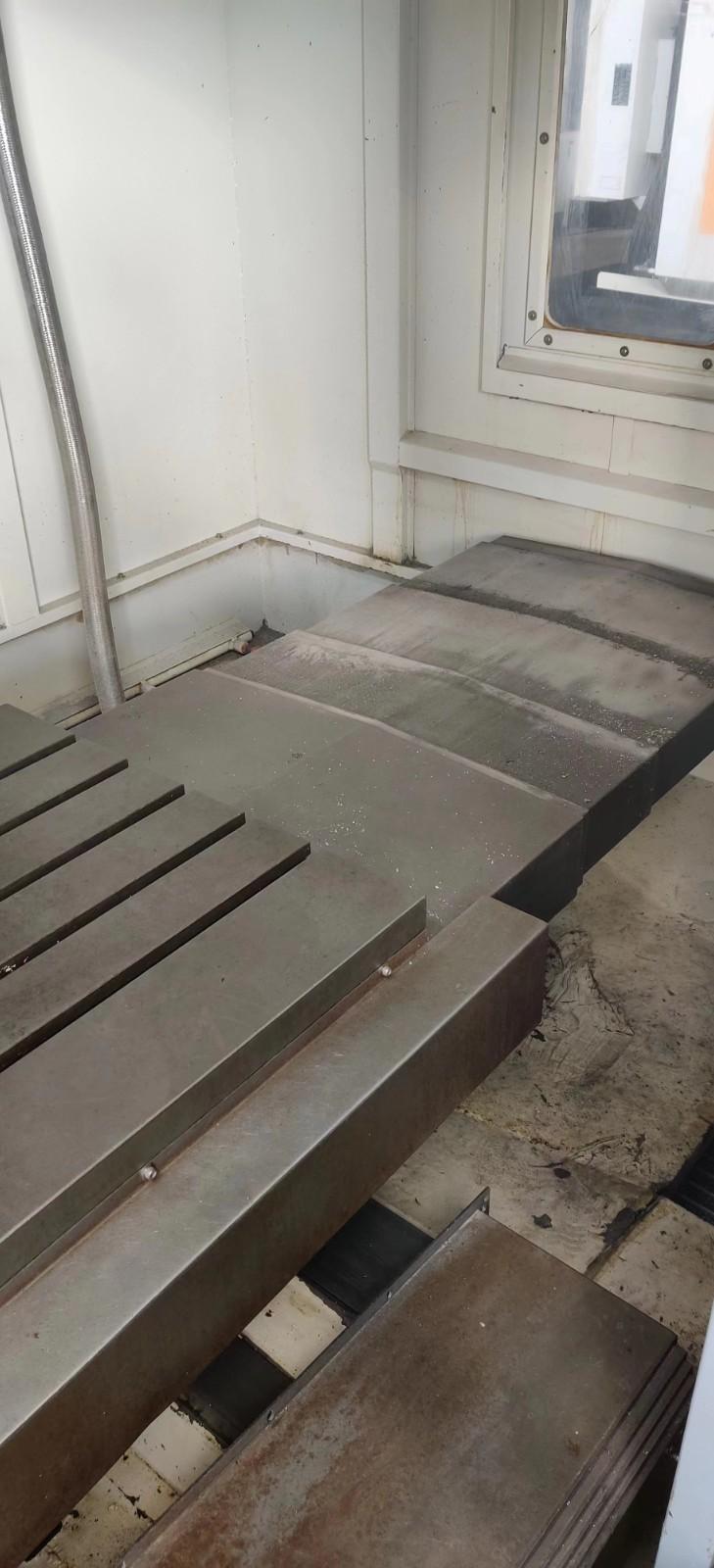

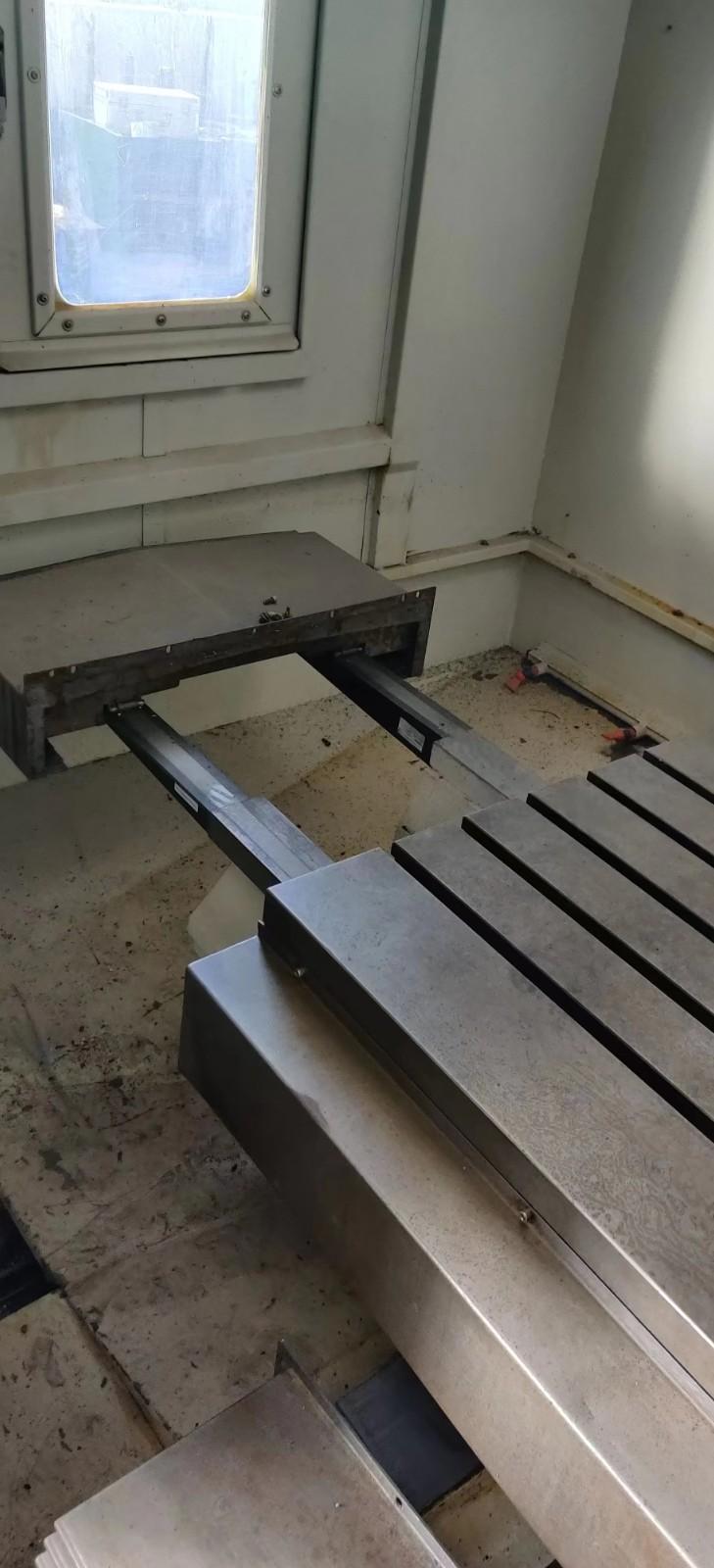

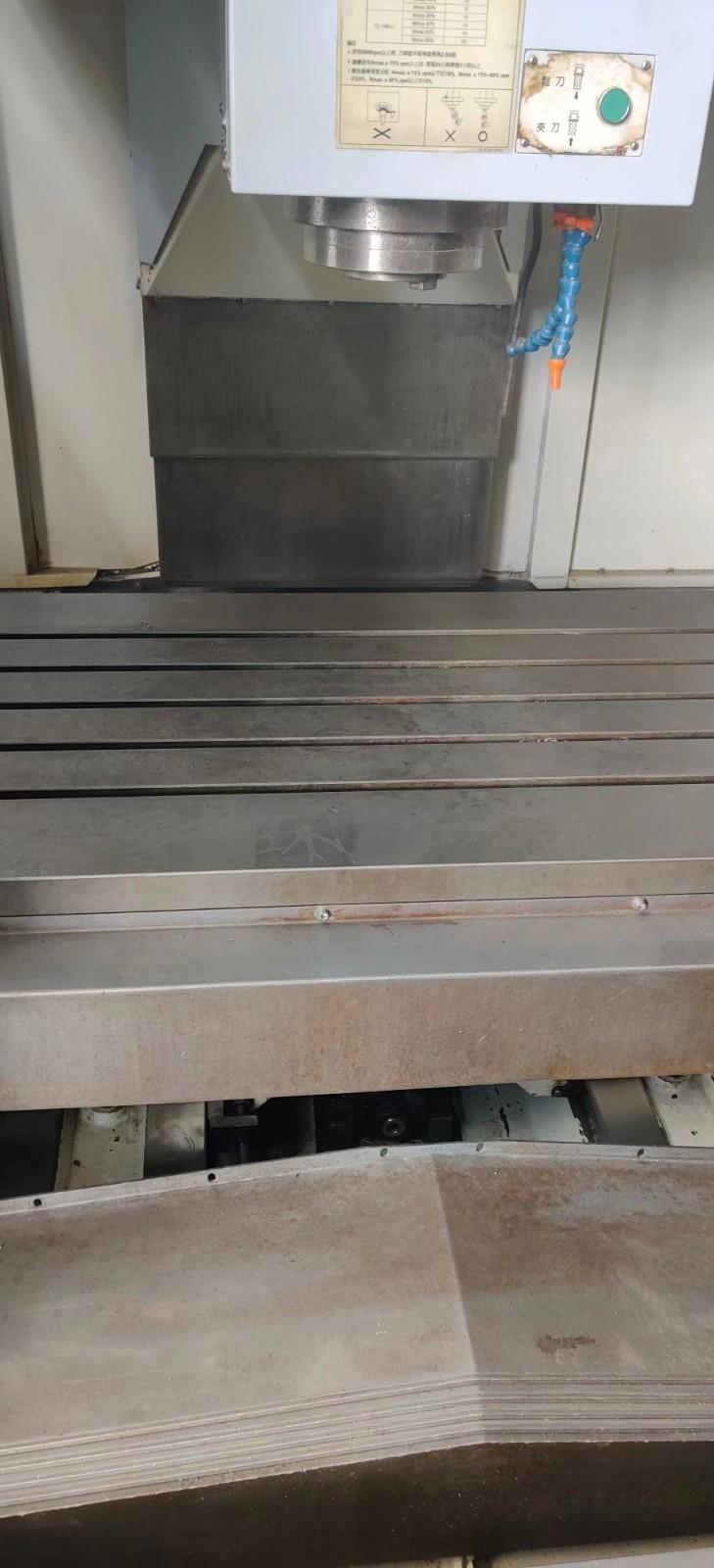

Worktable size :1500x700mm

Three-axis travel :1300x700x650mm

Distance from spindle nose to worktable :100-760mm

Load :1200kg

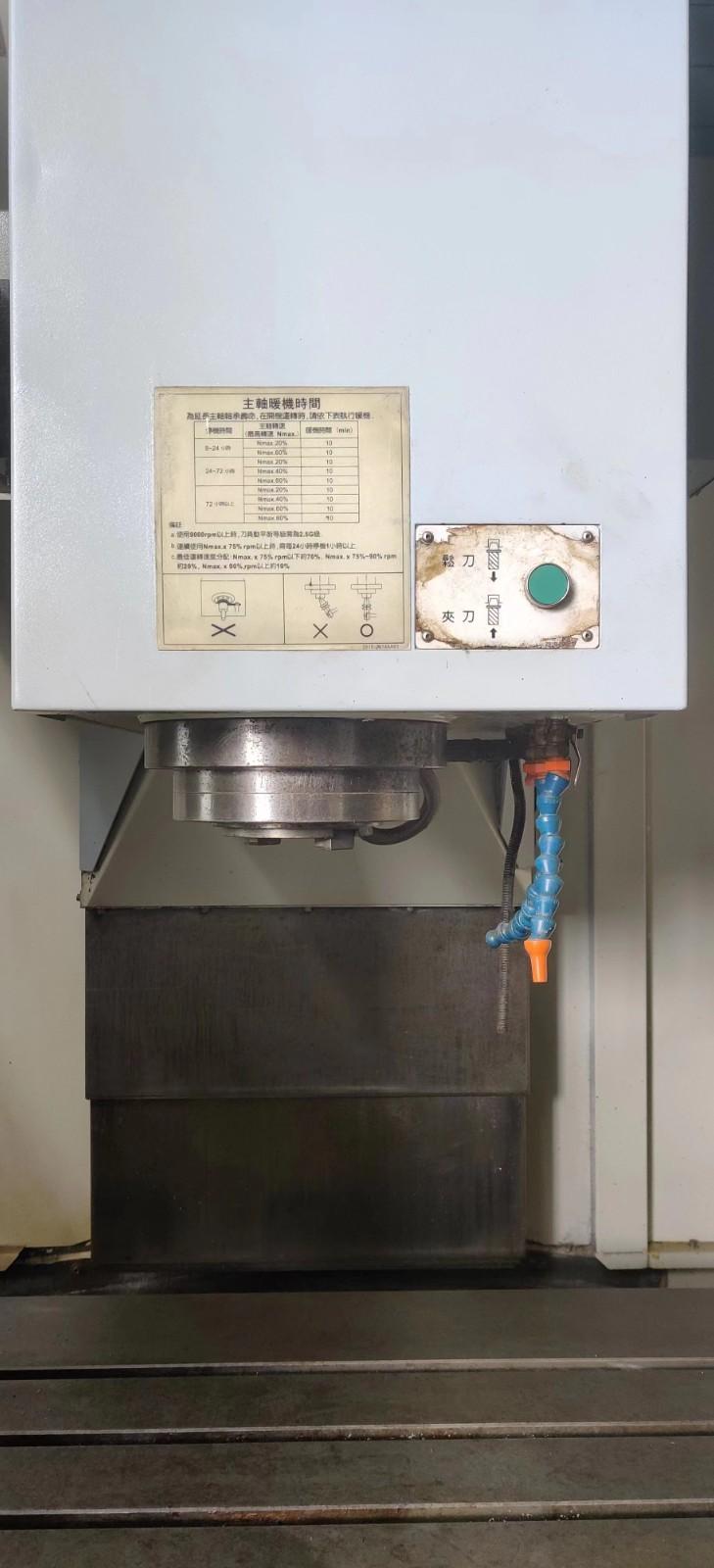

Spindle taper :BT50

Spindle speed :8000rpm

Main motor power :11/15kw

Machine weight :8000kg

Footage :3600x2420x2921mm
