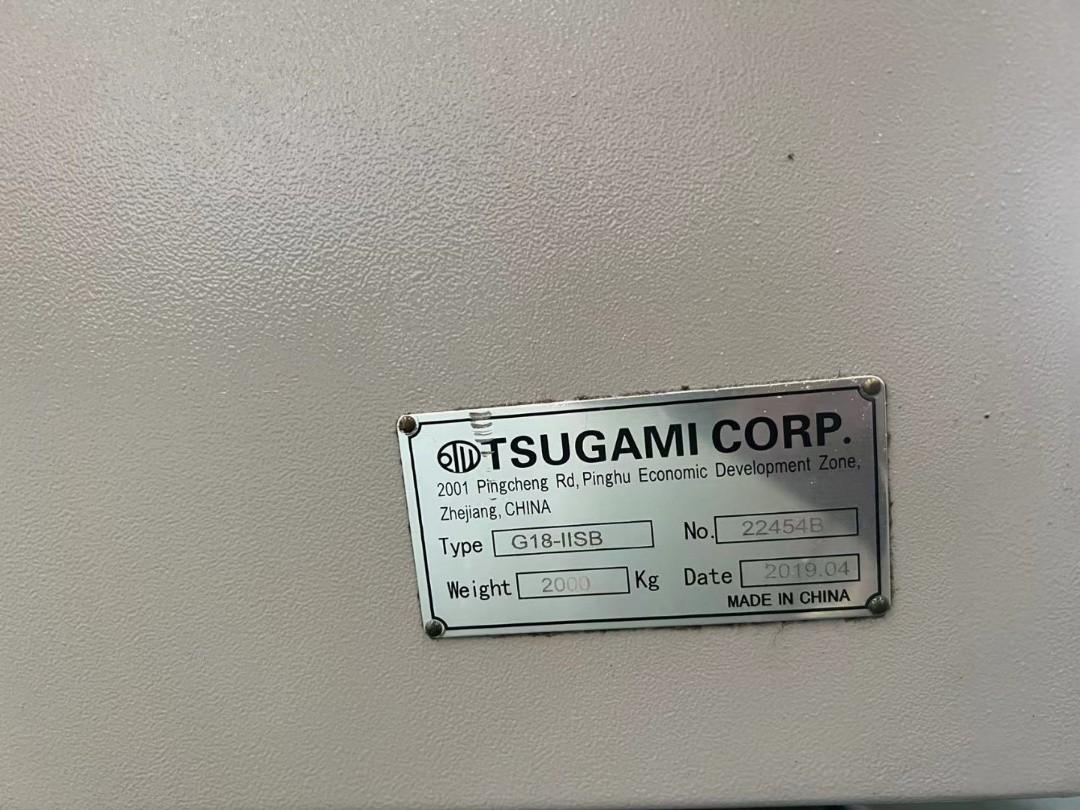

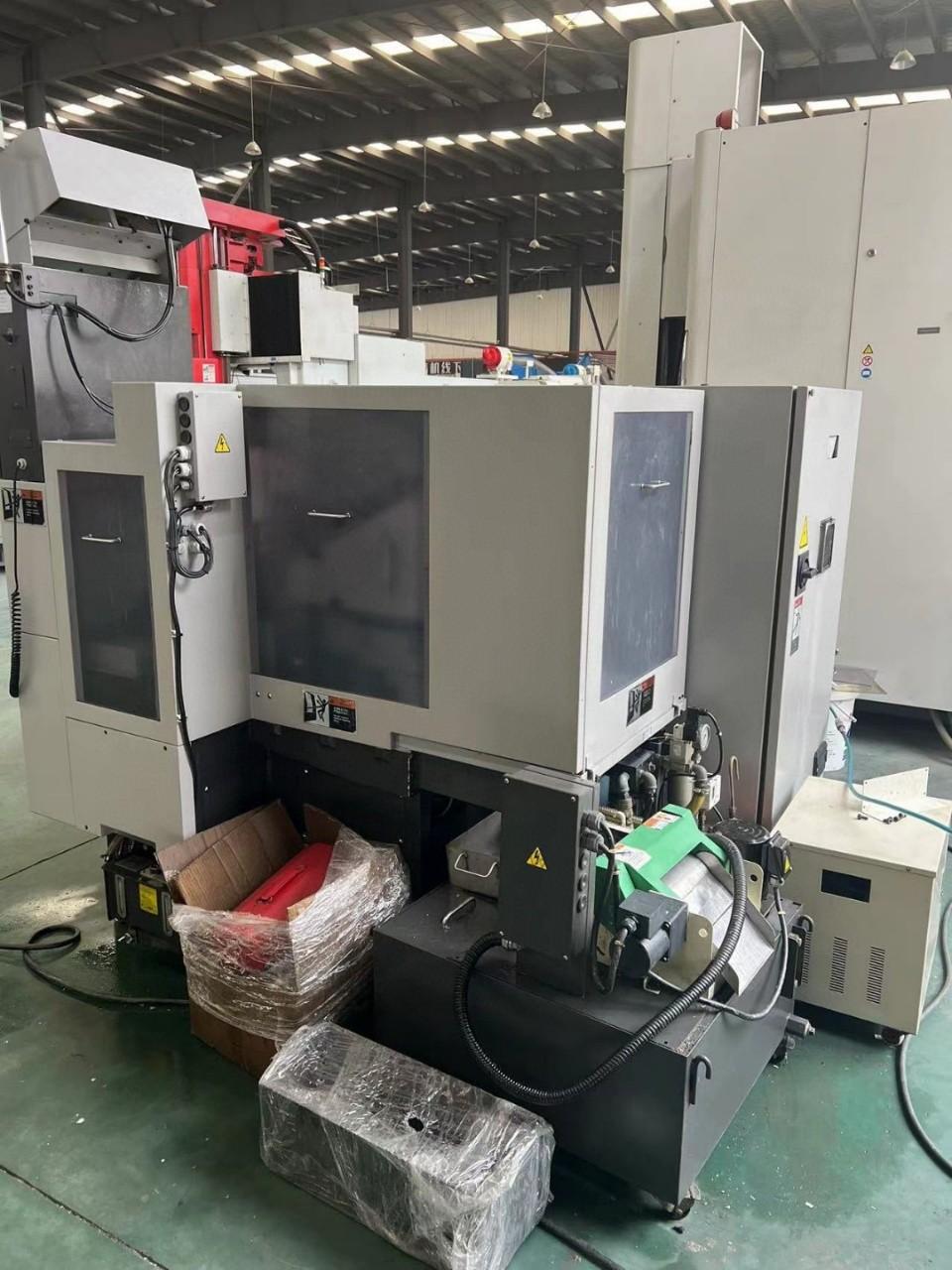

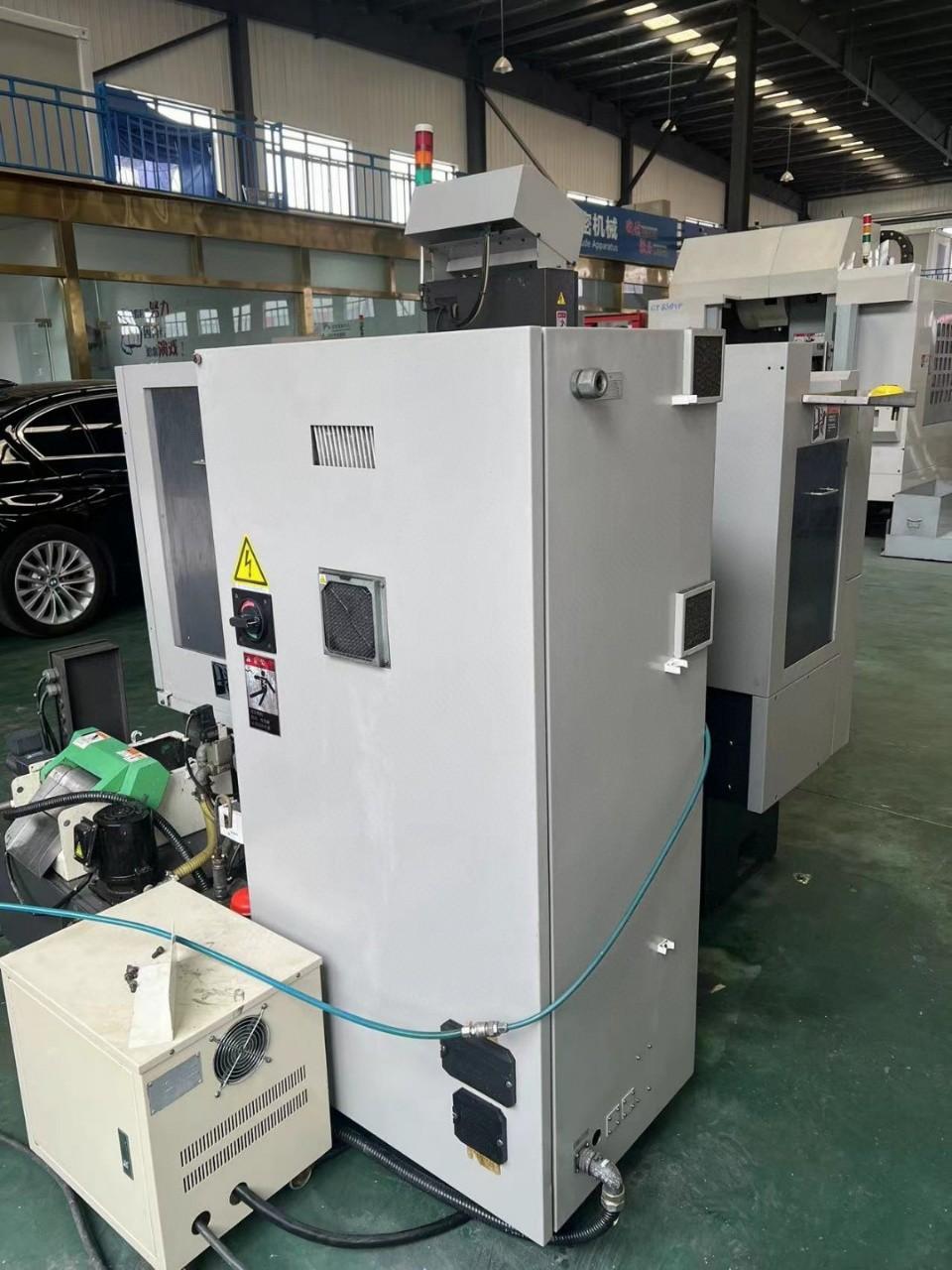

Tsugami G18-IISB CNC Cylindrical grinder

Distance between centers: 250mm

Machine capacity:

Rotation diameter: 180mm

Machining diameter: 50mm

Machining through hole: 8~150mm

Machining depth:100mm

Rotation of sand wheel shaft:

Grinding wheel axis(Converter for speed changing) : MAX. 40000rpm

Grinding wheel Worktable:

Total travel: 170mm

Fast moving rate: 8m/min

Spindle Worktable (rotary special) :

speed (S code instruction) : 15~1400rpm

Rotation Angle: 0°~90°

Worktable:

Total movement :370mm

Fast moving rate :16m/min

Rotation Angle (taper adjustment) : ±1°

Machine weight: 2200kg

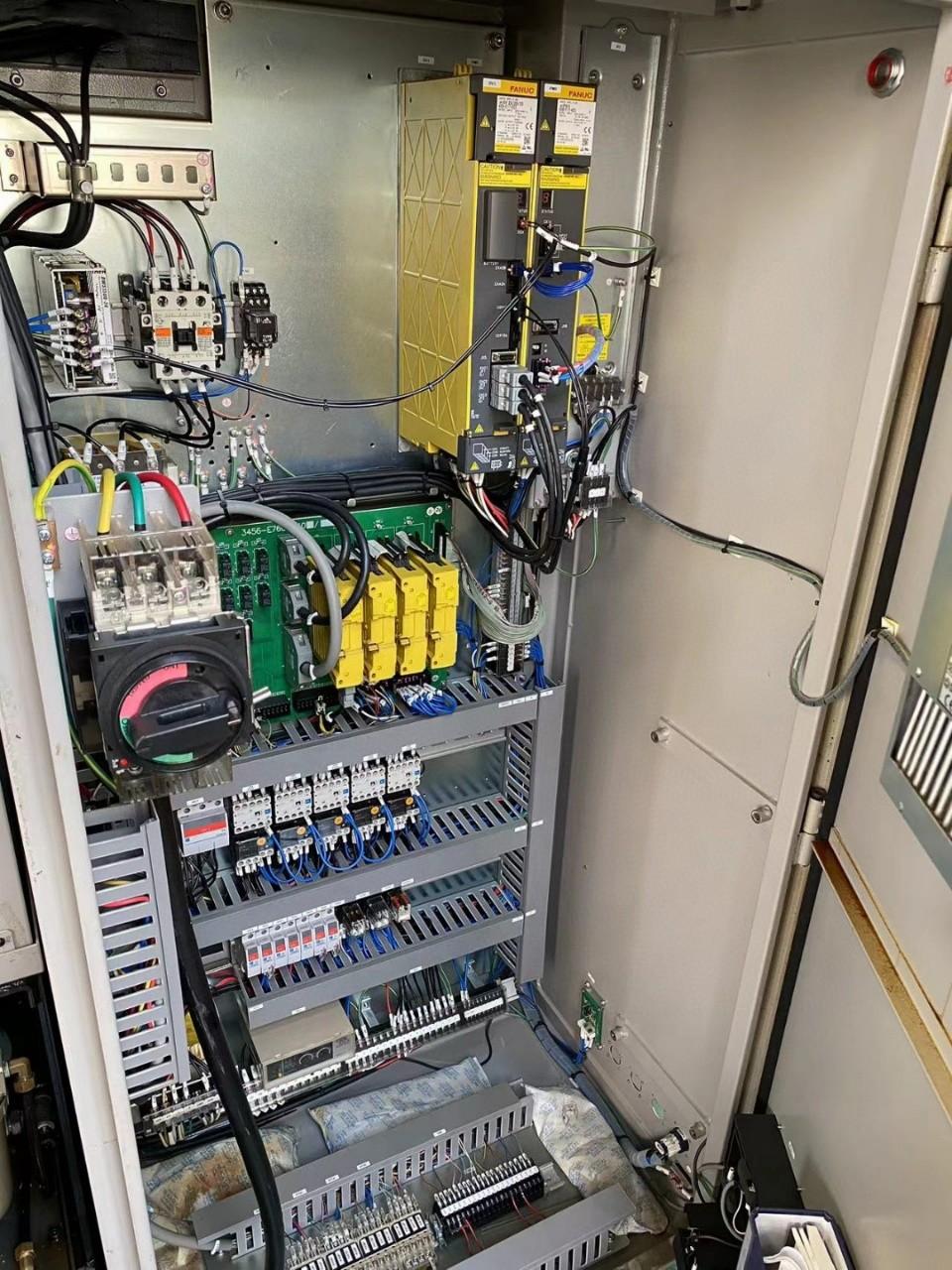

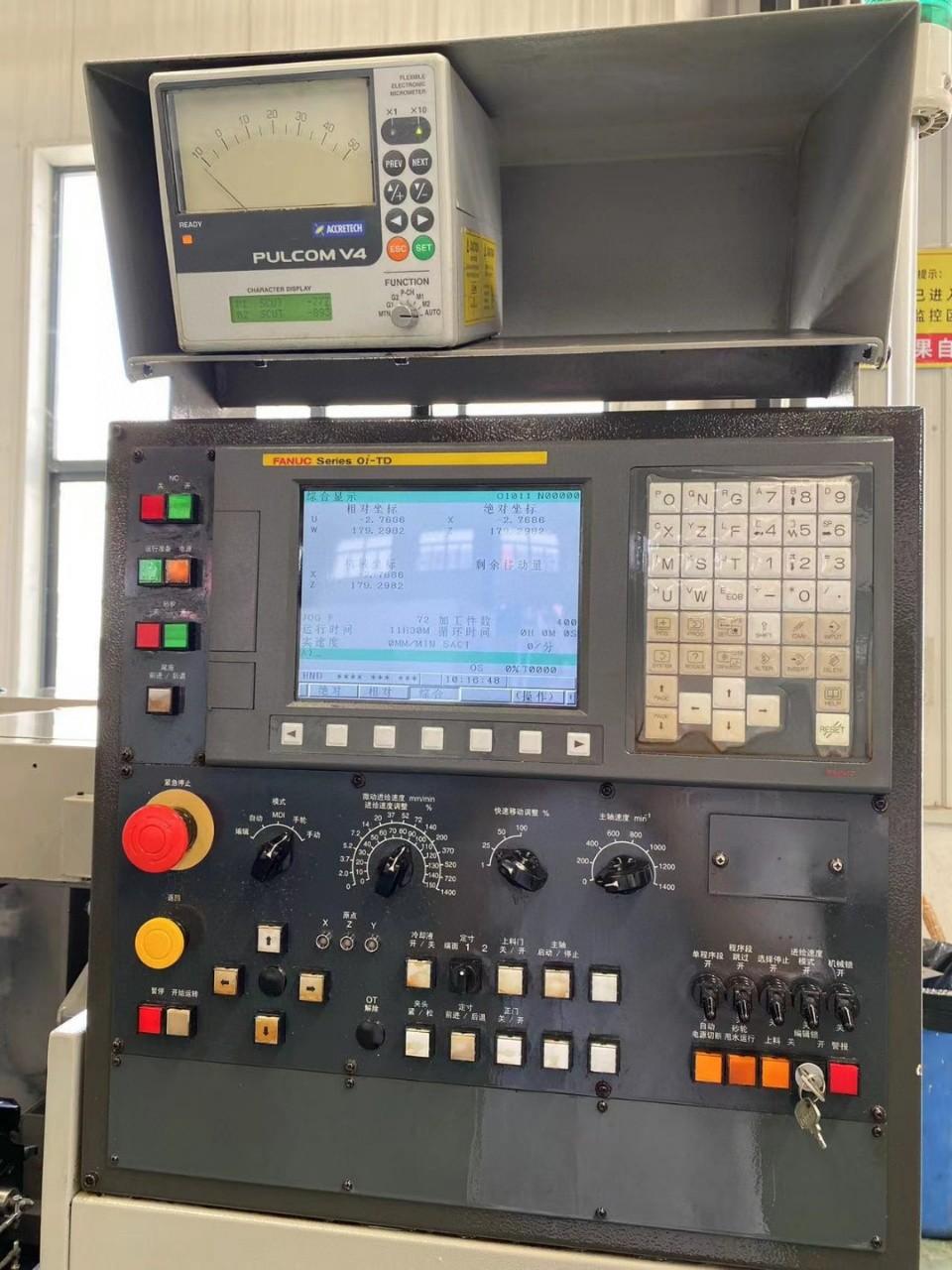

CNC System: Fanuc Oi-TD

Accessories:

2 sets of ACCRETECH external diameter measurement

1 sets of End face measurement device

Magnetic separator

Grinding wheel dressing

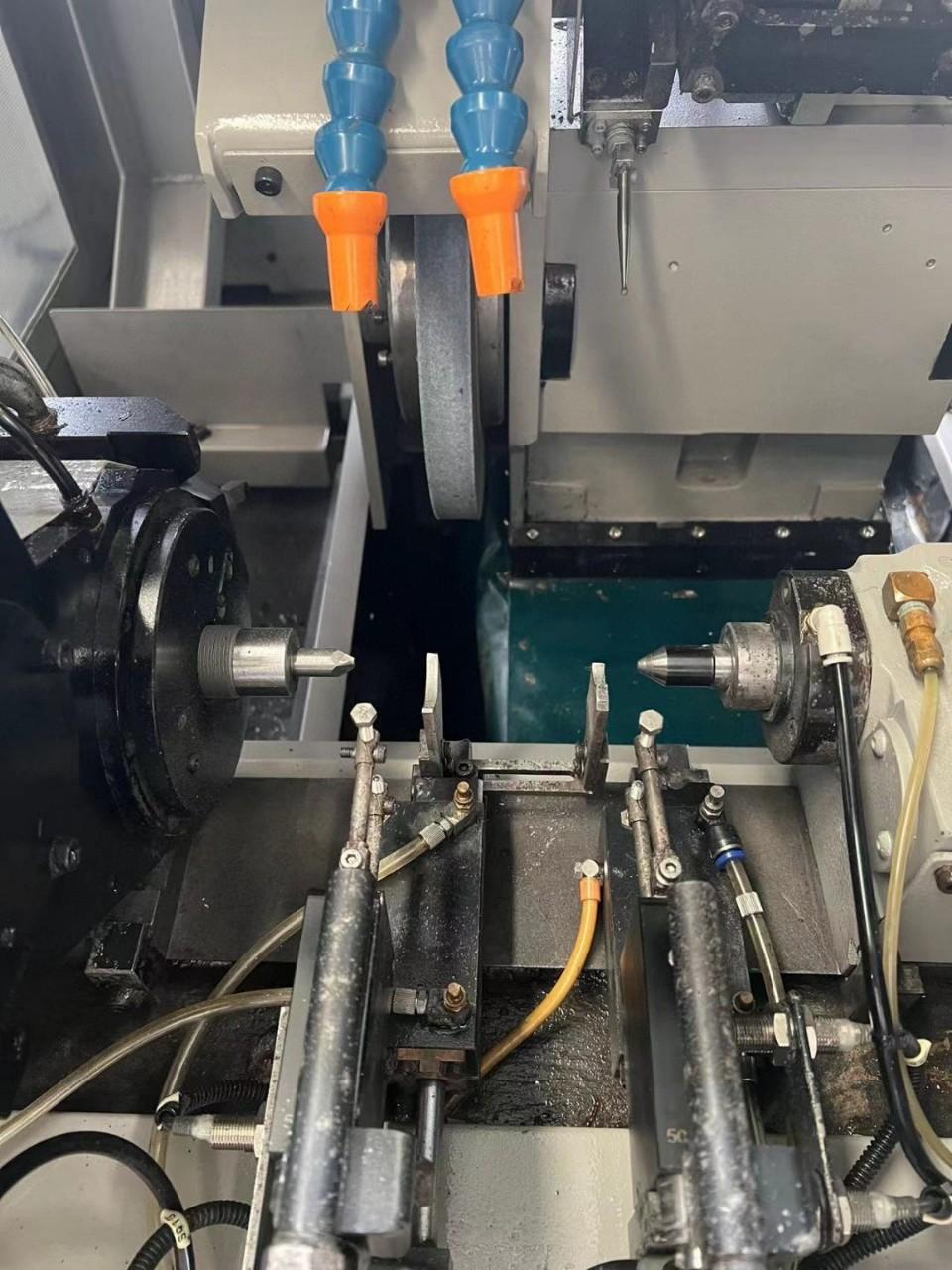

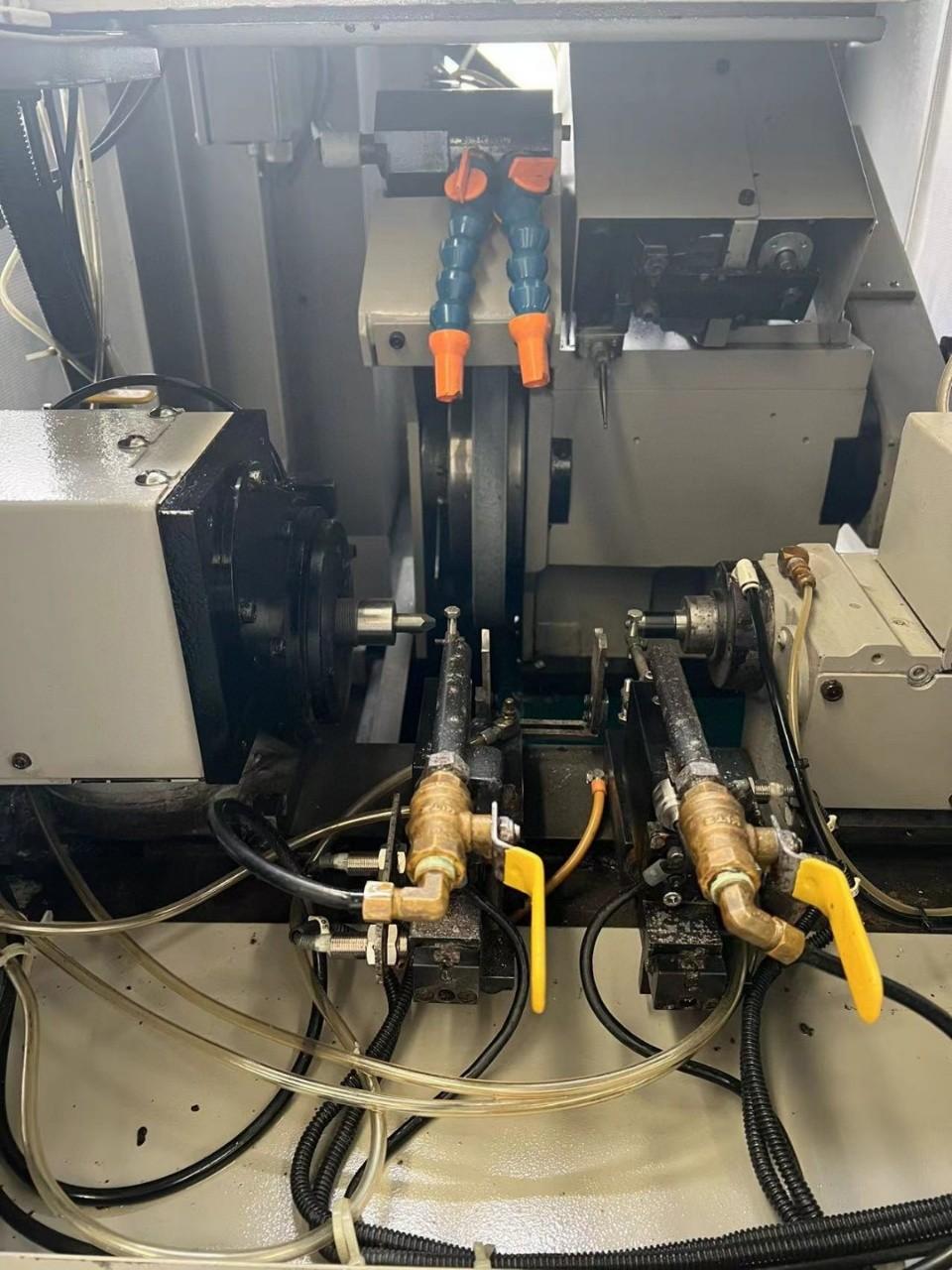

High rigid center
