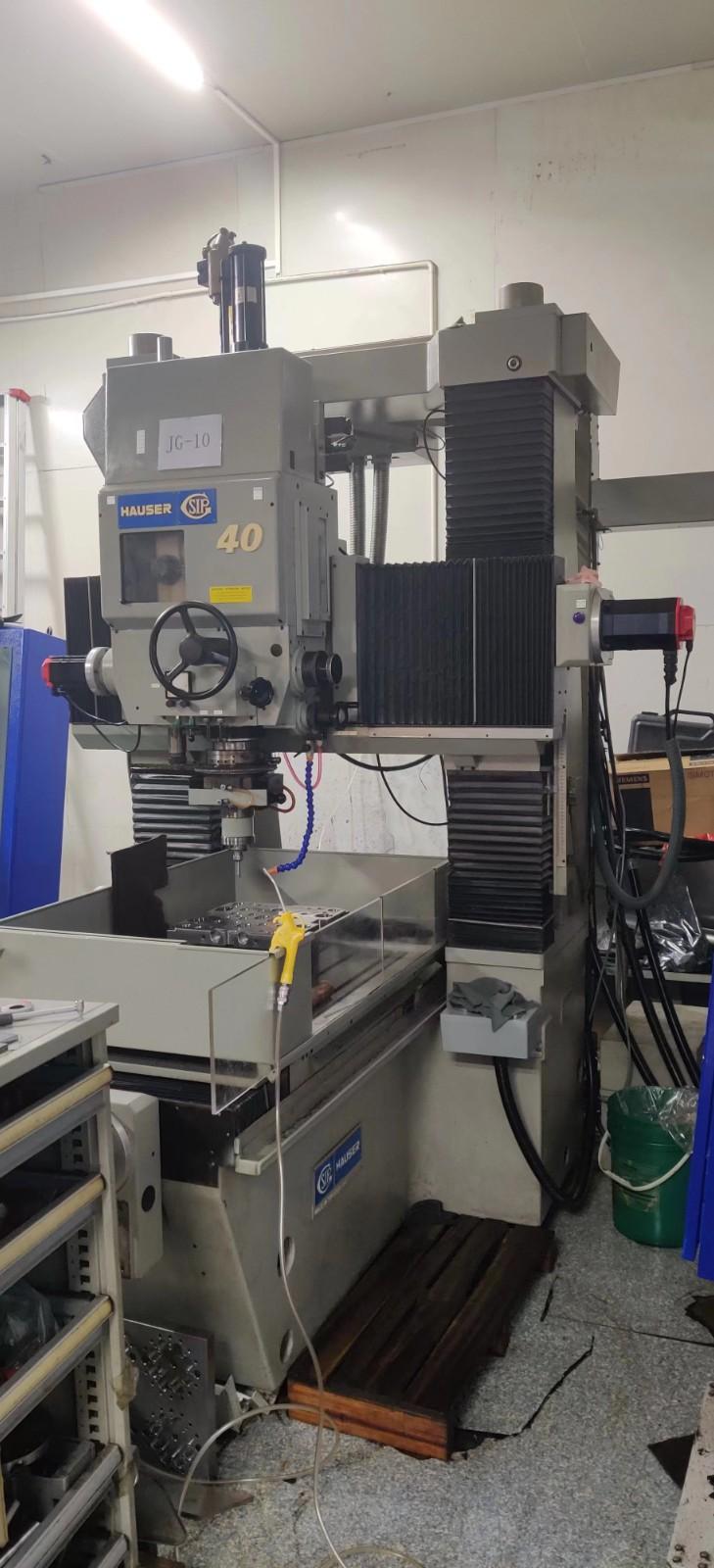

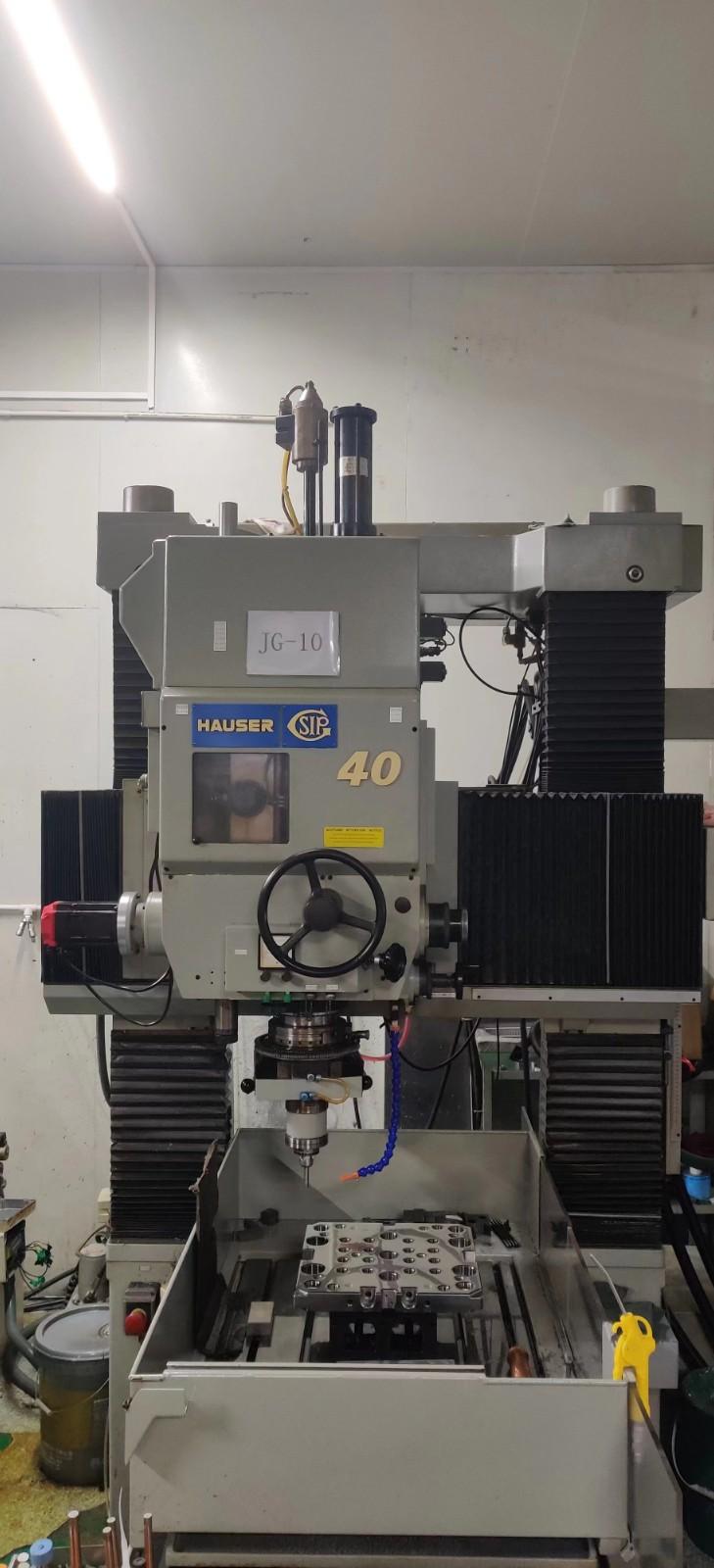

Hauser S40-CNC 314 Jig grinding machine

Worktable length: 770mm

Worktable width: 630mm

Travel X*Y*W: 650*450*500mm

Sliding distance from spindle center to vertical slide: 600mm

Grinding diameter: - Rule: 230mm

- With display board: 360mm

Space between column: 750mm

Worktable load: 500kg

T slot width: 14mm

T Number of slots: 6

Space between T Slots: 100mm

Grinding spindle speed - : 80000/4500rpm

Electrician: Voltage/frequency: 440/60 volts/Hertz

Total power: 7 Kw

Machine Footage: 4000x3600x3200 mm

Machine weight: 4000 kg
