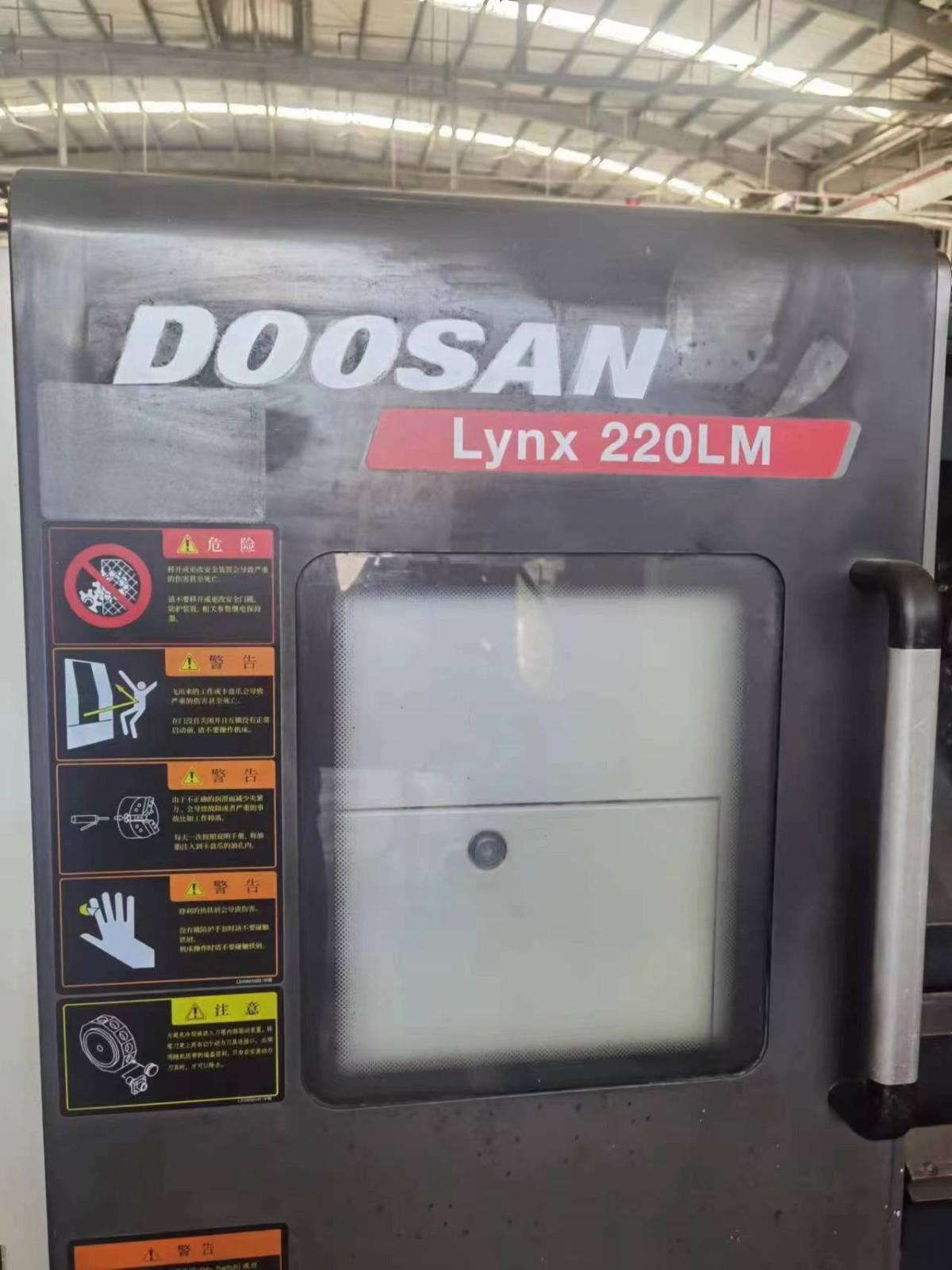

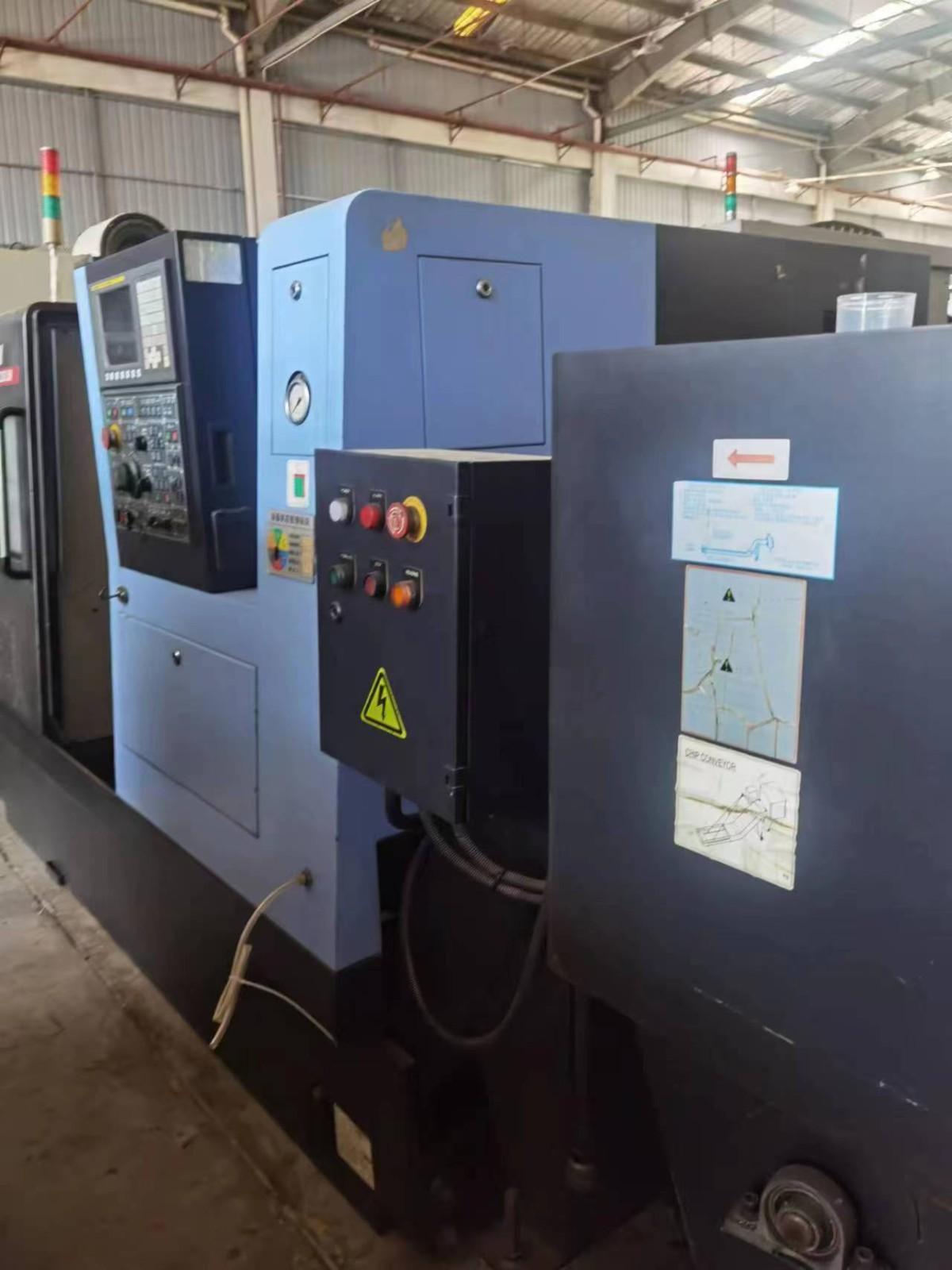

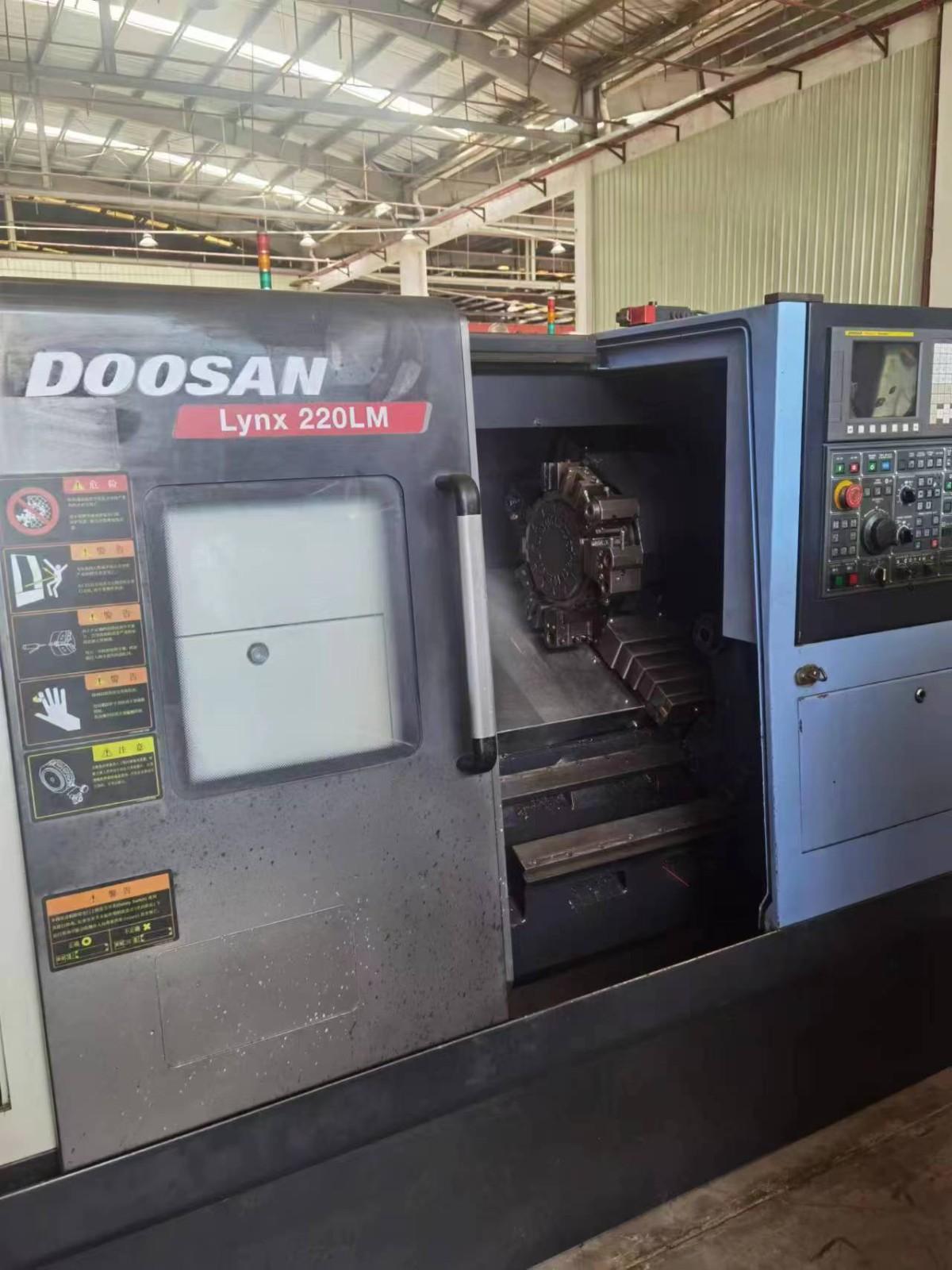

Doosan Lynx 220LM Machining centre

Brand: Doosan

Model: Lynx 220LM

Swing over bed: 599mm

Swing over saddle: 399mm

Max. turning diameter: 300mm

Max. turning length: 511mm

Chuck size: 6"

Bar working diameter:51

X-axis travel: 206mm

Y-axis travel: +104/-53mm

Z-axis travel: 559mm

Rapid traverse rate x/y/z: 30/10/36m/min

Max. spindle speed, main: 6000 RPM

Main spindle motor: 20/15 HP

Spindle nose: FLAT

Min. spindle indexing angle: 0.001°

Max. spindle speed, sub: 6000 RPM

Sub spindle motor: 7.5/5 HP

Spindle through hole dia.: 43mm

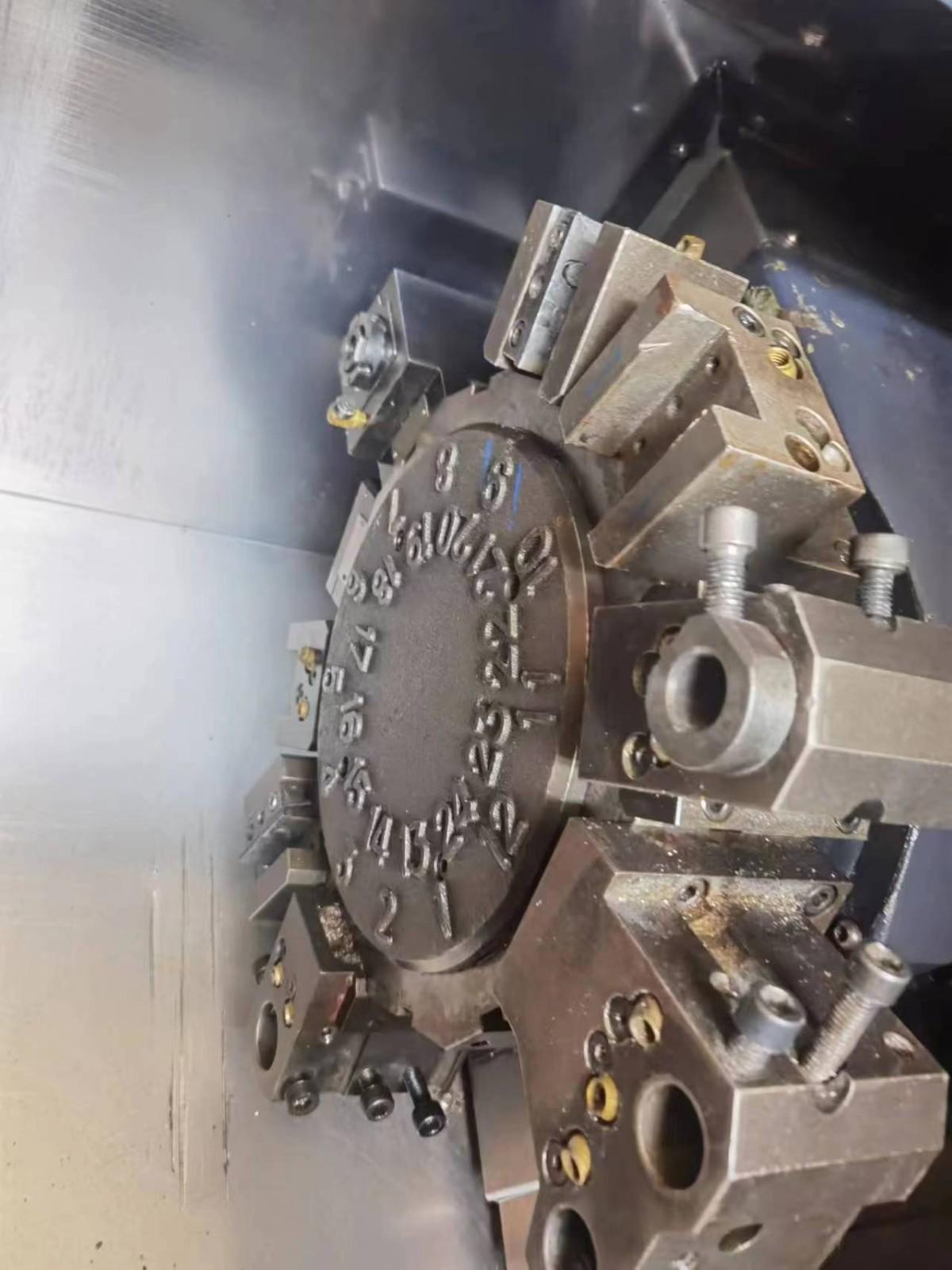

No. of tool stations: 12 (24 POSITION INDEX)

Od tool size: 20mm

Max. boring bar size: 33mm

Max. rotary tool speed: 6000 RPM

Rotary tool motor: 5 HP

Approx. machine weight: 4196kg
