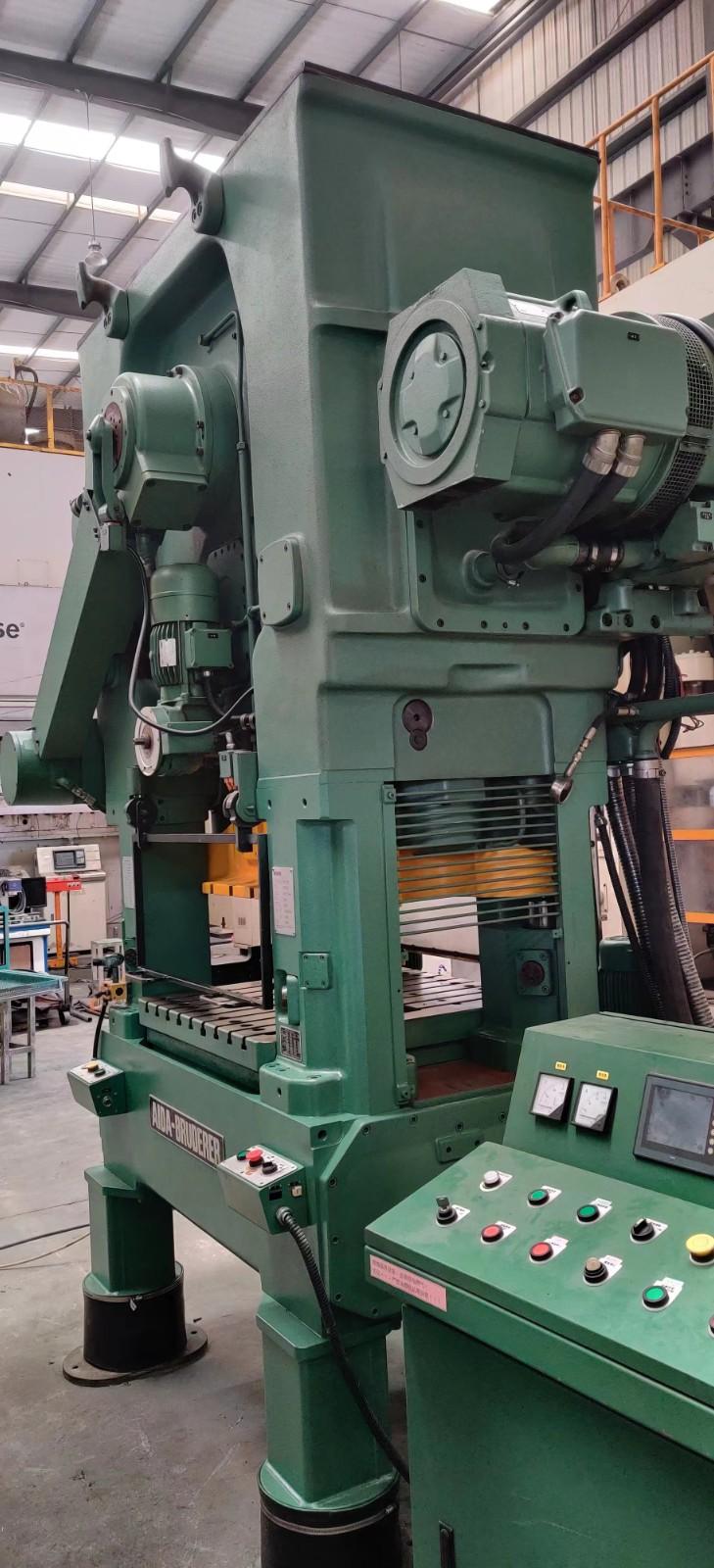

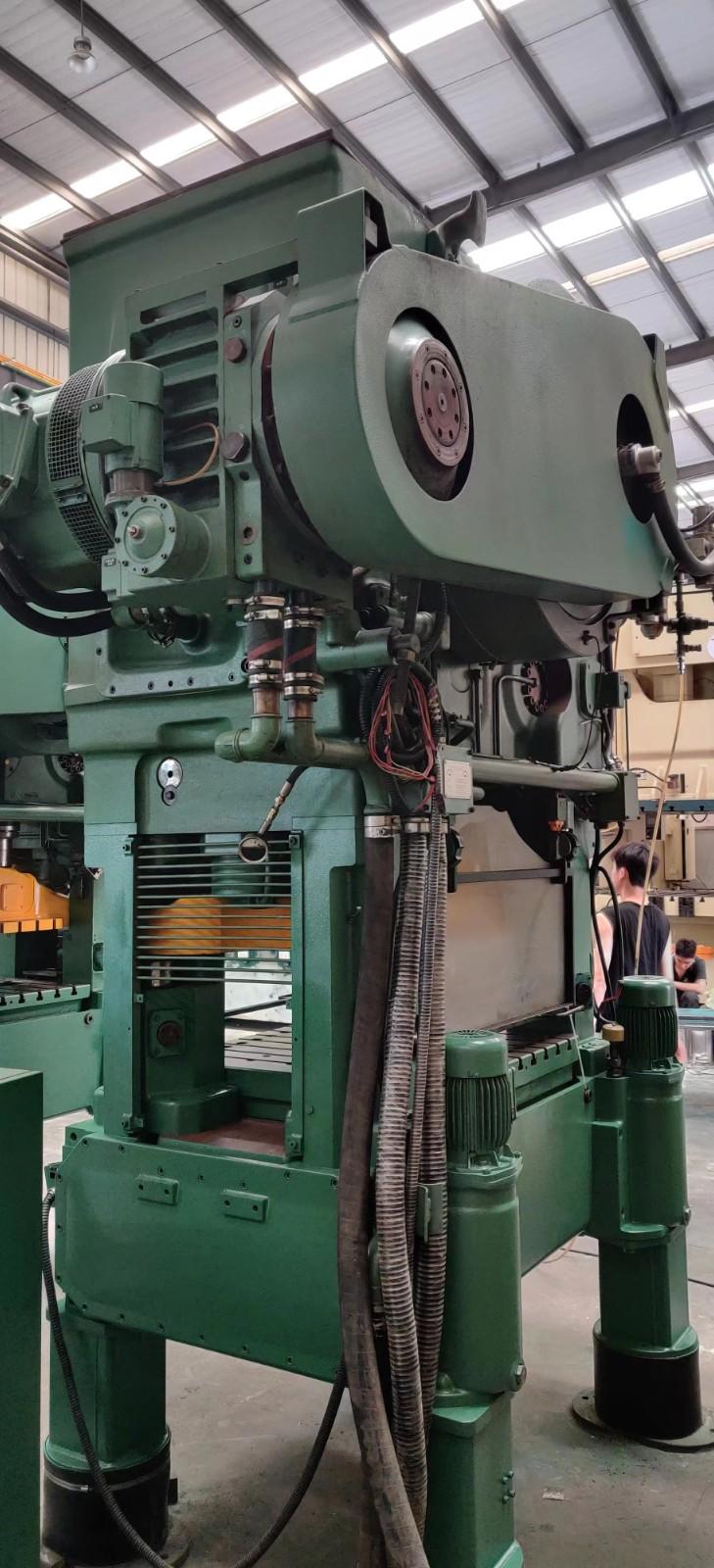

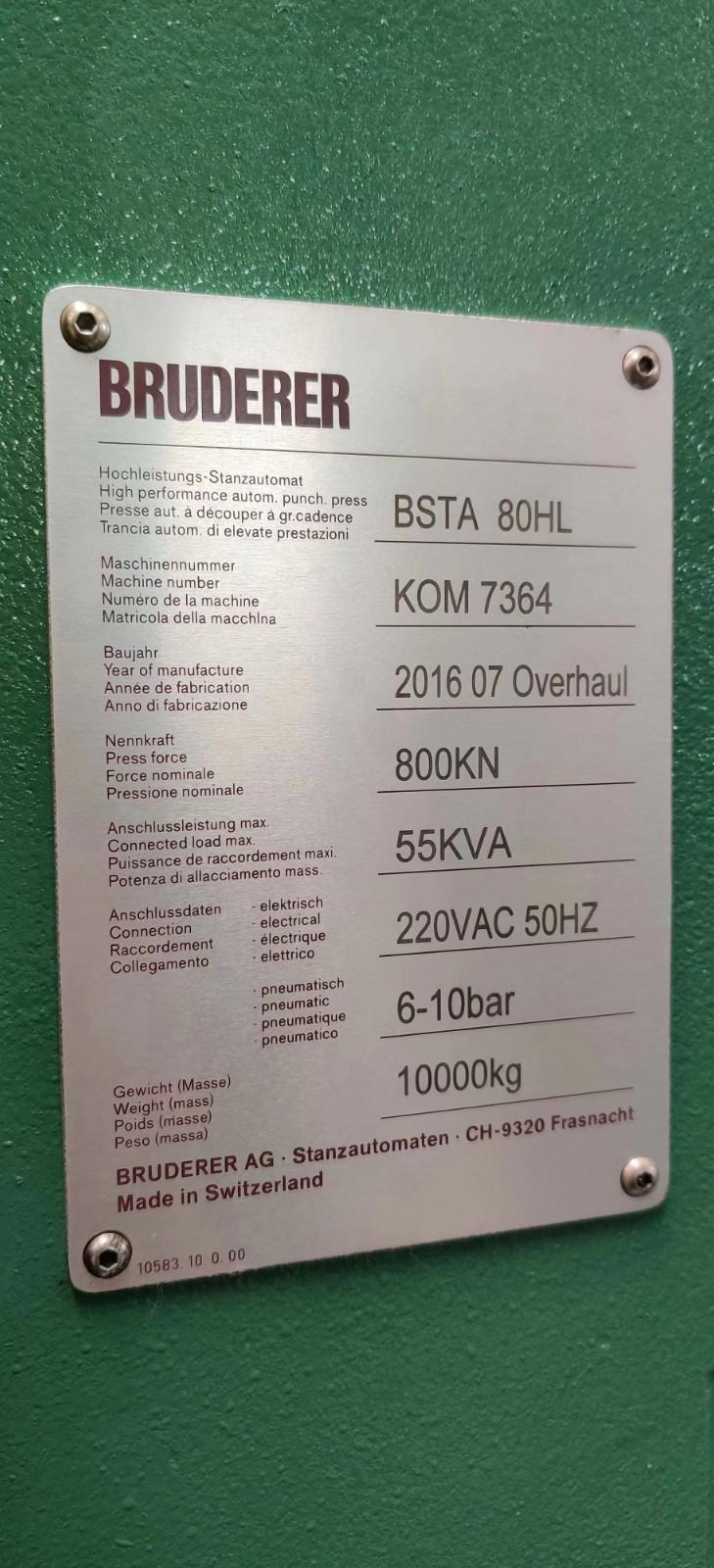

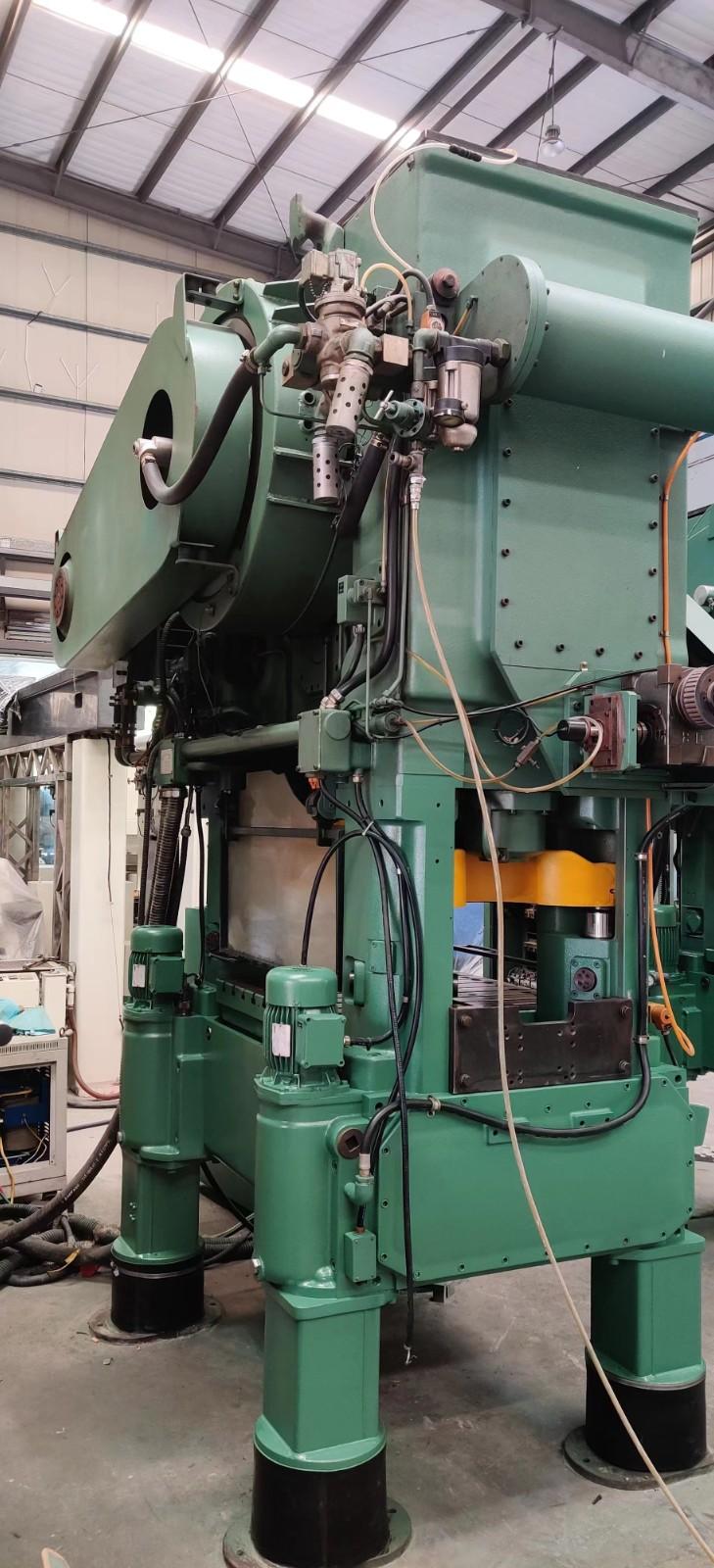

BRUDERER 80T High speed punch

Brand: BRUDERER

Model: 80T

Max. pressure: 80 Tons 800 Kn

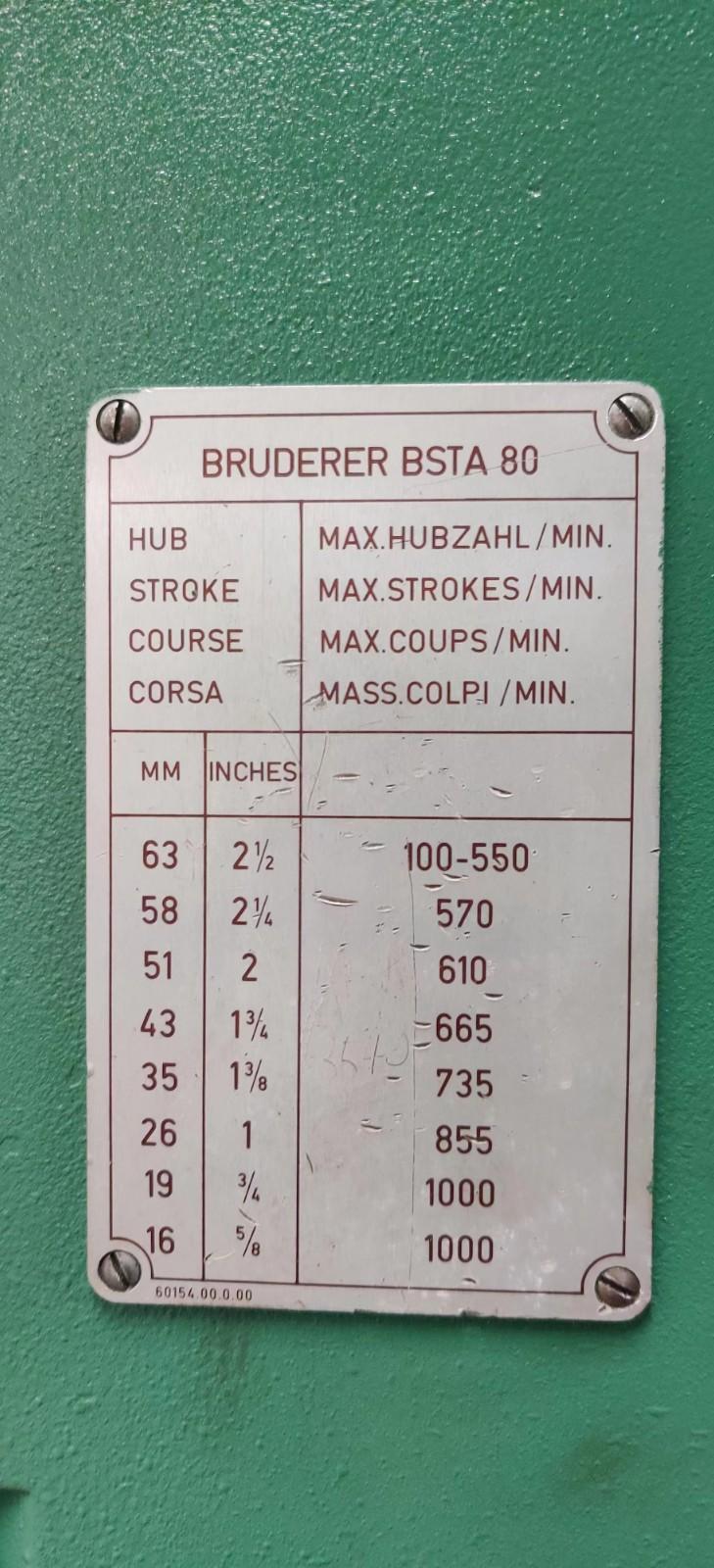

Speed: -Max.: 1000 1/min -Min.: 100 1/min

Mains voltage (with protective conductor): 220 V, 380 V, 440 V

Mains frequency: 50 Hz, 60 Hz

Power supply: 43 kW

Control voltage AC: 24 V

Compressed air connection: 6-10 bar

Ram position adjustment: 76 mm

Average mass of tool upper part: 600 kg

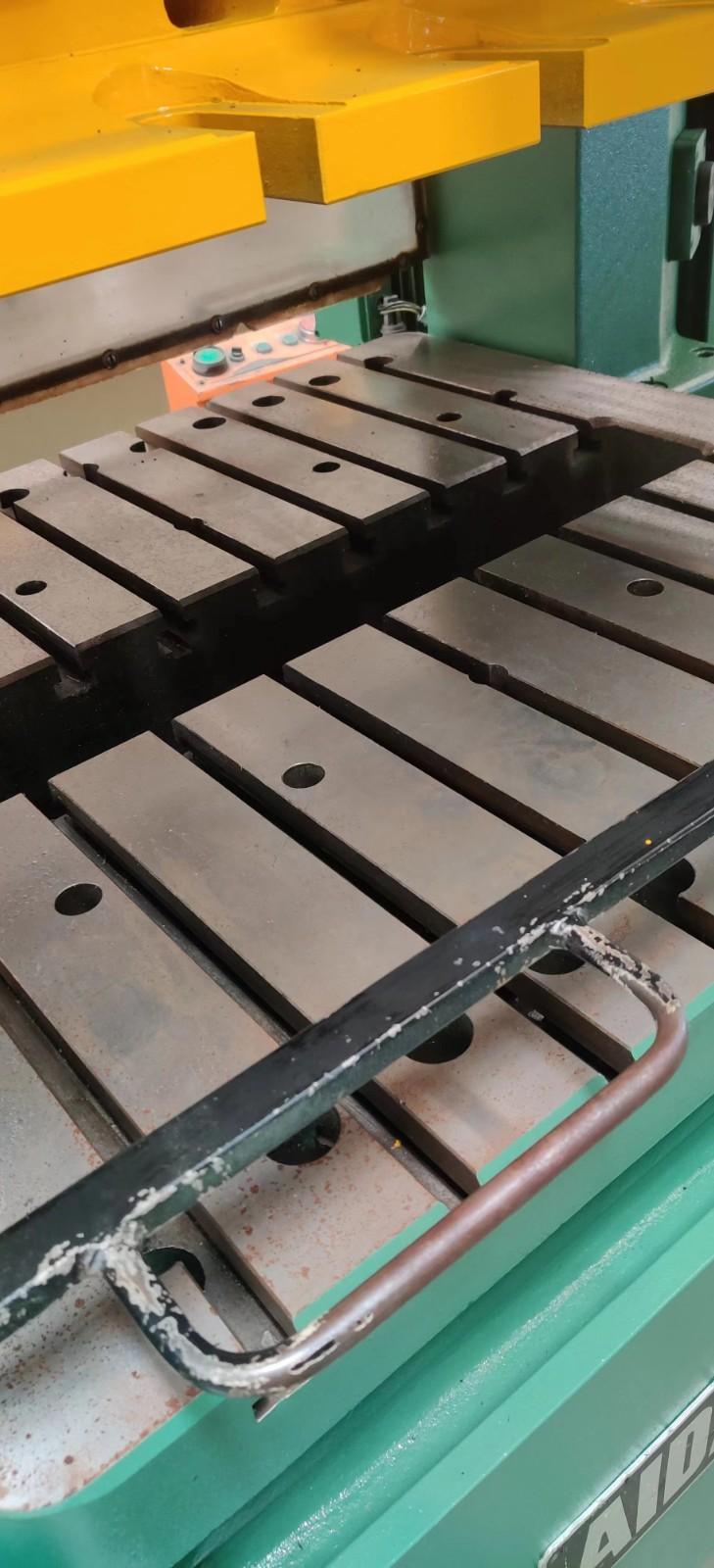

Bolster area: -L-R: 950 mm -F-B: 910 mm

Ram area: -L-R: 760 mm -F-B: 510 mm

Max. tool width clearance (L-R): 970 mm

Strip inlet height: -Max.: 160 mm -Min.: 70 mm

Feeder bruderer on left side BBV 202/120

Max. strip inlet width: 202 mm

Strip feed pitch: 0-120 mm

Bed opening: -L-R: 920 mm -F-B: 320 mm

Machine dimensions:

-Length: 2834 mm -Width: 1742 mm -Height: 3460 mm -Mass complete with 1 BBV 202: approx. 17.500 kg

Dimensions of electrical cabinet:

-Length: 1200 mm -Width: 500 mm -Height: 1025 mm -Mass: approx. 250 kg

Tonnage meter Toledo onboard
