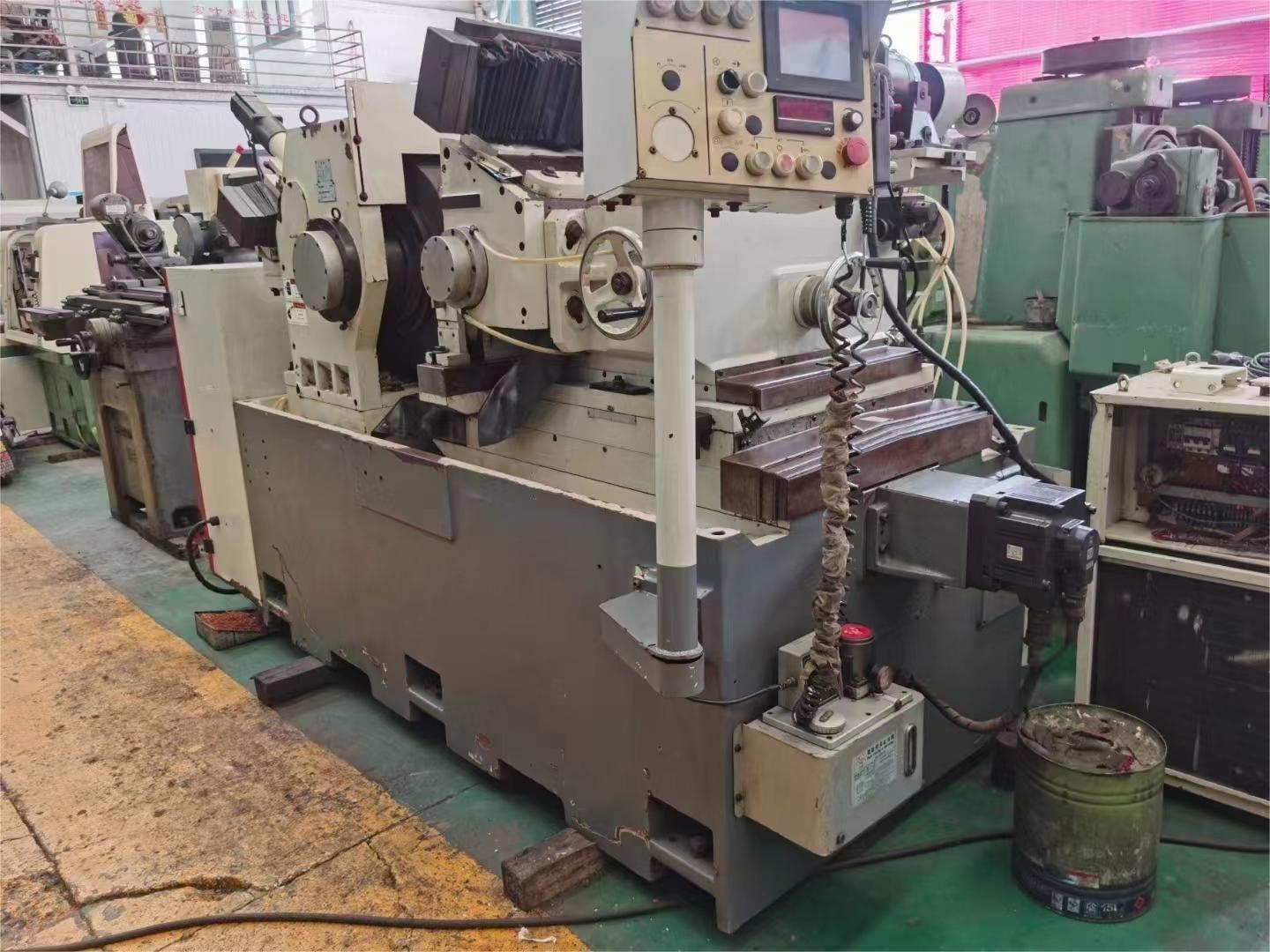

Zhussinde STC-2408NC Centreless grinding machine

Grinding capacity:

Maximum grinding diameter (standard turret) : 1 ~80mm

Maximum grinding diameter (special turret) : 80 ~150mm

Automatic feed (NC type) : 0.001~9.99mm

Grinding wheel main wheel speed:  1050rpm

Adjusting wheel spindle speed (no stepless) : 10~250rpm

Motor:

Grinding wheel motor HP 20 / (opt.30)

Hydraulic motor: HP 2

Servo motor (NC type) : 3KW

Dimension/Weight:

Net weight (approx.) : 5800kg

Gross weight (approx.) : 7100kg

Length x width x height: 3070*2250*2160mm
