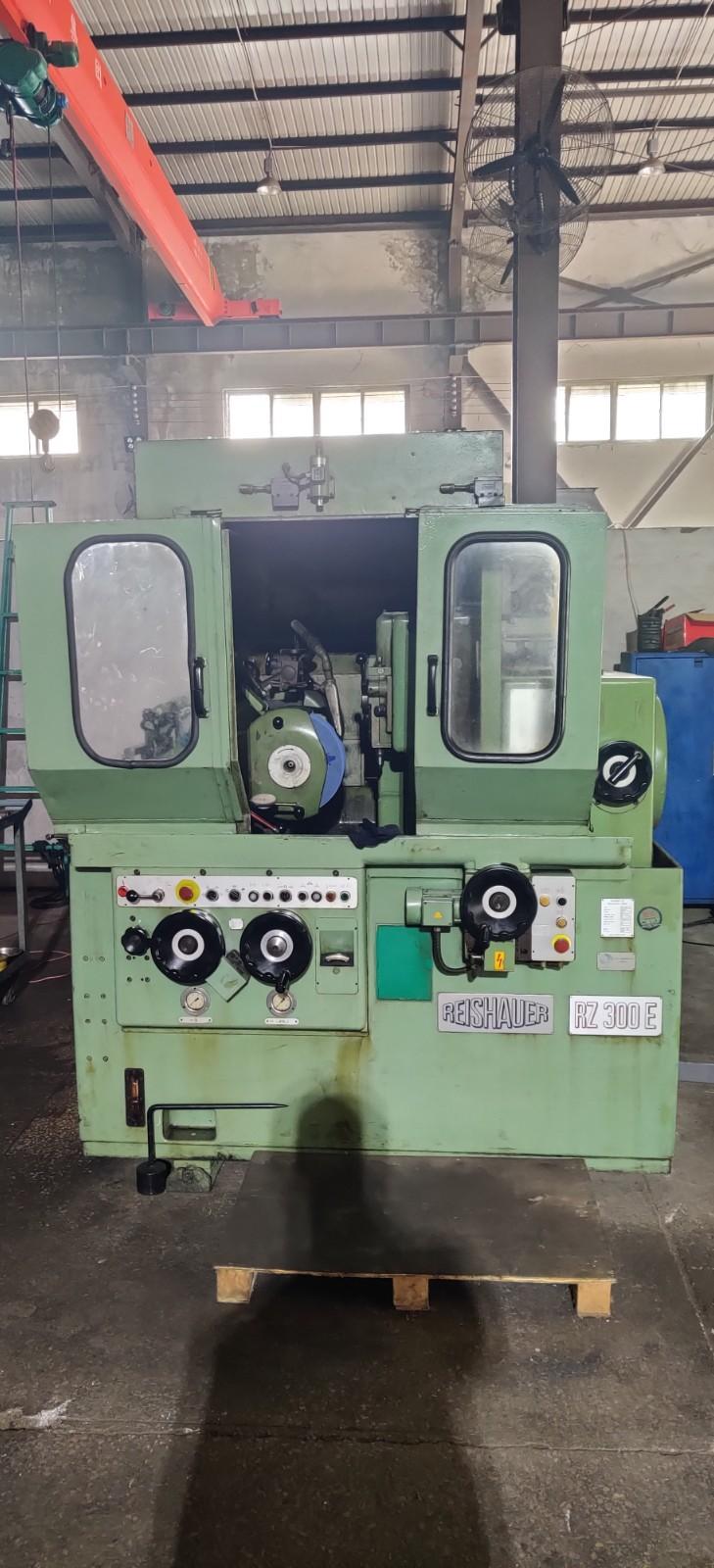

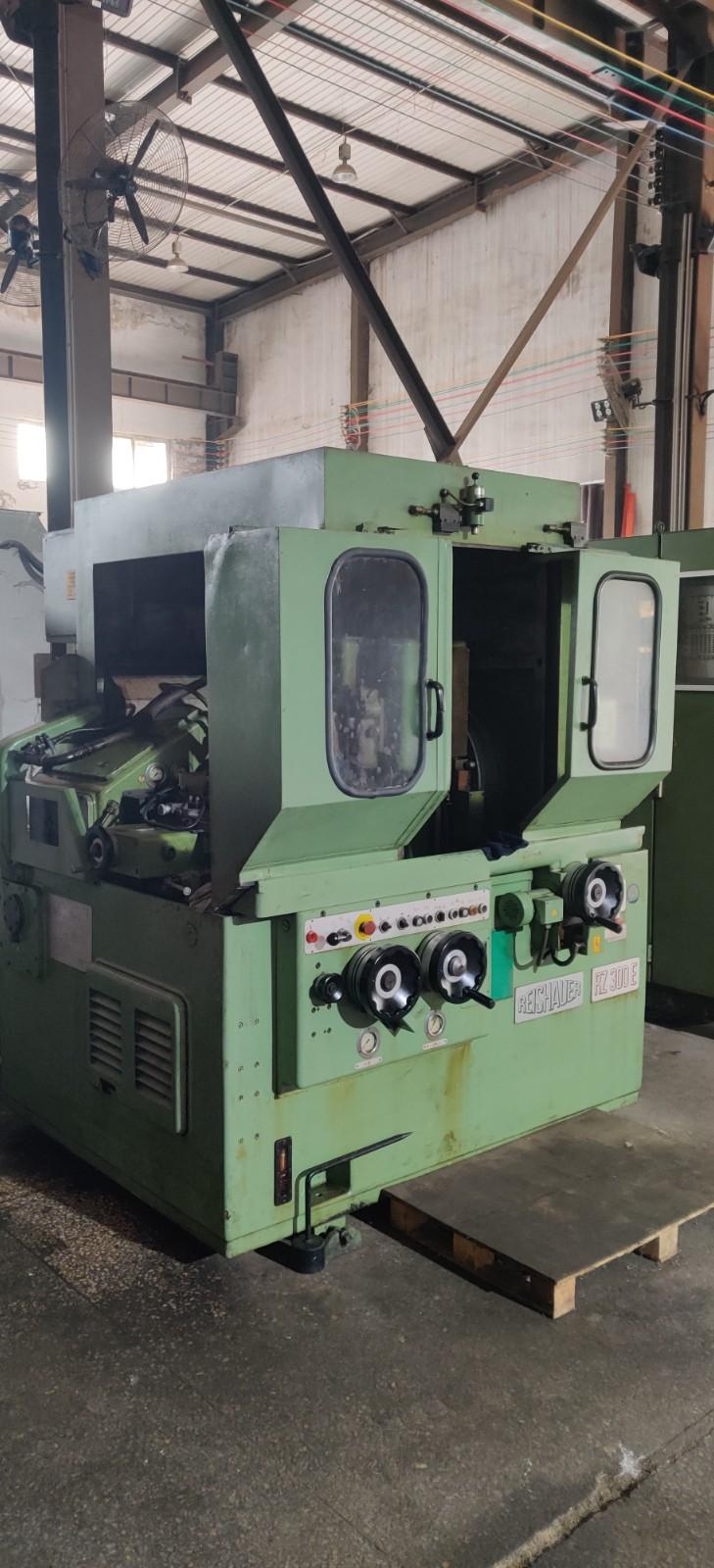

Leshauer RZ300E Gear grinding machine

Machining diameter: 300mm

Gear thickness: 180mm

Modulus: 0.5~5mm

Number of teeth: 6~600

Helix angle β : ±45°

Workpiece weight: 60kg

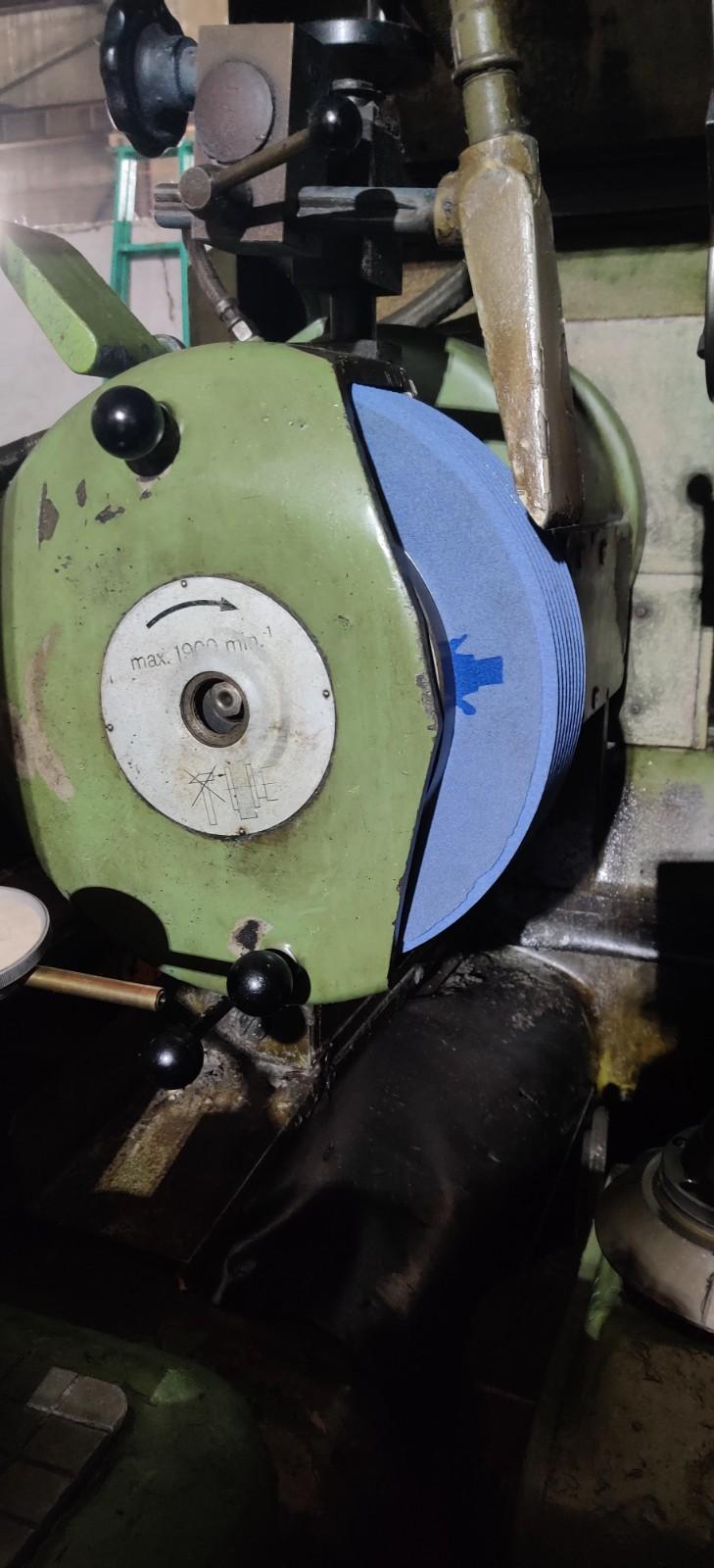

Grinding wheel diameter: 270~350mm

Grinding wheel thickness: 104mm

Spindle working speed: 1100~1900rpm

Spindle dressing speed: 52~95rpm

Gear feed rate per revolution：0~3.4mm/r

Machine gross weight: 4000kg
