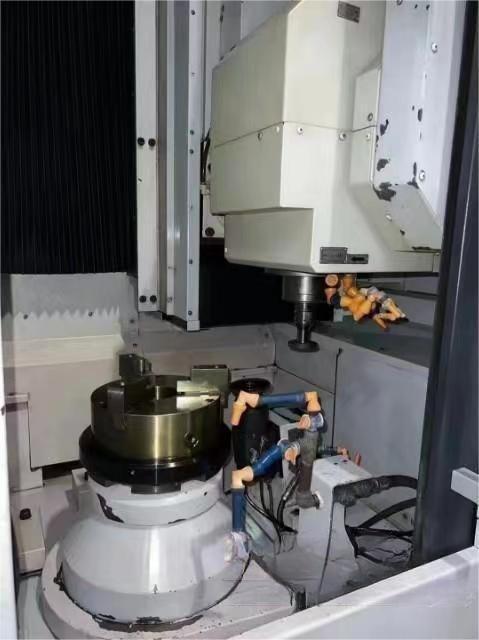

TAIYO KOKI NVGH-3T Grinding machines

Spindle type: HSK-50A

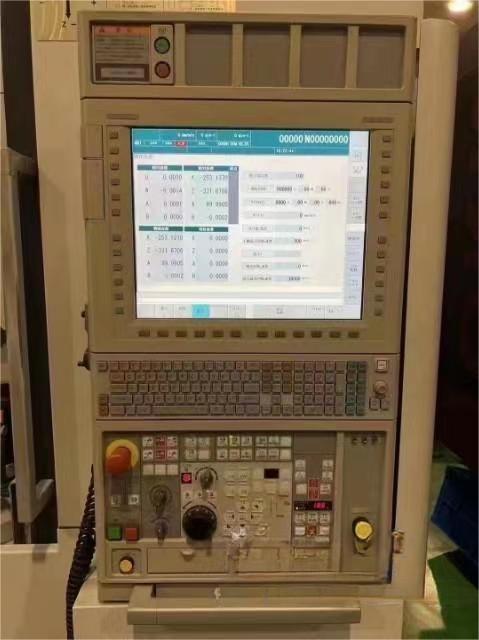

CNC System: MSX-701IV

Grinding through hole: 20 ~ 200mm

Grinding external diameter: 320mm

Grinding length (through hole diameter) : 150mm

Grinding length (external diameter) : Straight line: 220mm (additional conditions 265mm)

Angle: 150° (but same diameter ~ angle 22.5)

Worktable load: 200kg

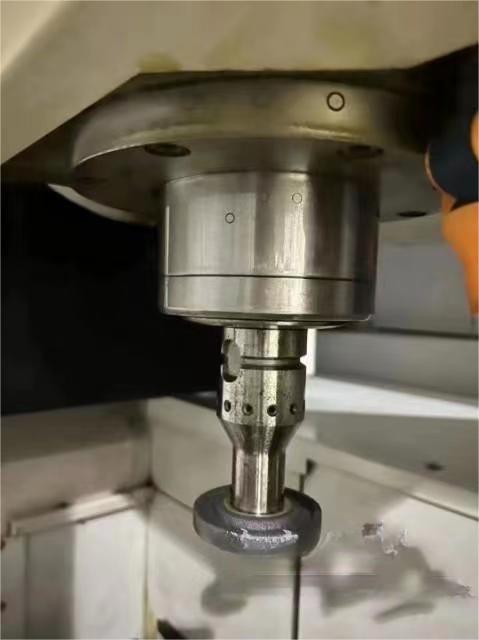

Internal grinding wheel axis speed: 4000~30000rpm

Grinding wheel size: Phi 16 ~ Phi 125mm

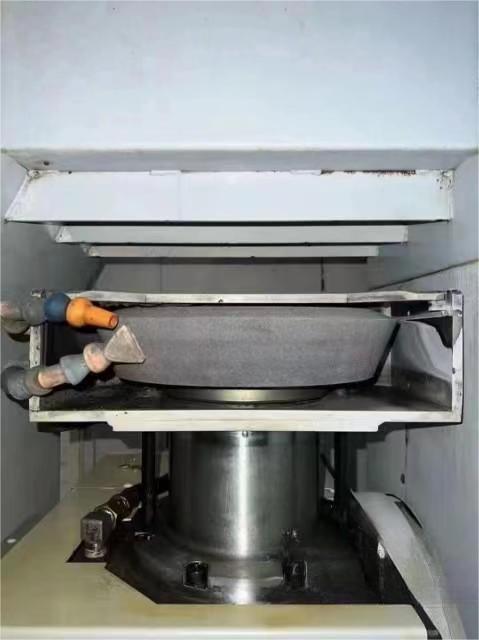

External grinding wheel axis speed: 5100rpm

Grinding wheel size: Phi 355*65* Phi 152.4mm

Number of tools: 4

Machine weight: 11500Kg

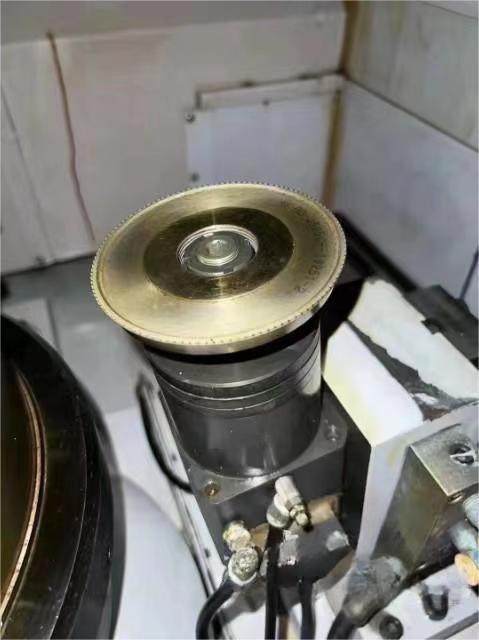

Accessories: glass scale, spindle oil chiller, rotary grinding wheel dresser. (Water chiller, filter, water-mist separator, oil-mist separator)
