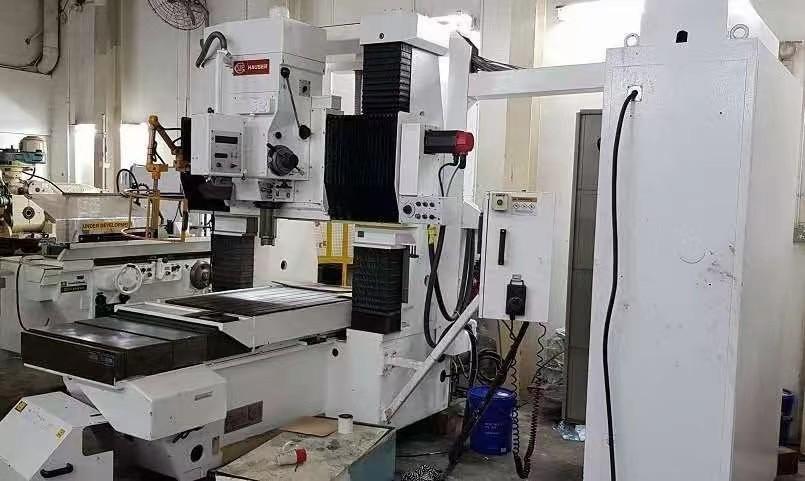

Hauser MP-52CN Jig boring machine

[Product Information]:

Travel: 900*600*635mm

Worktable size: 1020*860mm

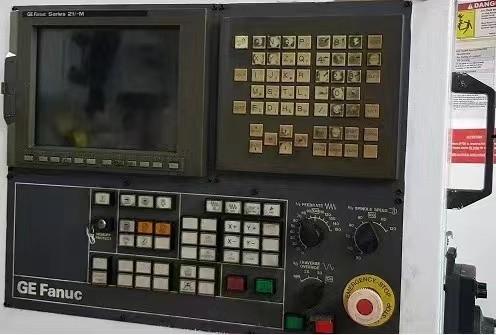

System: Fanuc 21i M

Maximum worktable load: 800 kg

Spindle taper :iso 40

Distance from worktable to spindle: 15-850mm

Distance between two columns: 950mm

Spindle motor: 4.5kW

Machine length * width * height: 2930*2370*2690mm

Machine weight: approximately 6500kg
