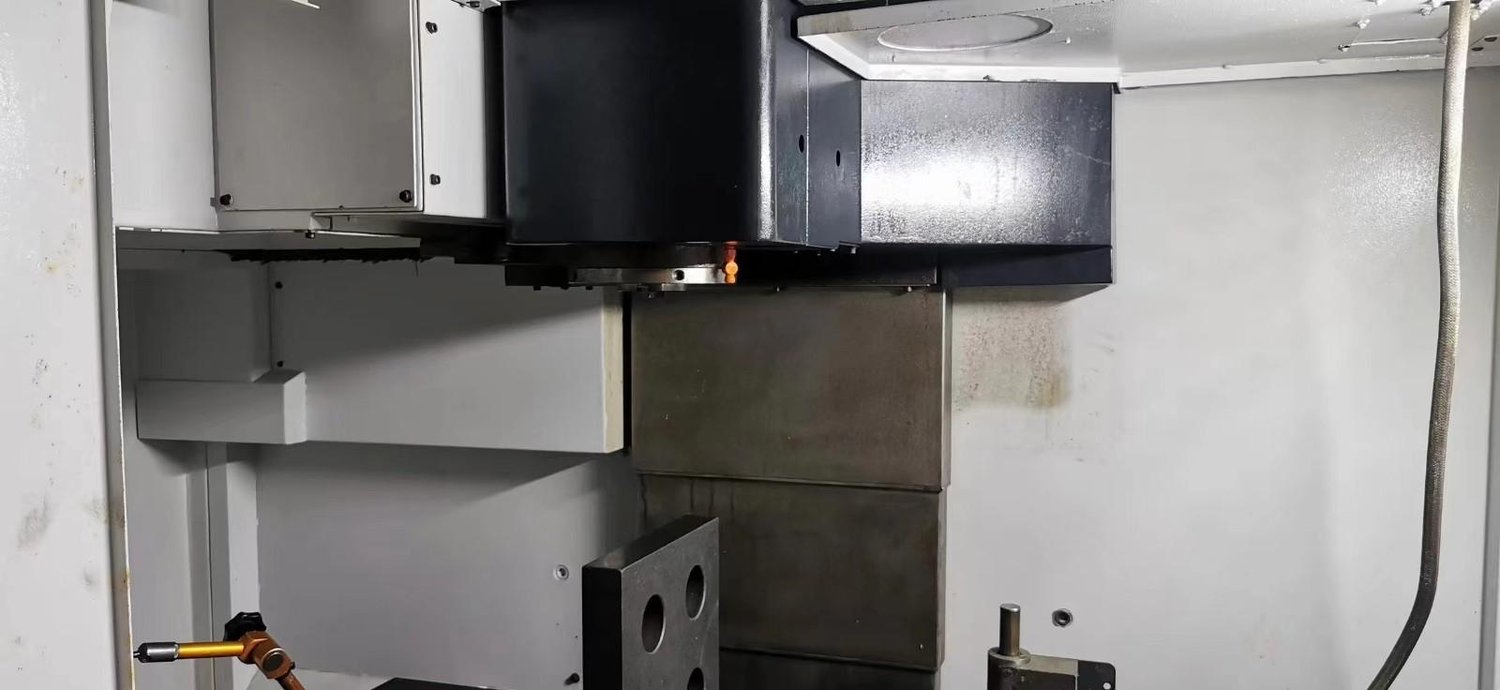

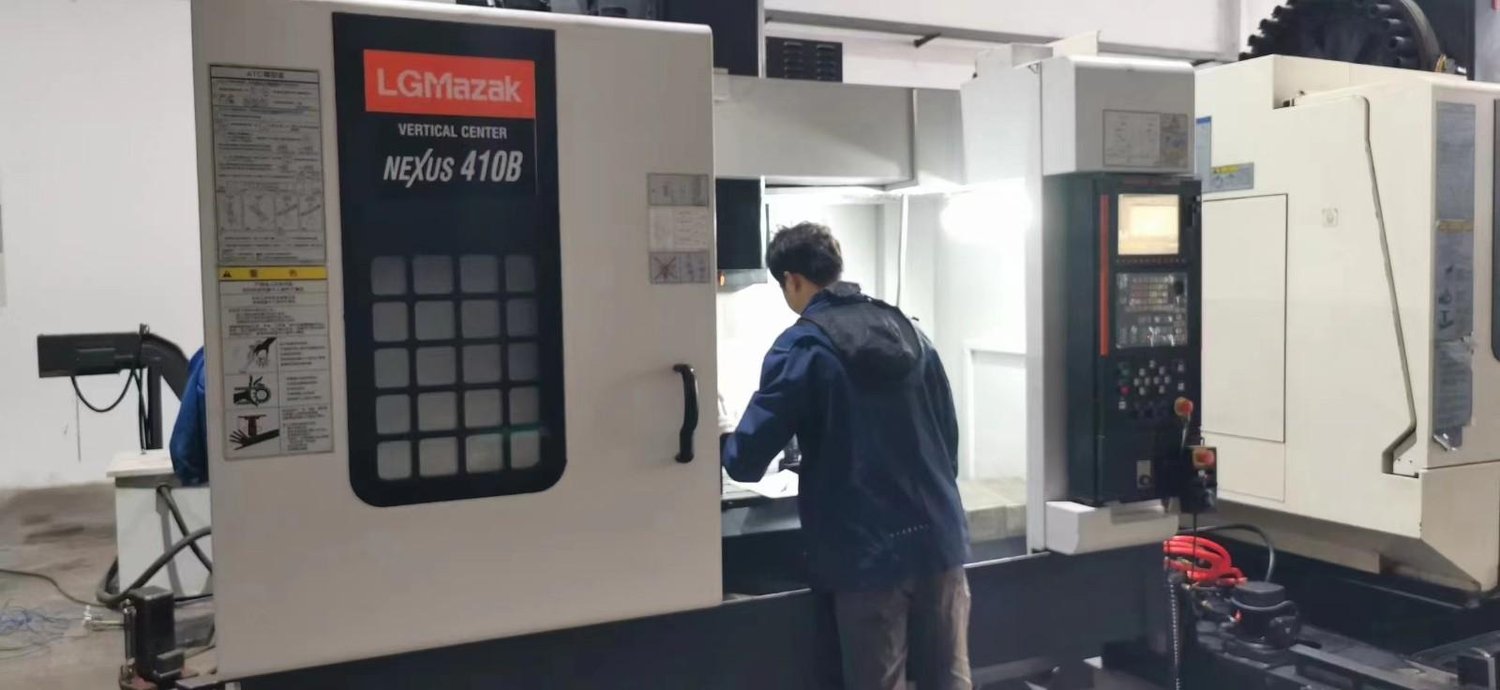

Mazak NEXUS 410B Vertical Machining centre

Three axes travel :762*410*510mm

Distance from worktable to spindle nose :150-660mm

Distance from column front to spindle center:504mm

Worktable size :1100*410mm

Worktable load :700kg

Worktable T-slot :3*18-125mm

Spindle speed :12000rpm

Fast feed rate :36/50m/min

Cutting feed rate :8m/min

Tool changing time :2.9S

Spindle power :18.5kw

System :MAZATROL 640M

Tool magazine: 30

Footage:2800*2480*2600mm
