Doosan ACE-HM800 Horizontal Machining centre
[Product Information]:
- Inventory number：81272
- Brand：Doosan
- Model：ACE-HM800
- Origin：South Korea
- Location：China
- Year：2007
- Create Time：2023-06-02
Specifications:

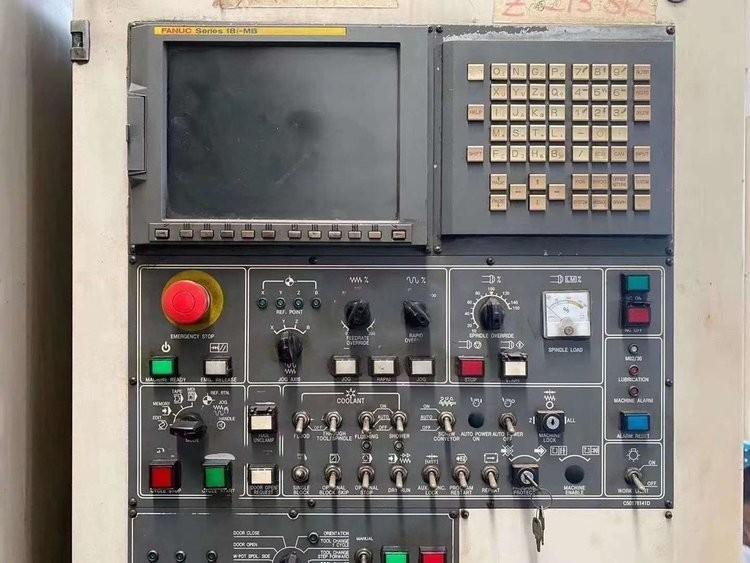

System: FANUC 18i-MB

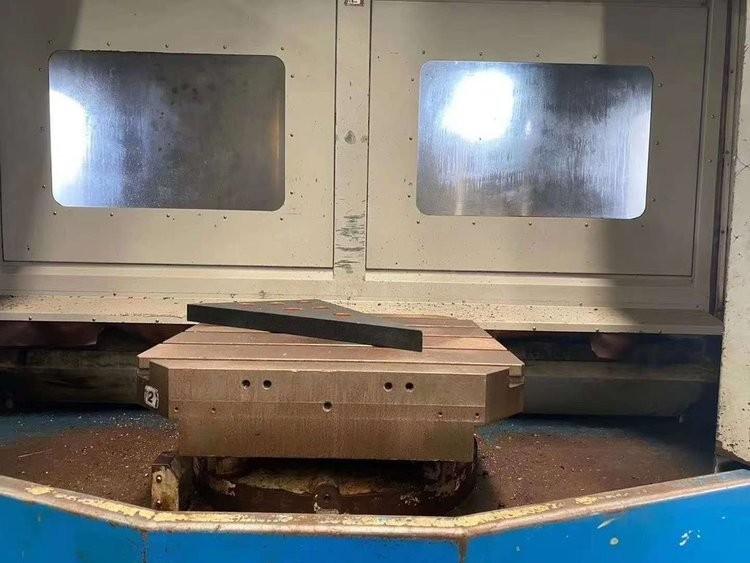

Worktable size :800*800mm ,Twin worktable
Three axes travel :1250*1000*1000mm
Spindle nose to the worktable center distance :200-1200mm
Spindle center to worktable upper surface distance :75-1075mm

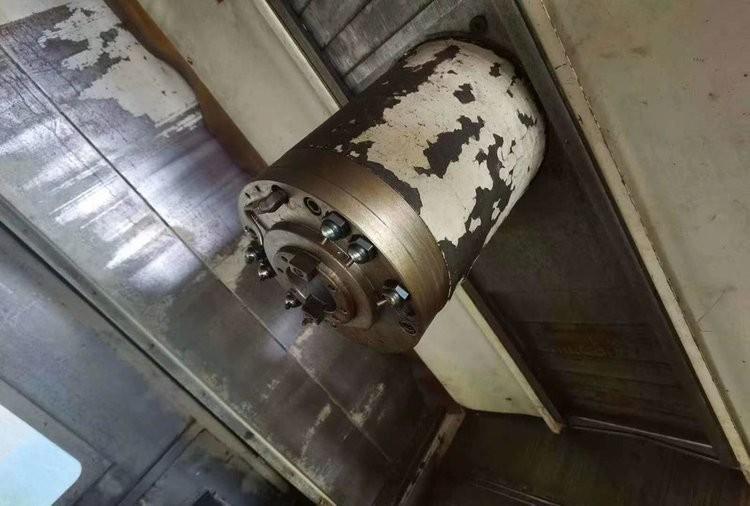

Spindle:BT50/6000rpm
Worktable load :1600kg
Main motor power :22 /26kw
Footage :3330*4270*7060mm
Weight :20000kg

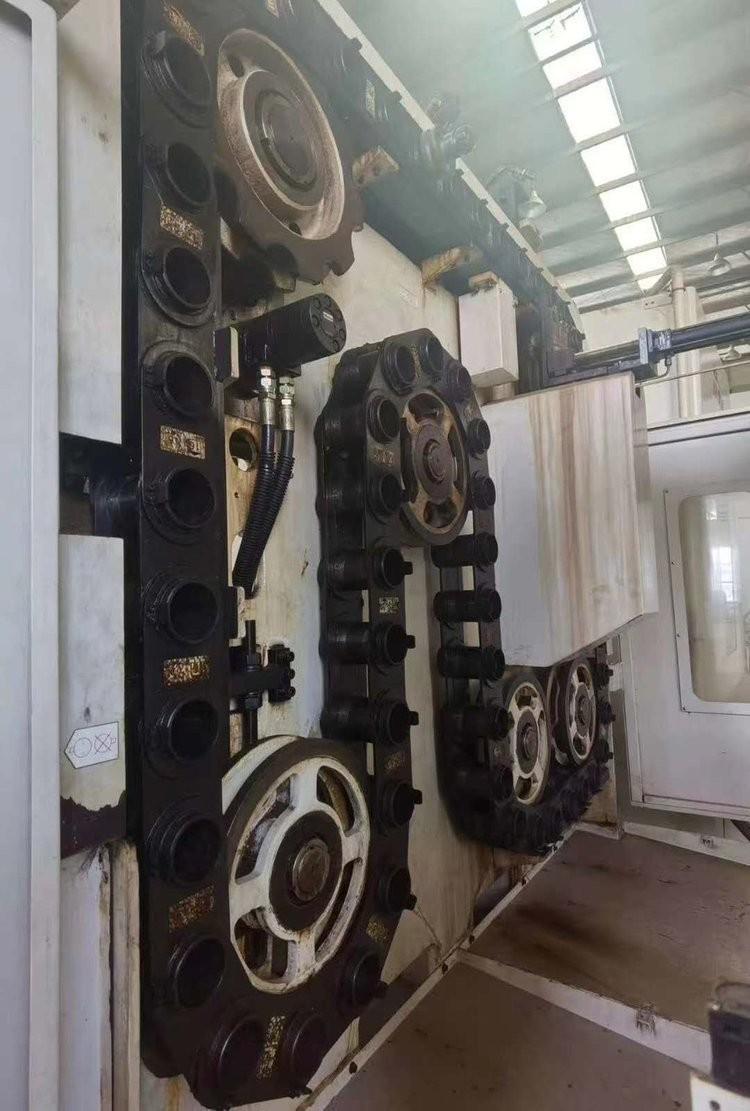

Tool magazine: 60
