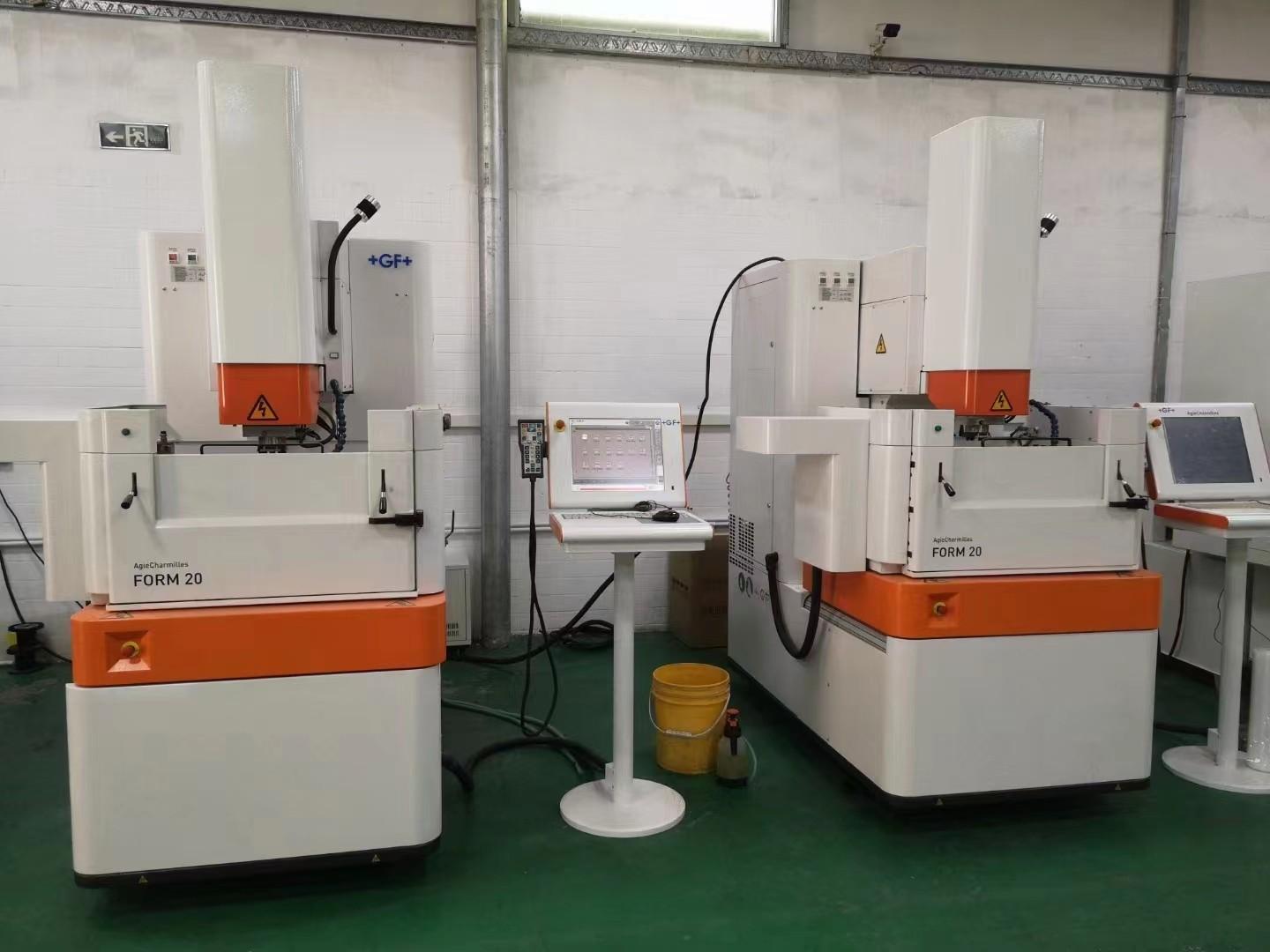

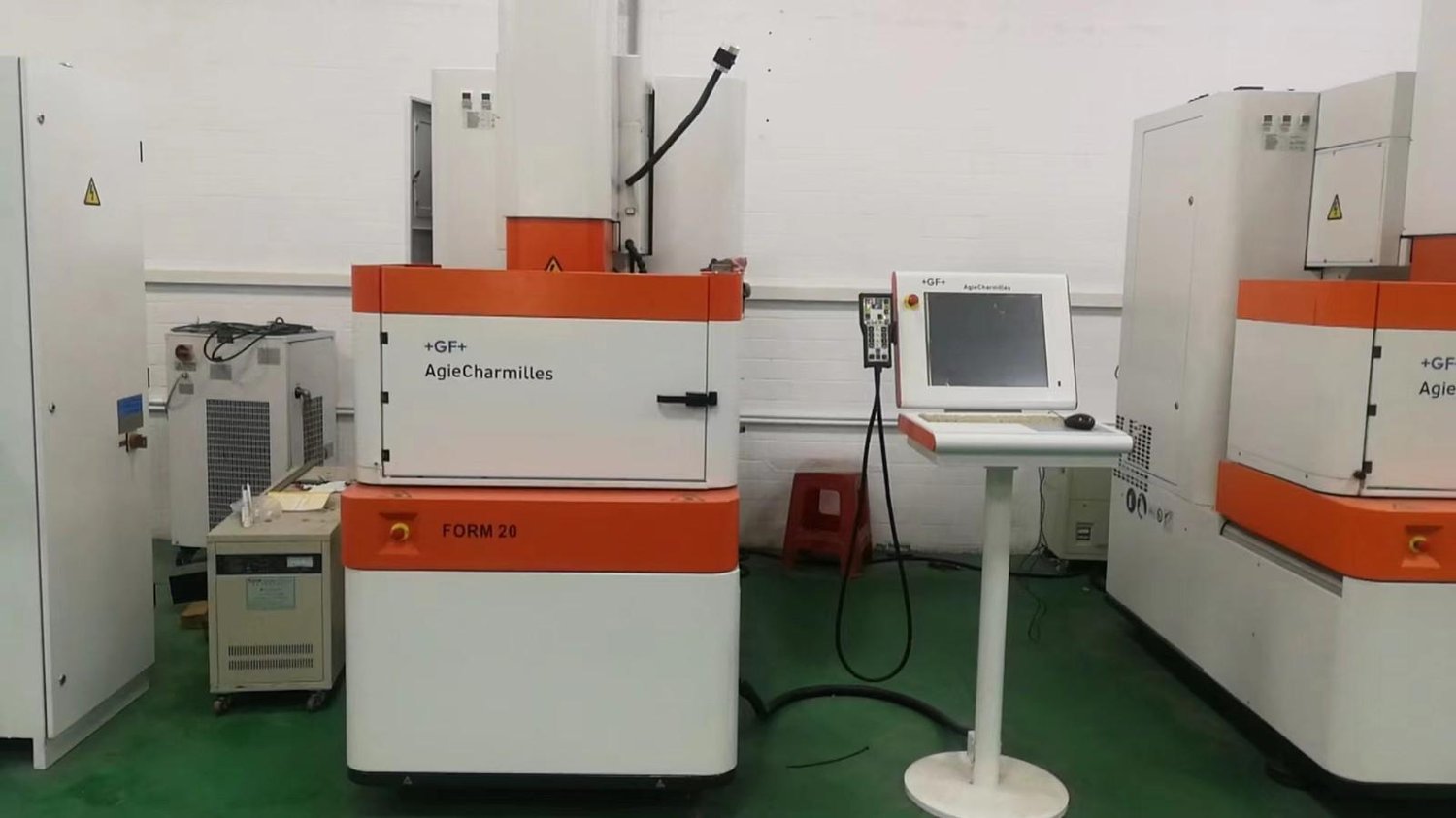

AgieCharmilles FORM20 Spark eroder

[Product Information]:

Machine footage (length * width * height) 1000*1731*2372mm

Total weight (excluding machining fluid) 1730kg

Floor area (length * width) 1420*1731mm

X*Y*Z travel 350*250*250mm

X*Y axis feed rate 4m/min

Z-axis feed rate 6m/min

X/Y/Z measurement resolution 10/10/10nm

Electrode weight 50kg

Maximum workpiece weight 200kg

Workpiece size (width * depth * height) 800*500*265mm

Liquid level height 140-310mm

EROWA chuck

Circuitry for alloy machining
