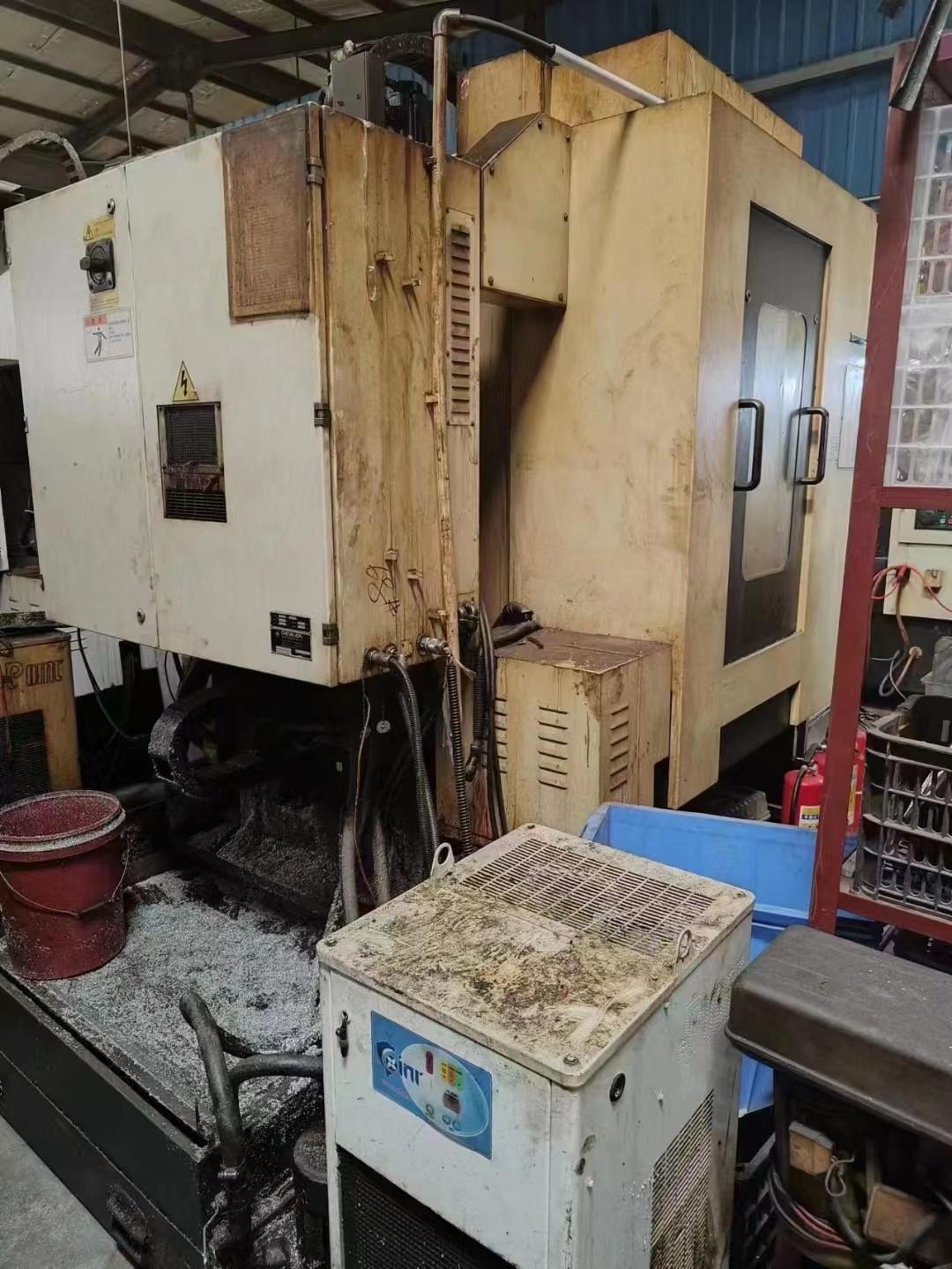

CHEVALIER QP536-L Tapping machine

Three axes travel: 500*400*300mm

Worktable size: 600*380mm

T-slot (number * size * distance) : 3*14*120mm

Maximum worktable load: 200kg

Distance from spindle nose to worktable: 150-500mm

Distance from spindle center to machine front surface: 420mm

Spindle nose taper: #30

Spindle speed: 12000rpm

Spindle diameter: 110mm

Positioning accuracy :JIS B6338±0.002/300mm

Repeat positioning accuracy:JIS B6338±0.002mm

Spindle motor (direct connected) : 3.7/5.5KW

Drive motor (X/Y/Z) : 1.5/1.5/2.2KW

Cutting fluid pump motor: 0.65KW

Power supply capacity: 10KVA

Air pressure capacity: 200L/min

Floor area (length * width * height) : 2510*1865*2700mm

Machine weight: 3000kg
