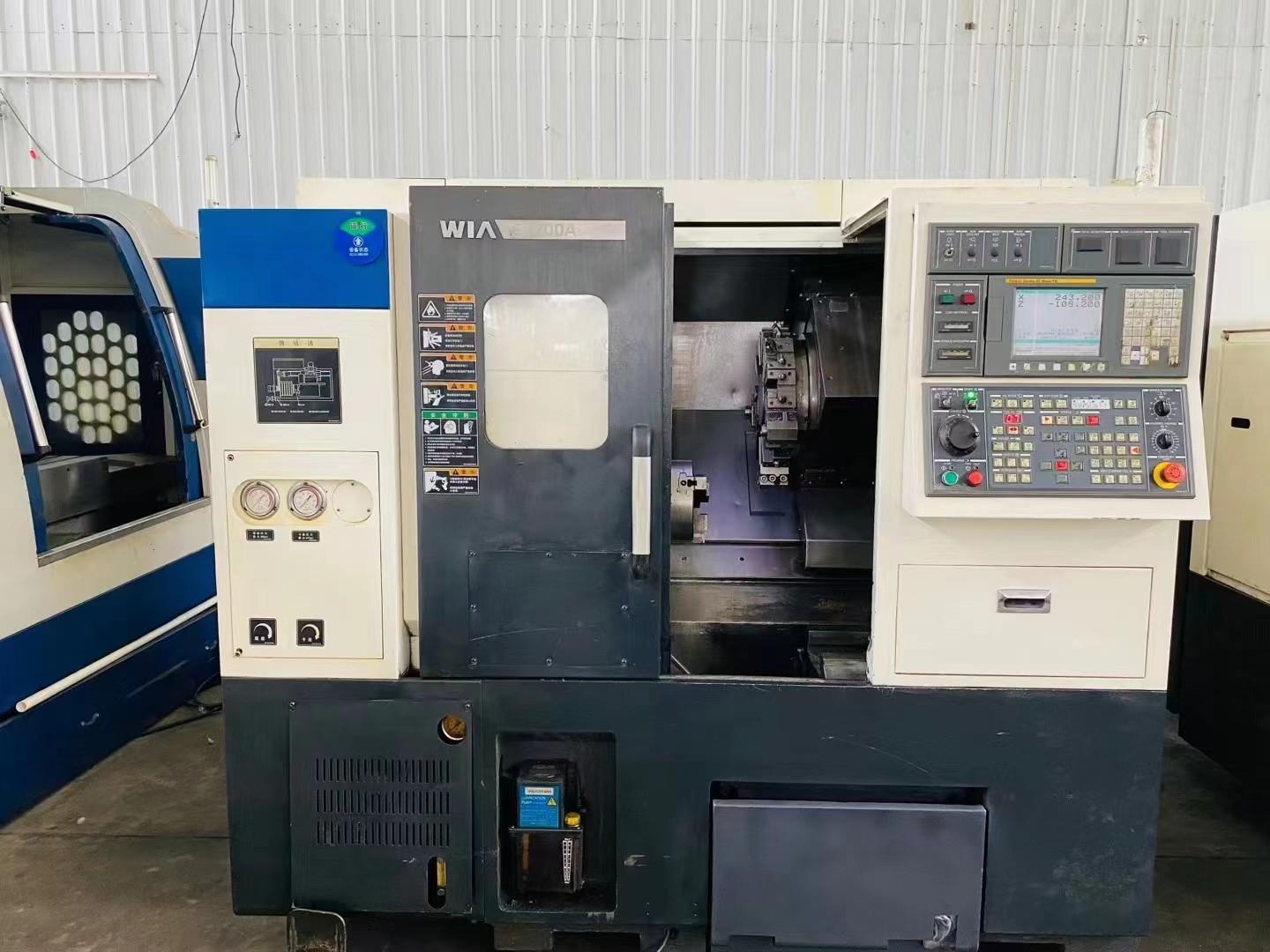

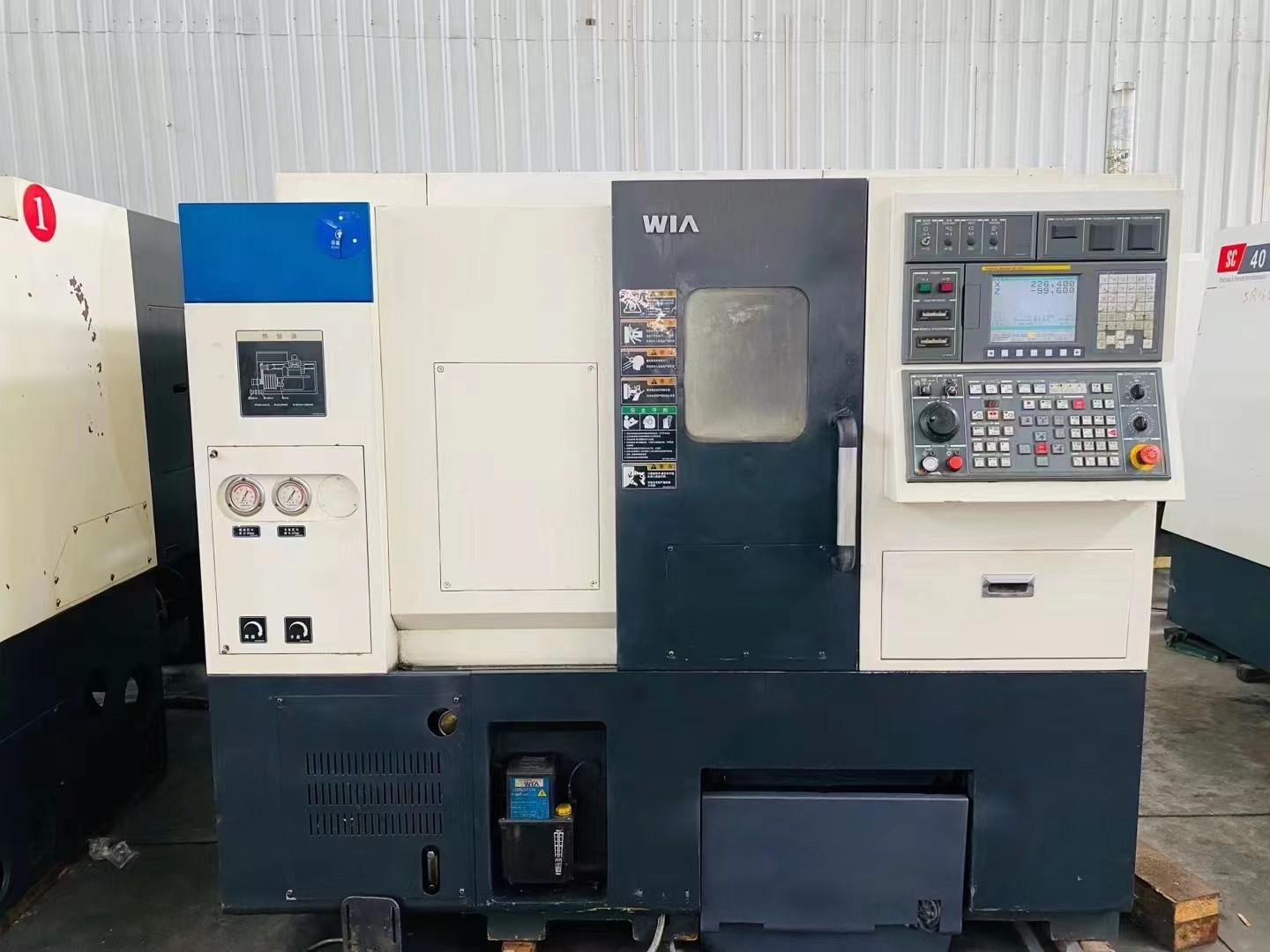

HYUNDAI WIA E200A Automatic lathe

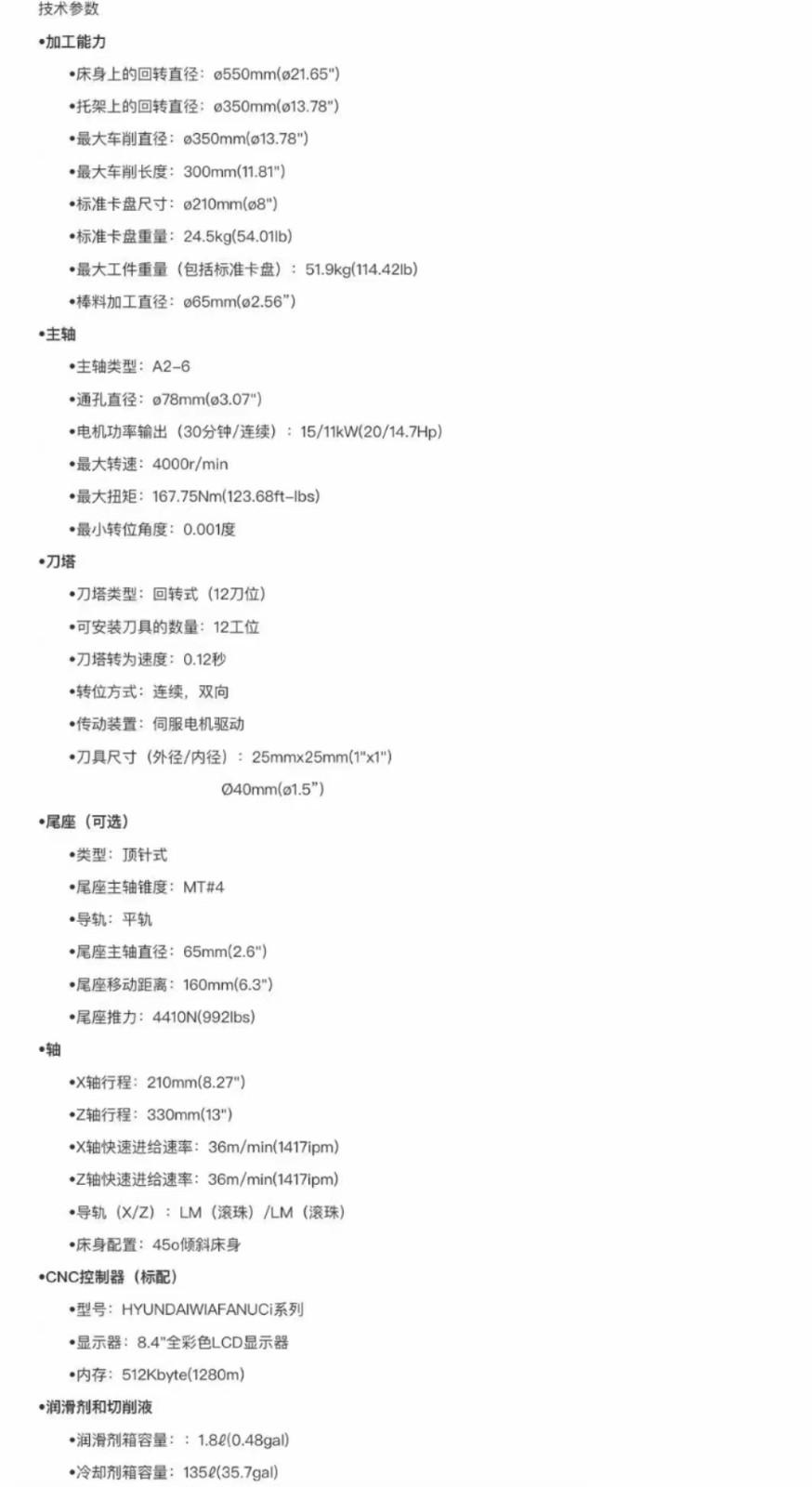

X*Z axes travel: 210*330mm

X*Z axes fast feed rate :36*36m/min

Rotating diameter over bed:550mm

Rotating diameter on cradle :350mm

Maximum machining diameter :0350mm

Maximum machining length :300mm

Standard chuck size :0210mm

Standard chuck weight :24.5kg

Maximum workpiece weight (including standard chuck):51.9kg

Bar machining diameter :65mm

Spindle type :A2-6

Spindle through hole diameter :78mm

Motor power output (30 minutes/continuous):15/11kW

Maximum spindle speed :4000rpm

Maximum spindle torque :167.75Nm

8 "chuck

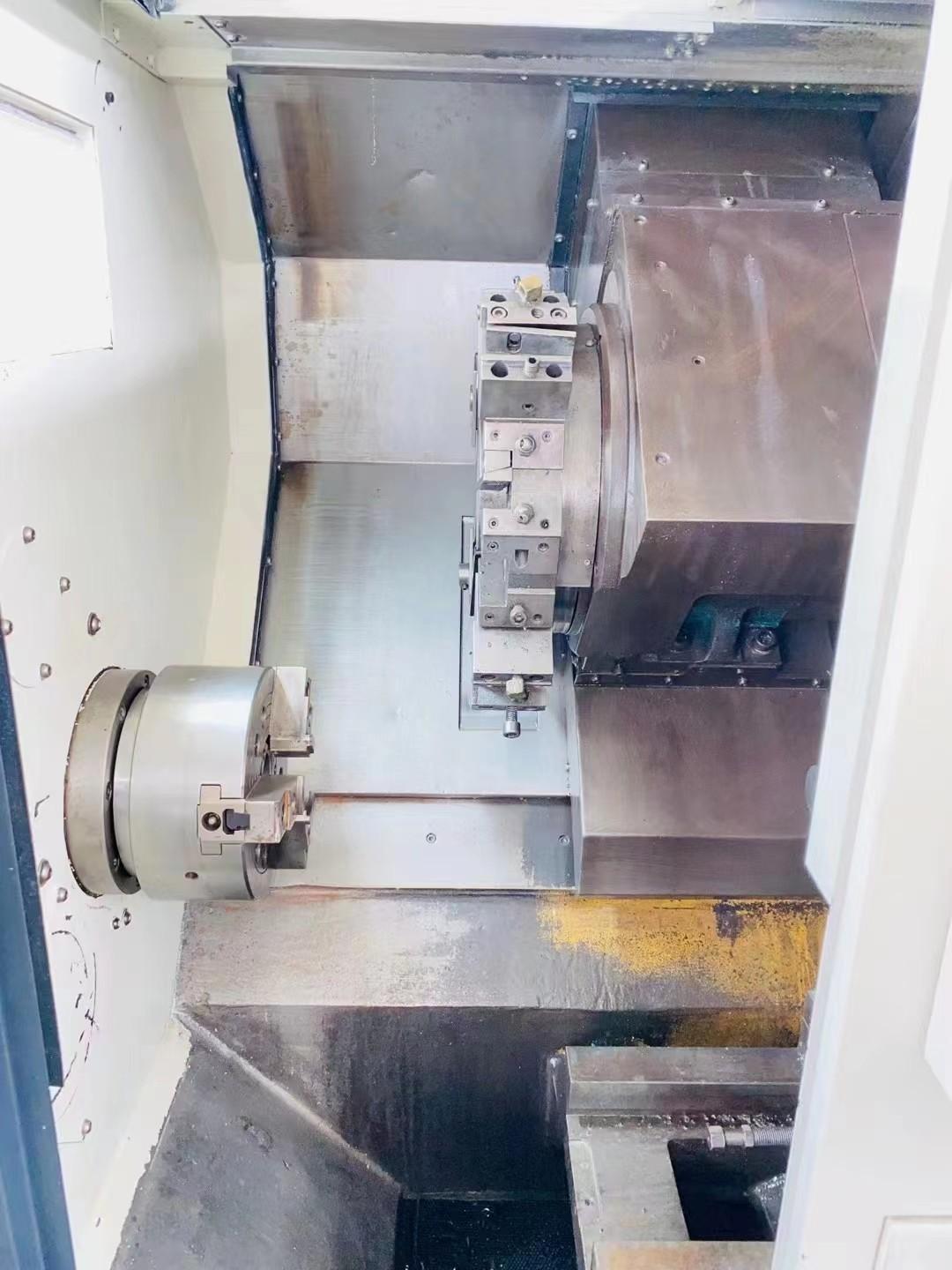

12 positions servo turret

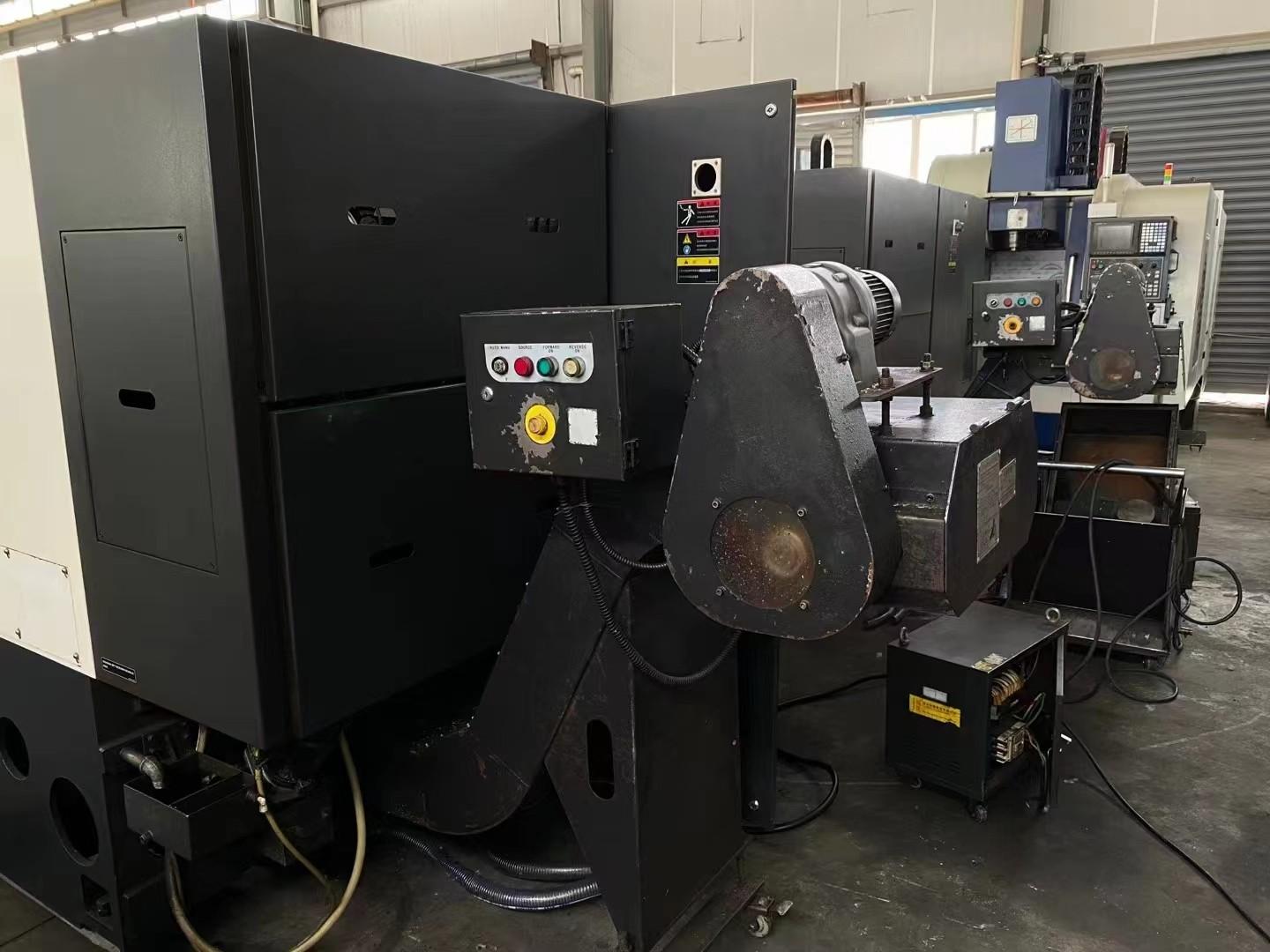

Rear chain chip conveyor
