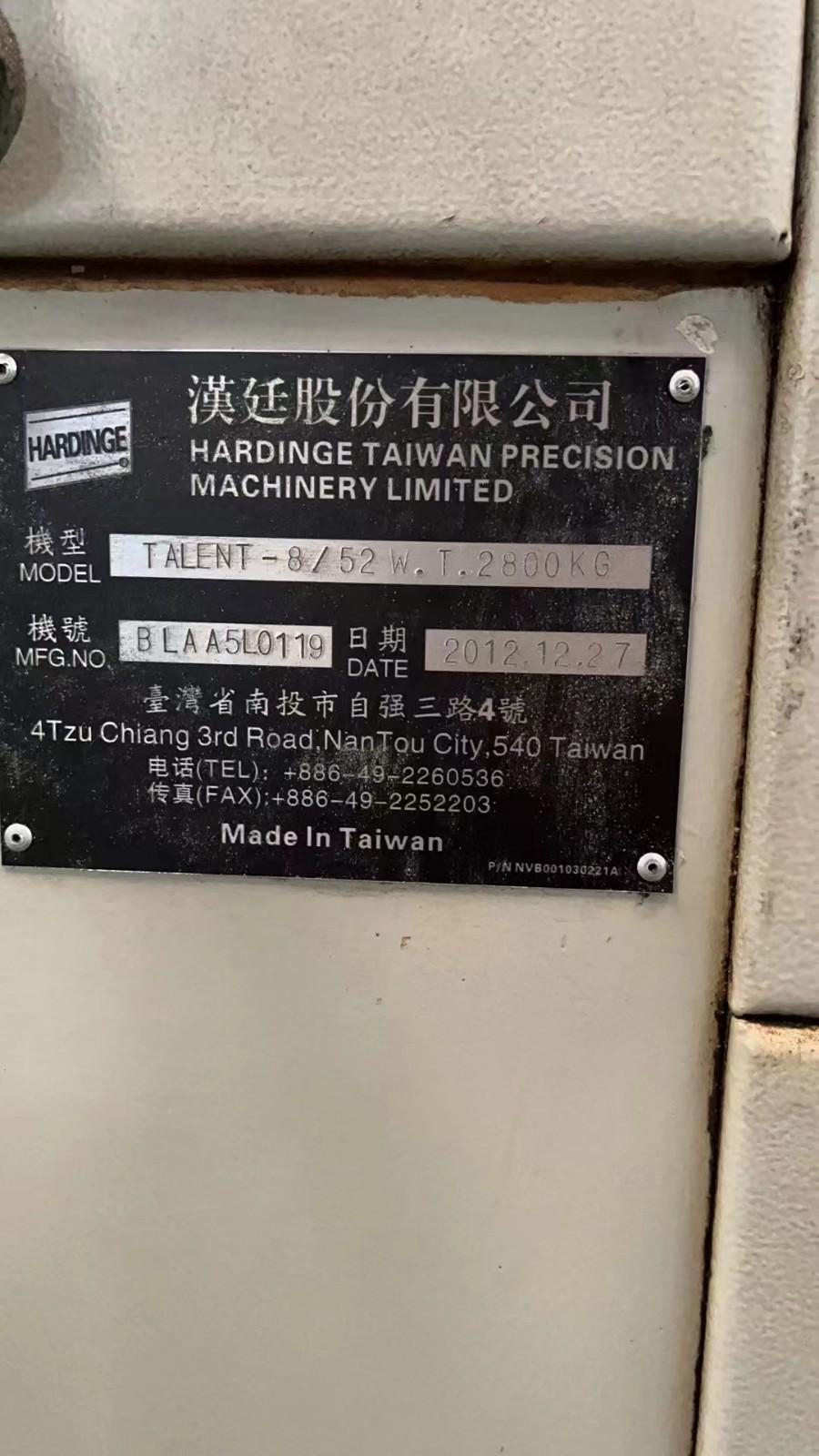

HARDINGE TALENT-8/52W.T.2800KG CNC turning lathe

Maximum machining diameter: 370mm

Maximum machining length: 500mm

Swing diameter over transverse slider: 600

Maximum bar capacity: 68.3mm

Travel:

X-axis travel: 300mm

Z-axis travel: 533.3mm

X-axis fast movement rate: 30m/min

Z-axis fast movement rate: 30m/min

Spindle:

Spindle nose: A2-6

Spindle speed: 0-5000rpm

Spindle motor: 15 HP/11kw

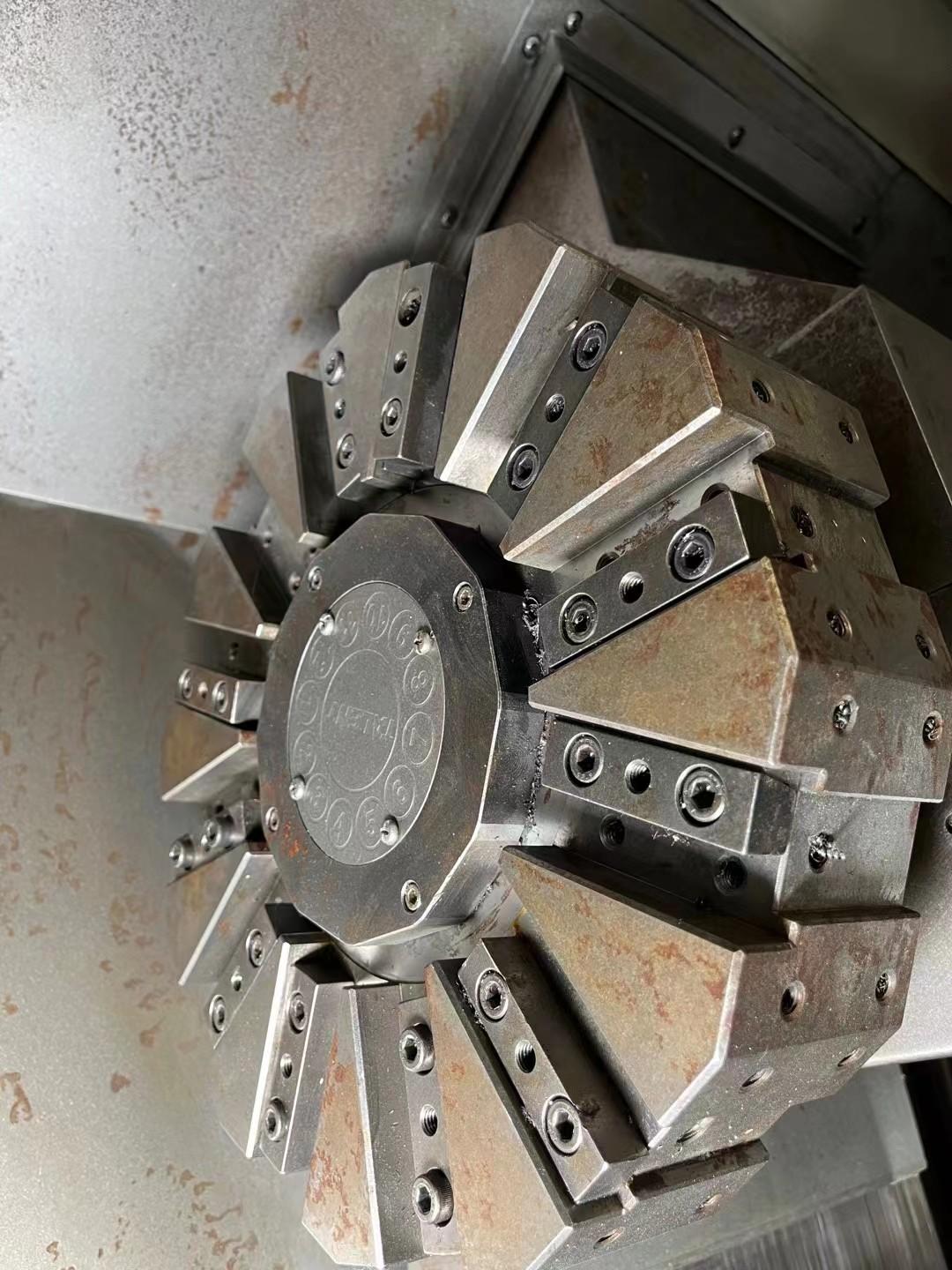

Turret:

Turret type: VDI 30

Turret position: 12

Turret indexing time (single stage): 0.78 seconds

Tailstock:

Sleeve taper: MT # 4

Base travel: 447.3mm

Sleeve stroke: 66.7mm

Thrust of tailstock sleeve: 102-408kg

Power: 220v/3 phase

Overall footage: 2667x 2167x2333mm (with chip conveyor)

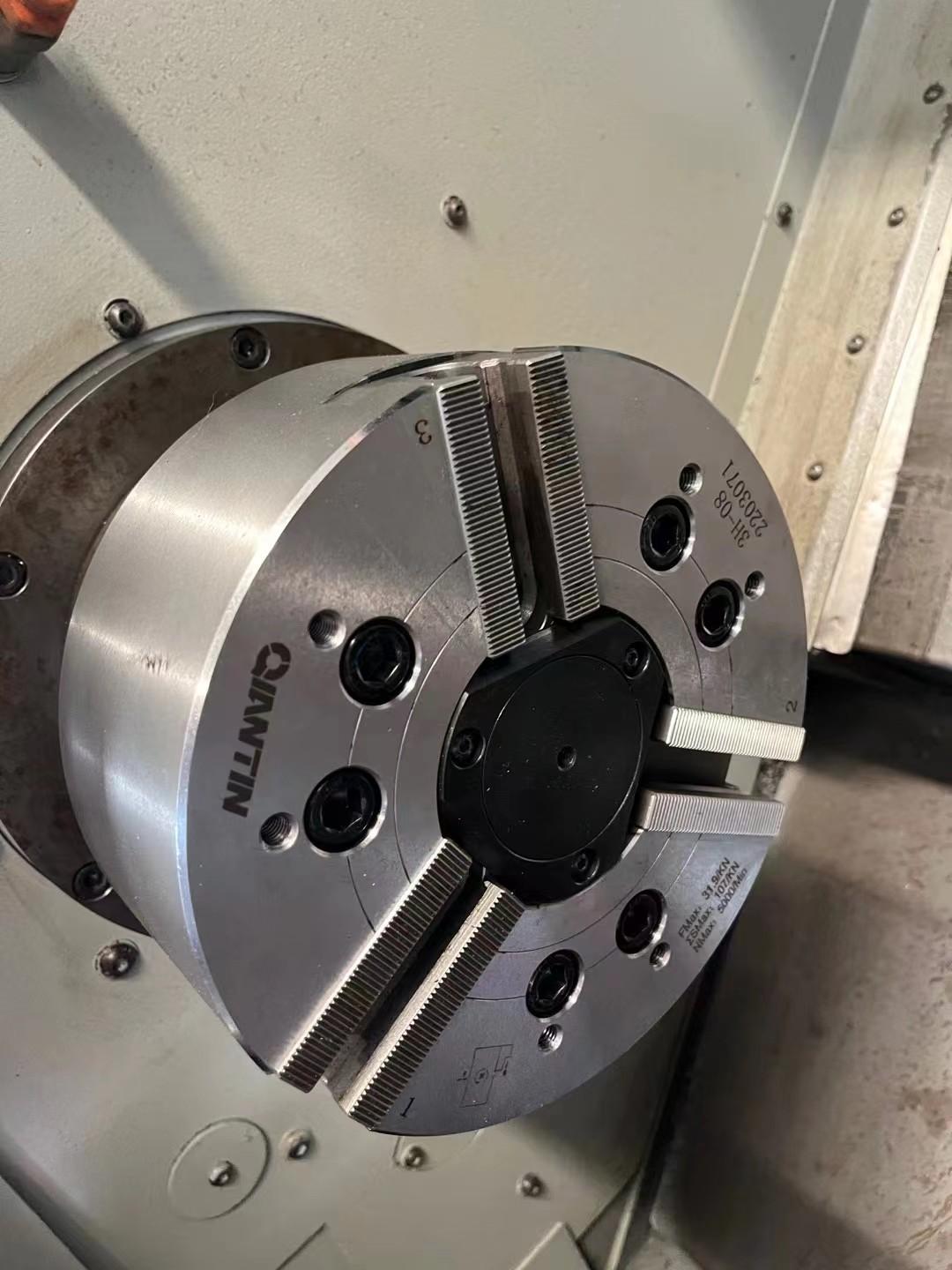

8 "chuck

Tailstock

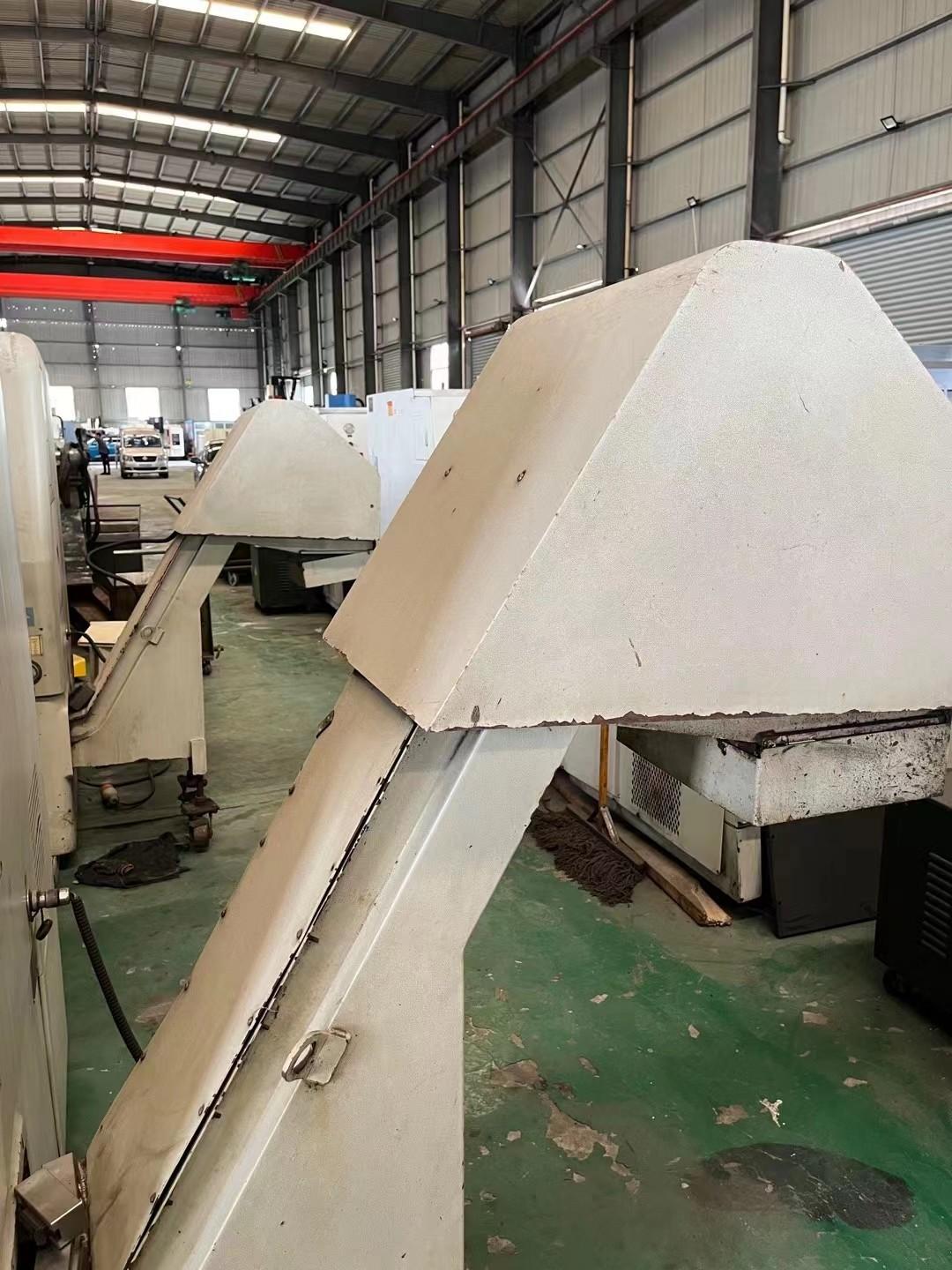

Chip conveyor
