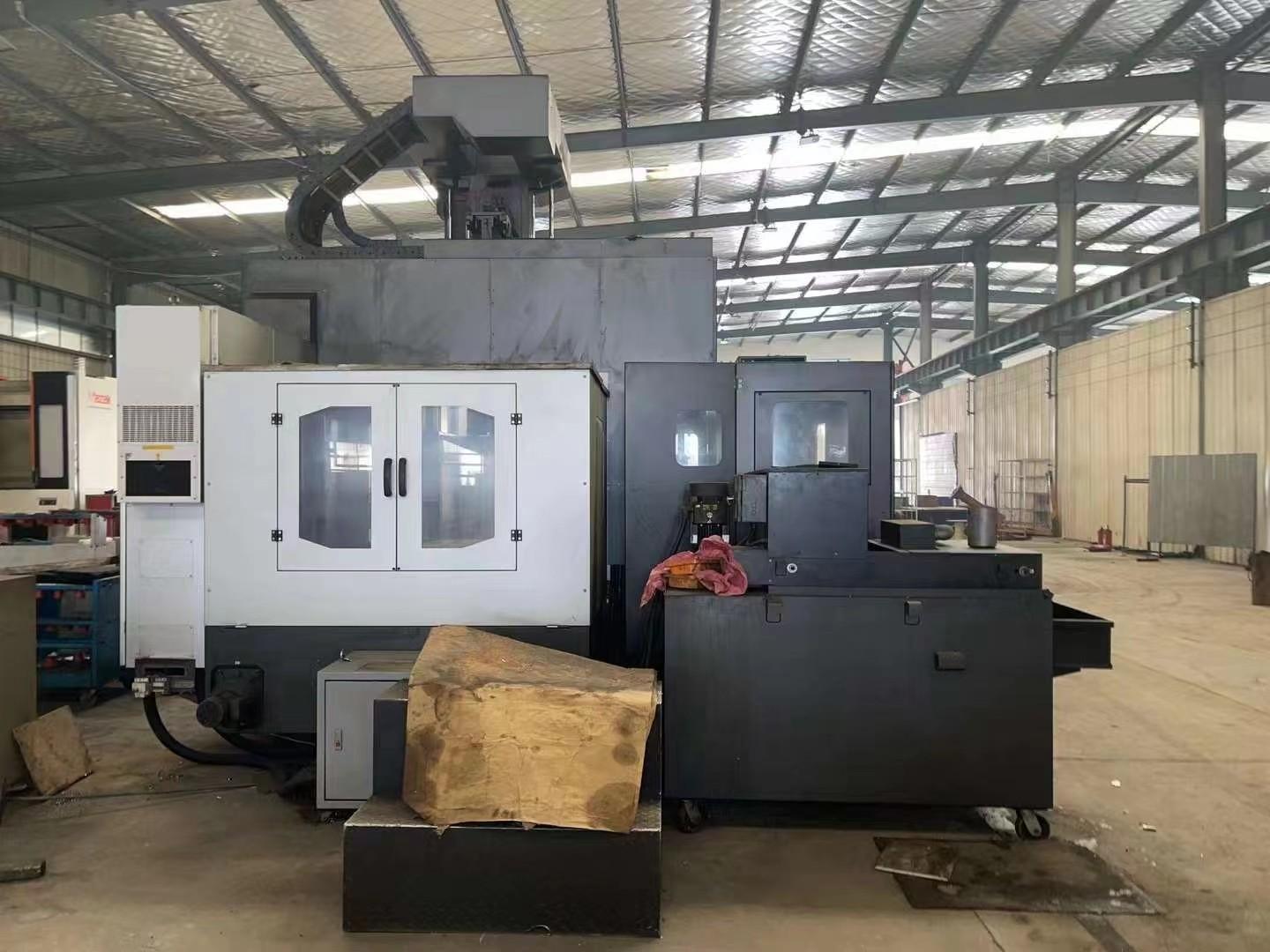

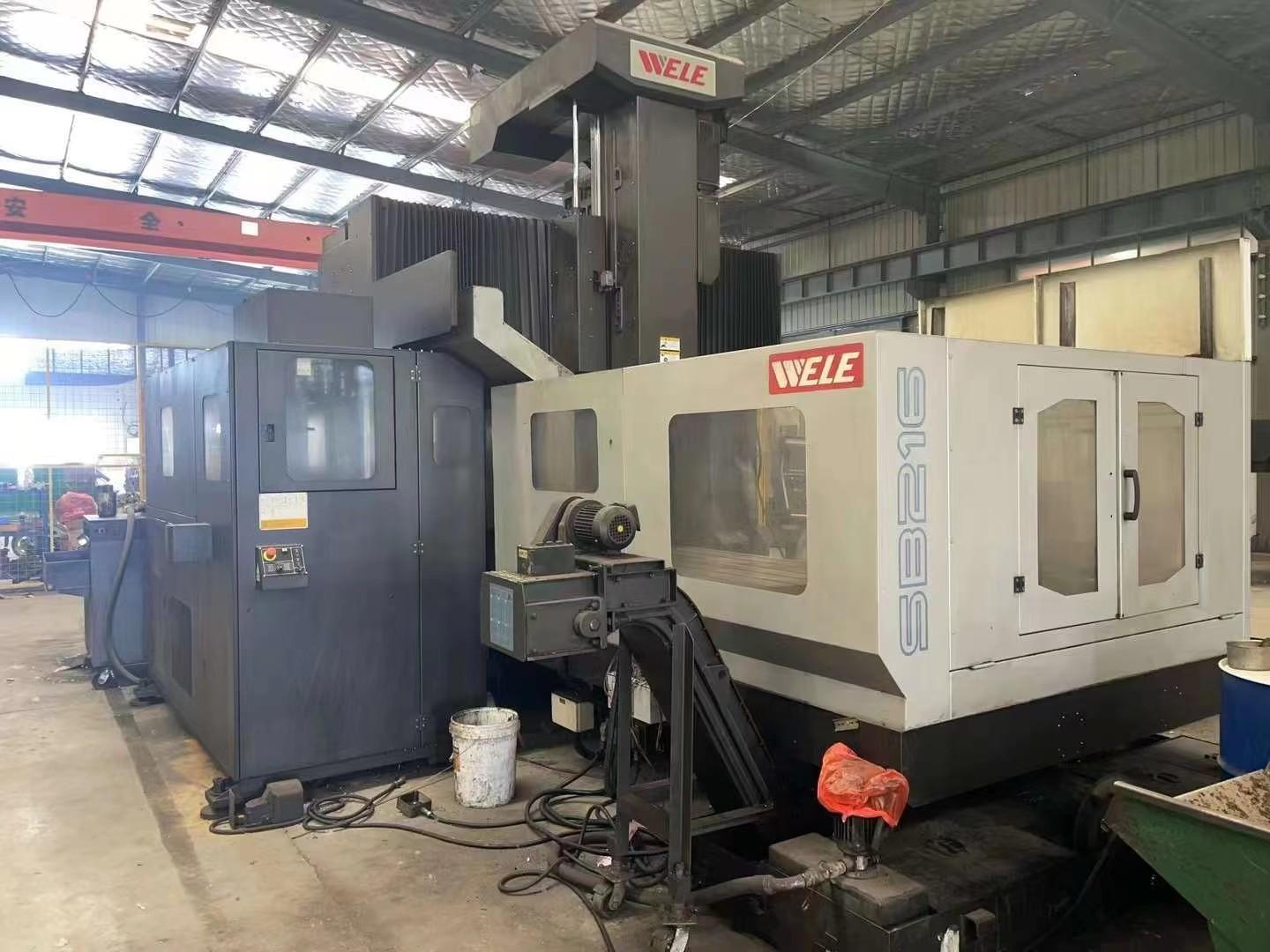

WELE SB-216 Gantry machining centre

X*Y*Z axis travels:2120*1600*800mm

Distance from spindle nose to worktable :200~1000mm

Distance between two columns :1700mm

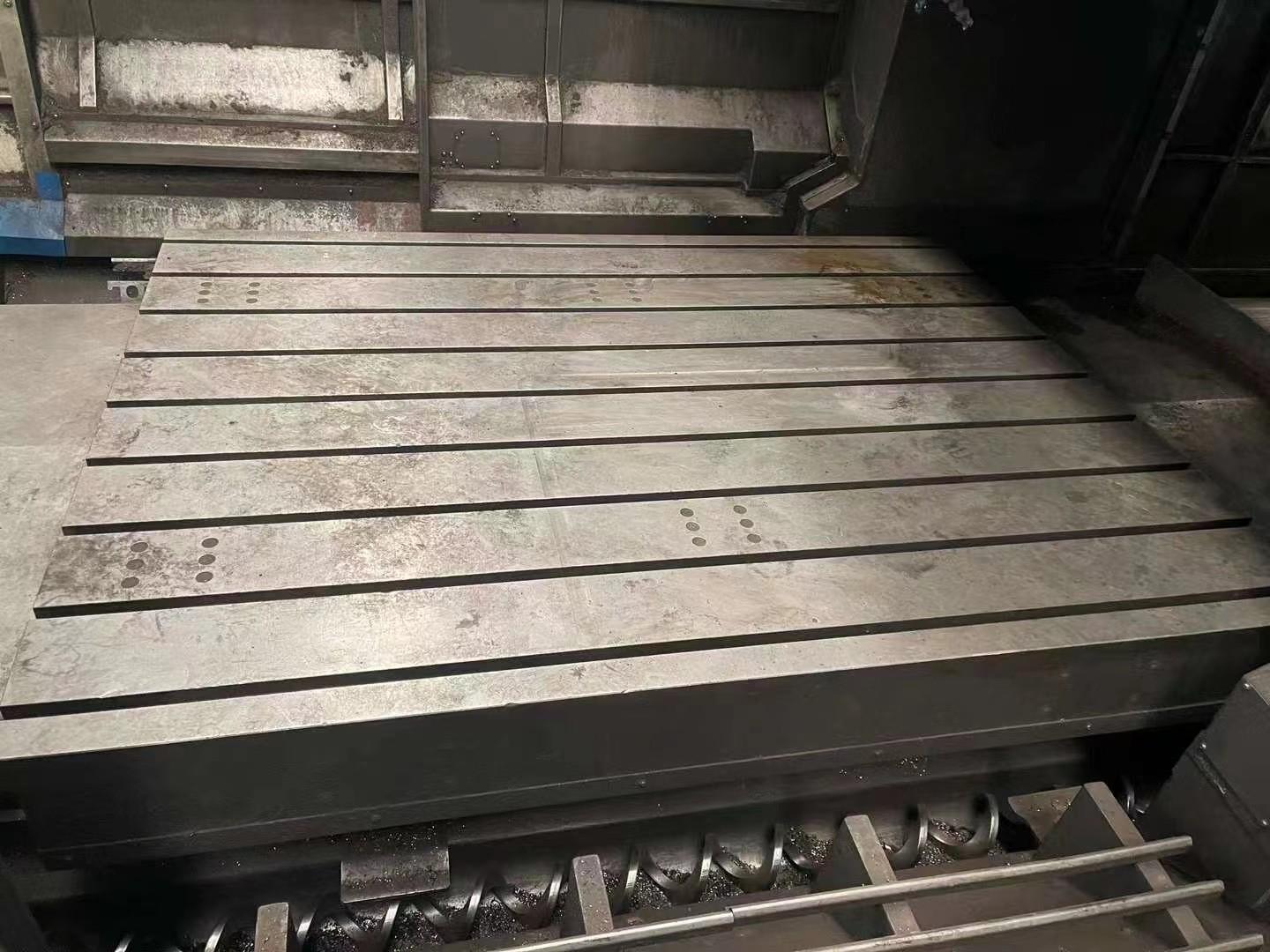

Worktable size: 2000*1500mm

Maximum worktable load: 8000kg

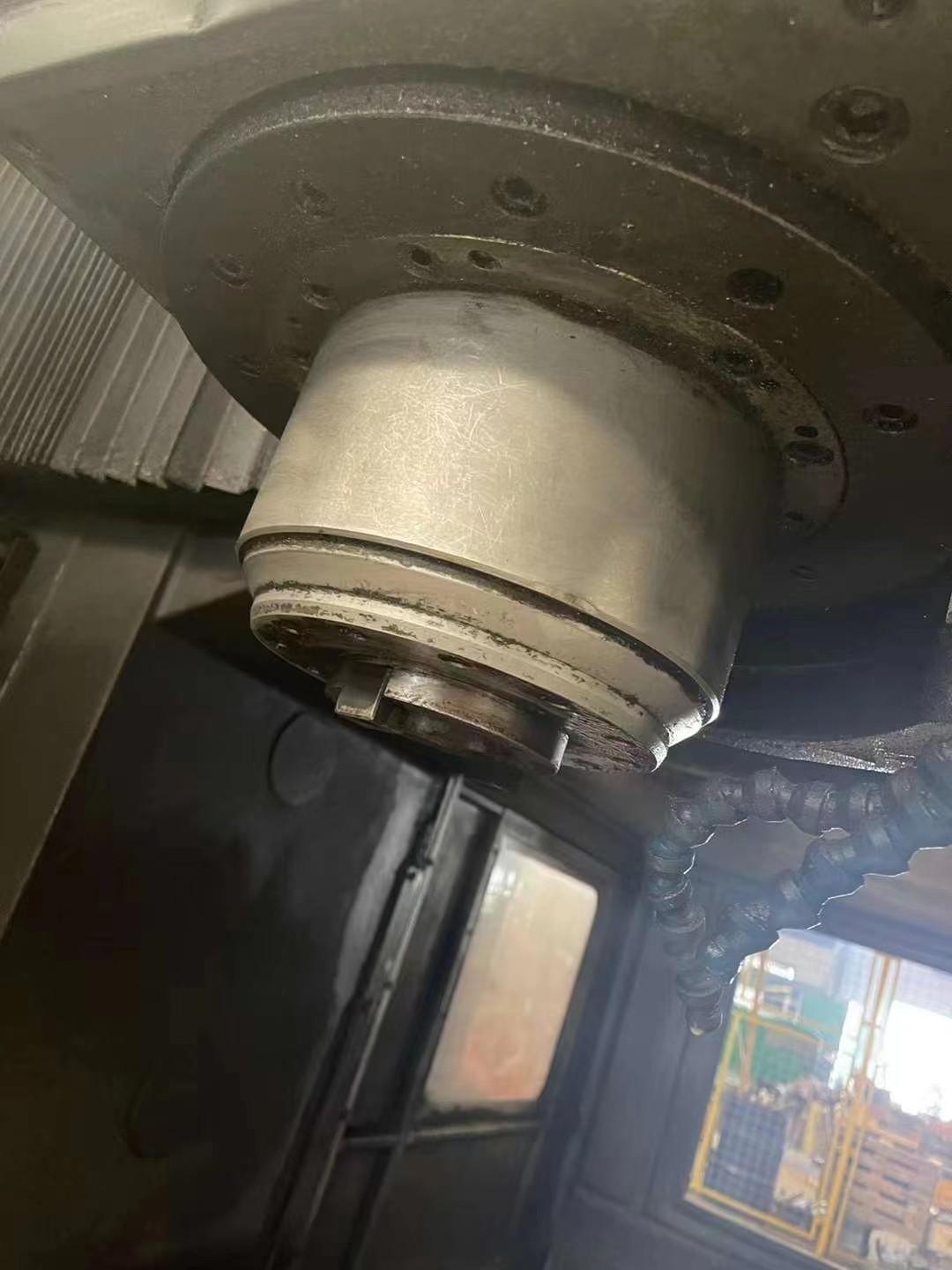

Spindle speed: 10~6000rpm

Spindle taper: BT50

Gantry width * height: 1700*1100mm

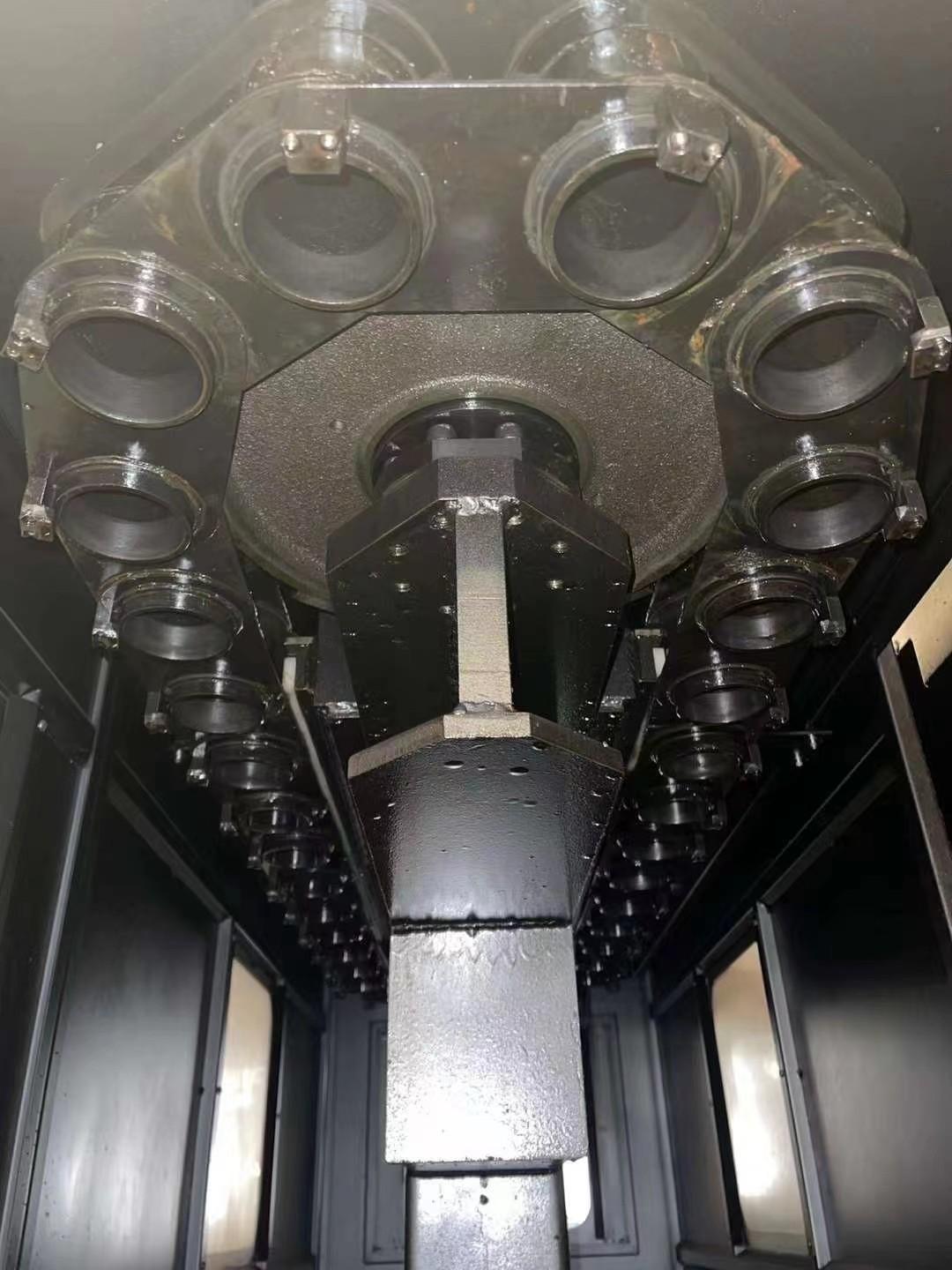

Tool magazine: 30

Center flushing
