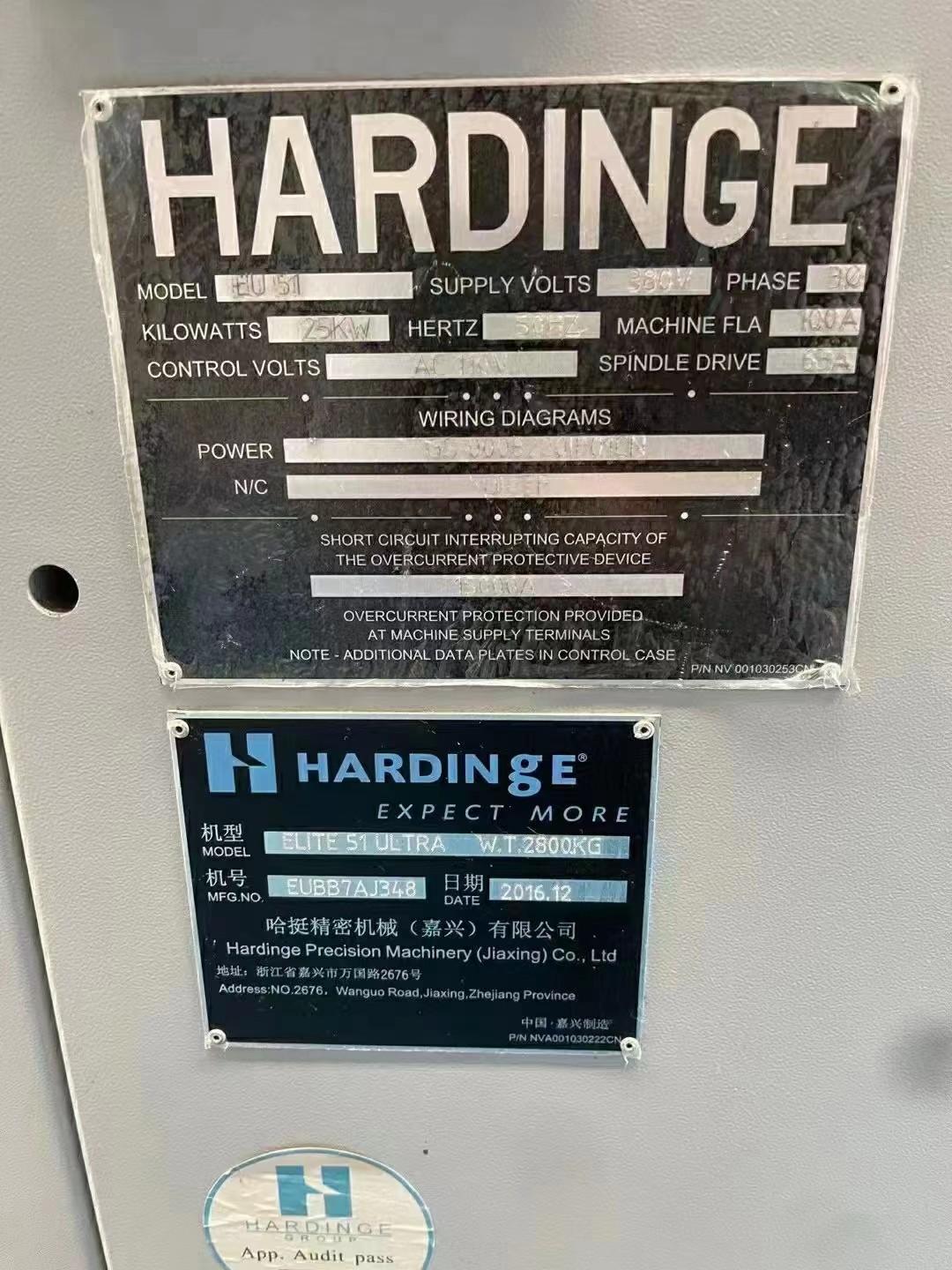

HARDINGE ELITE 51 ULTRA CNC turning lathe

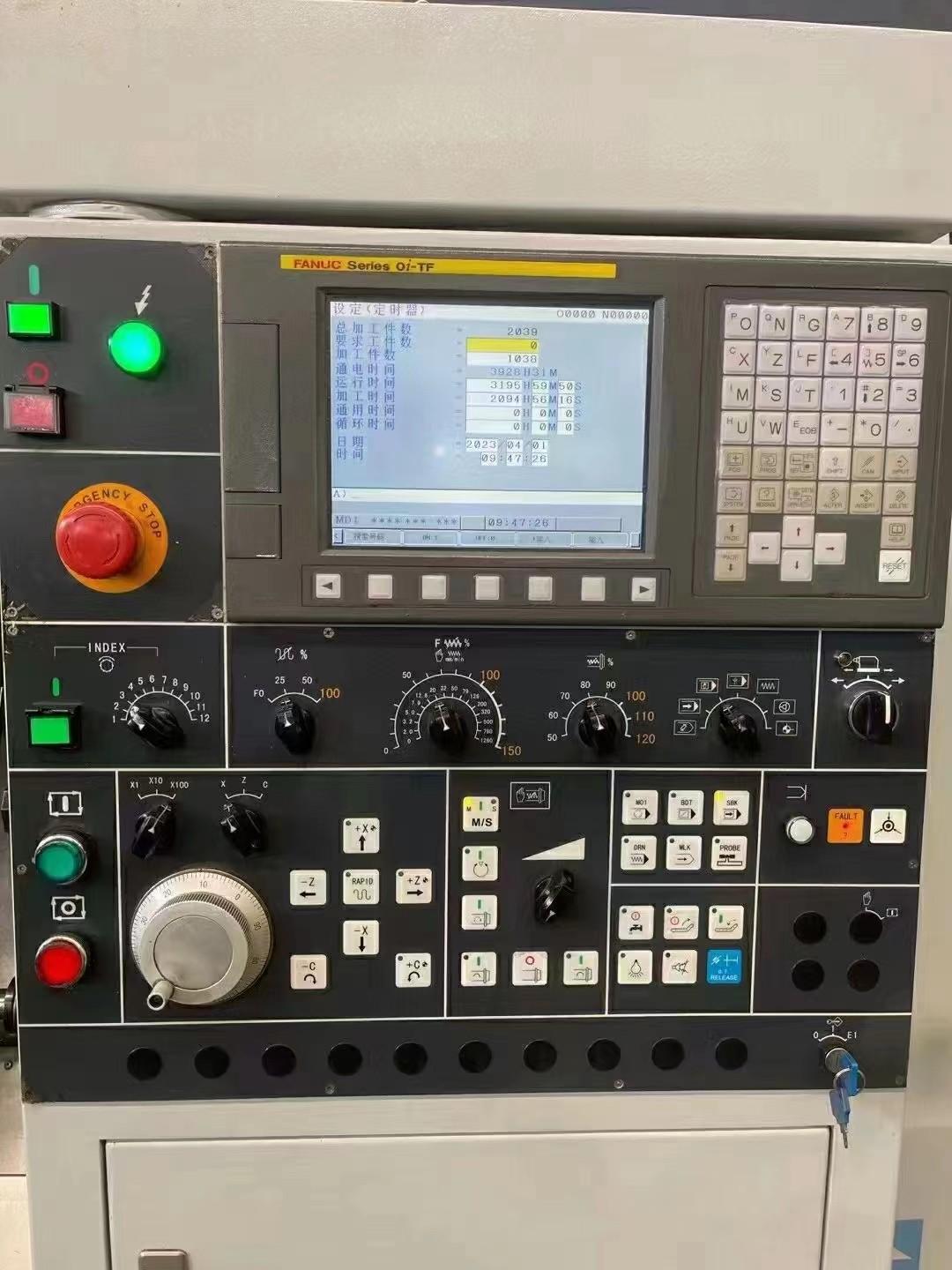

System: FANUC Series Oi-TF

X*Z axis travels: 153*456mm

Distance from spindle center to door:432mm

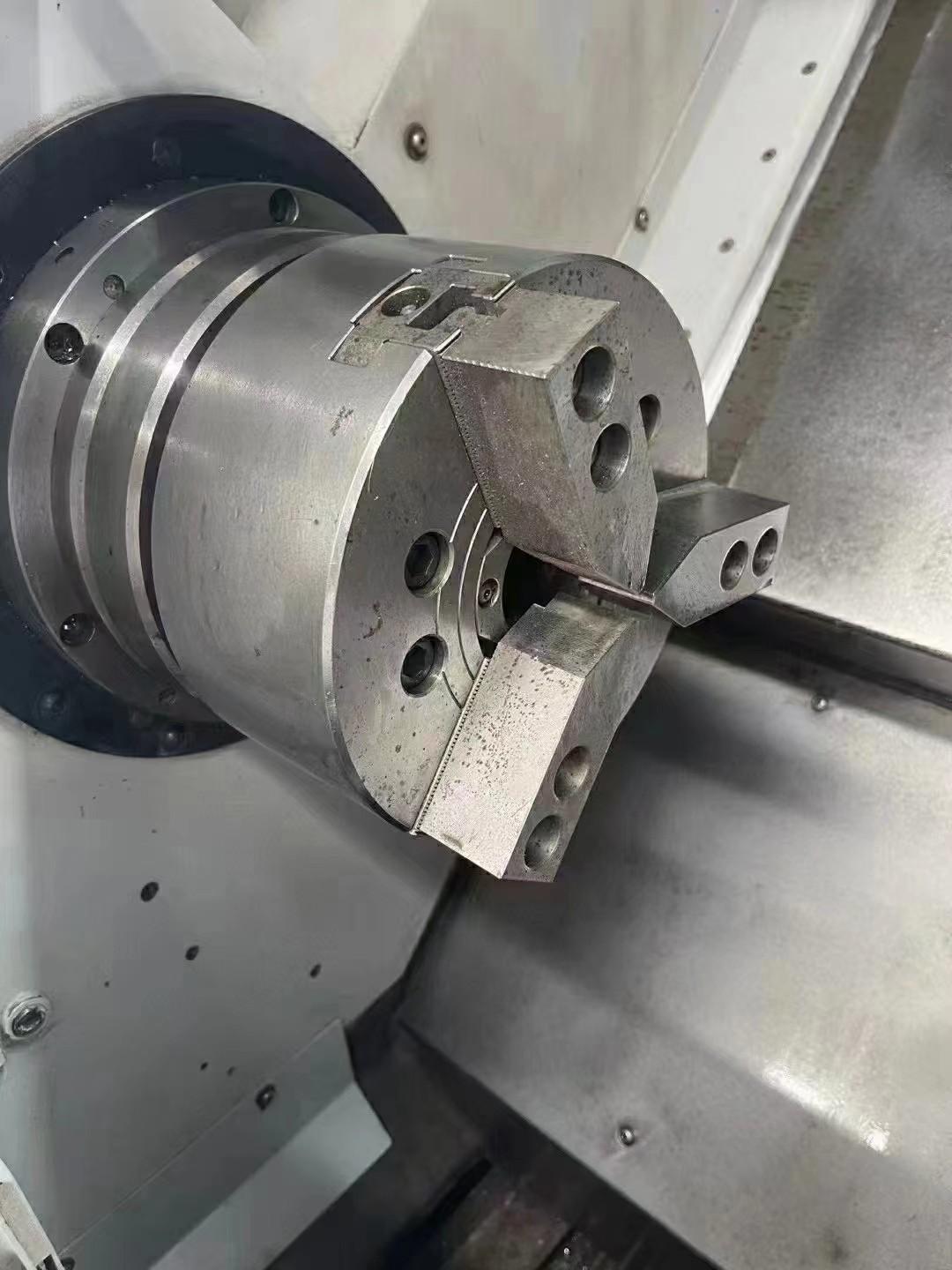

Three-jaw chuck diameter: 8 inches

Maximum lathe diameter :457mm

Maximum workpiece length: 456mm

Maximum workpiece diameter: 284mm

Maximum draw hole diameter: 51mm

Spindle motor power: 9kw

Spindle speed: 5000rpm

Machine weight: 2800kg

Length * width * height: 1998*1650*1781mm

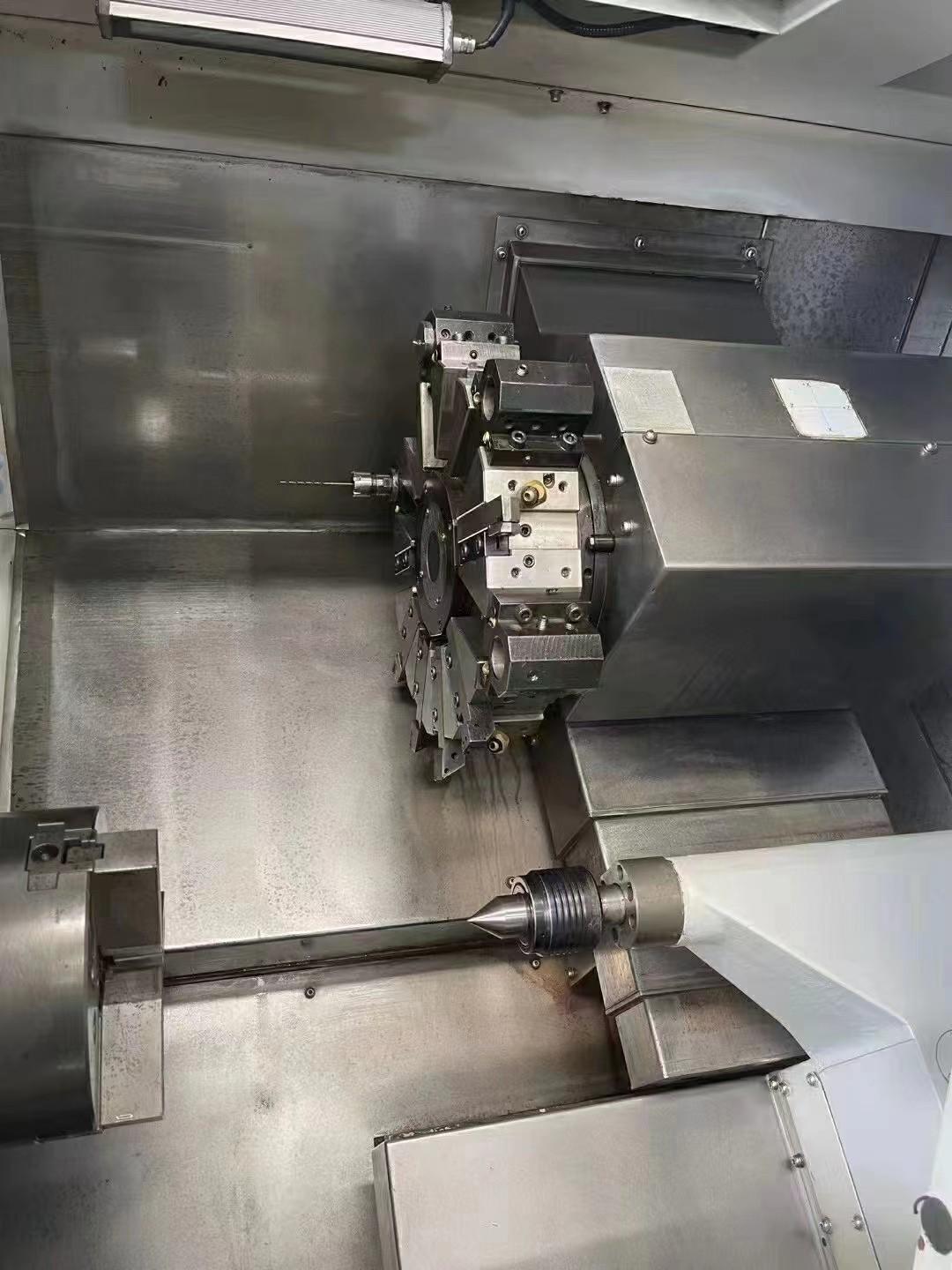

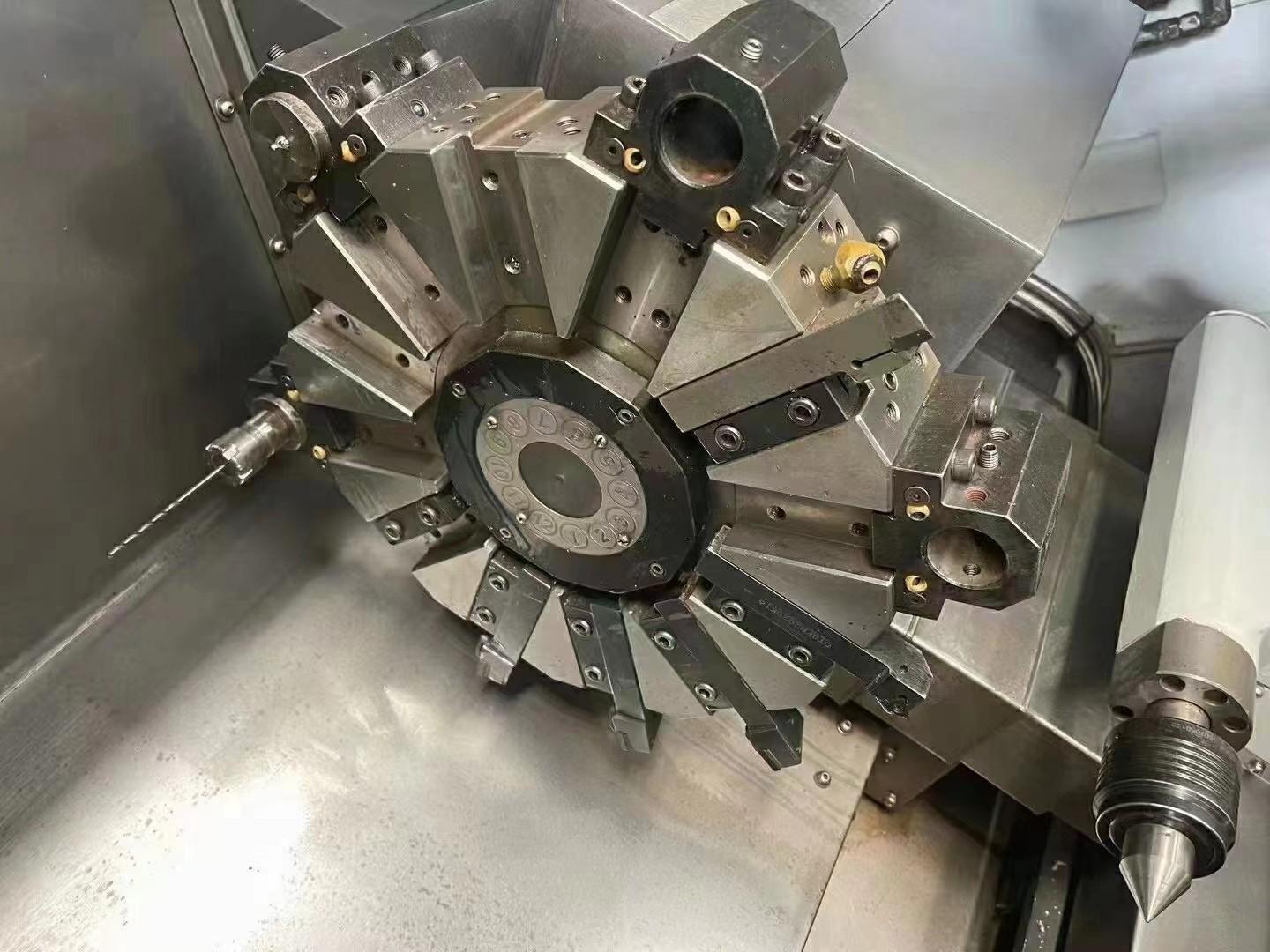

12 positions servo turret

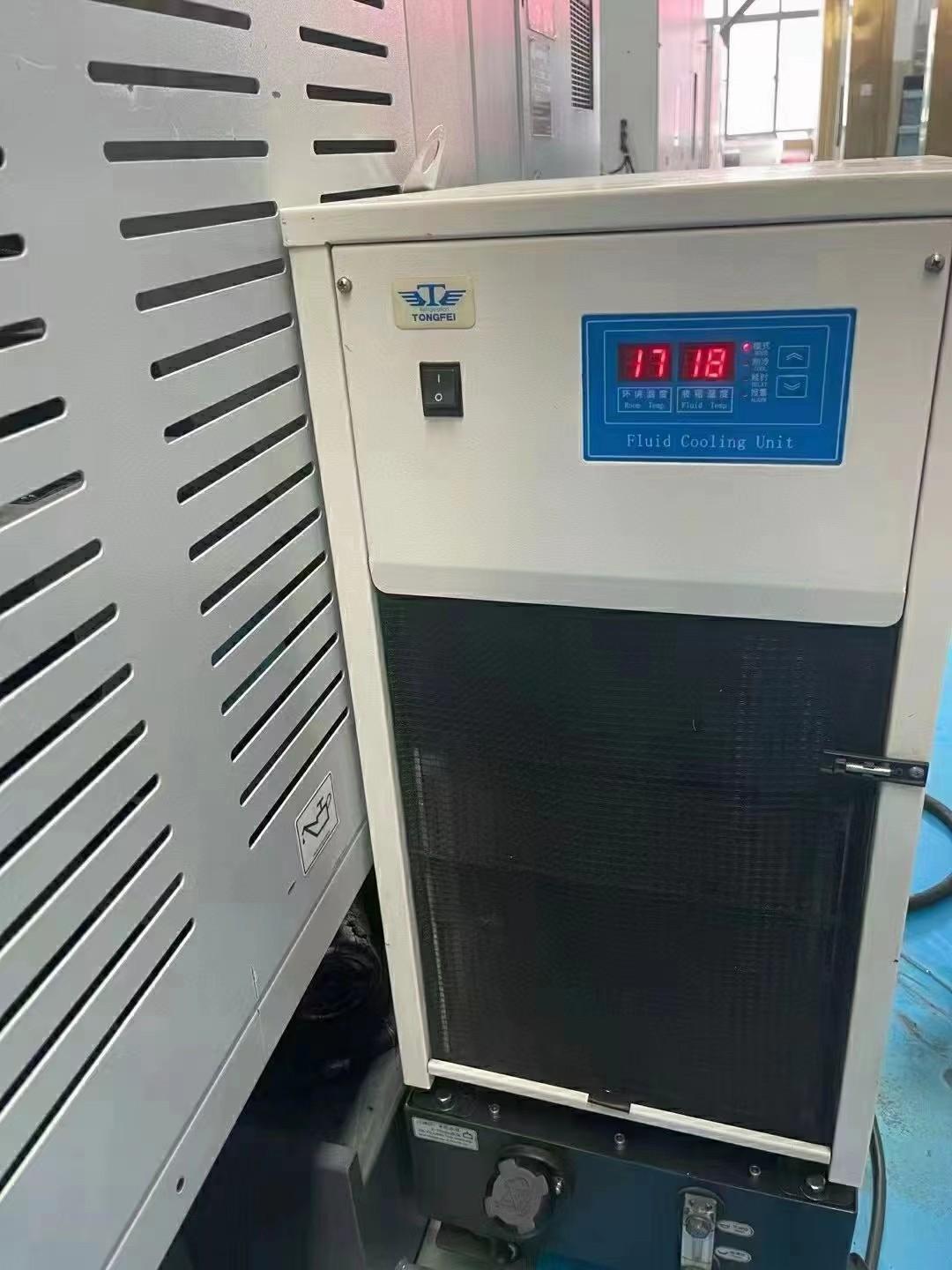

Spindle oil cooler

Automatic chip conveyor

Linear guideway machine
