WINTEC MV-55L Vertical Machining centre

[Product Information]:

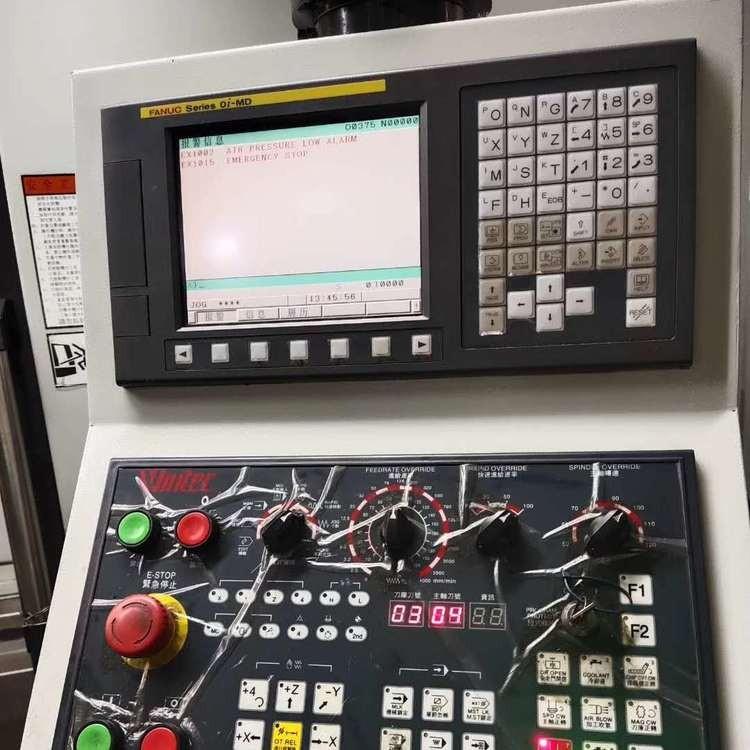

System: Fanuc

Three axes travel :1100*650*700mm

Worktable size :1200*650mm

Tool magazine: 24

Load :1000kg

T-slot :5*18*120mm

Spindle nose end to worktable :130-830mm

Distance between spindle center and column slide :720mm

Spindle speed :8000rpm

Spindle motor :11/15kw

Footage :3050*2515*2800mm

Weight :7300kg

Spindle : BT50

Gear spindle

Belt spindle
