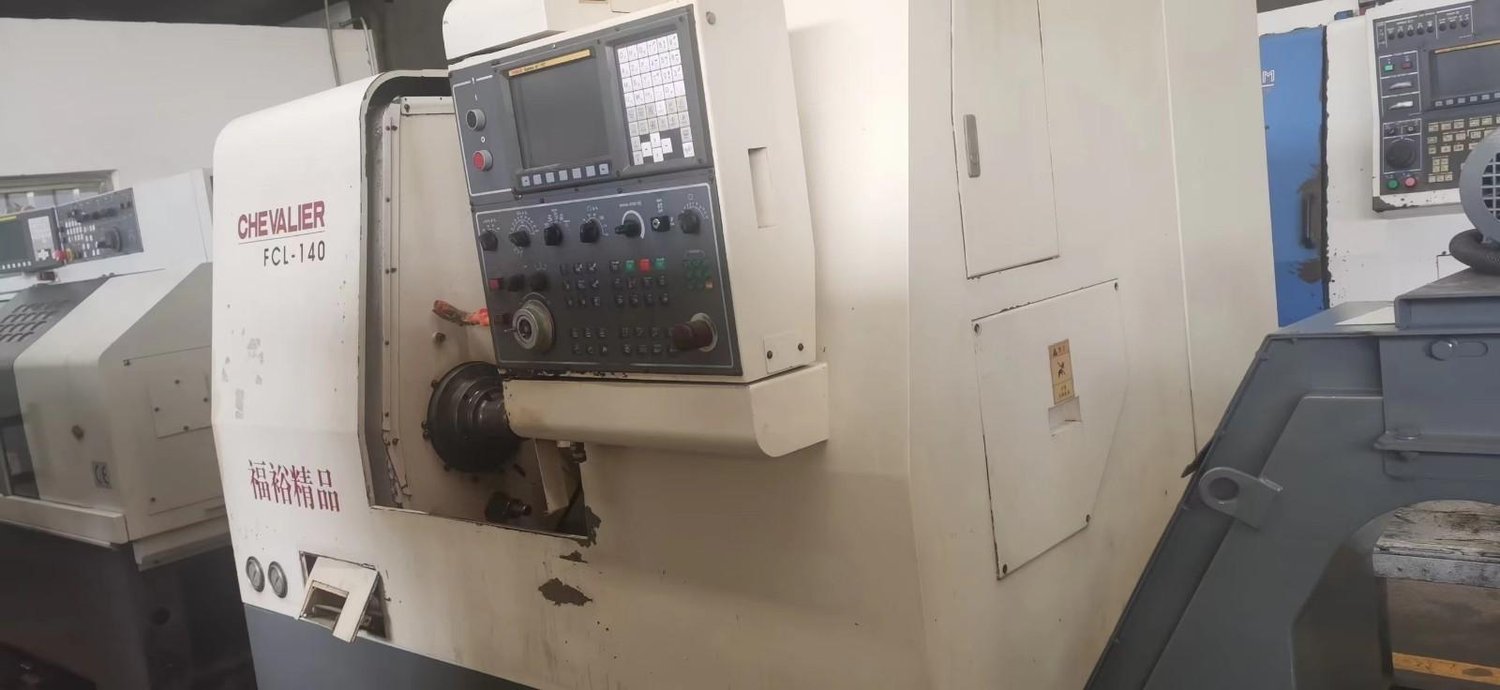

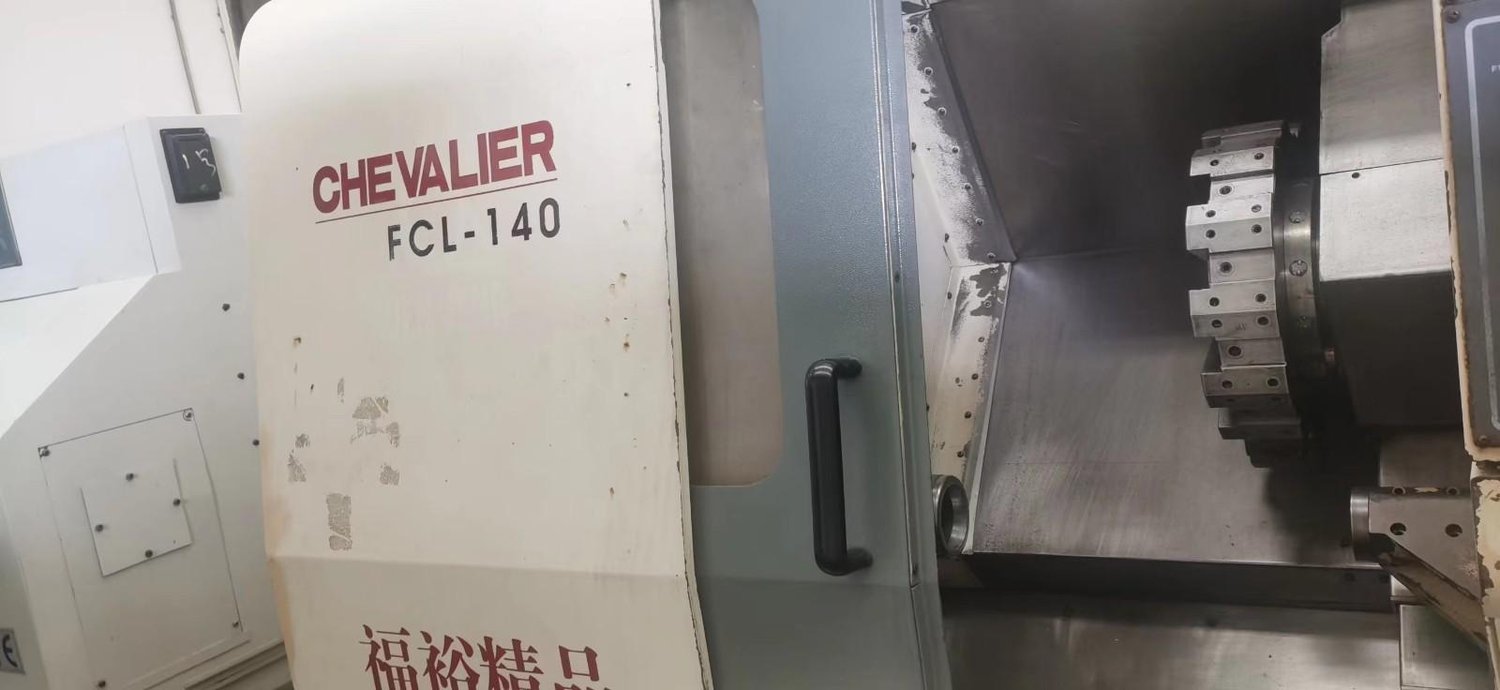

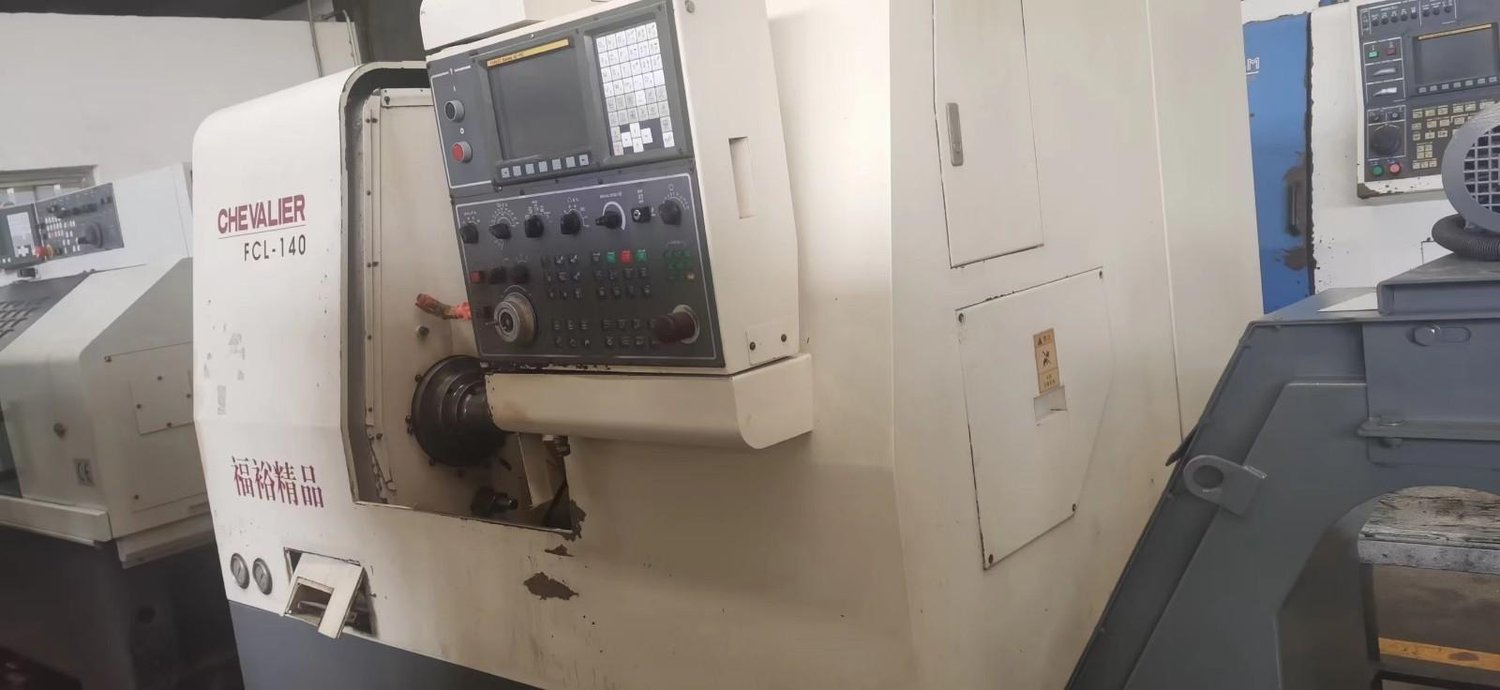

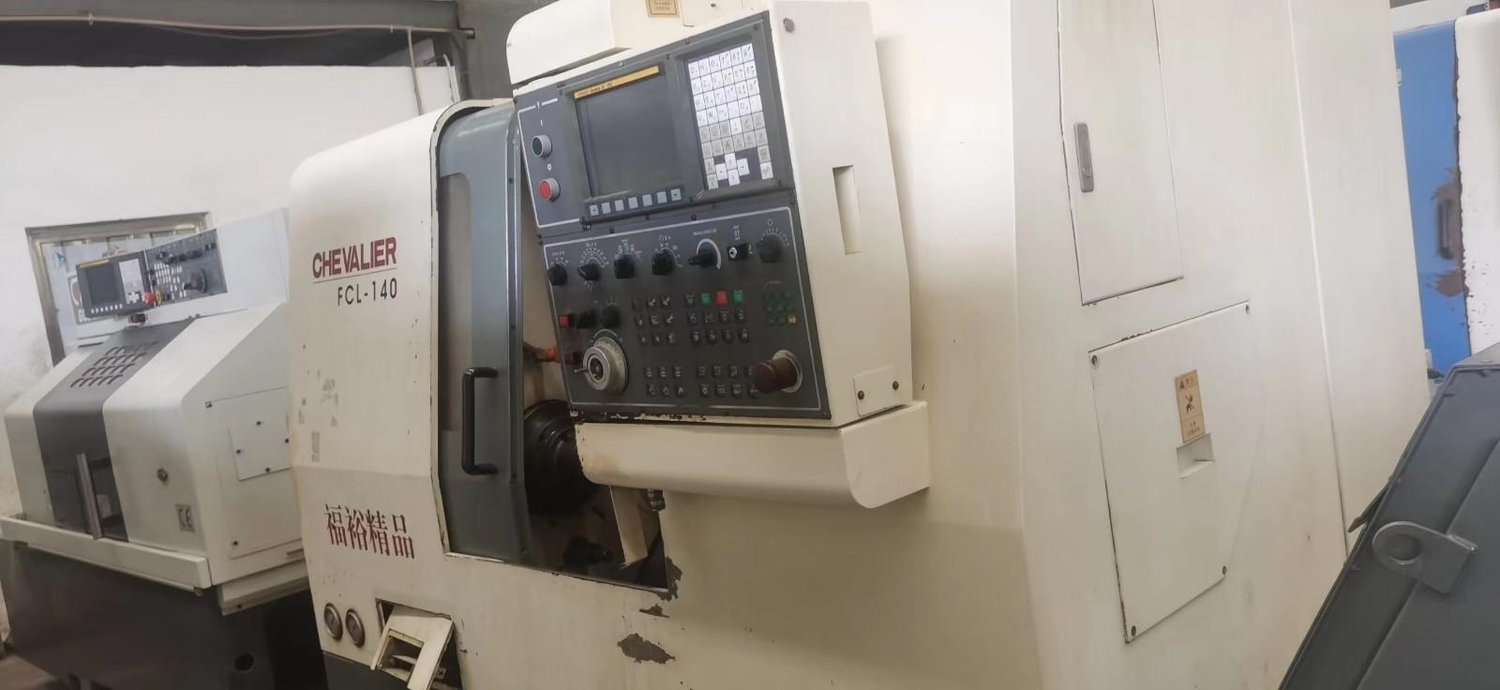

CHEVALIER FCL-140 CNC turning lathe

Swing diameter over bed  470mm

Rotary diameter over saddle  284 mm

Maximum machining diameter   260 mm

Maximum machining length   290 mm

Distance between two centers   397 mm

Spindle nose  A2-5

Chuck size   6 in

Spindle through hole   57 mm

Spindle speed   6000rpm

Spindle horsepower   7.5/11 kW

Maximum bar through hole   45 mm

Z-axis travel   320 mm

X-axis travel   150mm

Z-axis rapid displacement   30m/min

X axis rapid feed rate   30 m/min

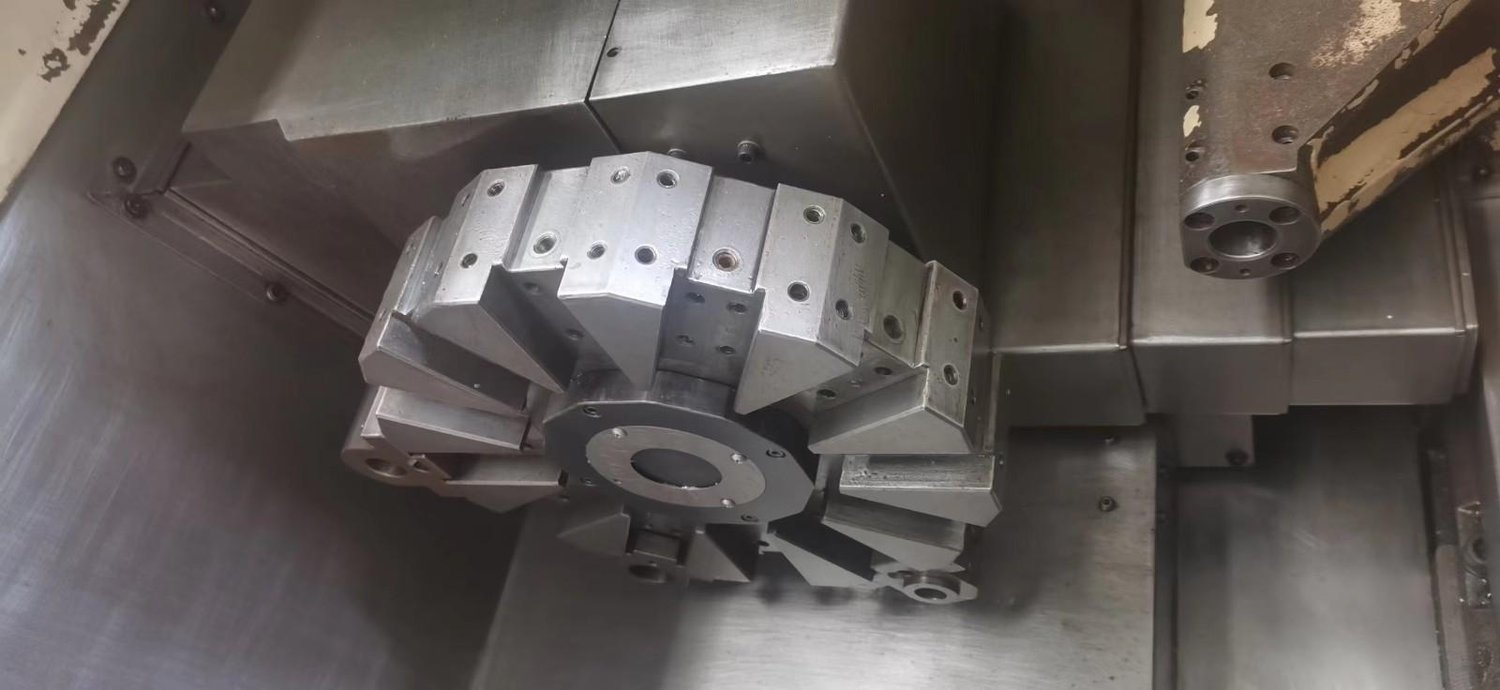

12 positions turret

Linear guideway

With tailstock

Accuracy within 0.01mm
