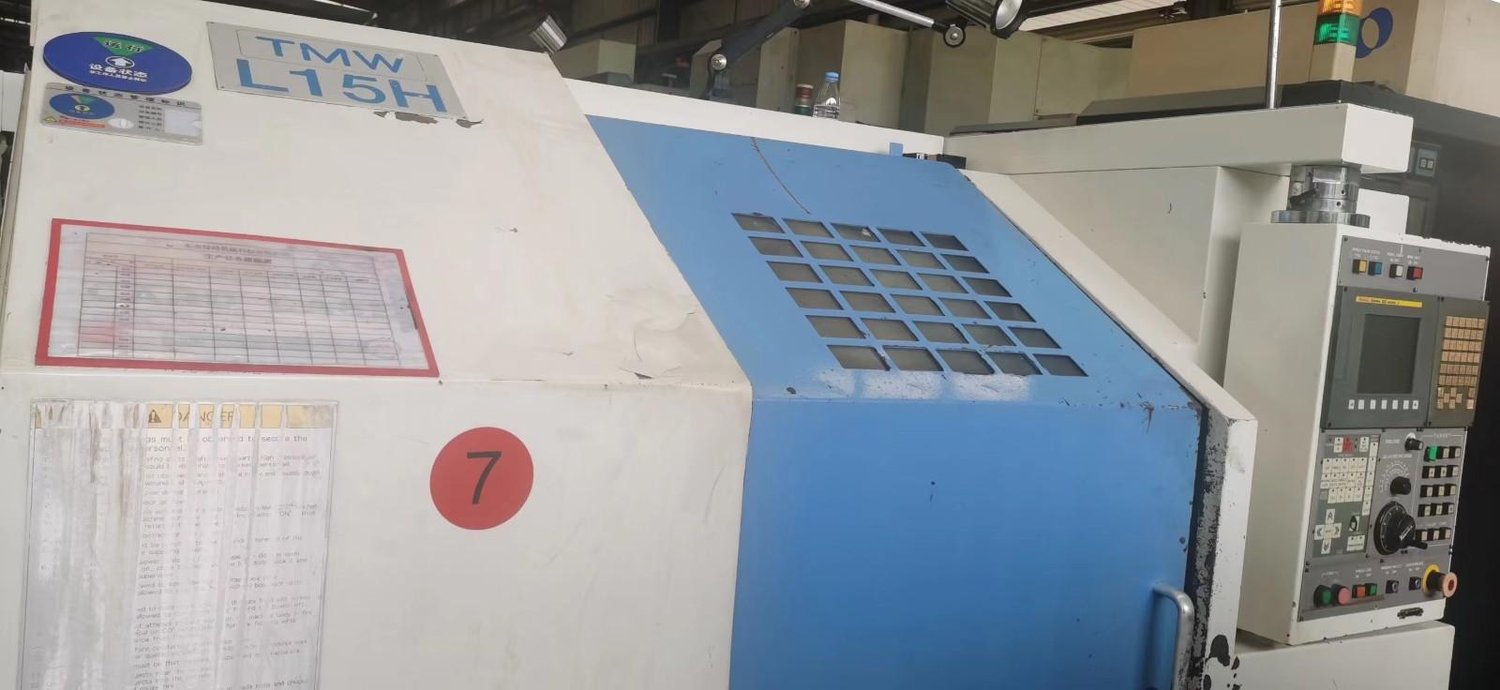

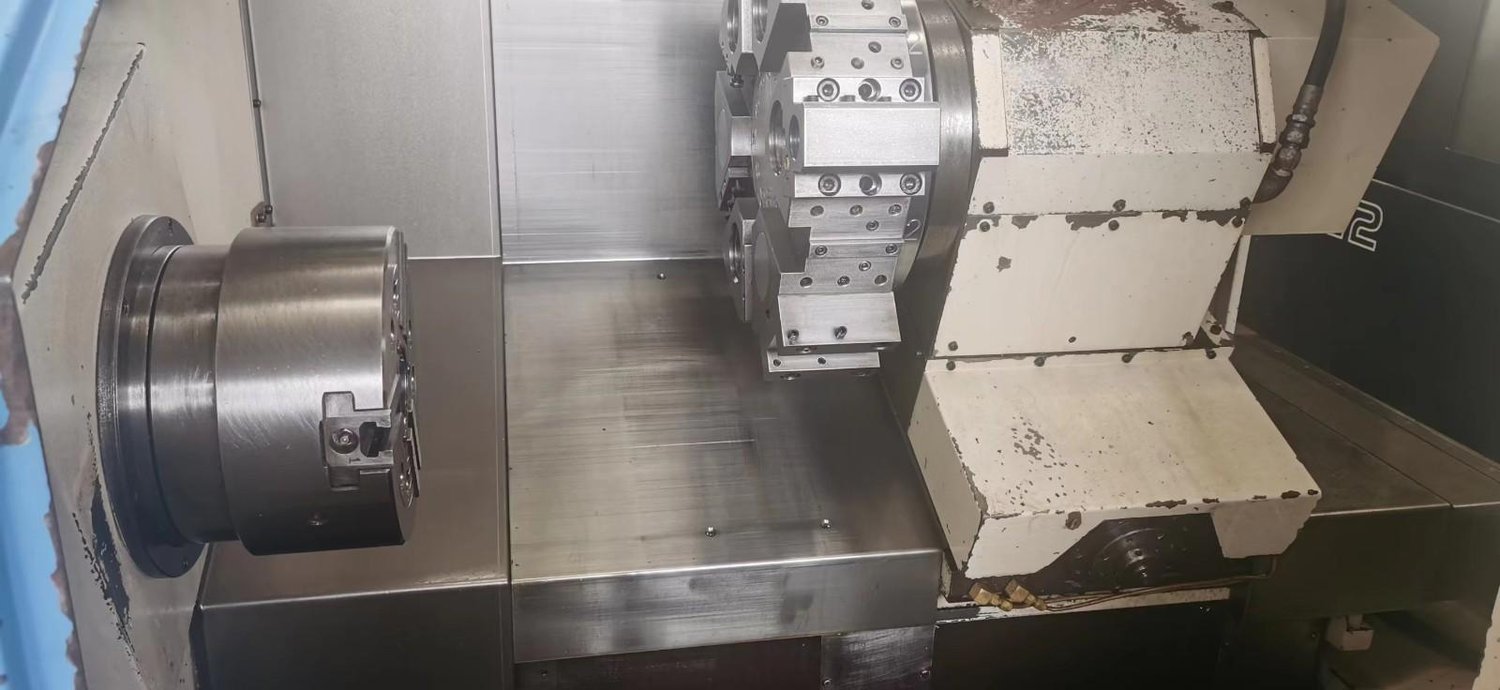

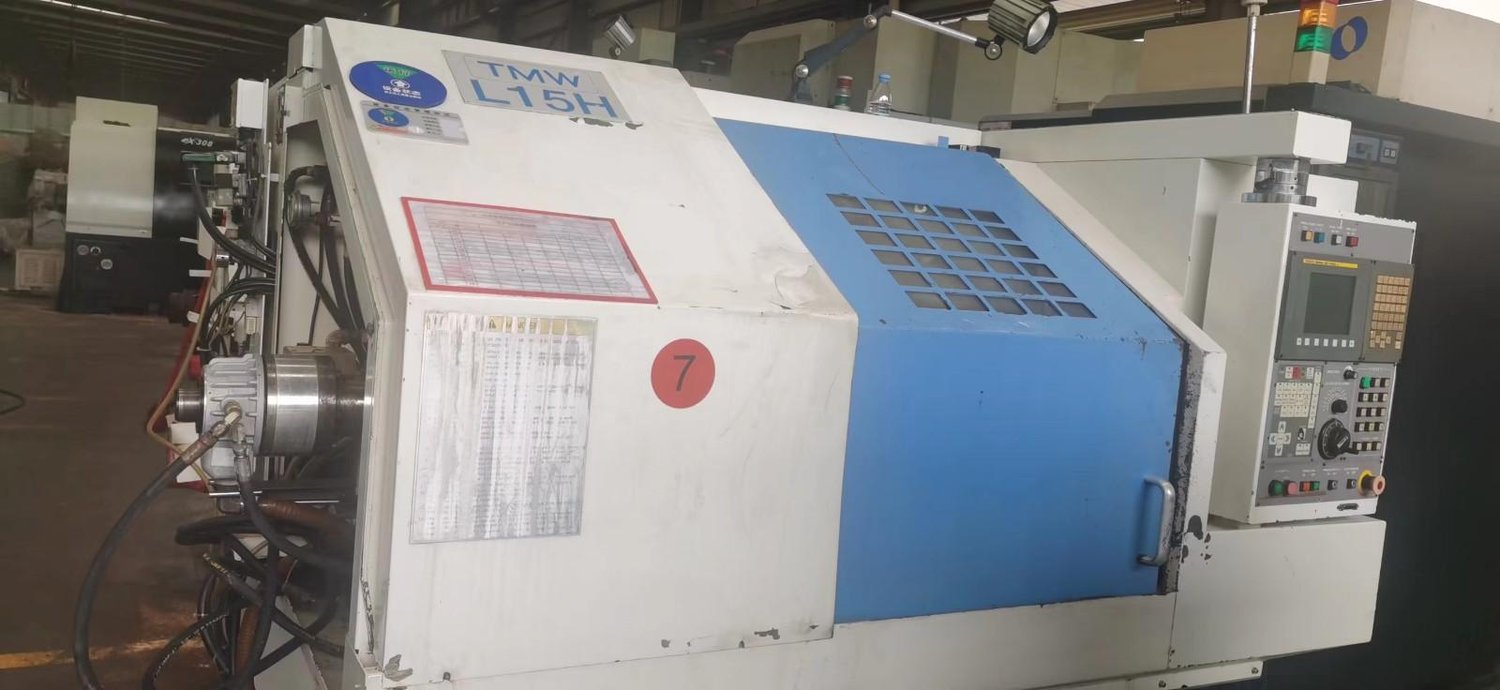

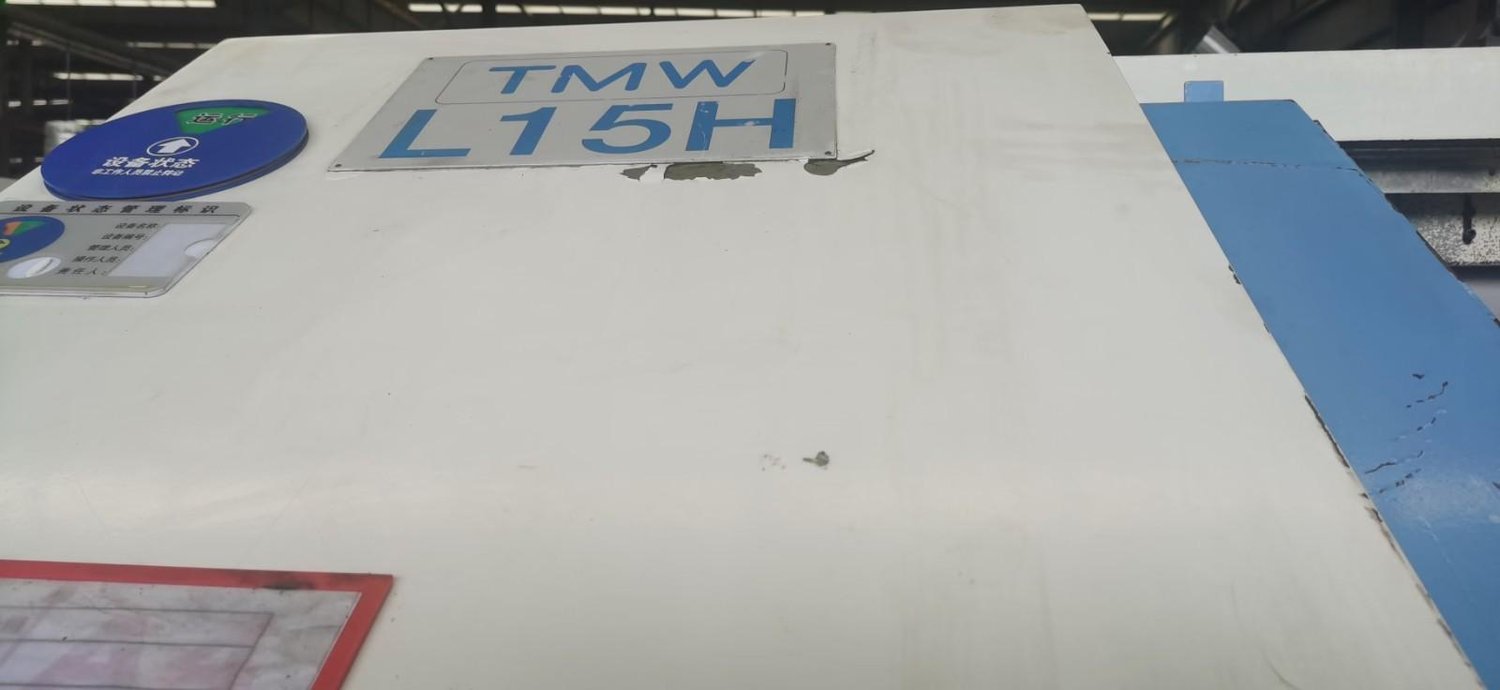

Takahashi TMW L15H CNC turning lathe

[Product Information]:

Maximum machining diameter: 42mm

X axis travel: 150mm

Z axis travel: 450mm

Spindle speed: 200-4000rpm

Square tool holder: 20mm

Fast moving rate: 24m/min

Main motor power: 7.5kw

Machine tool footage: 2290x1380x1575mm

Machine weight: 3200kg

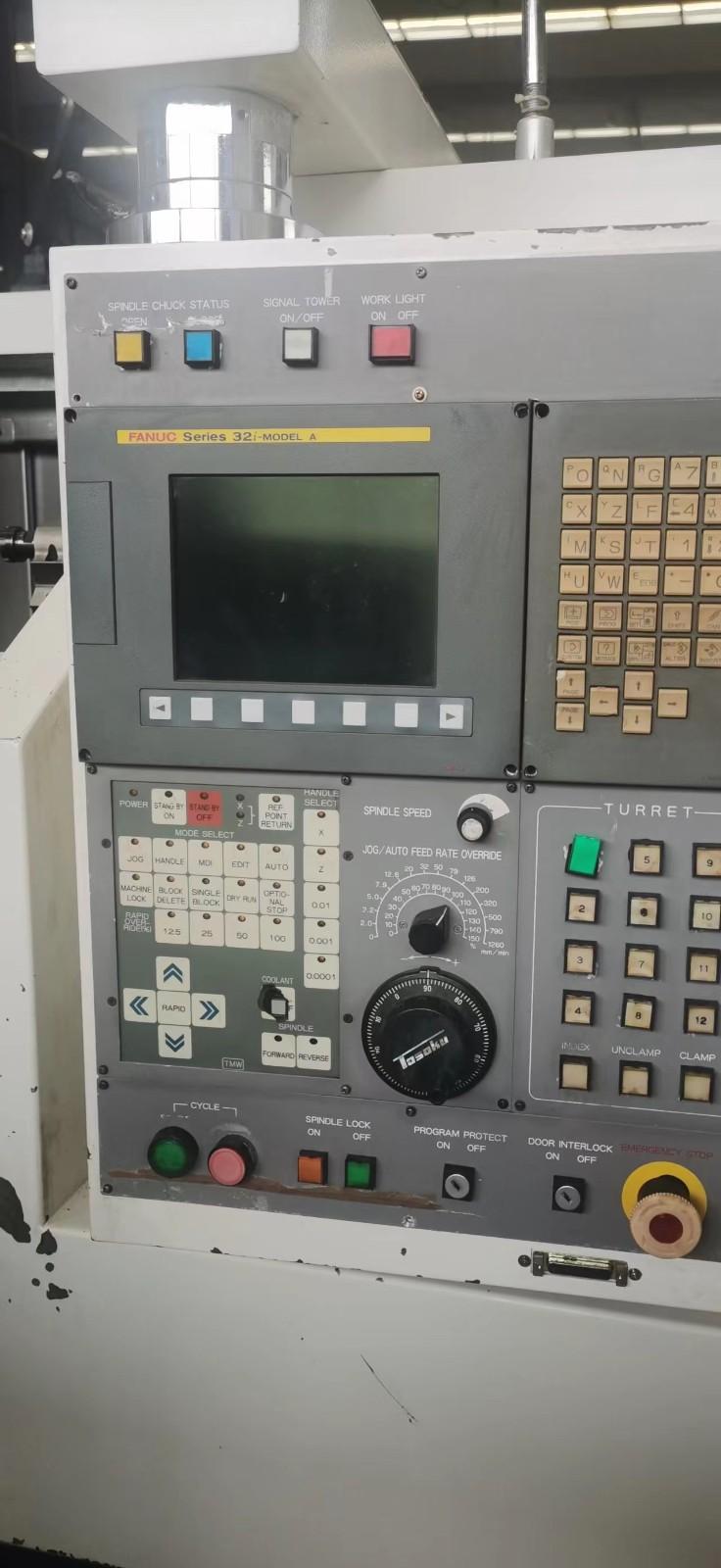

System: Fanuc 32i system

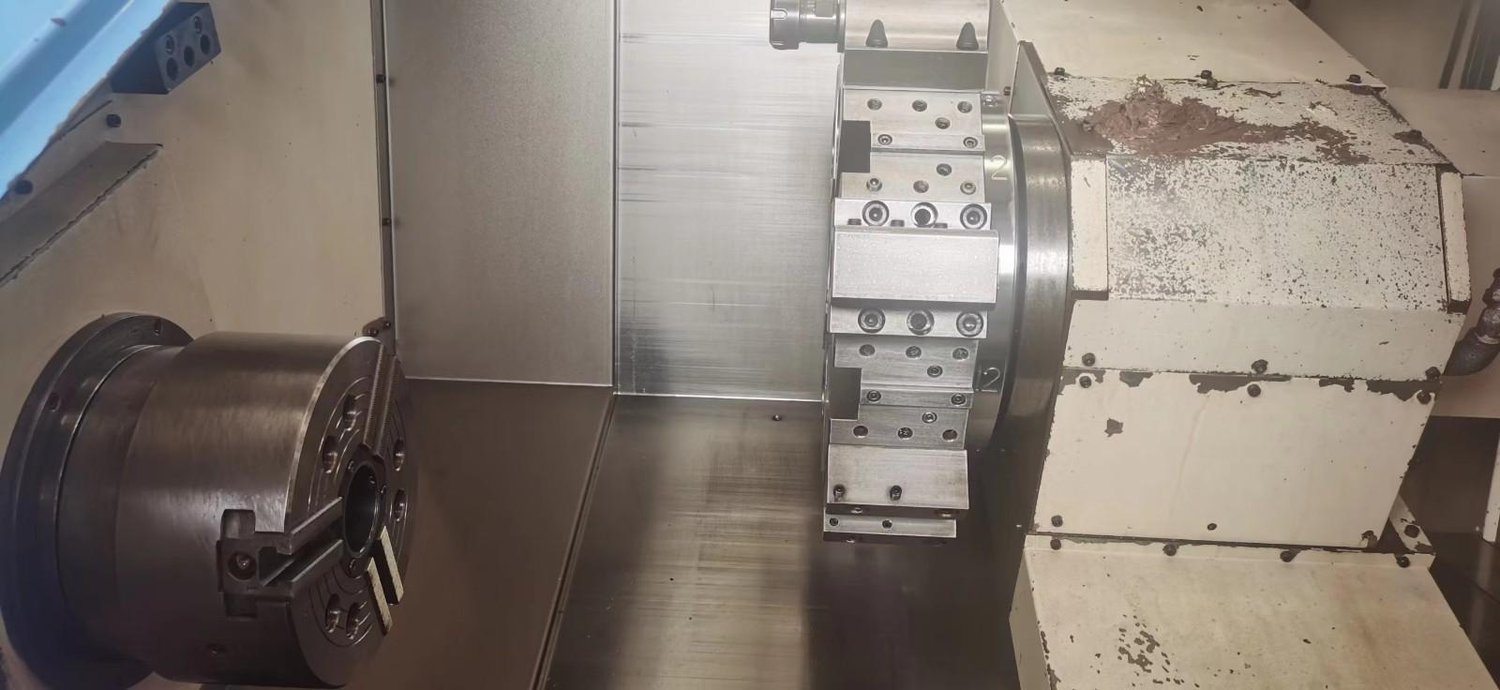

8-inch hollow chuck

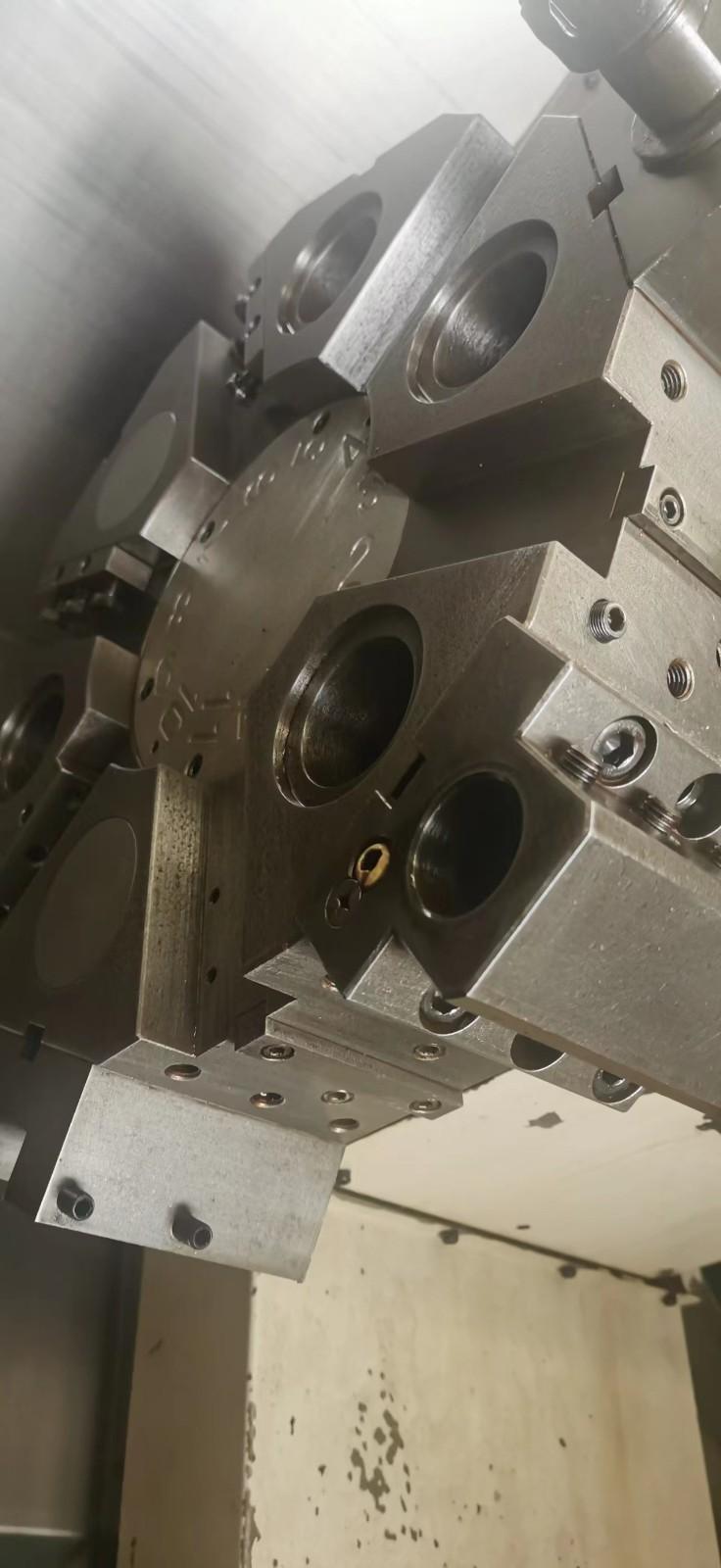

12 positions turret

Accuracy within 0.01mm
