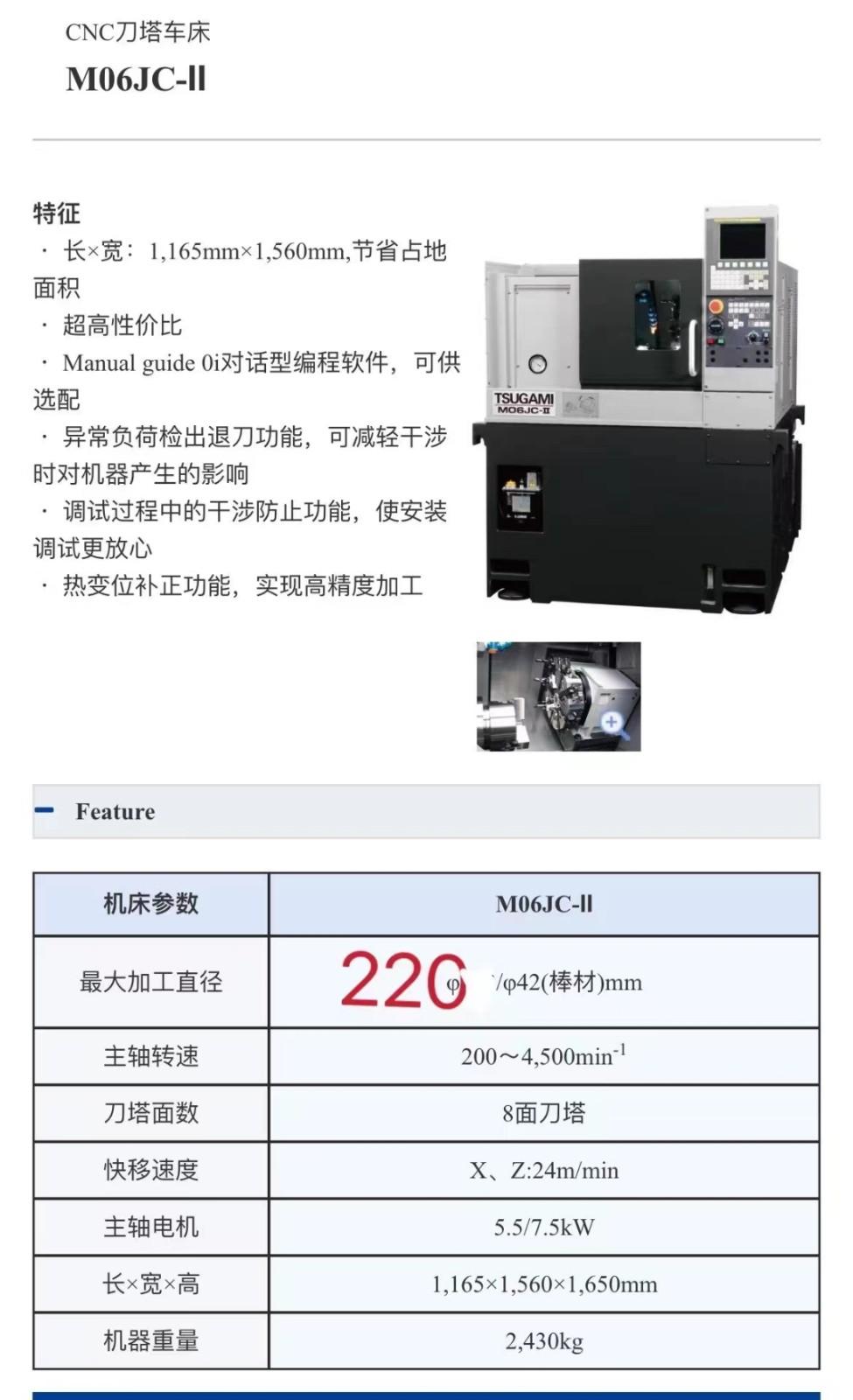

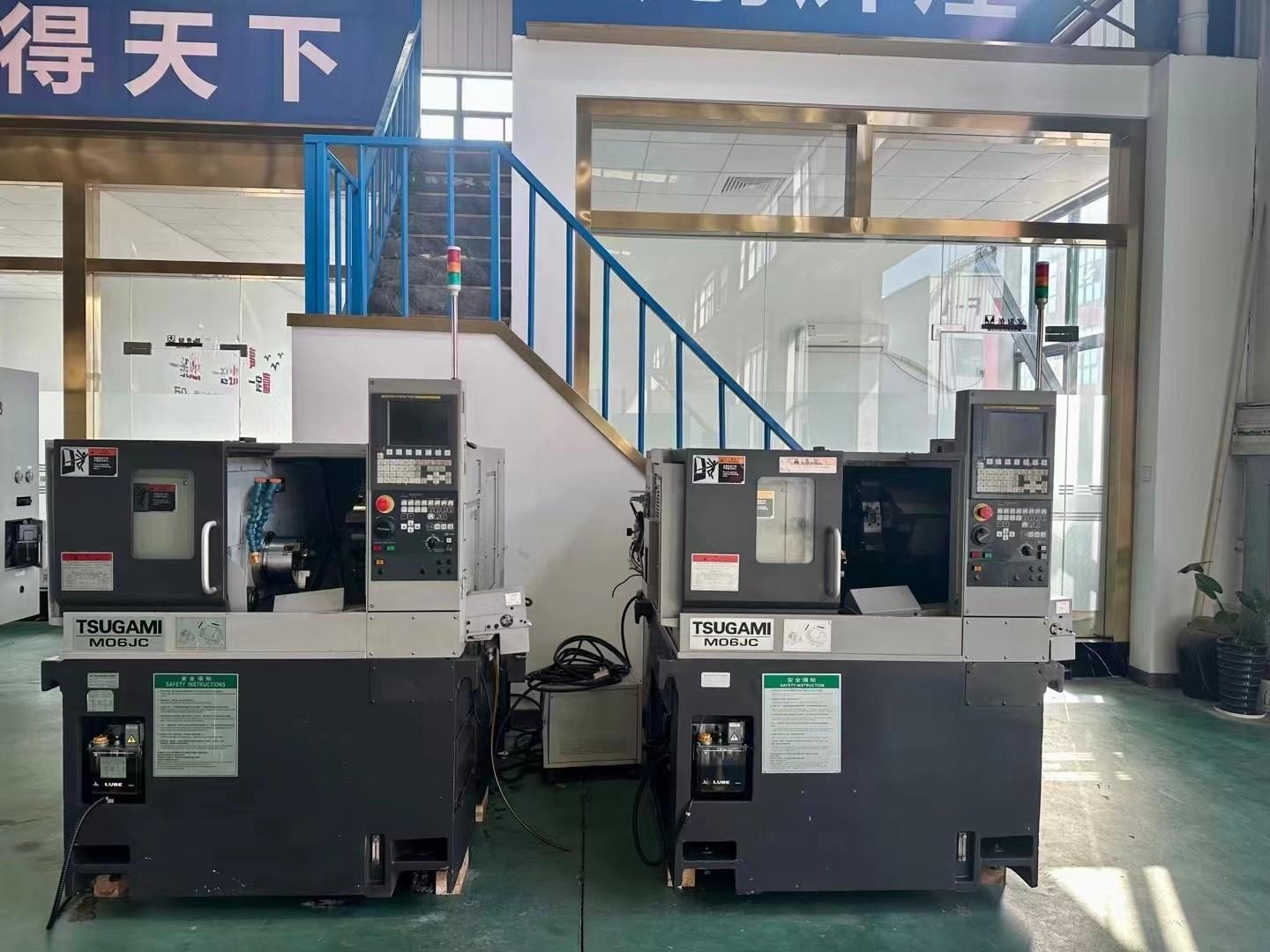

Tsugami M06JC Automatic lathe

X/Z axis travels 130/230mm

Maximum machining diameter   220mm

Maximum machining length   190mm

Spindle speed 200 ~ 4,500rpm

X/Z Fast moving rate  24/24 m/min

Spindle motor  5.5/7.5kW

Machine length * width * height  1165*1560*1650mm

Machine weight  2430kg

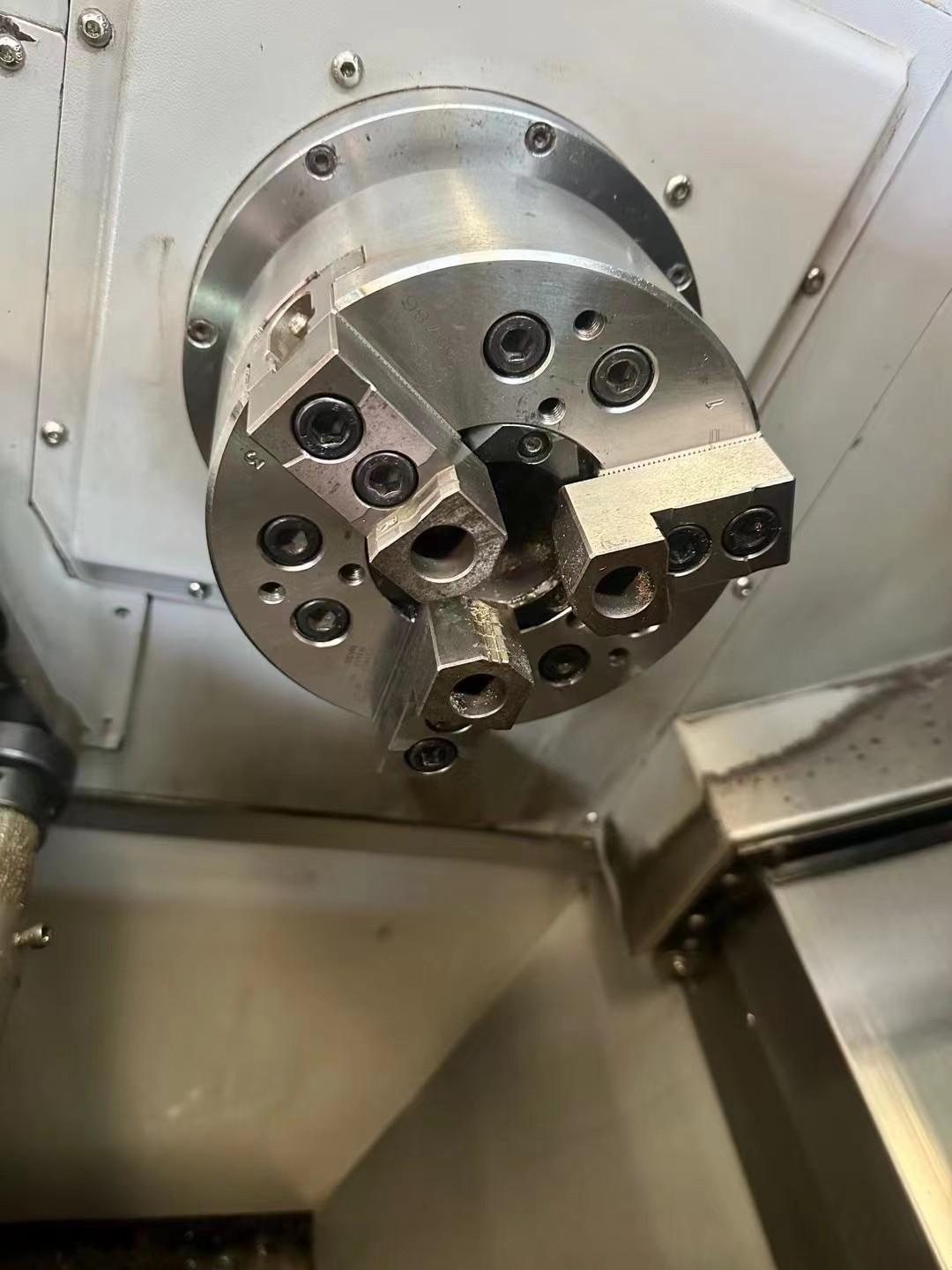

6" Taiwan CHANDOX chuck

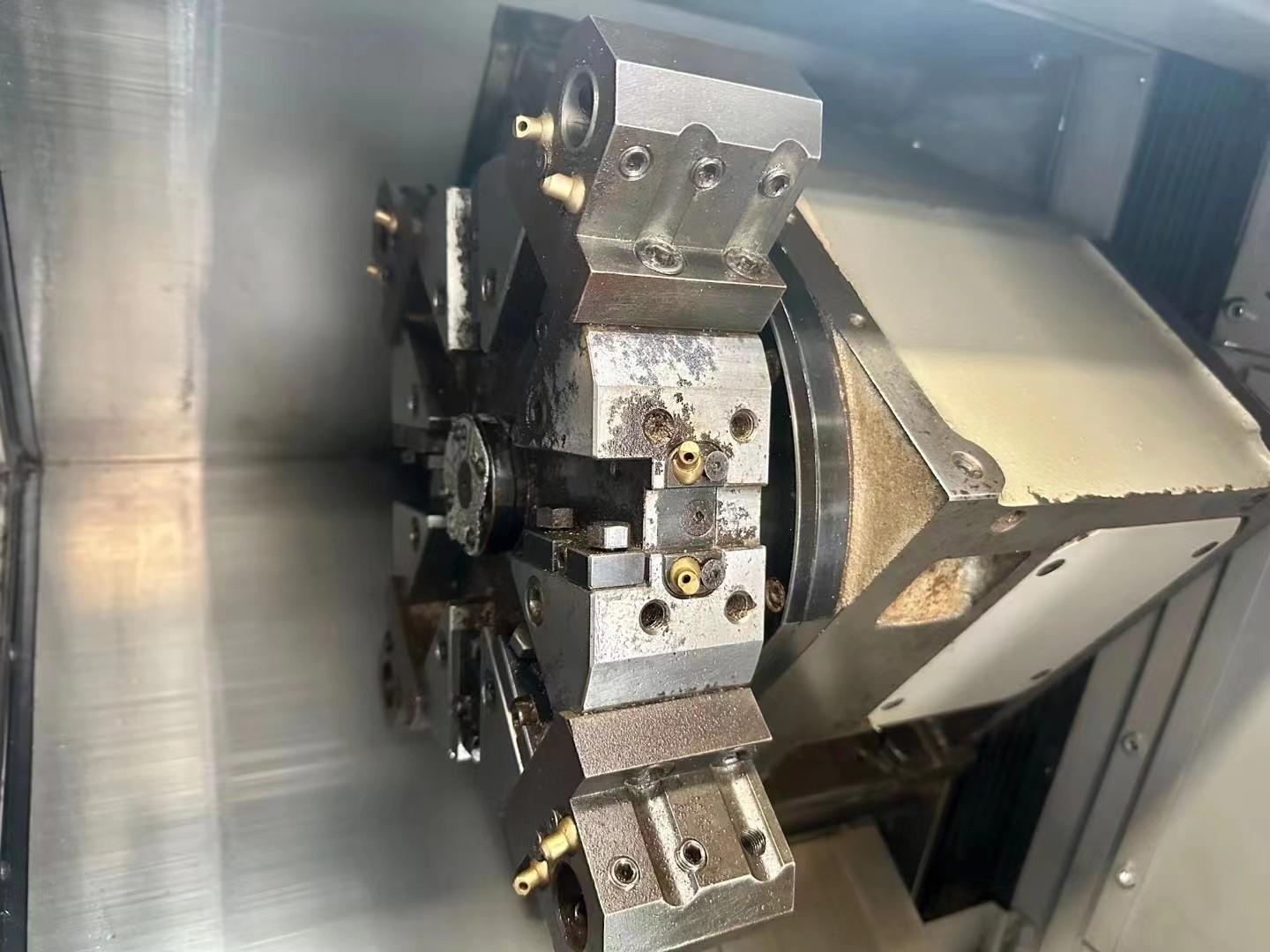

8 positions turret
