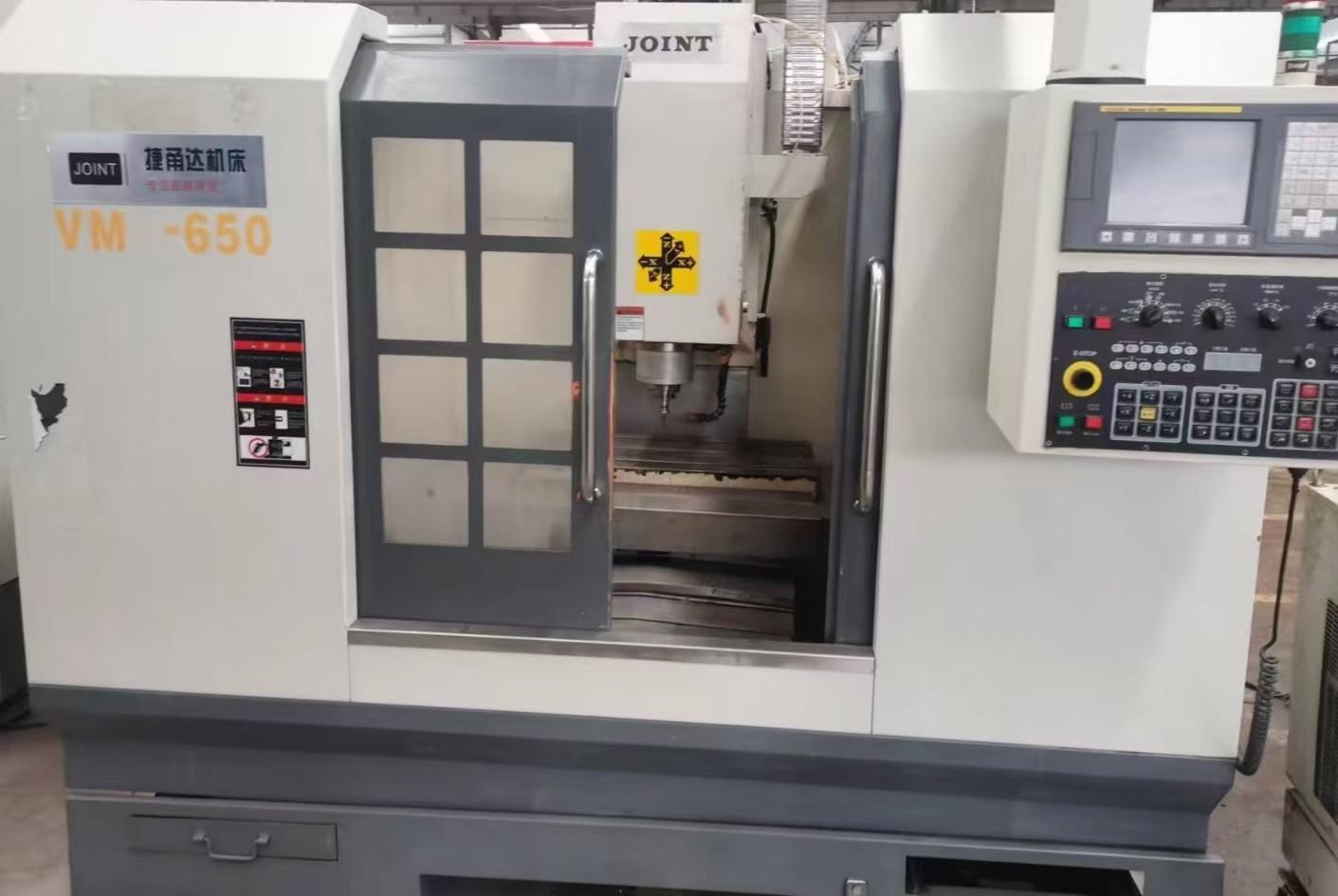

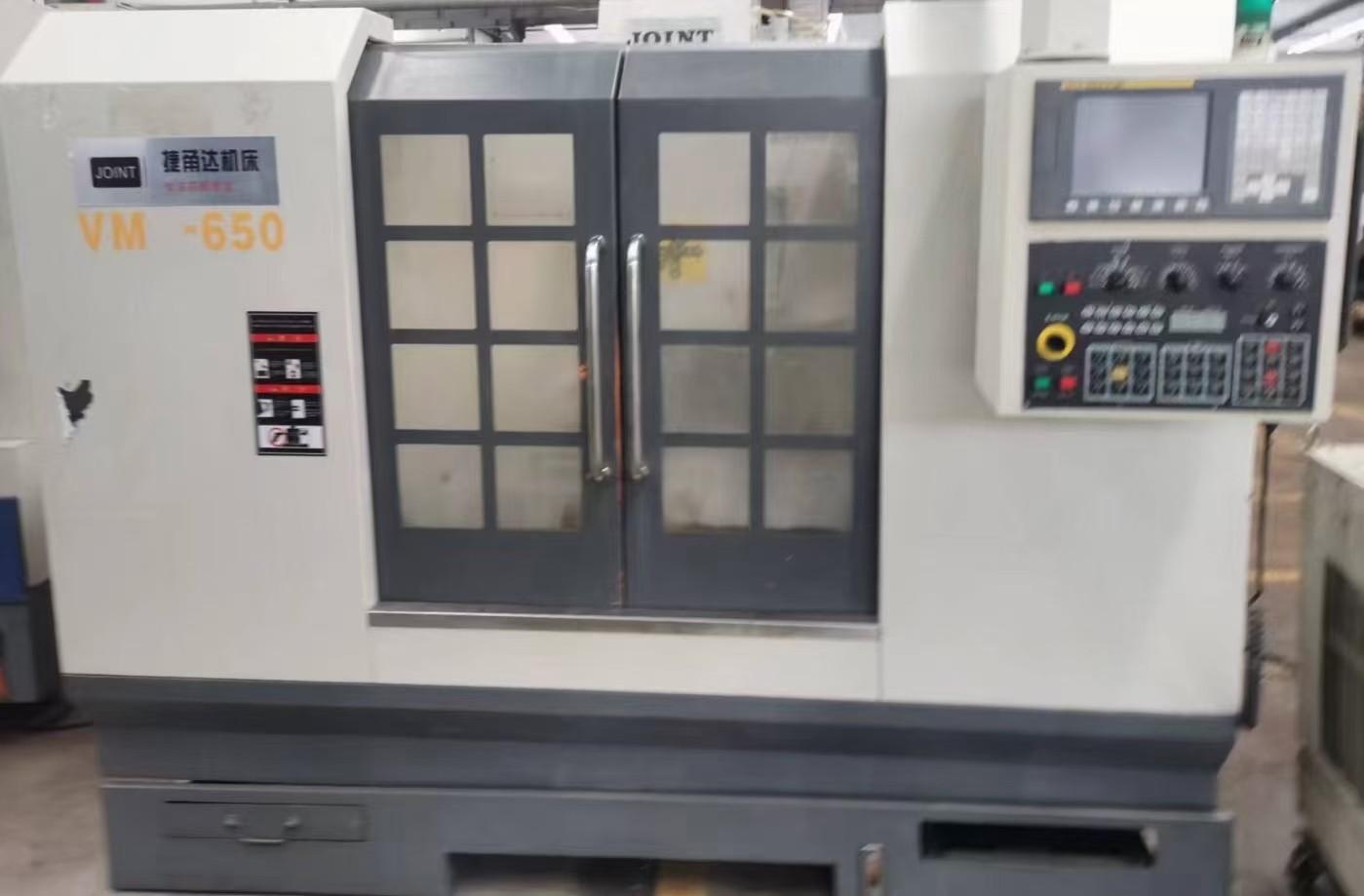

JOINT VM-650 Machining centre

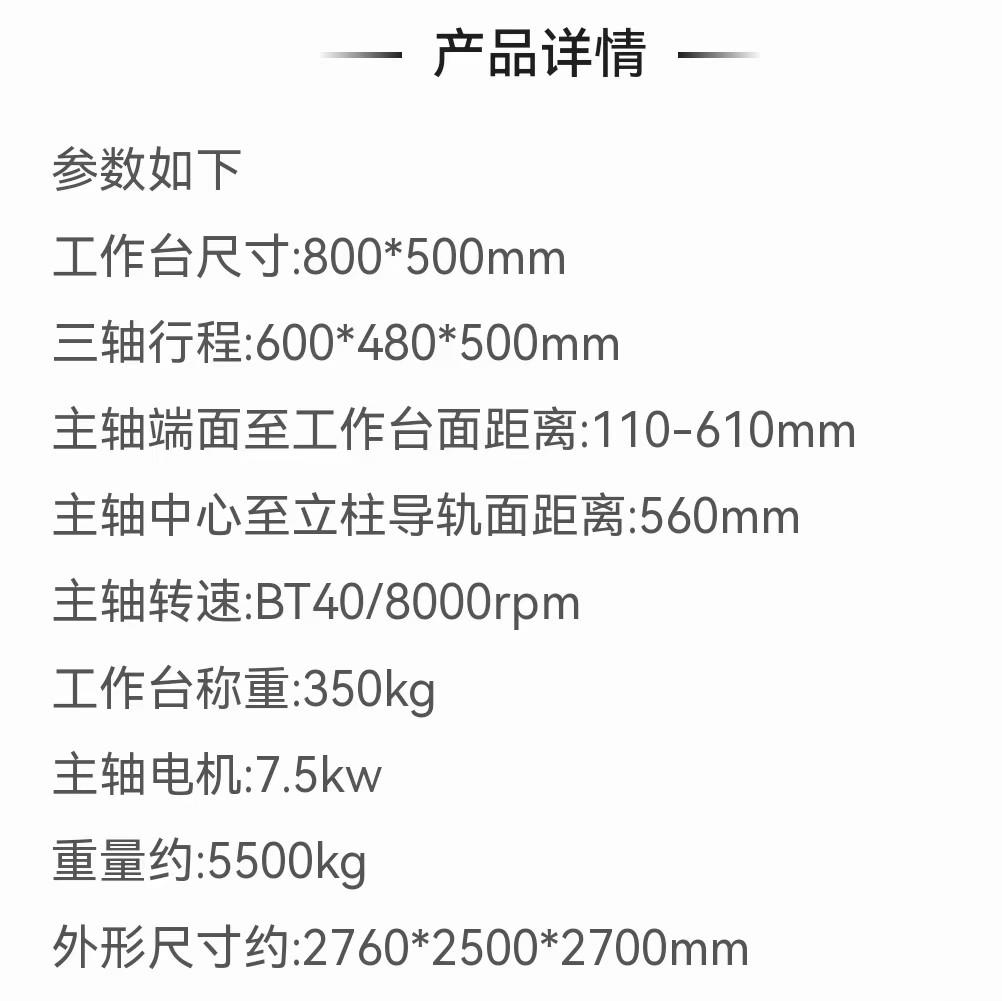

[Product Information]:

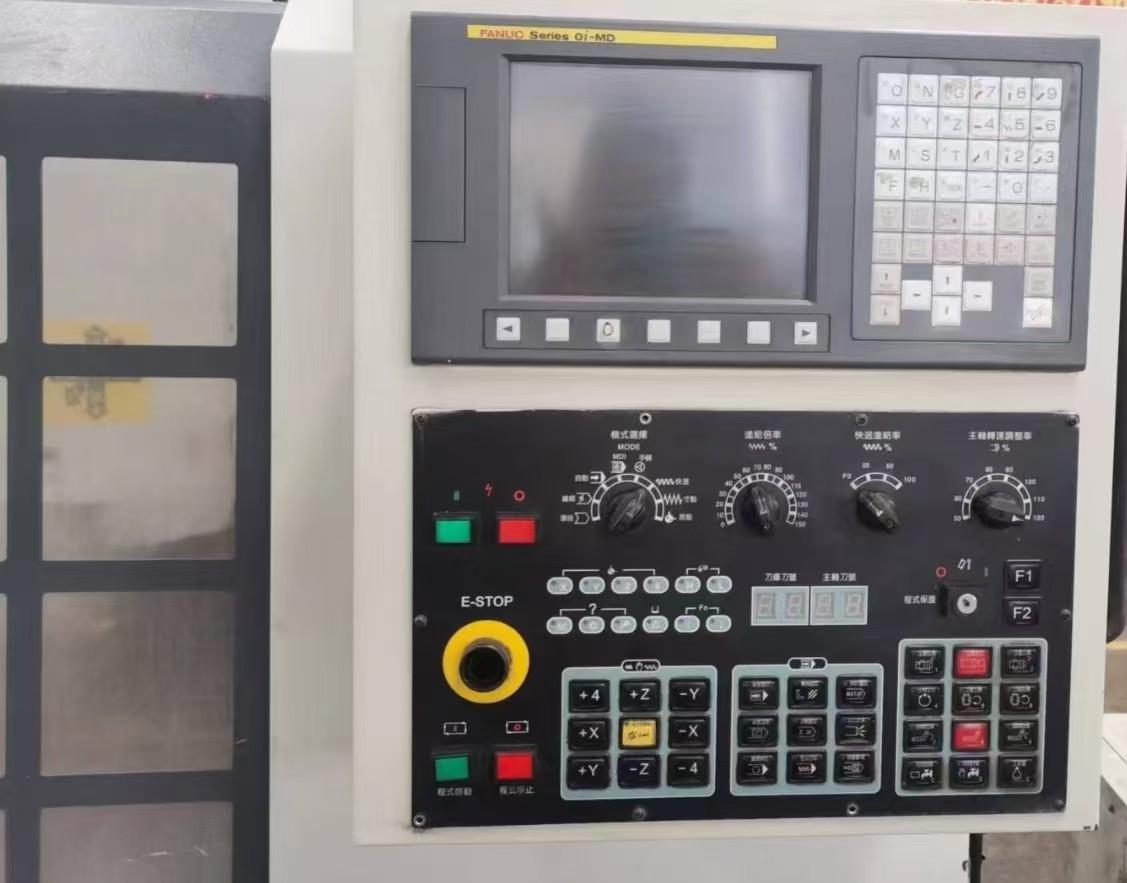

Fanuc Oi-TD system

Worktable size :800*500mm

Three-axis travel :600*480*500mm

Distance from spindle nose to worktable :110-610mm

Distance from spindle center to column guideway surface:560mm

BT40 spindle speed :8000rpm

Worktable load: 350kg

Spindle motor :7.5kw

Weight :5500kg

Footage :2760*2500*2700mm

Three axes rigid guideway
