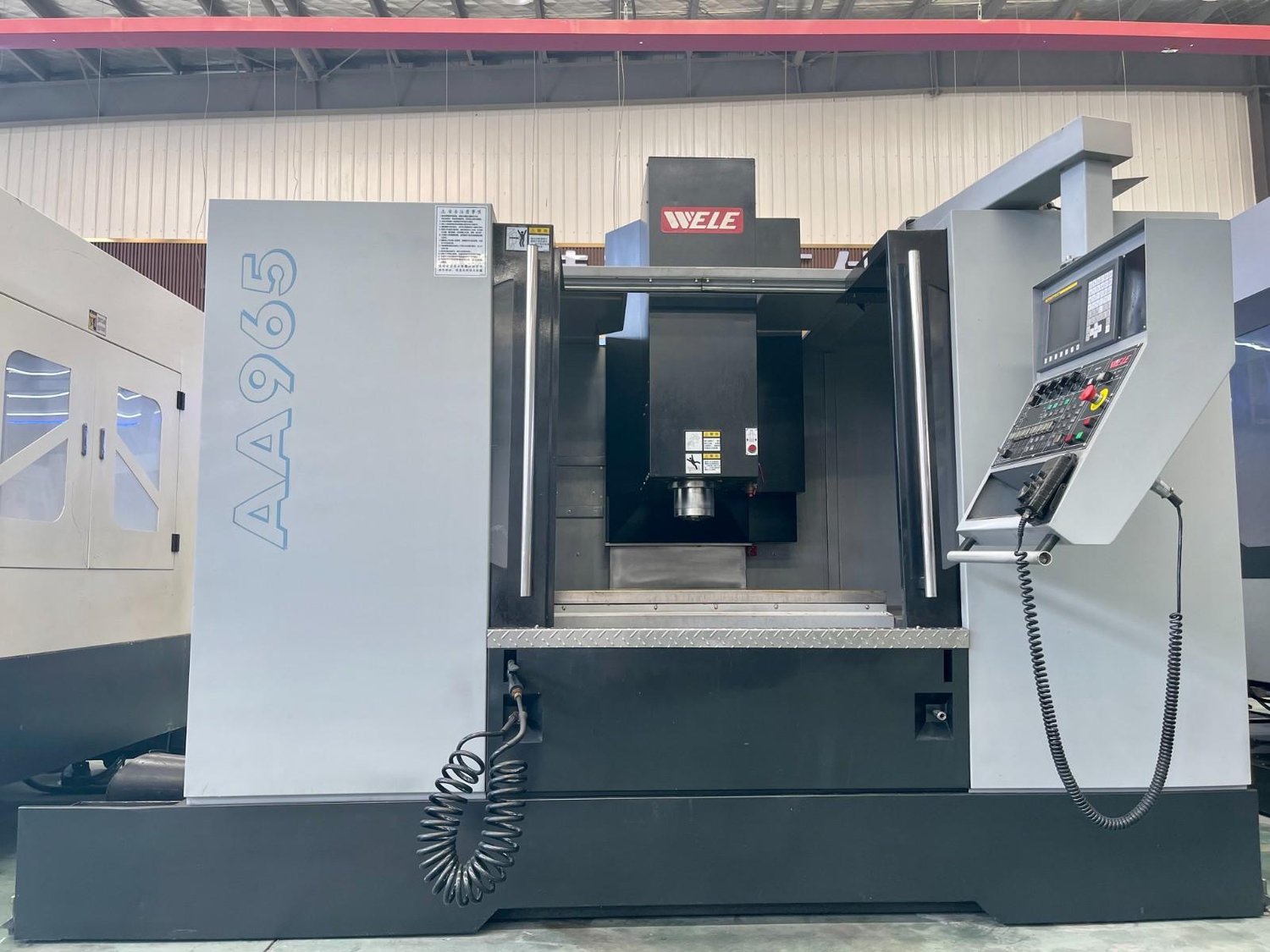

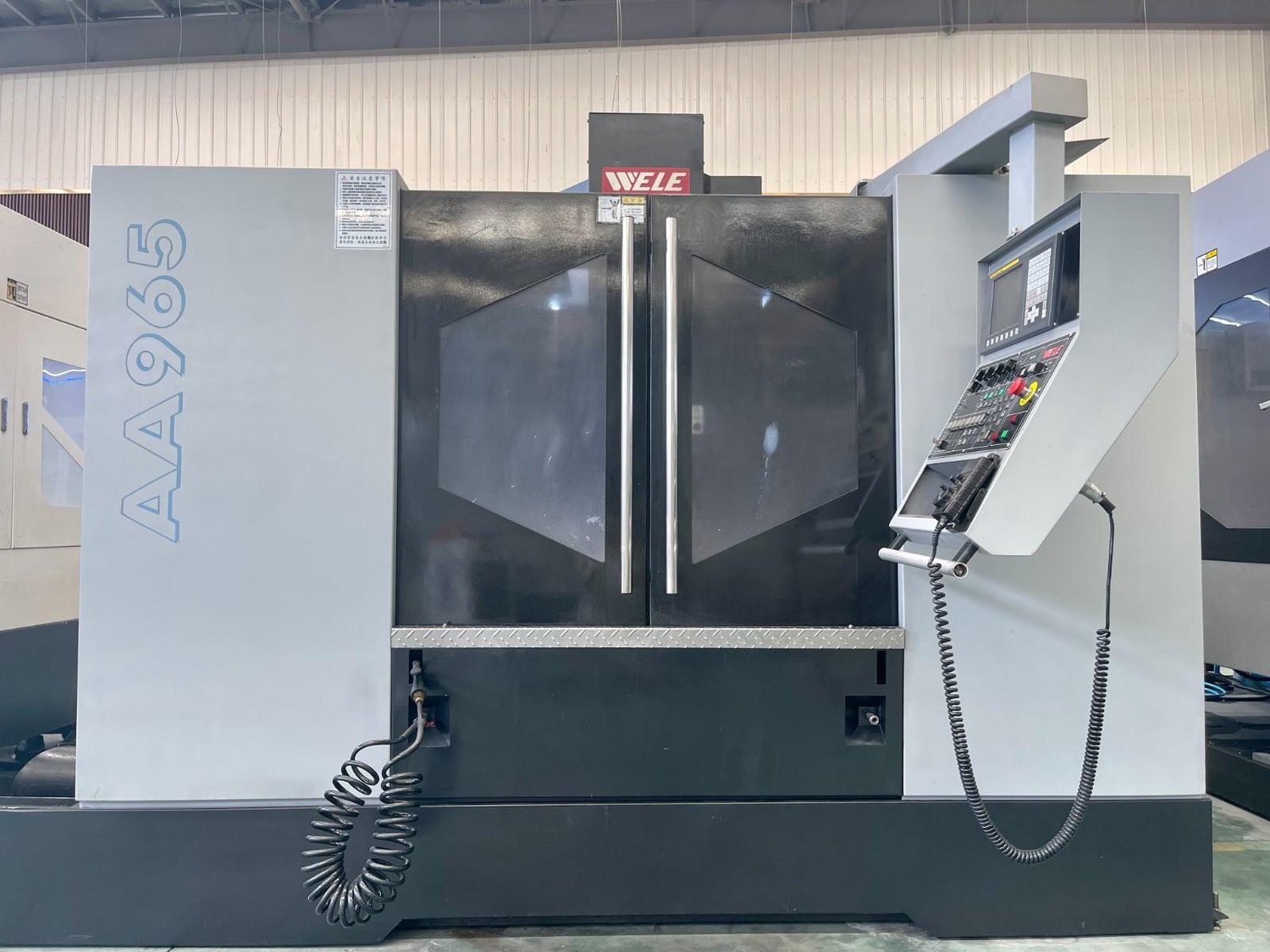

WELE AA965 CNC milling machine

X-axis travel  900mm

Y-axis travel  650mm

Z-axis travel  600mm

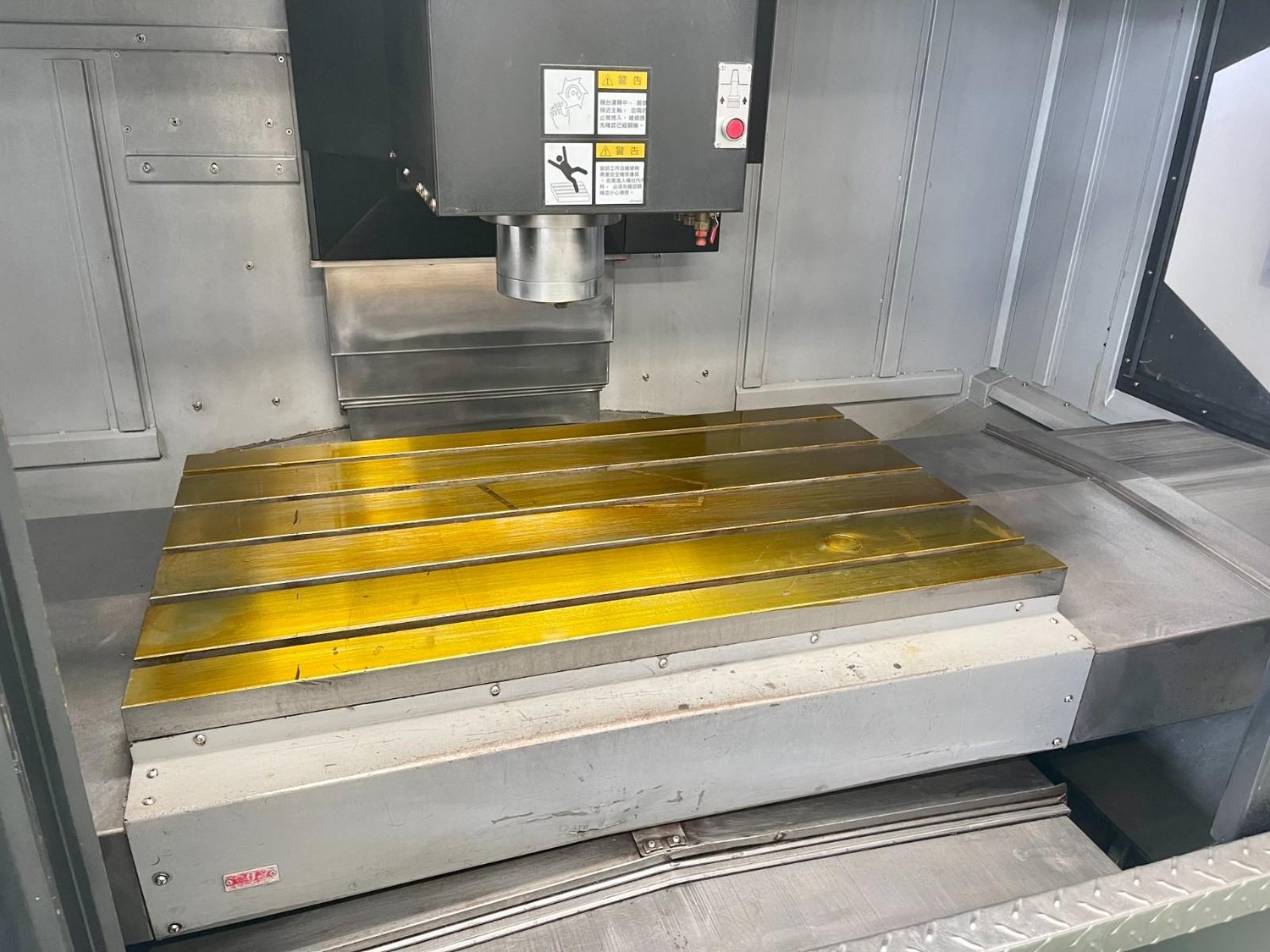

Worktable size (X x Y)  1100x650mm

Distance from spindle nose to worktable surface  125-725mm

Maximum worktable load  900kg

Height from worktable to ground  900mm

Belt type spindle speed   8000rpm

Spindle power (continuous /30 min) 7.5/11kw

Spindle taper  BT-40

Spindle torque (continuous /30 minutes)  48/70Nm

Fast feed rate(X/Y/Z)  24/24/20mm/min

Cutting feed rate  10mm/min
