Okuma MB-56VB-R Machining centre

X axis travel :1050mm

Y-axis travel :560mm

Z-axis travel :460mm

Minimum distance from spindle nose to worktable :140mm

Maximum distance from spindle nose to worktable: 600mm

X/Y/Z axes cutting feed rate: 20m/min

X/Y/Z axes fast moving rate: 30m/min

Worktable clamping size :1300 x560mm

Maximum workpiece weight: 1000Kg

Maximum speed: 6000rpm

Main power: 11kw

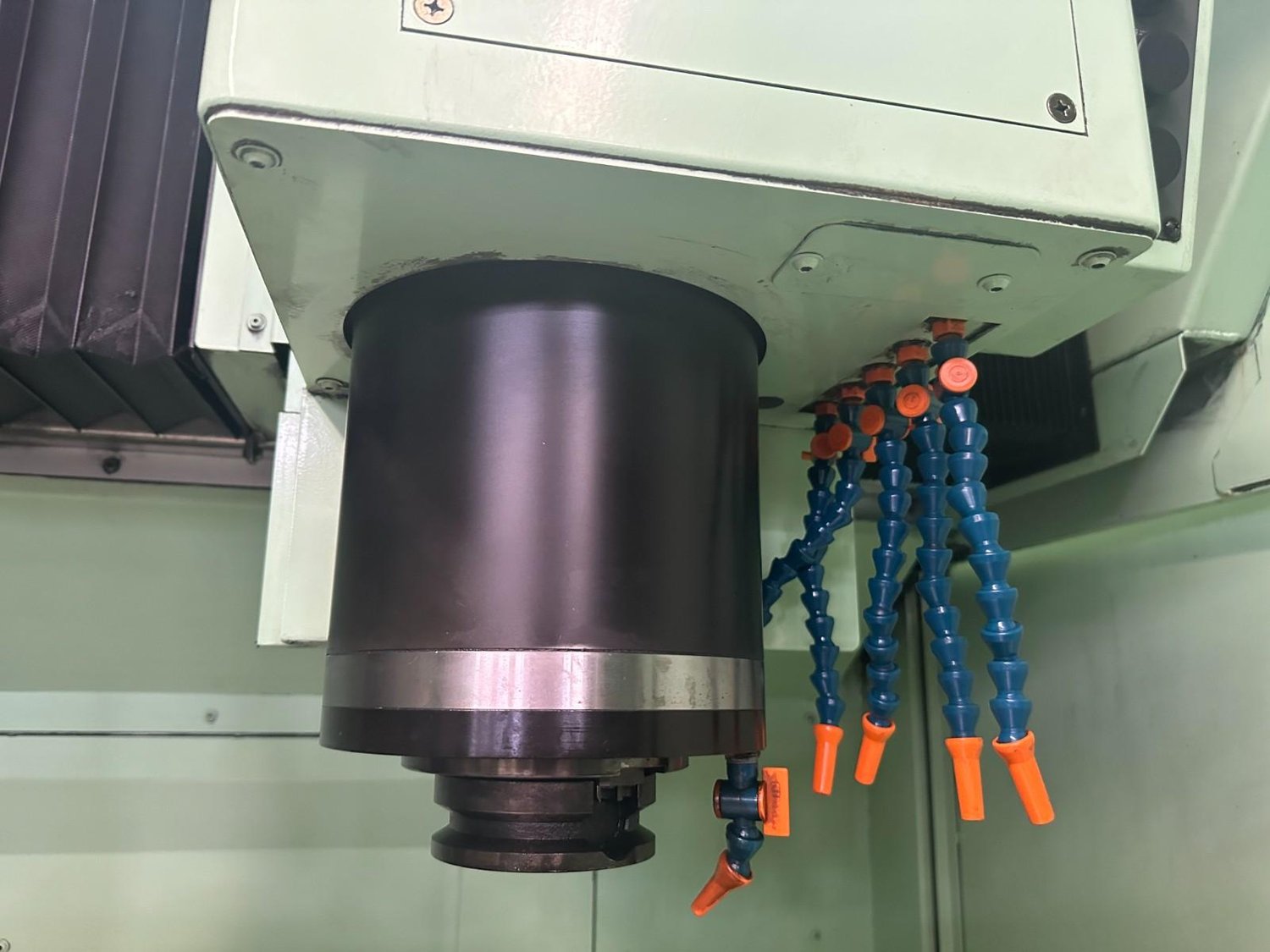

Spindle type :BT50
