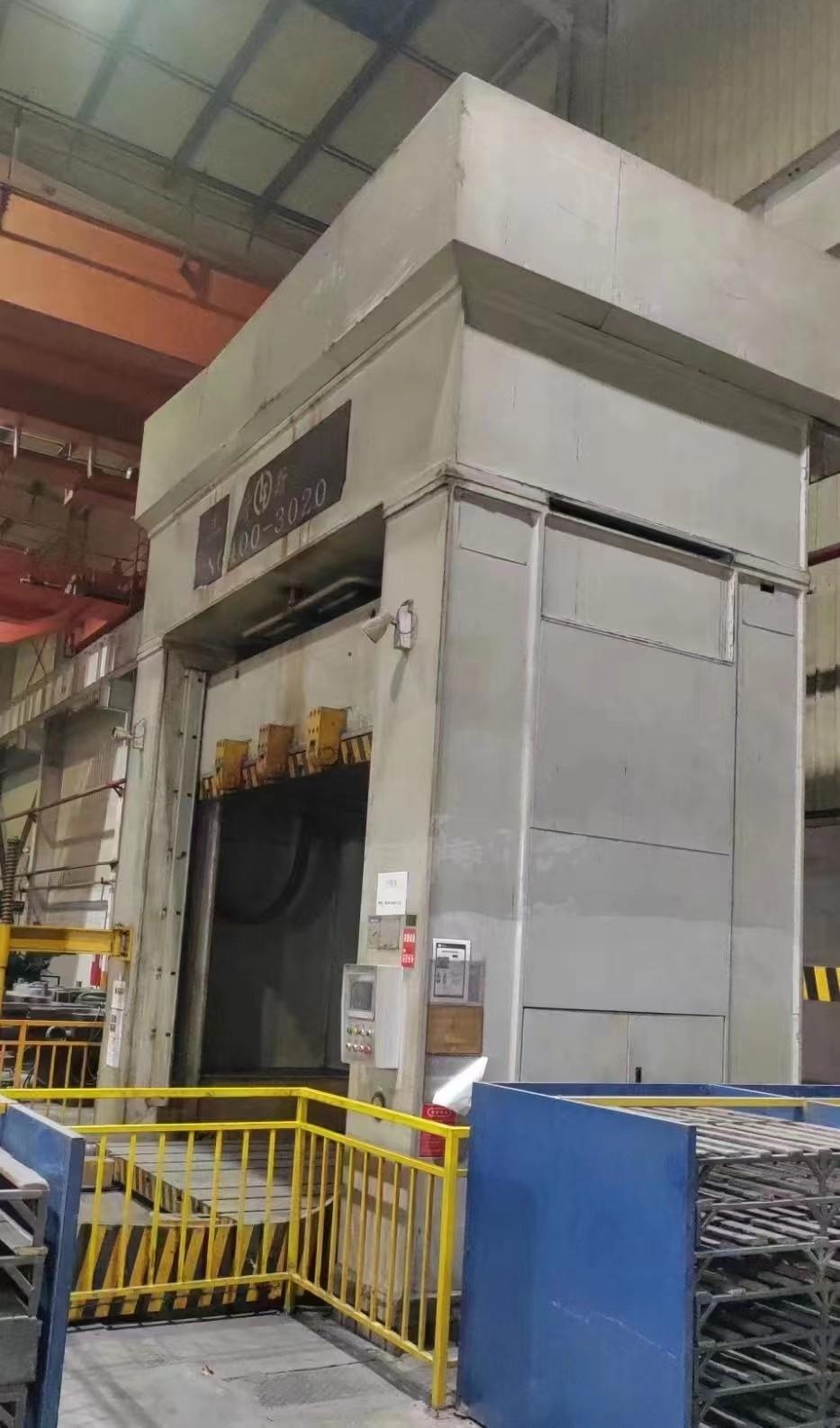

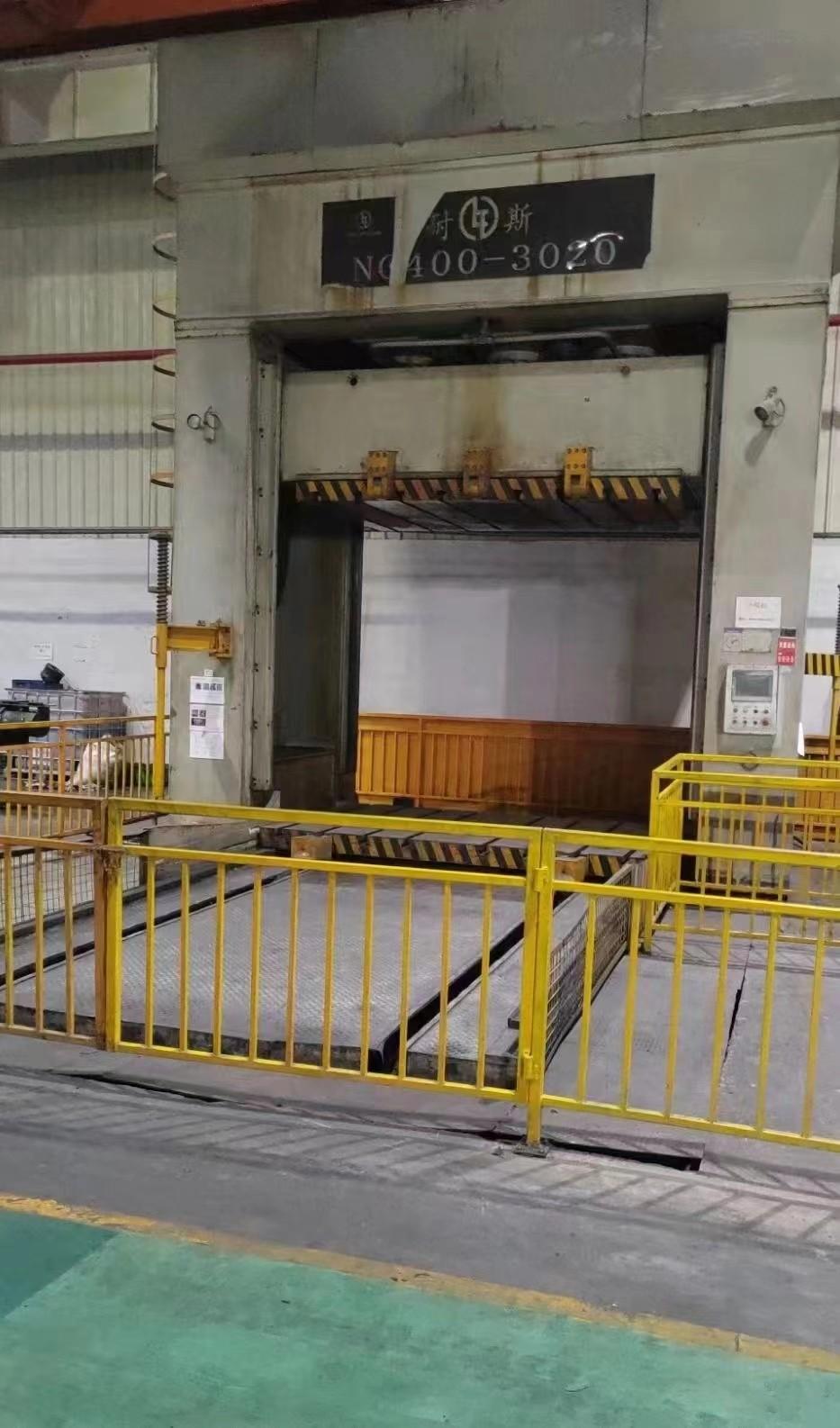

NICE NC 400-3020 Automatic lathe

Maximum pressure capacity   400(T)

Maximum lifting capacity   100(T)

Maximum main oil cylinder travel  2400(mm)

Opening space   2600 ± 50 (mm)

Overturn angle   0-180 °

Maximum mould size   3000*2000(mm)

Floor area  7500*6000(mm)

Rapid upward/downward speed   80 + 10 (mm/s)

Slow upward/downward speed   25(mm/s)

Upper worktable load  18(t)

Lower Upper worktable load  35(t)

Ejecting capacity   15(t)

Ejection travel   200(mm)

Motor power   37(KW)

Lower worktable shift-out travel   4400(mm)

Machine weight   80(t)
