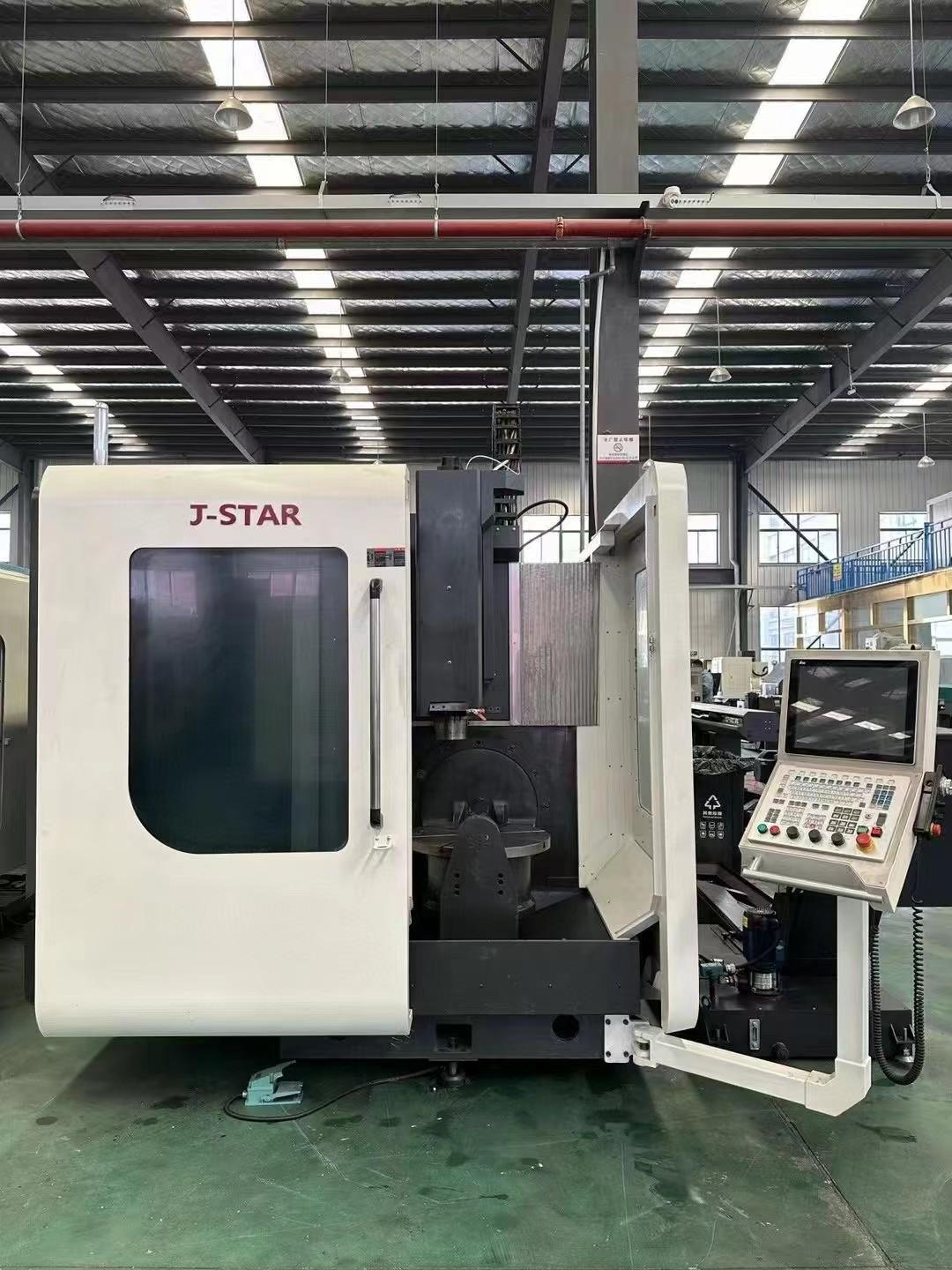

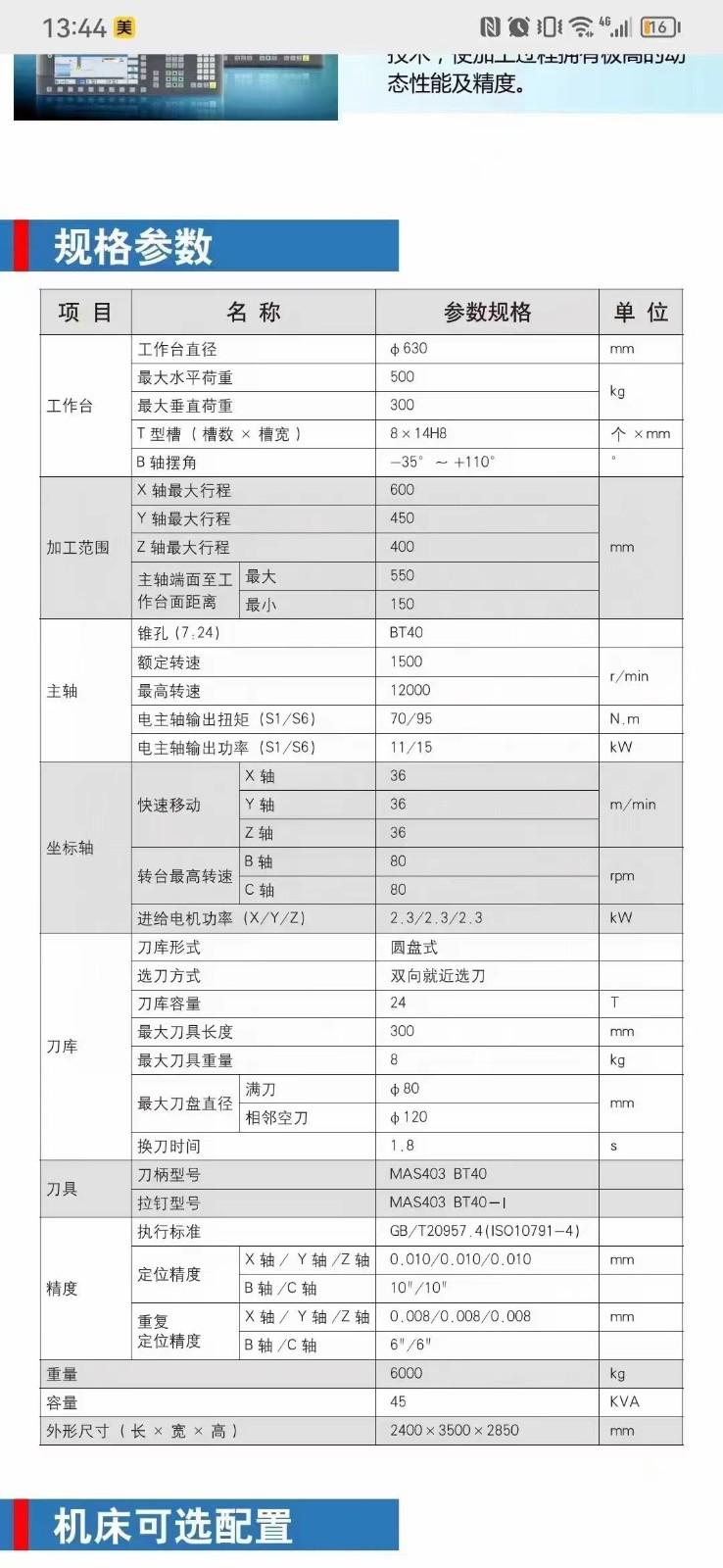

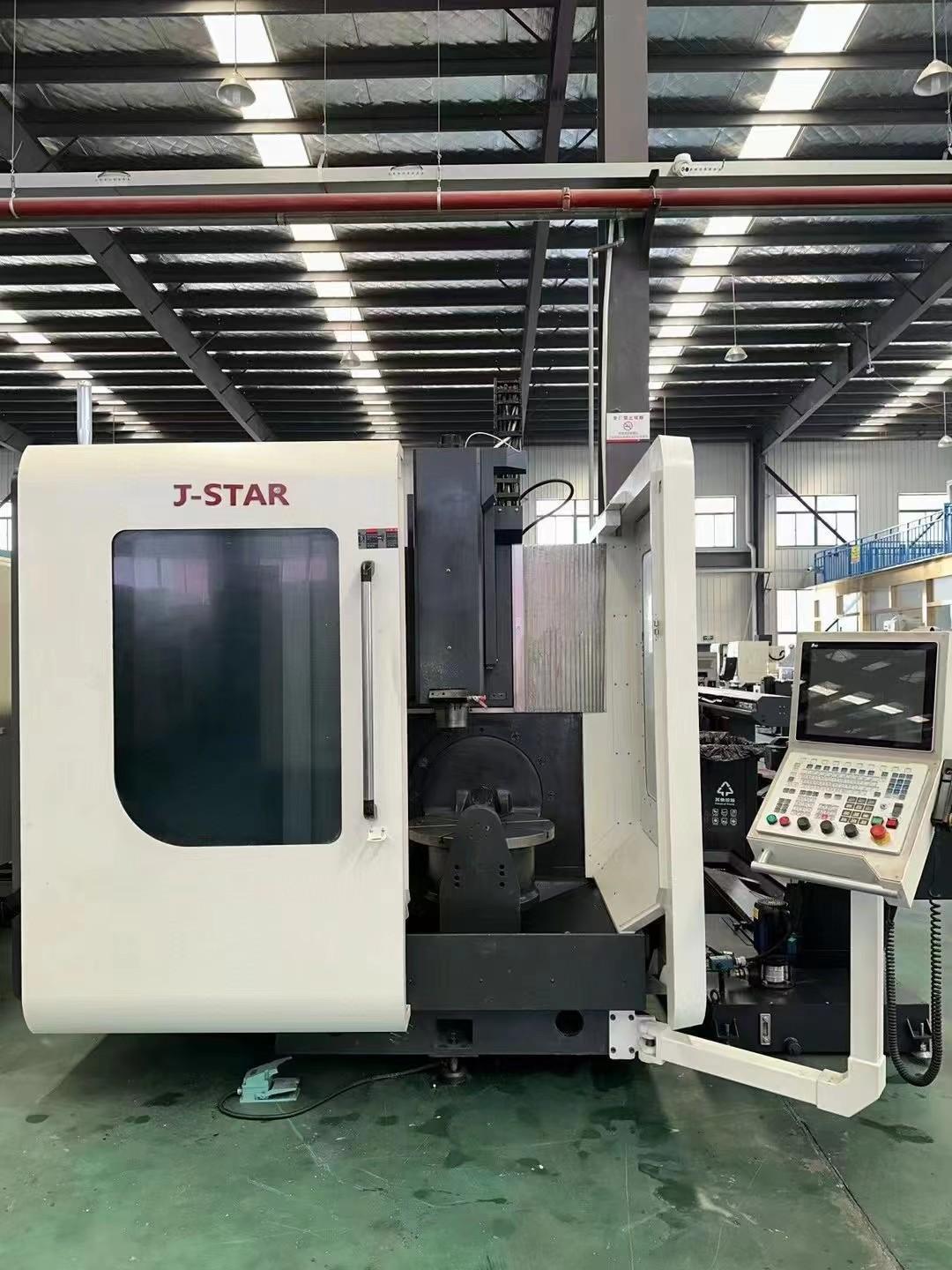

J-STAR V5-630B 5 axis machining centre

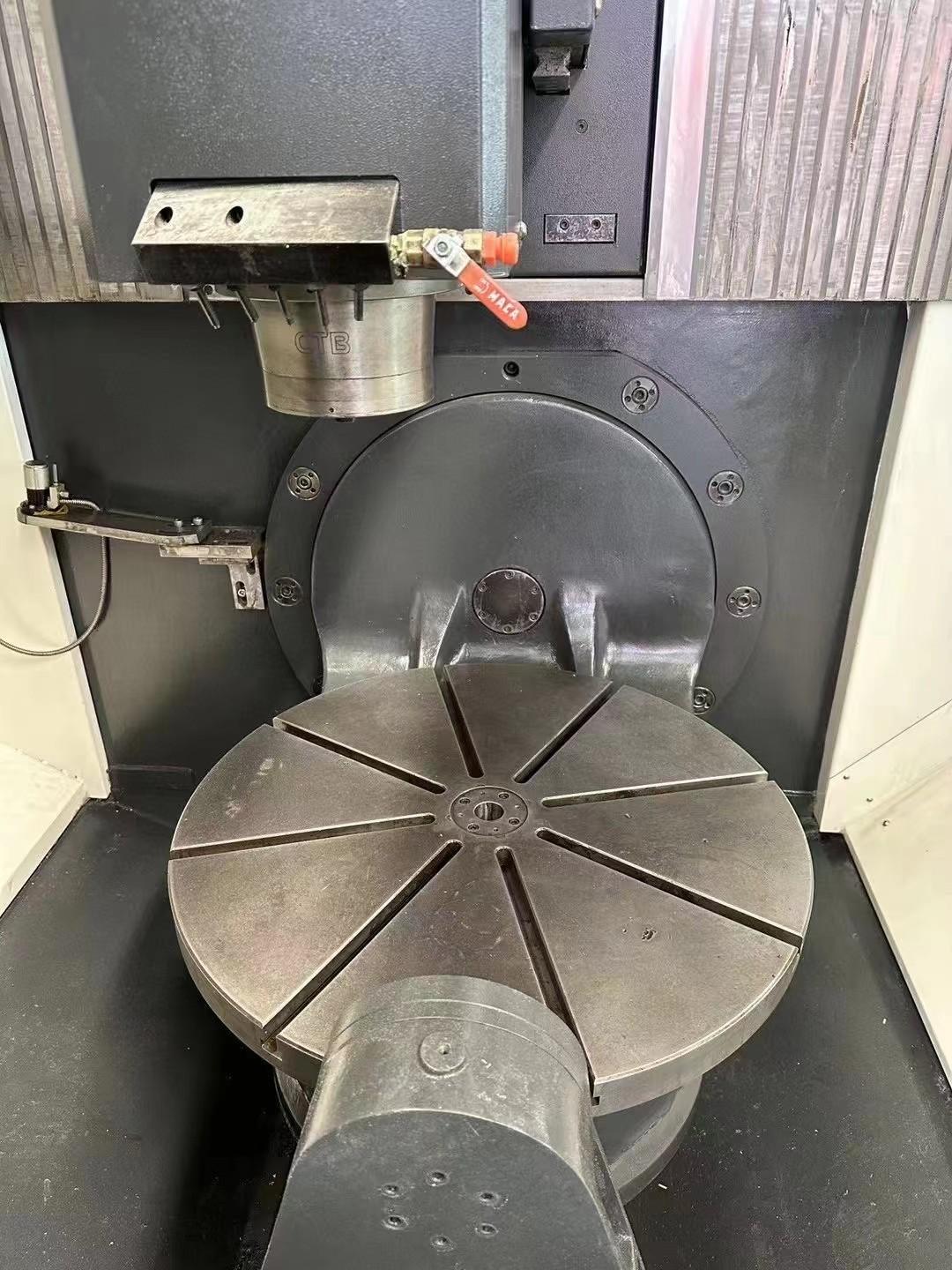

Worktable diameter   630mm

Maximum worktable horizontal load  500kg

Maximum worktable vertical load  300kg

T-slot (slot number x slot width)    8x14H8mm

B axis swing angle   - 35 ° ~ 110 °

X/Y/Z axes travel   600/450/400mm

Distance from spindle nose to worktable surface   150~550mm

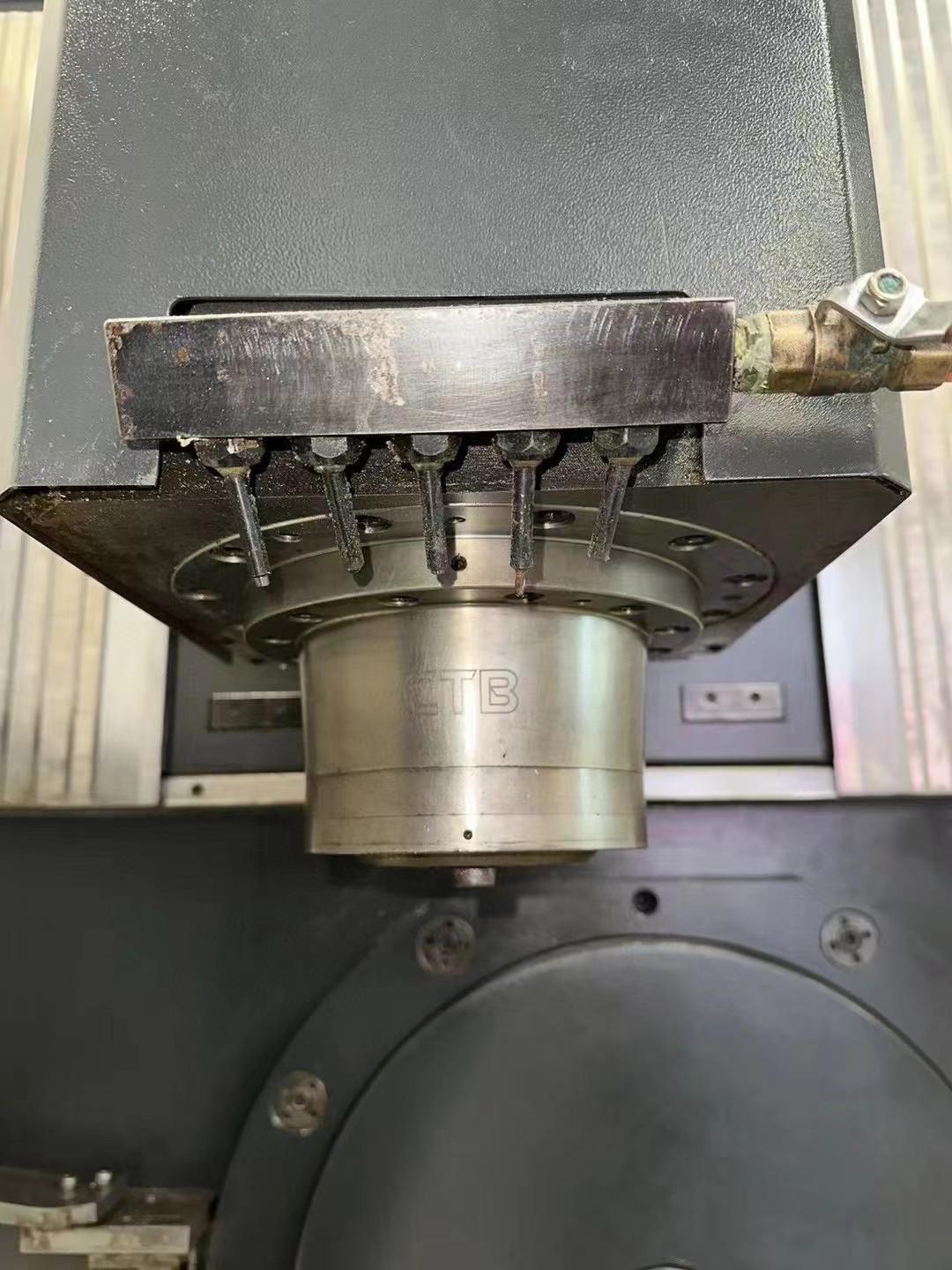

Spindle type   BT40

Rated spindle speed   1500rpm

Maximum spindle speed   12000rpm

Motorized spindle output torque (S1/S6)  70/95Nm

Motorized spindle output power (S1/S6) 11/15kW

X/Y/Z axes fast feed rate  36/36/36m/min

Maximum rotary worktable speed (B/C axis) 80/80rpm

Feed motor power (X/Y/Z)  2.3/2.3/2.3 kW

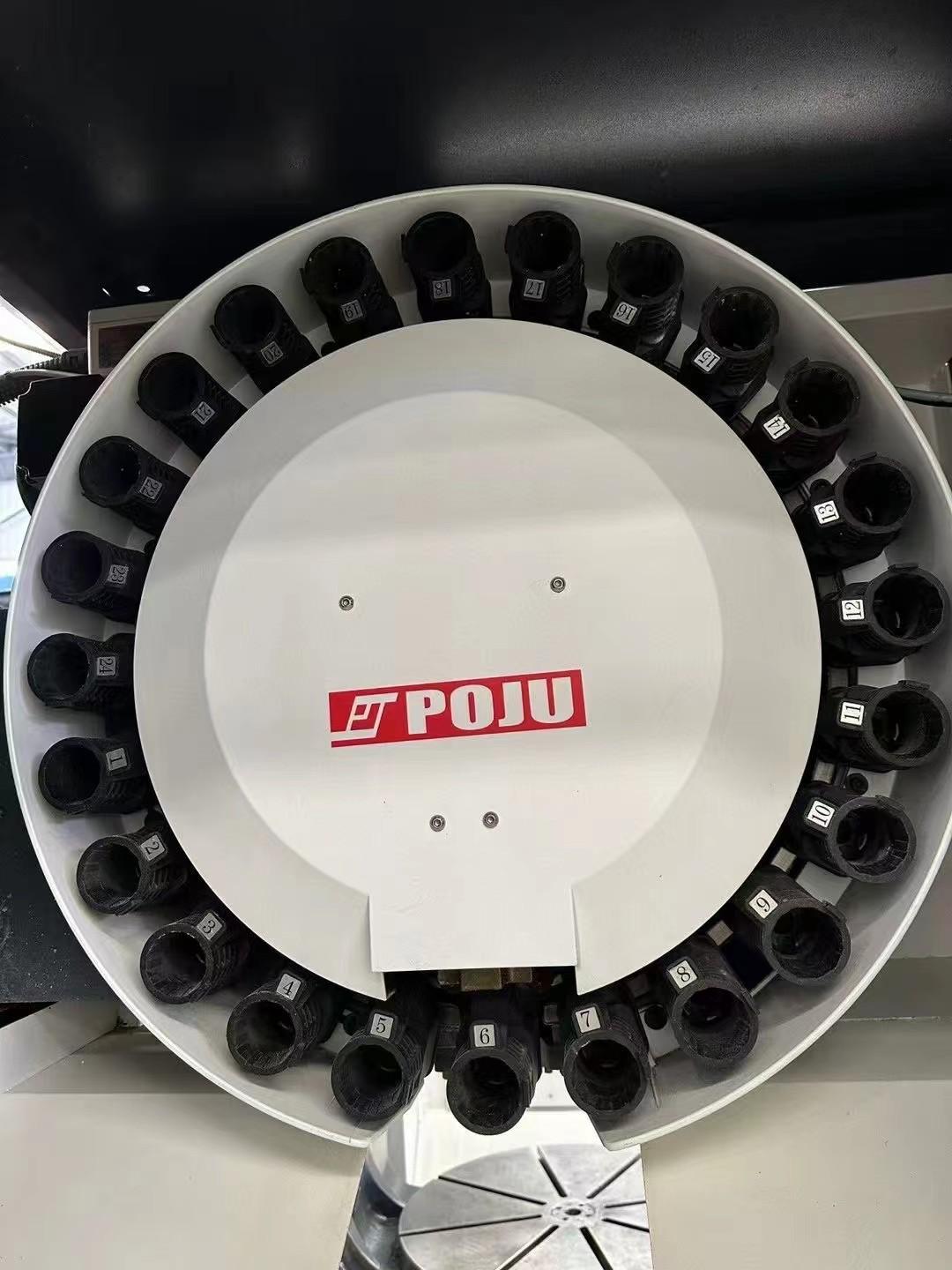

Tool magazine capacity   24

Maximum tool length   300mm

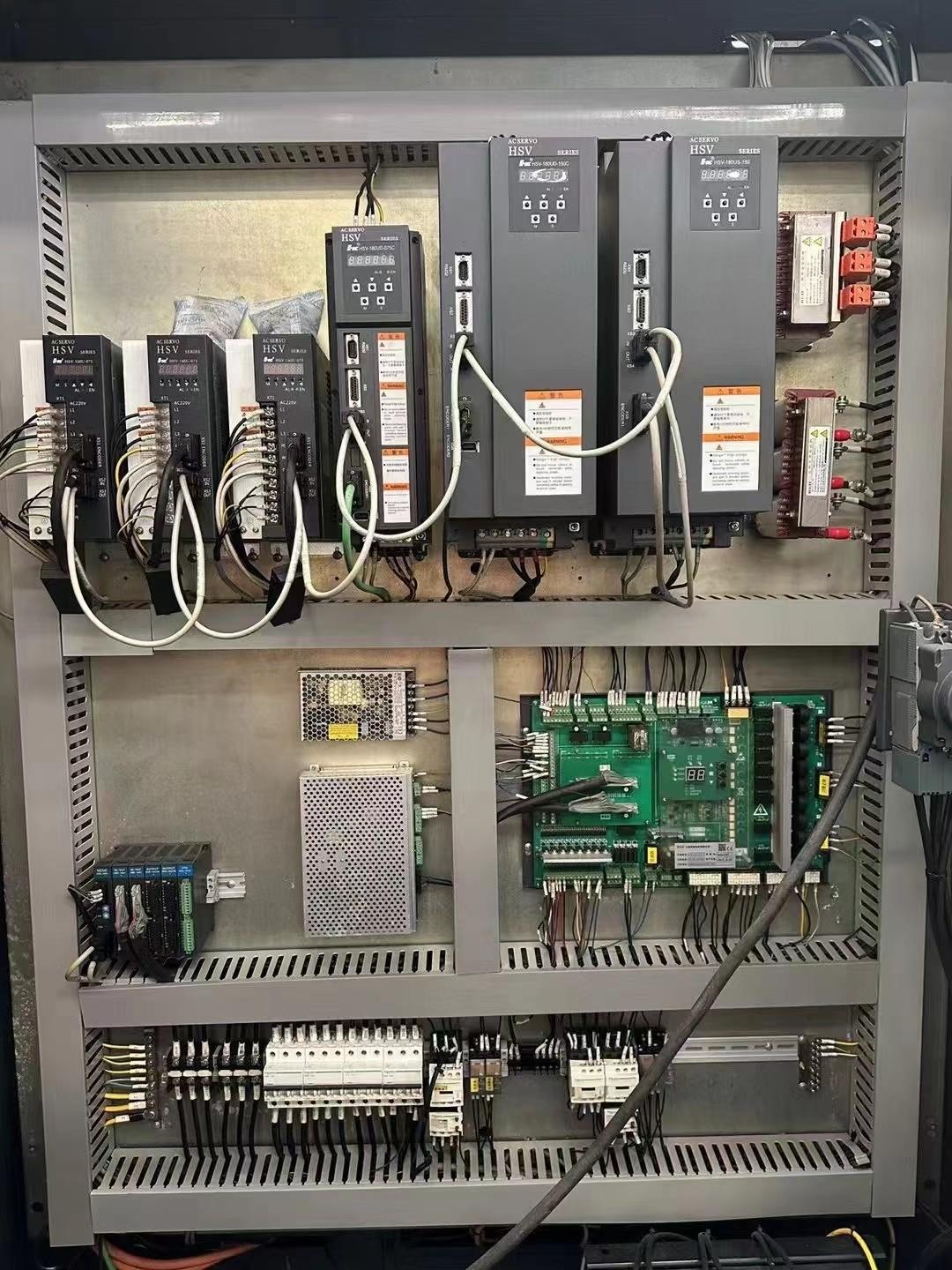

HNC system

Used for 1900 hours

Accuracy same as new machine
